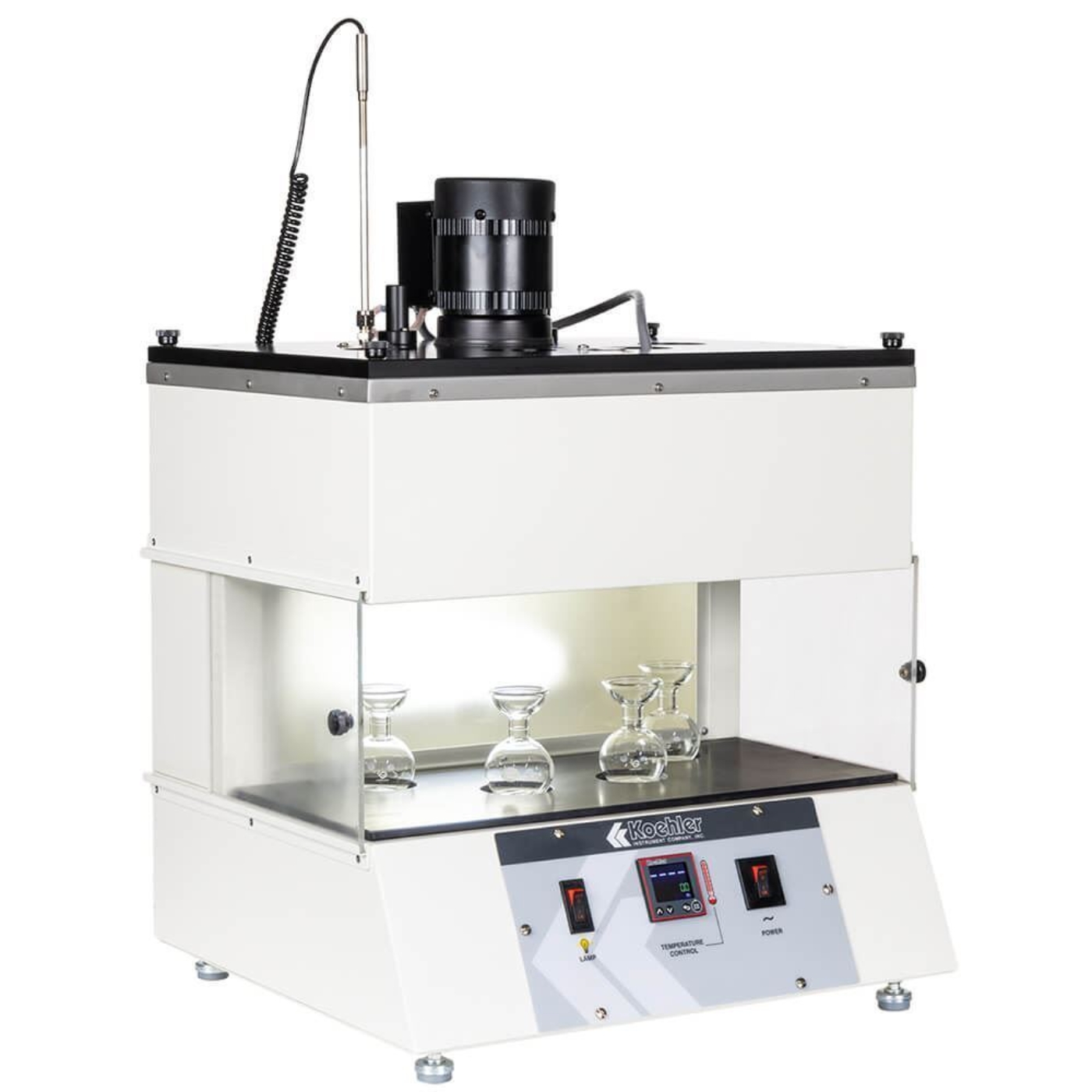

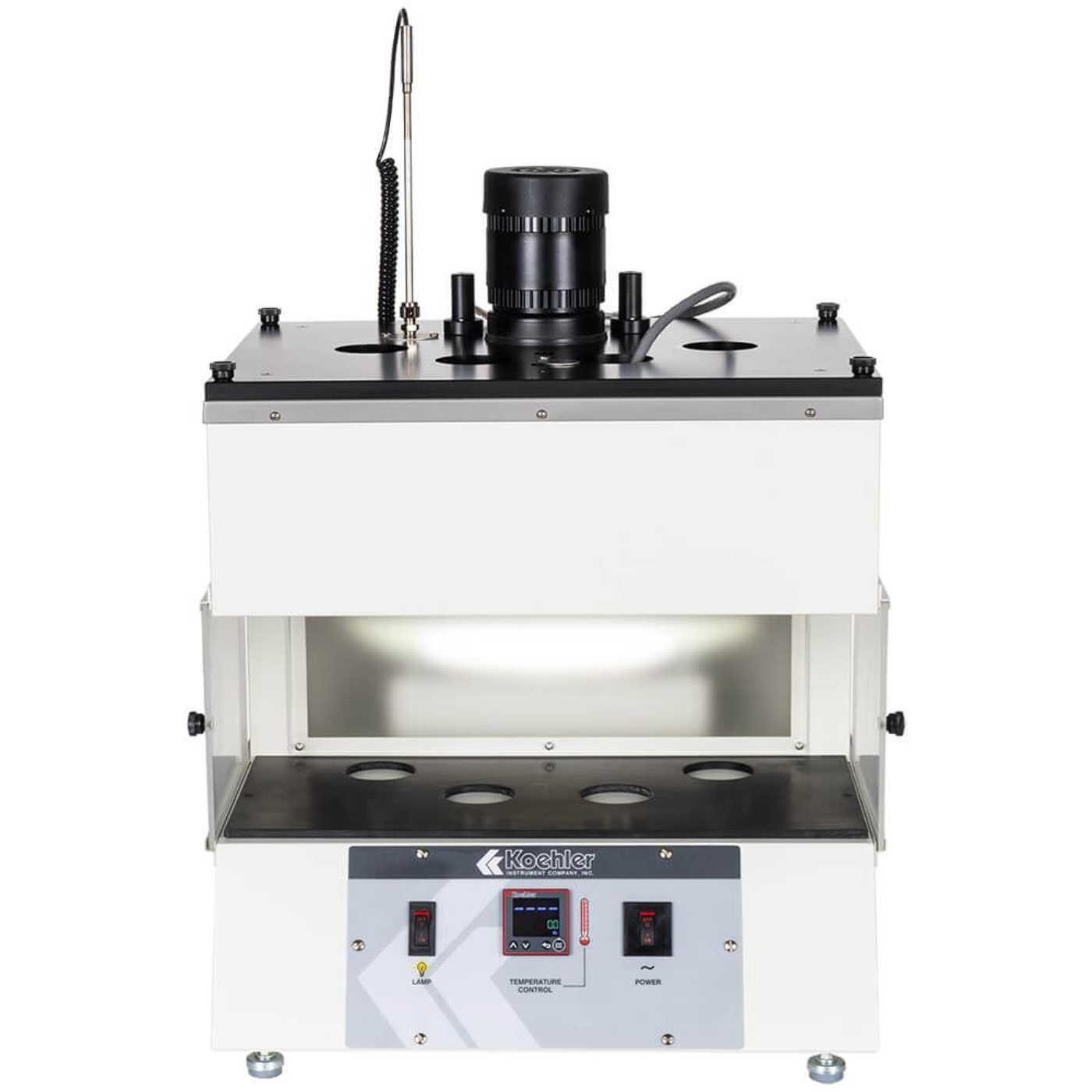

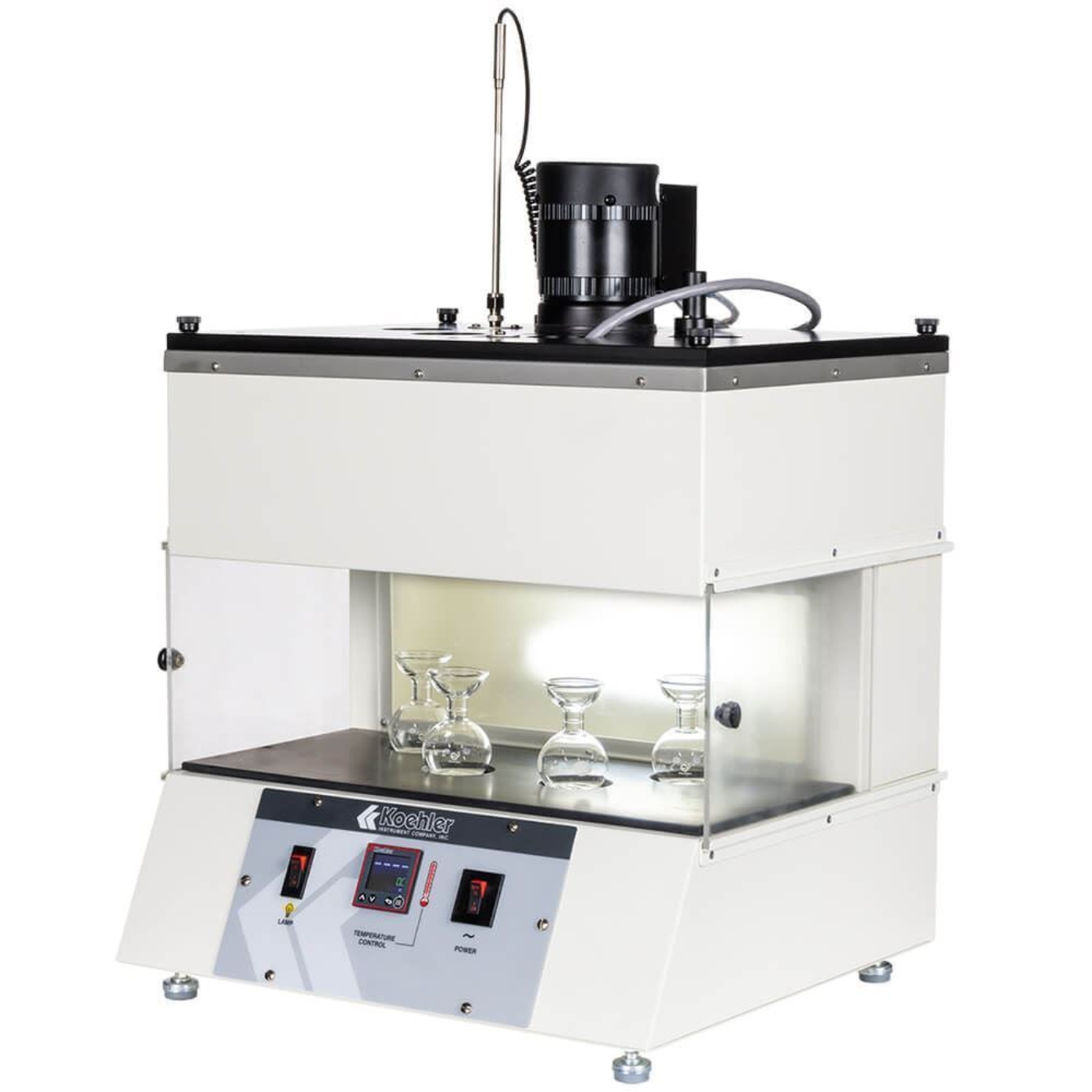

Saybolt Viscosity Bath accurately determines the viscosity of petroleum liquids at temperatures from ambient to 464°F (240°C). The PID controller maintains ±0.05°F (±0.03°C) temperature uniformity throughout the operating range and provides quick temperature stabilization with protection for over-temperature conditions. Set-point temperatures are displayed in °F/°C. Circulate tap water or refrigerated coolant through the built-in cooling coil for operation at near-ambient temperatures.
The enameled steel cabinet has specimen-area backlighting for ultimate visibility, leveling feet to provide a stable base, and sliding draft shields. The 5gal (19L) insulated stainless steel bath has an overflow pipe and drain valve to simplify filling to the required level. Flasks for 60ml samples can be centered easily on the removable, chemical-resistant alignment plate.
The unit comes with four thermometer supports, four chained corks, a withdrawal tube, tube nut and orifice wrenches, two-port closures, four-port covers, and an oil strainer. Saybolt tubes, flasks, orifices, and withdrawal pipettes must be selected based on specimen properties.
Features:
- Accurate viscosity determinations of petroleum liquids at temperatures from ambient to 464°F (240°C)
- PID controller maintains ±0.05°F (±0.03°C) temperature uniformity while protecting from over-heating
- Built-in cooling coil consistently circulates tap water or refrigerated coolant
- Enameled steel cabinet with specimen area backlighting promotes ultimate visibility
- 19L insulated stainless steel bath with the overflow pipe and drain valve simplifies filling to the required level
Included Items:
- Saybolt Viscosity Bath
- (4) thermometer supports
- (4) chained corks
- Withdrawal tube
- Tube nut
- Orifice wrenches
- (2) port closures
- (4) port covers
- Oil strainer
Accessories:
- PTA-165 Hi-Temperature Silicone Bath Fluid used for temperature control of asphalt binder specimens during viscosity testing and has a flashpoint of up to 572°F (300°C)

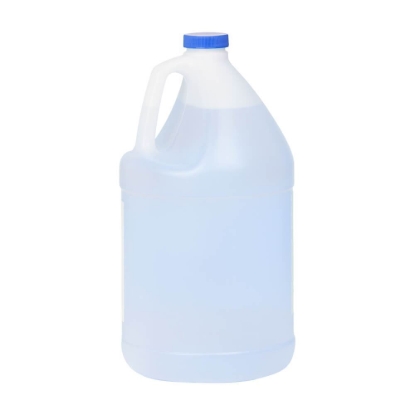

- PTA-160 White Mineral Oil used for temperatures up to 200°F (93.4°C)

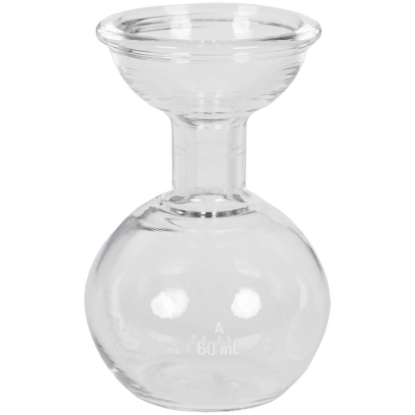

- PTA-168 60ml Receiving Flask for collection of petroleum fluids in viscosity testing
- PTA-169 60ml Withdrawal Pipette for withdrawing fluids during viscosity testing of petroleum liquids

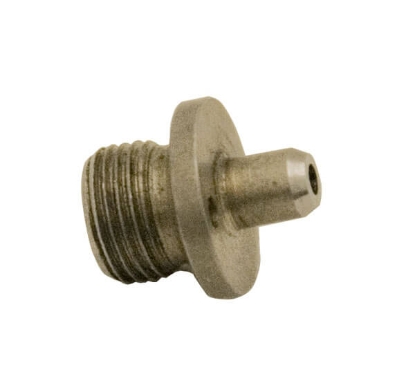

- PTA-178 Universal Orifice standard orifice threads into brass or stainless steel viscometer tubes

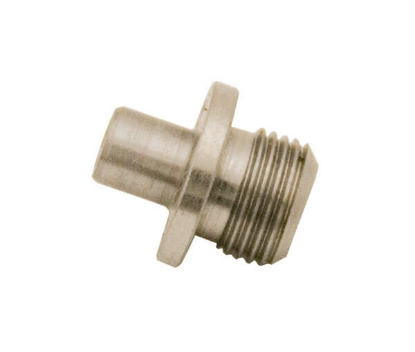

- PTA-179 Furol Orifice regulates the flow of petroleum liquids during viscosity testing

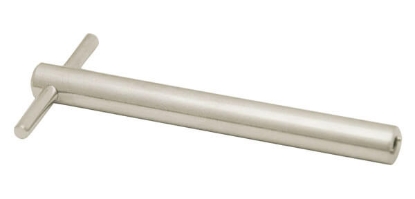

- PTA-162 Orifice Wrench for Universal/Furol Orifices to ensure a tight seal with the orifices

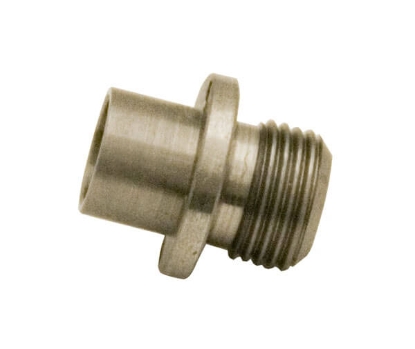

- PTA-180 Road Oil Orifice regulates the flow of heavier petroleum samples in viscosity testing

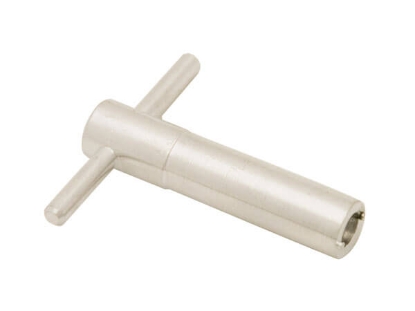

- PTA-163 Wrench for Road Oil Orifices to connect and tighten road oil orifices

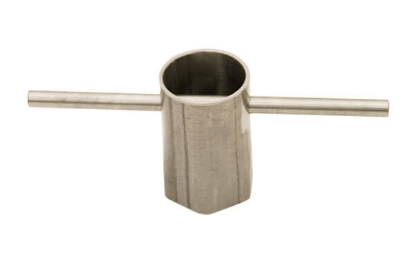

- PTA-166 Orifice Socket Wrench for removing and tightening tubes and other hardware in Saybolt Viscometer

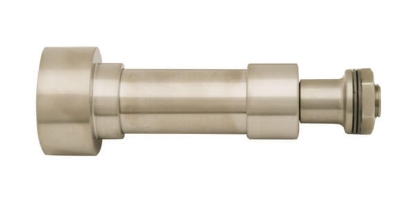

- PTA-177 Stainless Steel Tube holds petroleum liquids for viscosity testing

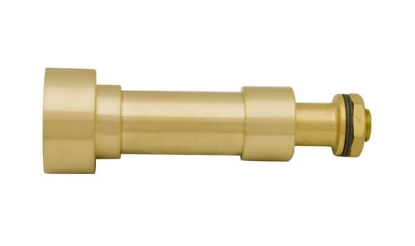

- PTA-176 Brass Tube holds petroleum liquids samples for viscosity testing
