Oilless Vacuum Pump, Economy (115V, 60Hz)

Model: MA-24

$1,576.00

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Oilless Vacuum Pump, Economy (115V, 60Hz)

Model: MA-24

$1,576.00

Oilless Vacuum Pump, Economy (230V, 50Hz)

Model: MA-24F

$1,576.00

SKU: MA-24F

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Questions? Talk to a Product Expert

Get help from our in-house testing equipment specialists.

Open M–F: 8:00am–5:00pm

Call Us: (800) 444-1508

Description
Specifications
Quick Compare
Q&A

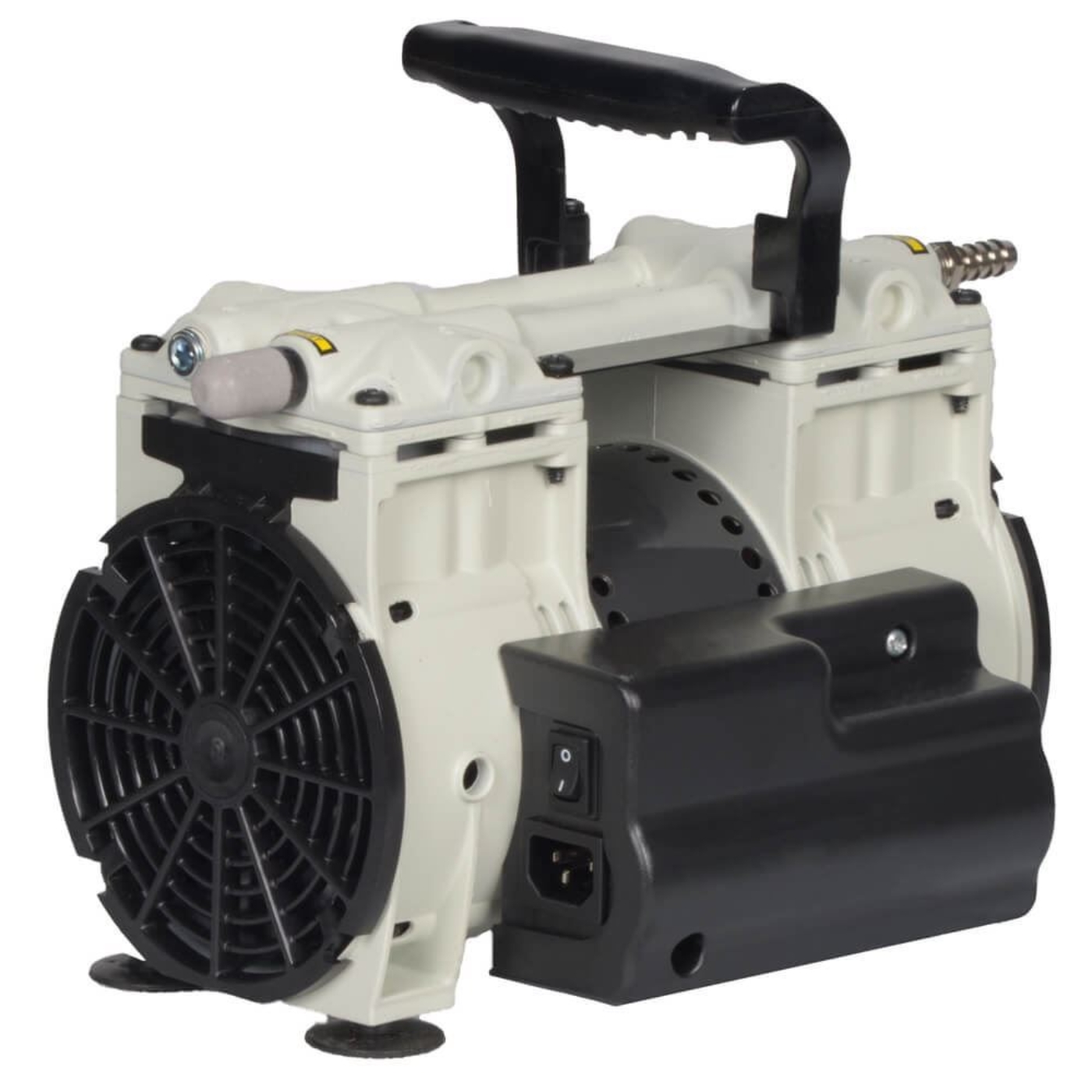

Oilless Vacuum Pump, Economy offers vacuum capacity equivalent to many oil systems, with a cost-effective oilless pump package. The 1/3hp motor pulls a vacuum to 29.6in Hg (759.5mm Hg), with free-air displacement up to 65L/min (2.3cfm). Includes a NEMA-guarded switch and grounded electric cord.

Features:

Cost-effective package with a capacity comparable to similar oil systems
Free-air displacement up to 65L/min
The ultimate vacuum of 29.6in Hg (759.5mm)

Included Items:

Oilless Vacuum Pump, Economy (115V, 60Hz or 230V, 50Hz)
NEMA guarded switch
Grounded electric cord

Related blogs:

Specific Gravity of Soil - Understanding ASTM & AASHTO Methods

Specifications

Attribute name	Attribute value
Free Air Displacement	65L/min (2.3cfm)
Ultimate Vacuum	29.6in Hg (759.46mm)
Intake Port	0.25in (7.0mm)
Motor	1/3hp (0.25kW)
Electrical	MA-24: 115V, 60Hz, 2.5 amps MA-24F: 230V, 50Hz, 1.36 amps
Product Dimensions	17x7.5x12in (432x191x305mm), WxDxH
Net Weight	16.5lb (7.5kg)
Estimated Shipping Weight	18.0lb (8.16kg)

Quick Compare

Features	Oilless Vacuum Pump, Economy (115V, 60Hz)	Oilless Vacuum Pump, Economy (230V, 50Hz)
Pricing	$1,576.00	$1,576.00
Electrical	115V, 60Hz	230V, 50Hz
Free Air Displacement	65L/min (2.3cfm)	65L/min (2.3cfm)
Ultimate Vacuum	29.6in Hg (759.46mm)	29.6in Hg (759.46mm)
Intake Port	0.25in (7.0mm)	0.25in (7.0mm)
Product Dimensions	17x7.5x12in (432x191x305mm), WxDxH	17x7.5x12in (432x191x305mm), WxDxH
Estimated Shipping Weight	18.0lb (8.16kg)	18.0lb (8.16kg)

Product Q&A

Displaying Q&A 1-4 of 8

Q: Will this work with fan-forced heaters?

I'm very satisfied with this product. It was exactly what I wanted in my travel trailer, for a lot more accurate heating. Now I can pinpoint it to exactly the temperature I want, instead of guessing, sliding the conventional thermostat back and forth. Will for sure save on propane too! Nice back light when adjusting the temperature, making it easy to see even at night.
