Steel Concrete Cylinder Molds are heavy-duty and reusable many times over. Walls are 1/4in (6.4mm) thick and split longitudinally to allow easy specimen removal. When clamps are released, the mold springs apart slightly. The detachable base plate is tight-fitting. All parts are plated for rust resistance and are nonreactive to cement constituents. Steel molds give uniform results and are dimensionally stable under severe use. Other concrete test cylinder molds are also available.

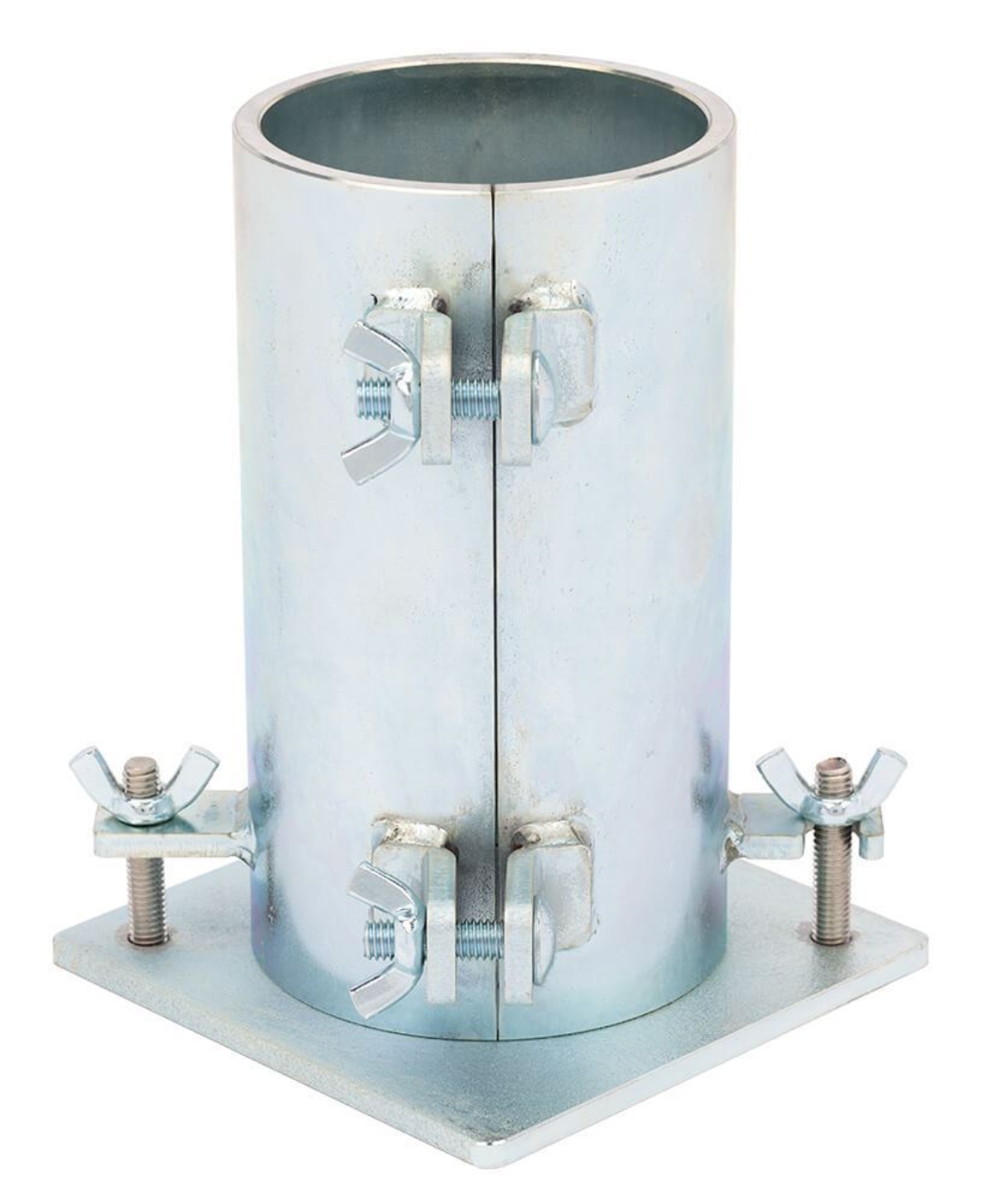

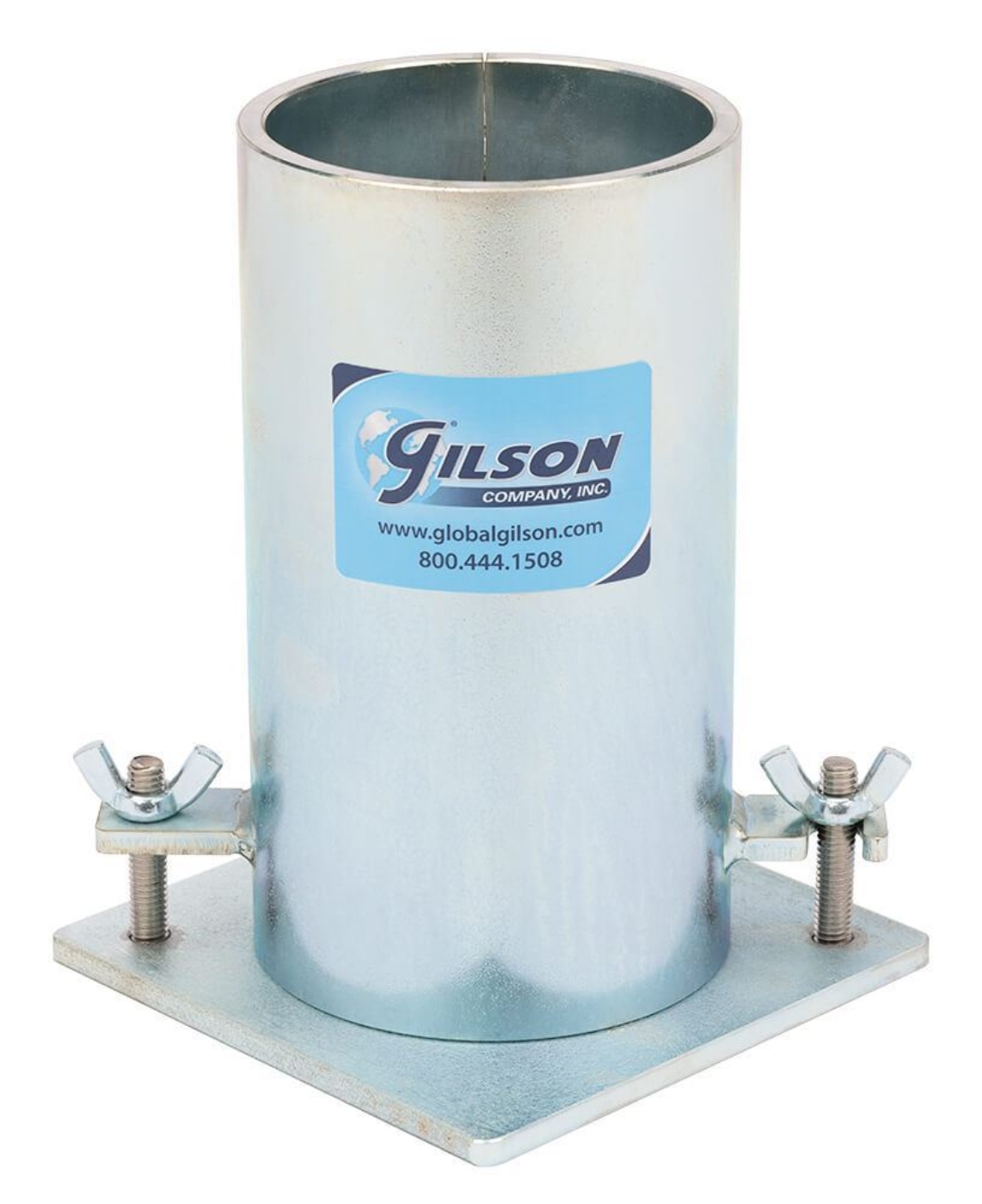

HM-143 Mold is 4x8in (102x203mm).

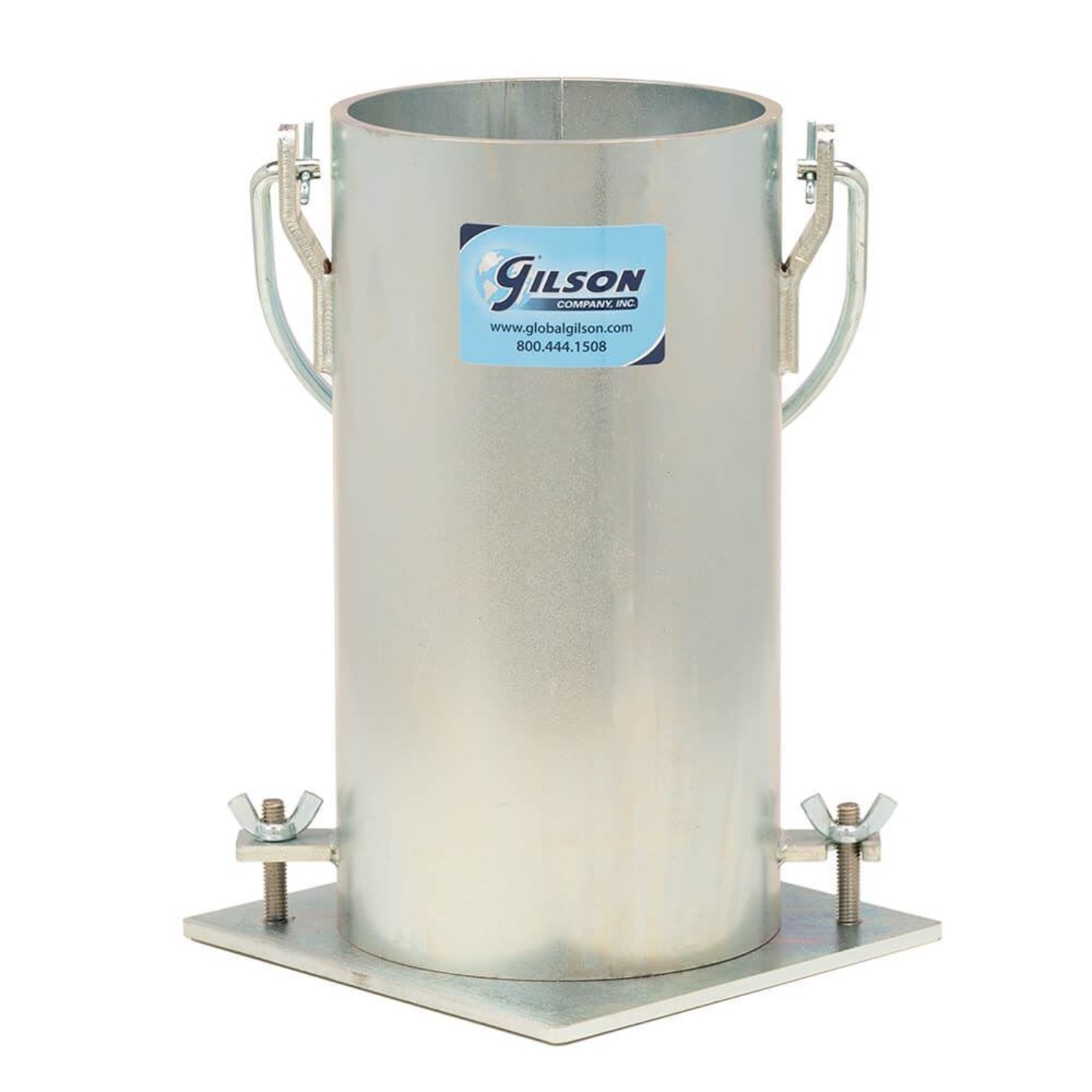

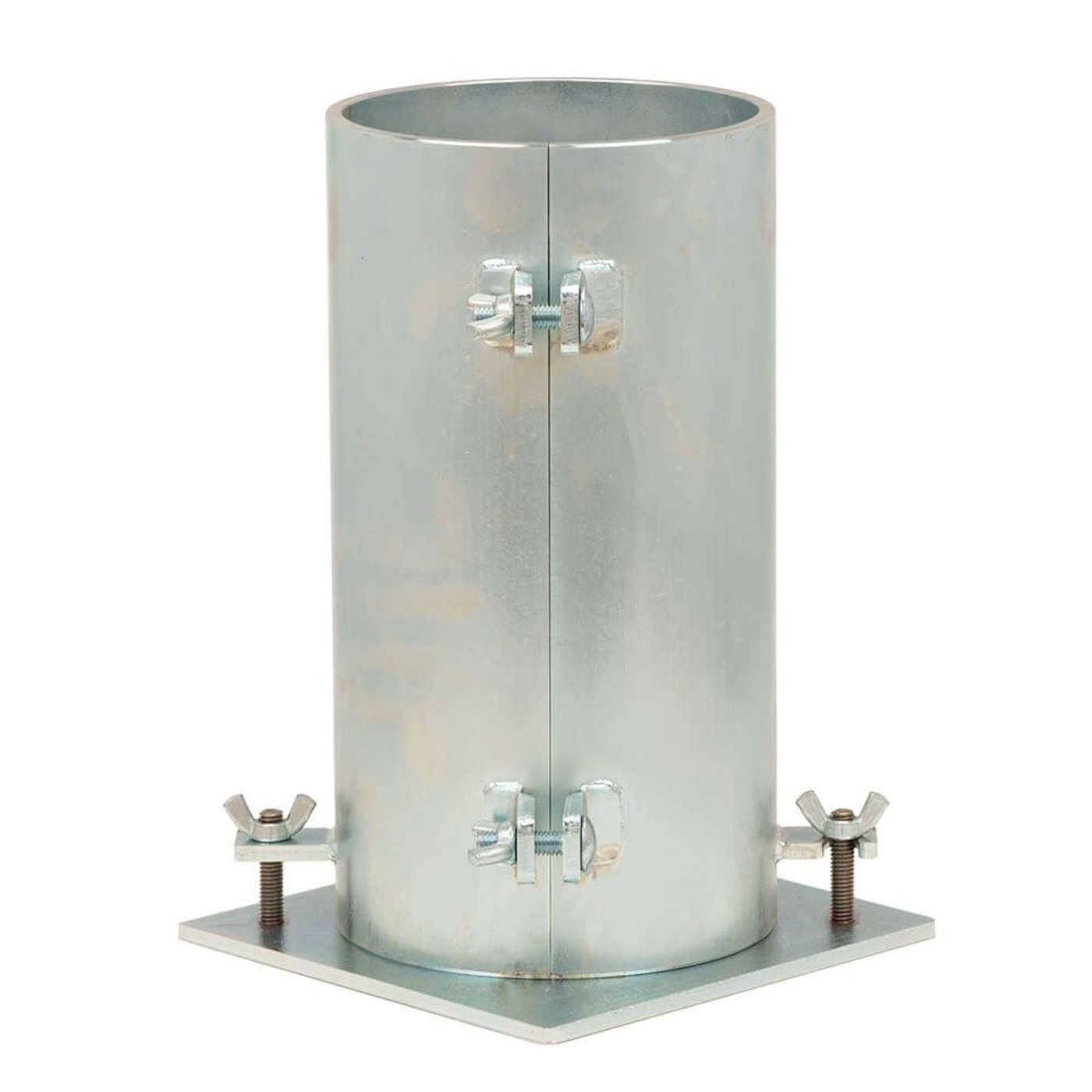

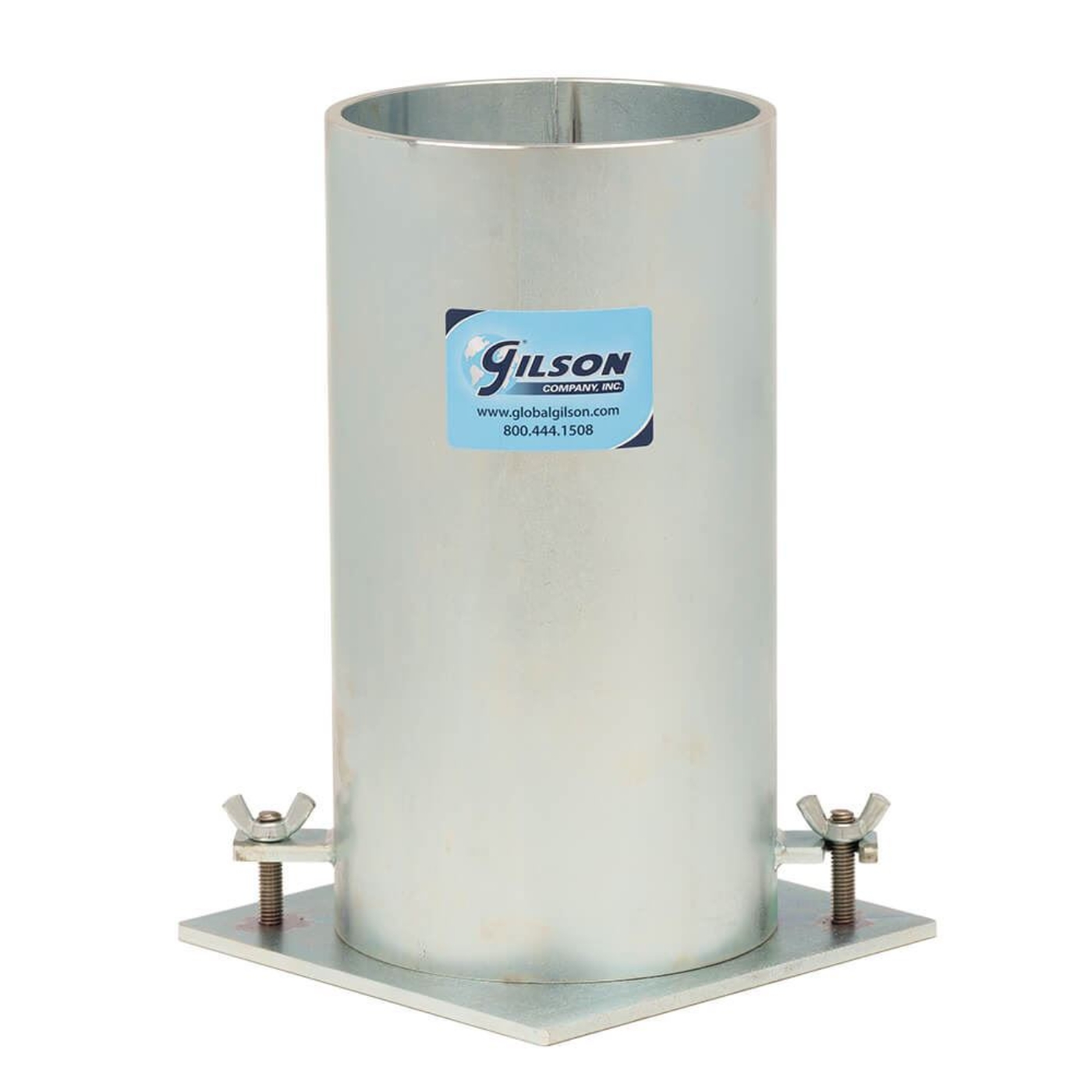

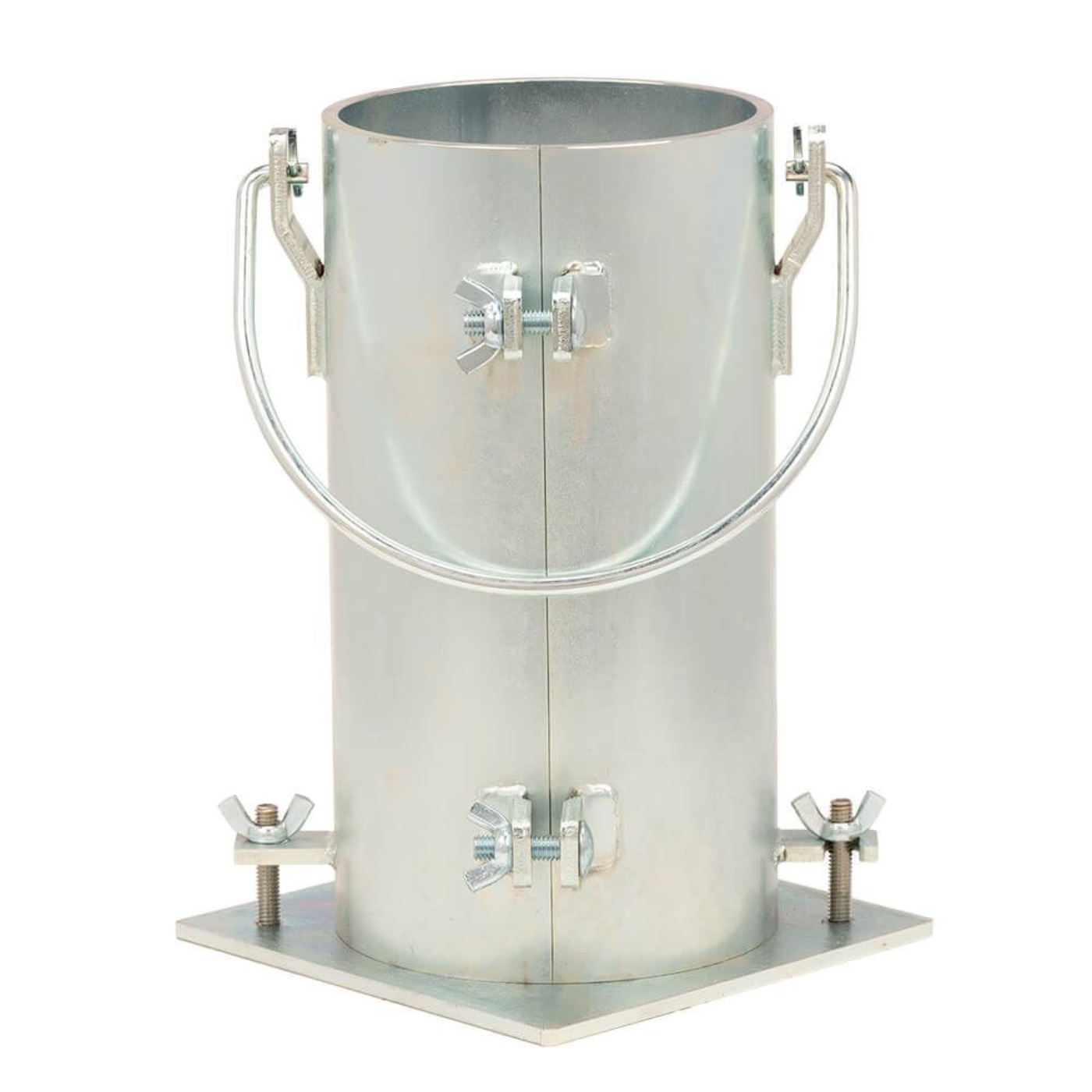

HM-142 & HM-144 Molds are 6x12in (152x305mm). HM-144 has a built-in handle for easier handling of specimens.
Features:
- Rugged steel construction
- Plated parts offer rust resistance
- Specimens are easily removed
Included Items:
- Steel Concrete Cylinder Mold (4x8in no handle, or 6x12in, with or without handle)
Accessories:
- Ring Concrete Cylinder Carriers are for transporting 6in diameter concrete cylinder mold specimens
- HMA-368 Concrete Strike-Off Bar is used to remove excess material
- Tamping Rods have hemispherical tips and are used when consolidating concrete cylinder specimens
- HMA-300 Rubber Mallet has a 2.25in (57mm) hard rubber face for consolidating concrete in unit weight measures or removing specimen molds

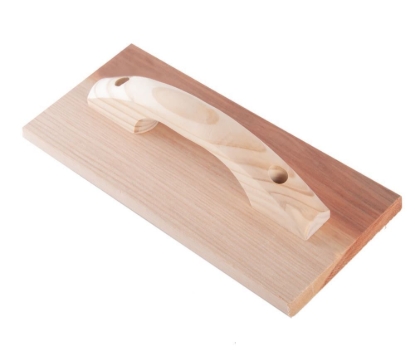

- Hand Floats are used to provide a precise, smooth finish to ensure even sample loading
