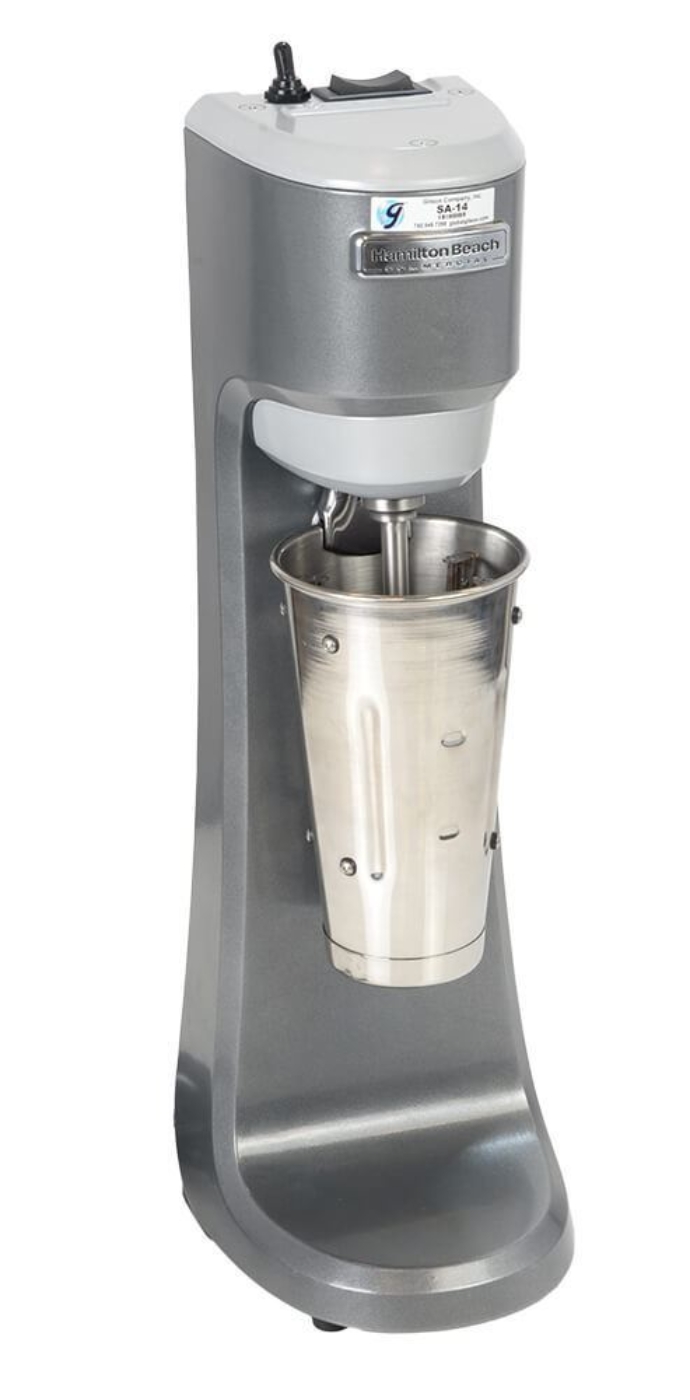

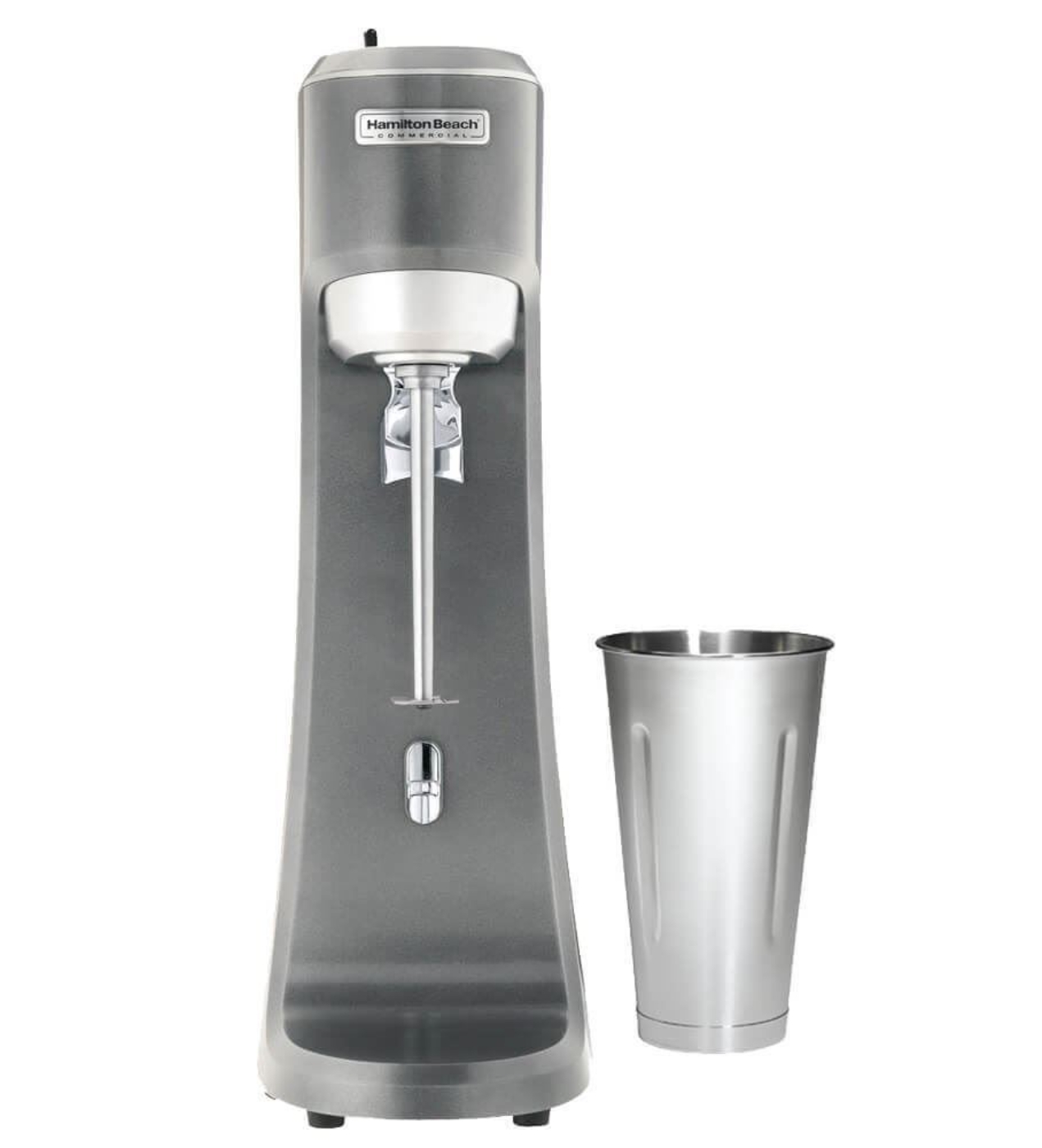

Soil Dispersion Mixer for hydrometer analysis of soil provides thorough mixing of soil samples using a special mixing blade and a baffled dispersion cup.

This product features a powerful 1/3 hp motor with three selectable speeds (low, medium, high). The lowest speed meets the minimum requirement of 10,000 rpm without load, as per AASHTO T 88, ASTM D7928, and ASTM D422 standards. Additionally, it includes a manual pulse switch.

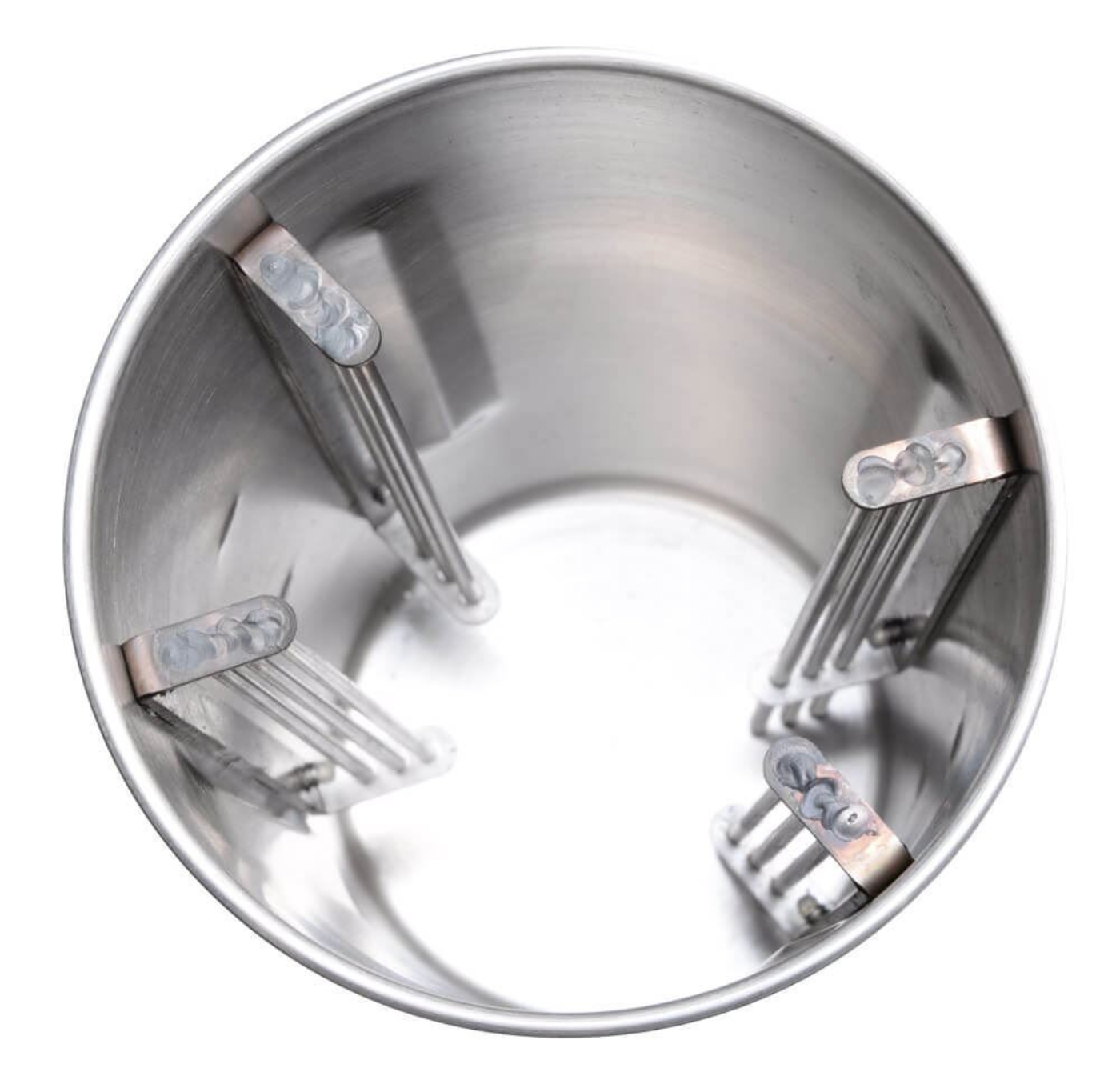

The heavy die-cast aluminum housing and durable spindle are designed to withstand repeated use. The dispersion mixer set includes a stainless steel dispersion cup with four sets of internal baffles, as specified in the test methods.

Features

The durable, long-lasting commercial-grade mixing unit
Meets all requirements of ASTM and AASHTO test methods

Included Items

Soil Dispersion Mixer
Baffled Dispersion Cup

Accessories

SAA-2 Replacement Blade replaces worn or damaged blades
SA-16 Dispersion Cup meets test method requirements

Related blogs:

Soil Hydrometer Testing: Sedimentation Method Techniques & Equipment s

Specifications

Attribute name	Attribute value
Capacity	29oz (0.85L)
Revolutions per Minute	>10,000rpm
Motor	1/3hp
Electrical	115V/60Hz, 7.5 Amps or 230V/50-60Hz, 1.3 Amps
Product Dimensions	6.5x6.75x20.5in (165x171x521mm) WxDxH
Estimated Shipping Weight	17.0lb (7.71kg)
