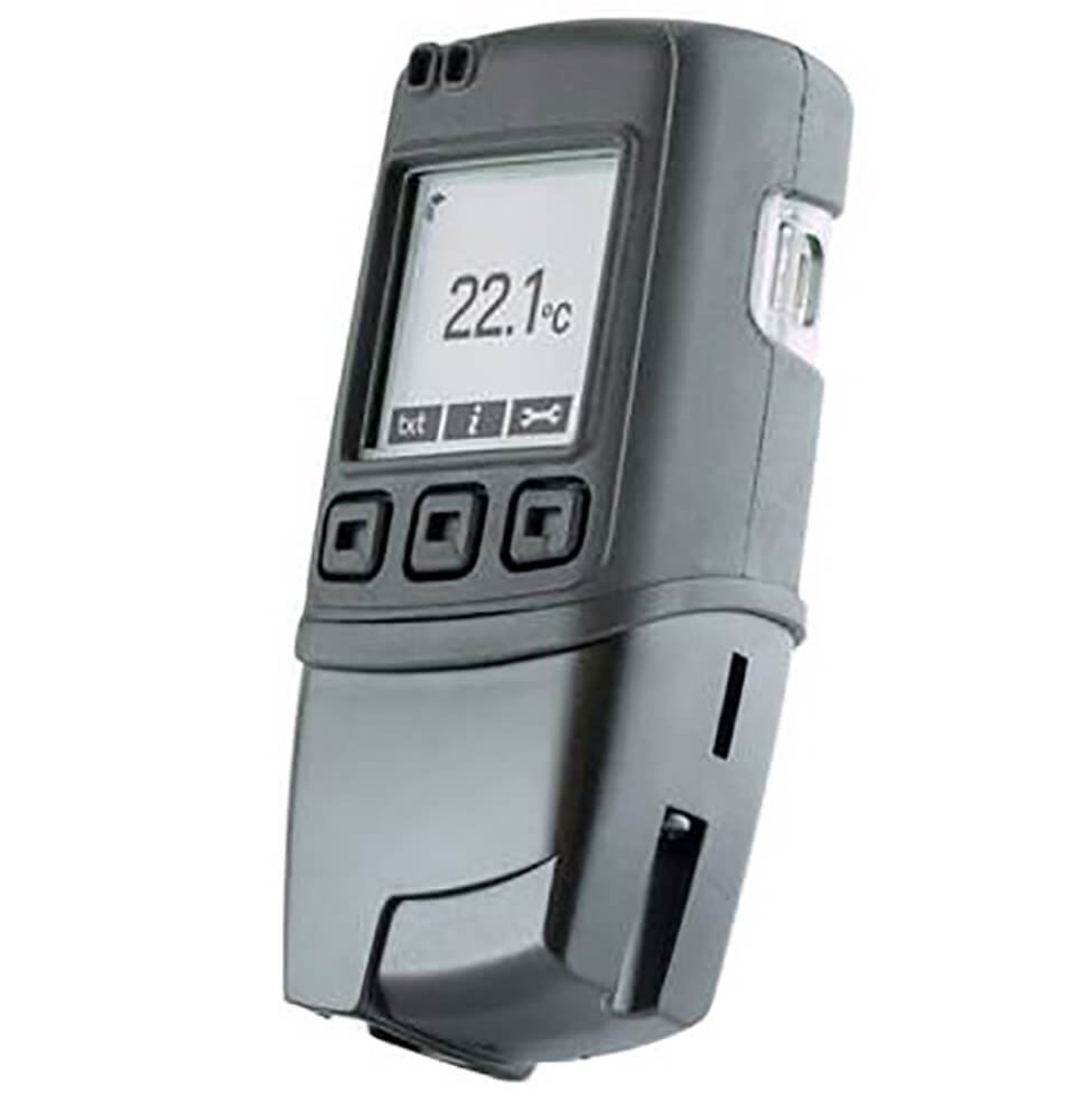

Thermocouple Data Logger with Graphic Screen is supplied with a 5ft (1.5m) K-type thermocouple with a 32–392°F (0–200°C) measurement range. Resolution is 0.2°F (0.1°C). It is also compatible with Type J and T thermocouples. The accuracy for the logger is ±1°F (±0.5°C). The logger stores over 250,000 temperature readings from the thermocouple. MA-491 features logging rates between two seconds and one hour, with immediate, delayed, push-button, or temperature-triggered start mode. Data can be downloaded through a connection to a computer’s USB port by using the free downloadable software. The software is compatible with 32- and 64-bit versions of Windows 7, 8, and 10 and allows the operator to download, graph, annotate data, and/or export in Excel, PDF, and jpg formats.
The high-contrast dot-matrix LCD graphic display has three buttons to navigate through the on-screen menu. This menu provides access to real-time trend analysis, data summaries, and the ability to start, stop, and restart the data logger independently of the host PC. The max/min reading can be reset on-screen, creating an event marker in the data, which can later be viewed in the graphing software and data file. The data logger includes two lithium AA batteries, which typically last a year before being replaced.
Note: Due to export regulations, this item cannot be shipped outside of the United States.
Features:
- Stores over 250,000 temperature readings from Type K, J, and T thermocouples
- Logging rate of between 2 seconds and 1 hour
- Free downloadable software
Included Items:
- Thermocouple Data Logger with Graphic Screen
- (2) lithium AA batteries
Accessories:
- MAA-321 1/2AA Lithium Battery as a replacement battery
