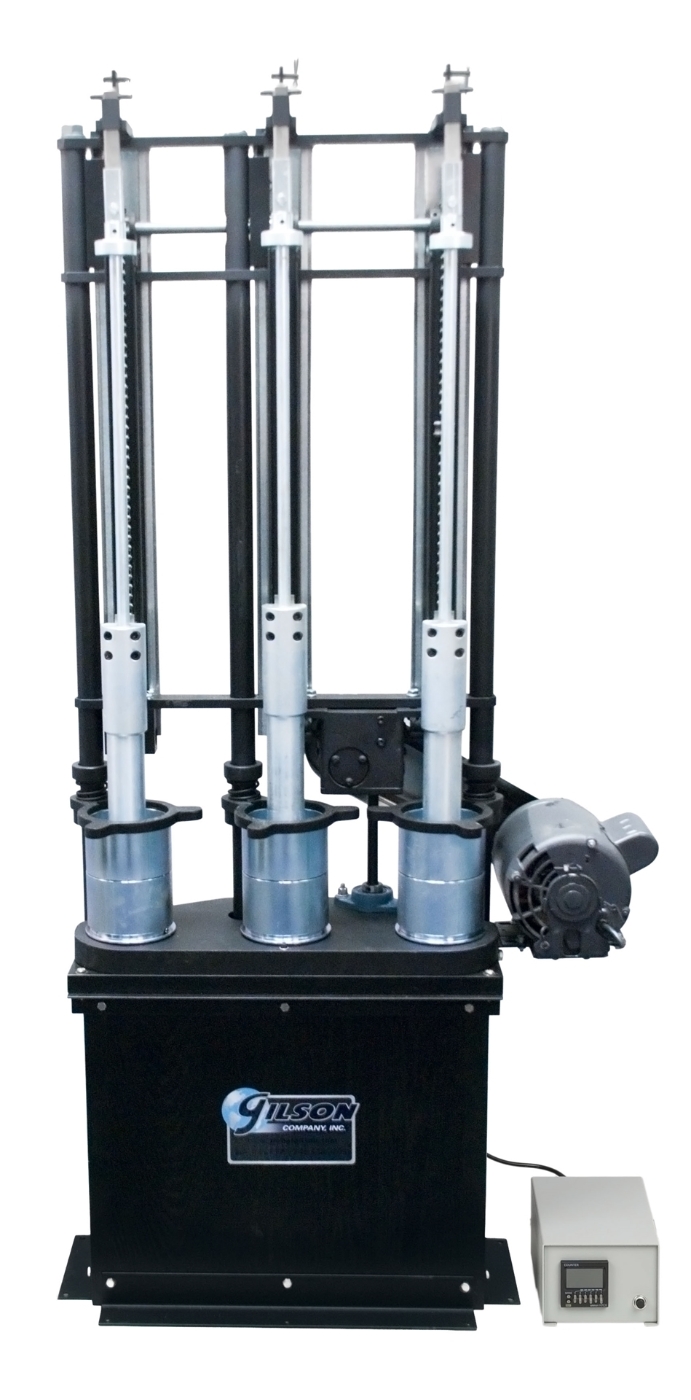

Marshall Compactor, Automatic, Rotating Base, Triple 4in Molds compact three 4in (102mm) asphalt samples concurrently in molds with rotating base.
Rotating base plates and tapered-foot hammers create a constant kneading action during compaction. Molds rest on a steel plate covering the large ASTM-compliant oak pedestal. A powerful motor operates the hammer and rotations, and the automatic counter automatically shuts off operation at the required number of blows.
The MS-3 compactor includes an oak pedestal, automatic counter, three 10lb (4.54kg) bevel-face hammers, a package of paper discs, and three 4in mold, base, and collar assemblies.
Features:
- Ideal for simultaneous compaction of three Marshall asphalt specimens
- Rotating base plates and hammers deliver uniform kneading motion during compaction
- The automatic counter shuts off operation at the correct number of blows
- Single motor controls hammer operation and rotation
Included Items:
- Marshall Compactor, Automatic, Rotating Base, Triple 4in Molds (115V, 60Hz or 230V, 50Hz)
- ASTM-compliant oak pedestal with steel plate
- Automatic counter
- (3) 10lb (4.54kg) bevel-faced hammers
- (3) 4in Compaction Mold Assemblies
- Paper discs (package of 1,000)
Accessories:
- MSA-101 4in Compaction Mold Assembly recommended as an additional mold assembly to increase testing efficiency

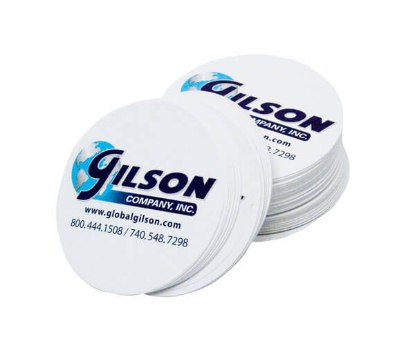

- MSA-120 4in Circular Paper Discs help keep asphalt samples from sticking to the equipment
- MSA-112 4in Marshall Compactor Hammer Assembly is available as an additional unit to increase testing capacity
- Sample Ejectors easily remove asphalt samples from 4in molds
