Two-Part Replaceable Mesh Sieve Frames are efficient and reliable for particle sizing applications. Frames are easy to handle and designed for use with disposable Polyester or Nylon monofilament cloth. Optional 10in Polyethylene Film Square can be purchased to form a pan with another set of Two-Part Replaceable Mesh Sieve Frames.
The cloth is available in pre-cut 10in (255mm) mesh squares with a circular-shaped resilient material embedded in the mesh that helps the cloth seal with the accompanying two-part frame. Using disposable cloth squares reduces maintenance and avoids the risk of contamination. No fasteners or screws are required to hold the cloth in place.

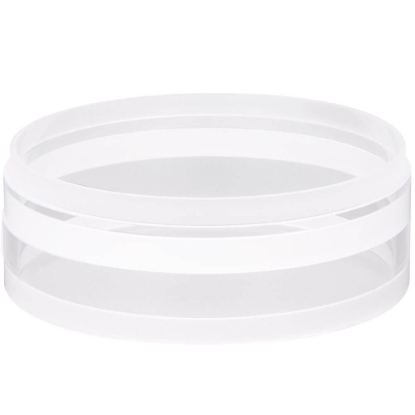

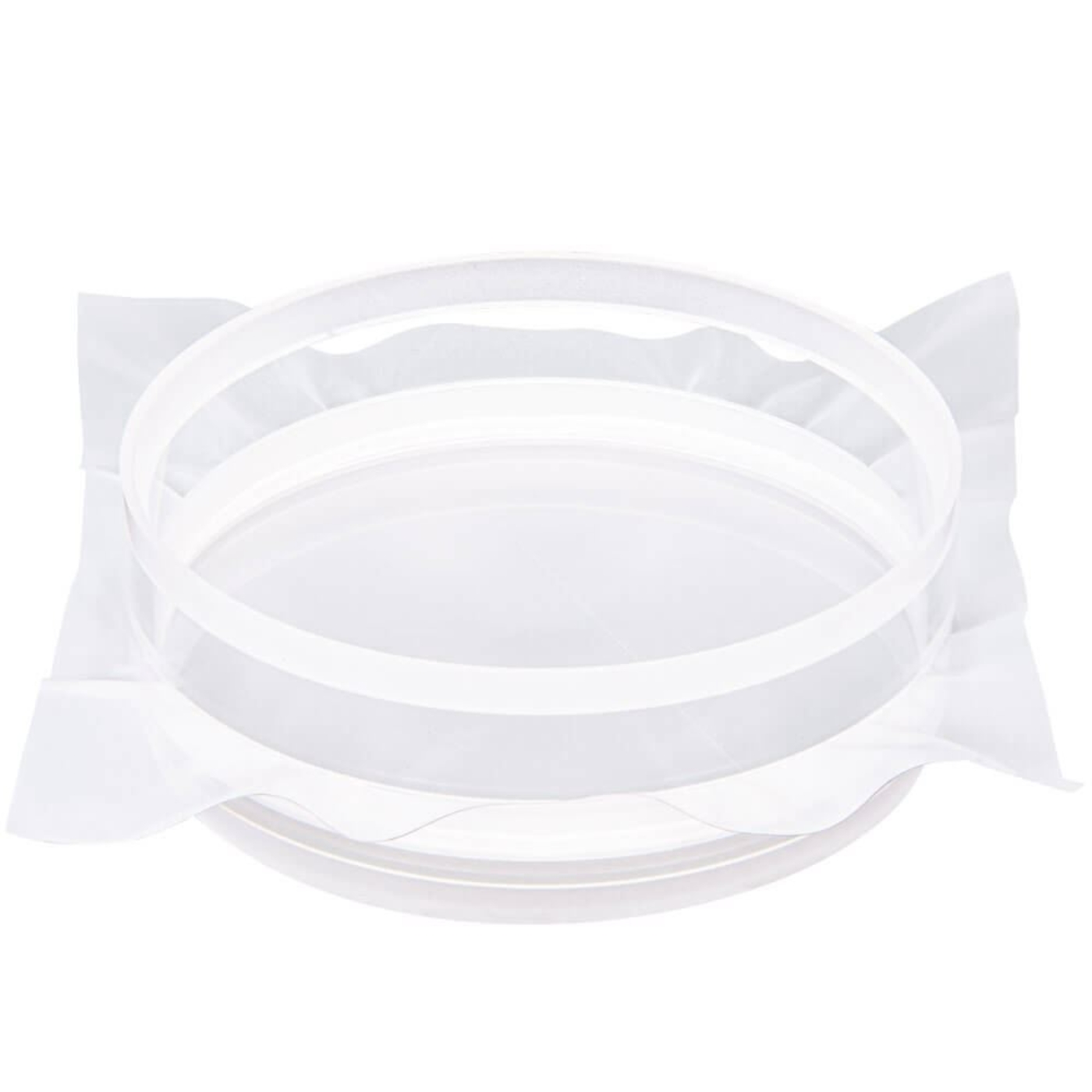

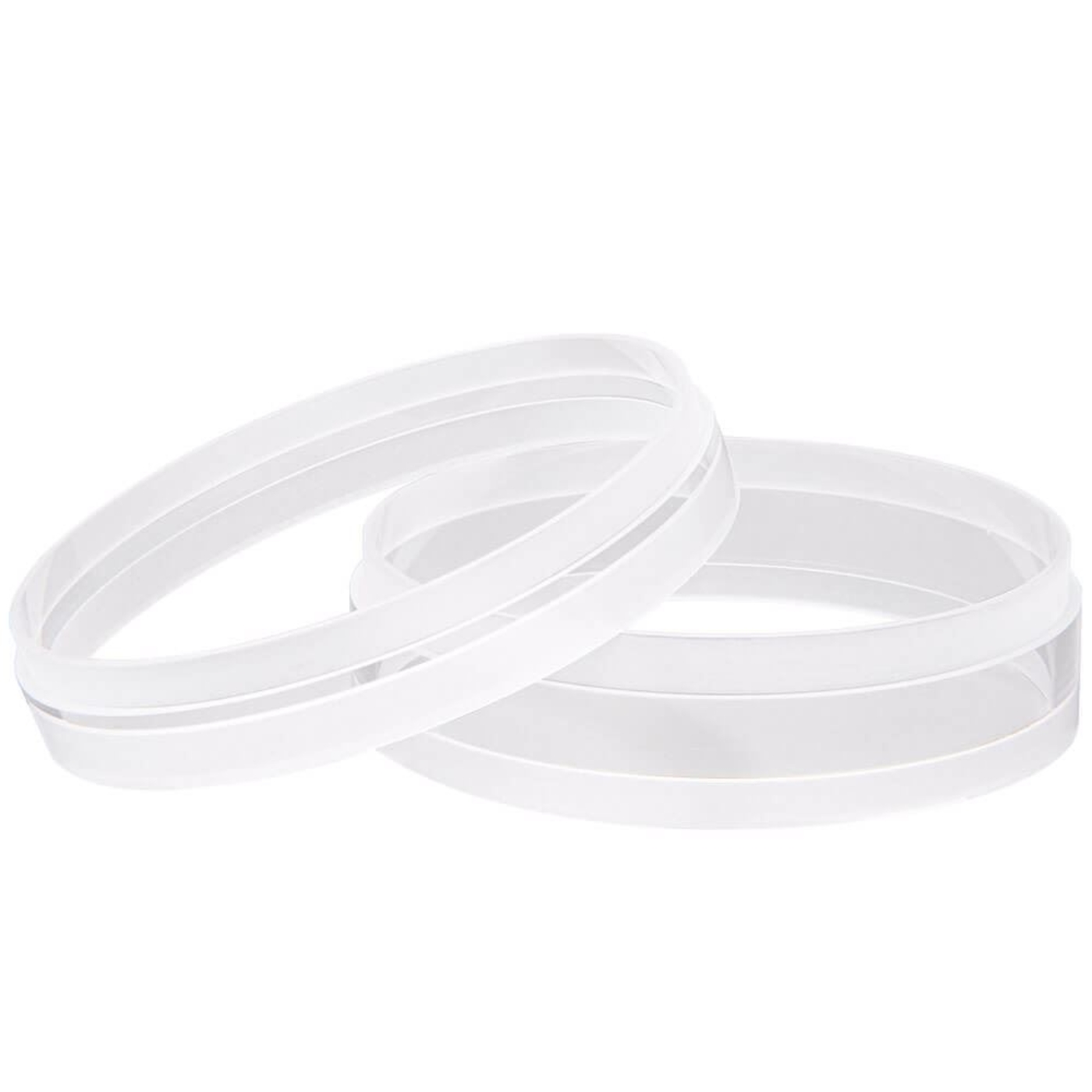

Two-Part Non-Metallic Polycarbonate Frames are transparent for easy sample viewing during testing. The polycarbonate frame design has a 1/4in (6.4mm) wall and pressed together to tension the mesh between them. They have approximately a 2in (51mm) stacking height, 2-3/4in (70mm) overall height, and a 2in (51mm) depth to the cloth. Assembled sieves nest with each other but not with standard metallic sieves. Polycarbonate frames are not autoclavable.

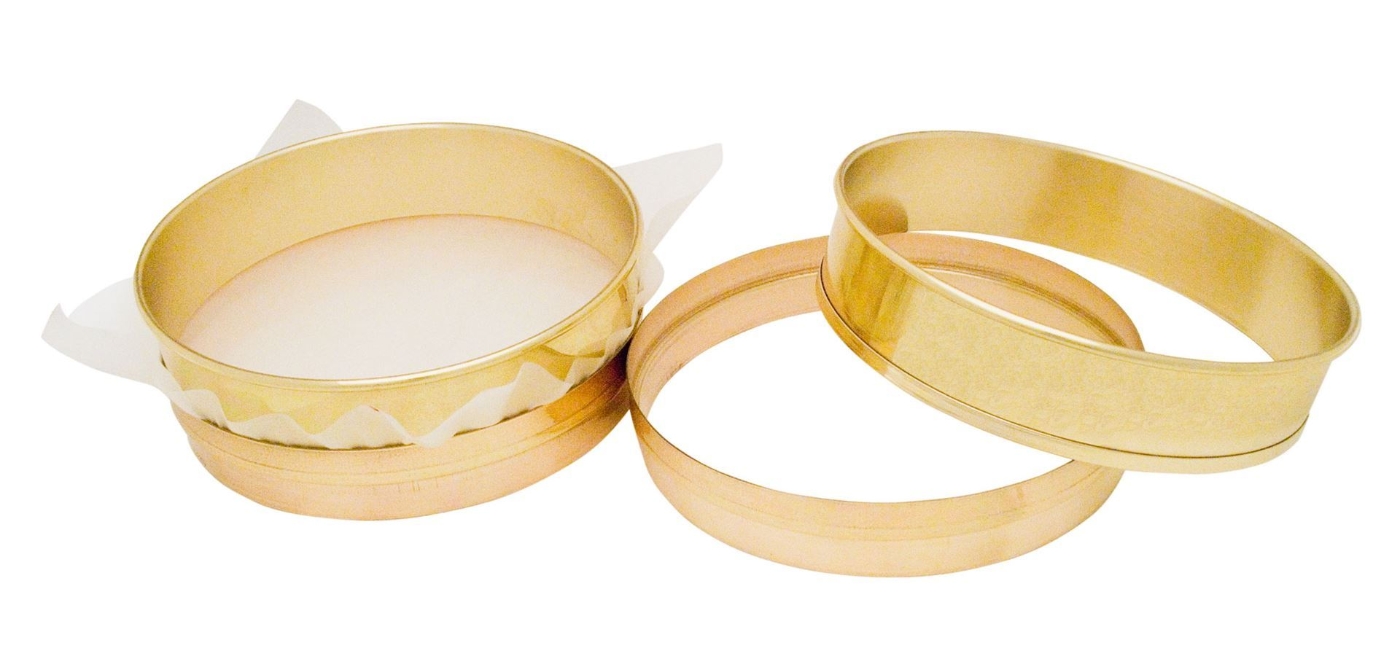

Two-Part Brass Frames are durable, cost-effective design. Cloth is placed between the sieve frame and skirt and the two parts are pressed together to create tension. Frames nest with one another or with conventional 8in (203mm) diameter standard sieves.
Features:
- Non-Metallic frames promote easy sample viewing
- Brass frames are sturdy and long service life
- The cloth is disposable to reduce contamination risk
- The lightweight frame and free of fasteners or screws for hassle-free handling
Included Items:
- Two-Part Replaceable Mesh Sieve Frame (Non-Metallic or Brass)
Accessories:
- 10in (255mm) pre-cut squares of Polyester or Nylon cloth

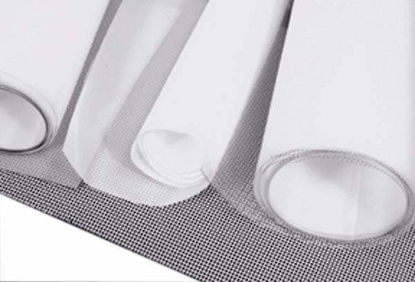

- PM-10 10in Polyethylene Film Square can be purchased to form a pan with another set of Two-Part Replaceable Mesh Sieve Frames.
