Ultrasonic 8in Sieve Cleaner (120V, 50/60Hz)

Model: UB-1
$5,725.00
Please select the address you want to ship to
Ship to
*
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Expert
Questions? Talk to a Product Expert

Get help from our in-house testing equipment specialists.

Open M–F: 8:00am–5:00pm

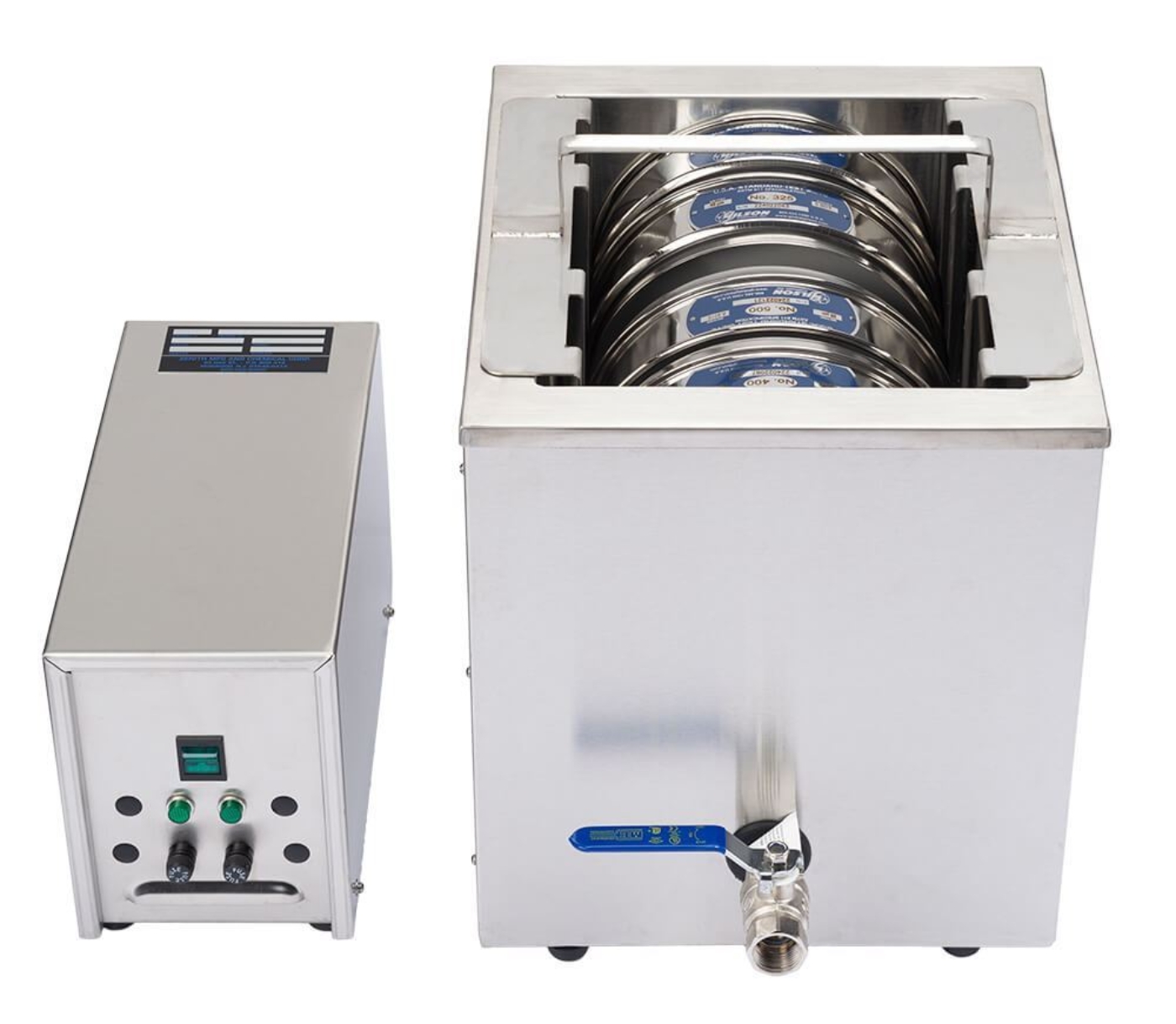

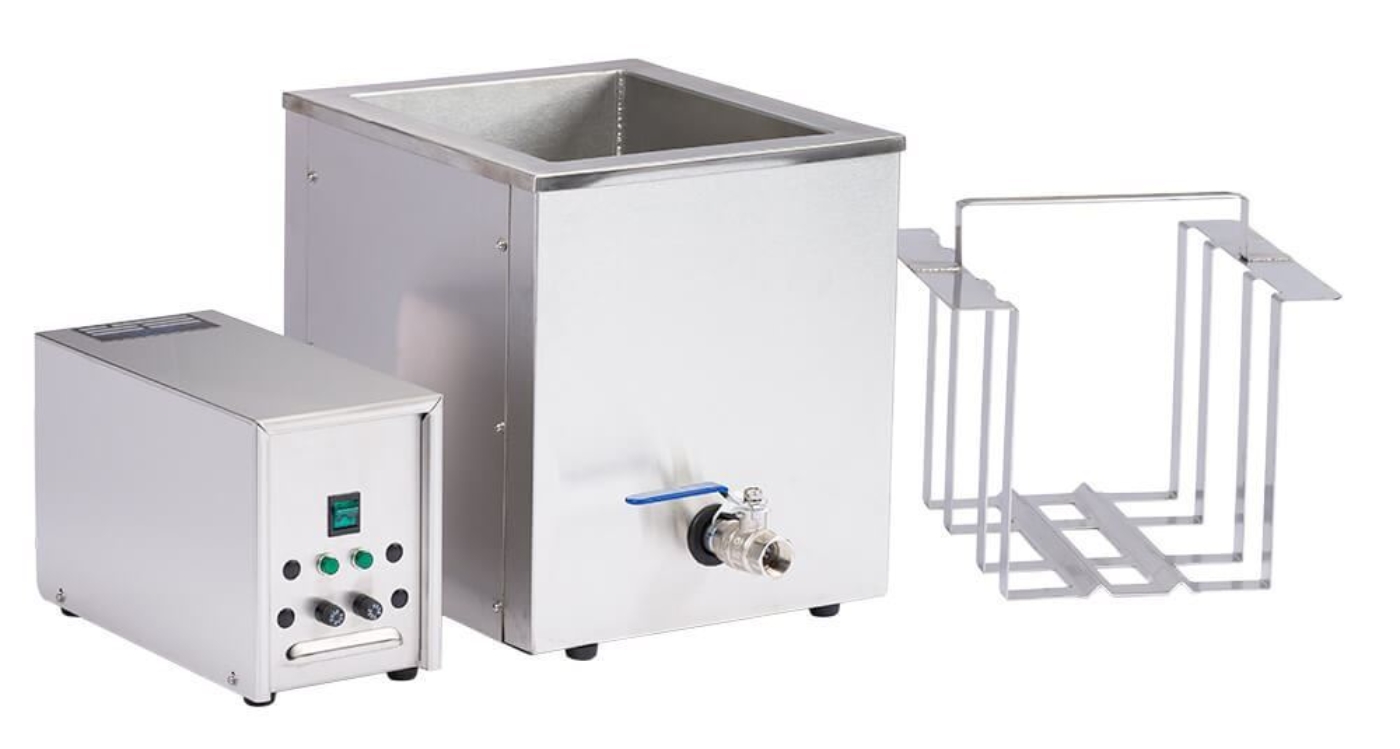

Ultrasonic 8in Sieve Cleaner fully immerses up to four full-height or six half-height 8in (203mm) sieves in a 4gal (15.1L) volume for cleaning. The CROSSFIRE multi-frequency ultrasonic system combines the properties of two or more frequencies into a single tank, providing the power and large particle removal of low-frequency ultrasonics with the even energy distribution and smaller particle removal of higher-frequency ultrasonics.

Most sieve cloth, including fragile precision electroformed mesh, can be cleaned completely in one to five minutes. Water is poured directly into the tank. The generator features an On/Off push button.

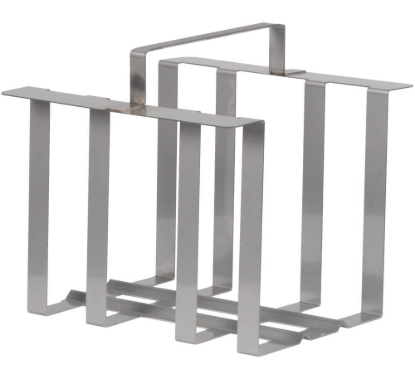

Units are provided with a drain connection with a ball valve. Sieve Rack is included. Extra racks can be ordered separately to increase productivity. A separate generating unit stands apart from the stainless steel liquid tank providing a safe, convenient set-up.

Features

  • Multi-frequency ultrasonic cleaning technology
  • Performs cleaning in one to five minutes
  • Separate generating unit offers easy set-up

Included Items

  • Ultrasonic Sieve Cleaner
  • Drain connection with a ball valve
  • Sieve Rack

Accessories

Specifications

Attribute name Attribute value
Frequency 40 and 80kHz
Capacity 4gal (15.1L)
Sieve Capacity

(4) 8in (203mm) Full-Height Sieves

(6) 8in (203mm) Half-Height Sieves

Electrical

UB-1: 120V, 50/60Hz

UB-1A: 220V, 50/60Hz (includes voltage converter for 220V operation)

Inside Dimensions 9x10x12in (228.6x254x304.8mm), WxDxH
Outside Dimensions 13x13x15in (330.2x330.2x381mm), WxDxH
Dimensions Generator: 6.25x13x8.5in (158.8x330.2x215.9mm), WxDxH
Estimated Shipping Weight 56.0lb (25.40kg)

Quick Compare

Features
Picture of Ultrasonic 8in Sieve Cleaner (120V, 50/60Hz)

Ultrasonic 8in Sieve Cleaner (120V, 50/60Hz)

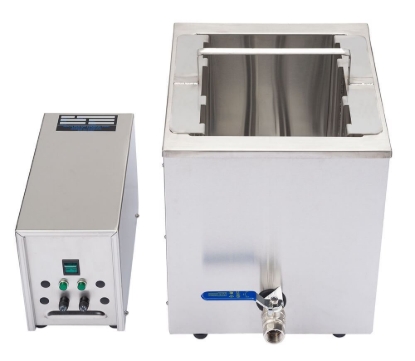

Picture of Ultrasonic 8in Sieve Cleaner (220V, 50/60Hz)

Ultrasonic 8in Sieve Cleaner (220V, 50/60Hz)

Pricing $5,725.00 $6,109.50
Electrical 120V, 50/60Hz 220V, 50/60Hz
Frequency 40 and 80kHz 40 and 80kHz
Volume 4gal (15.1L) 4gal (15.1L)
Sieve Capacity (4) 8in (203mm) Full-Height Sieves, (6) 8in (203mm) Half-Height Sieves (4) 8in (203mm) Full-Height Sieves, (6) 8in (203mm) Half-Height Sieves
Estimated Shipping Weight 56.0lb (25.40kg) 56.0lb (25.40kg)
