7.5gal Ultrasonic Rotating 8in Sieve Cleaner

Model: UB-8
$6,265.30
Please select the address you want to ship to
Ship to
*
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Expert
Questions? Talk to a Product Expert

Get help from our in-house testing equipment specialists.

Open M–F: 8:00am–5:00pm

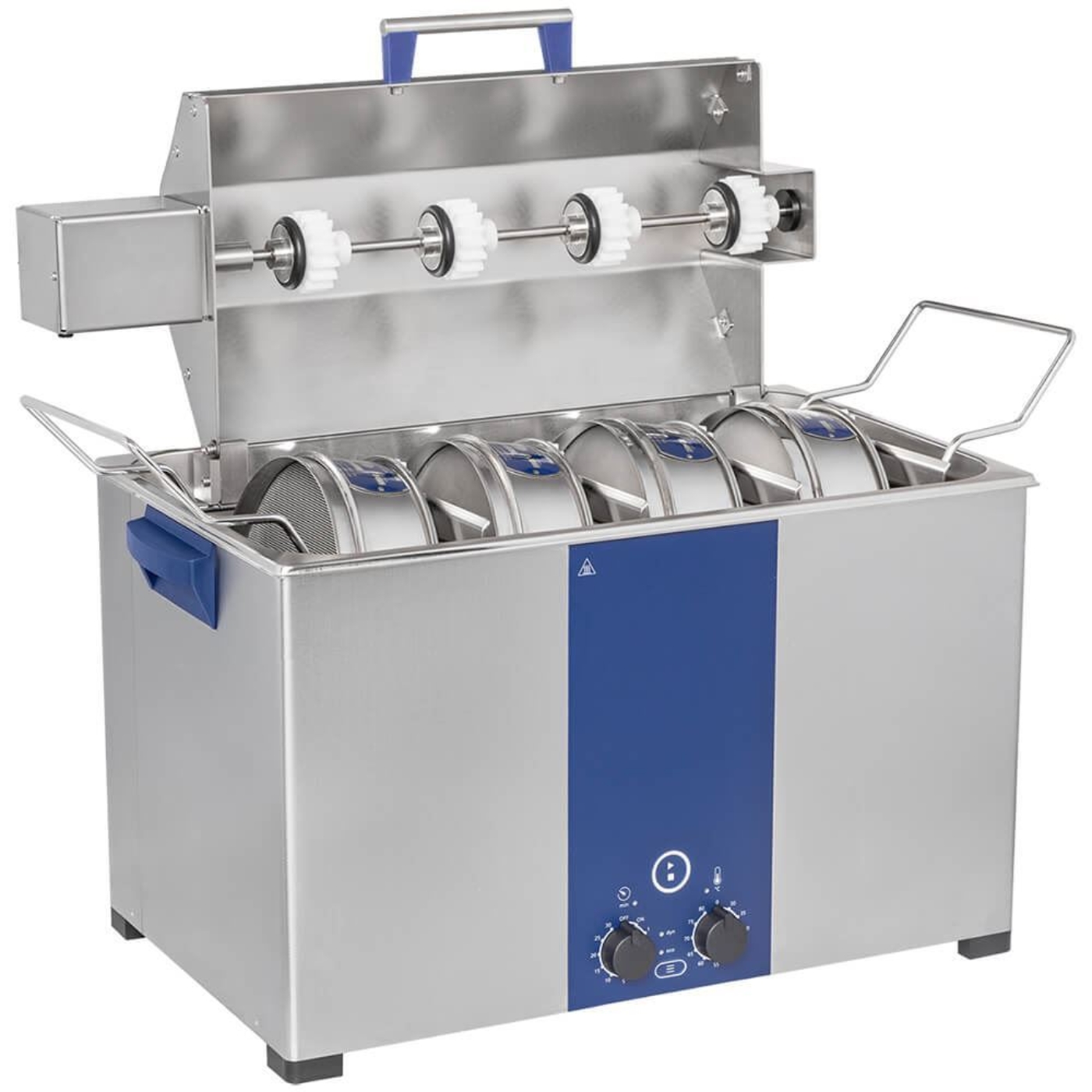

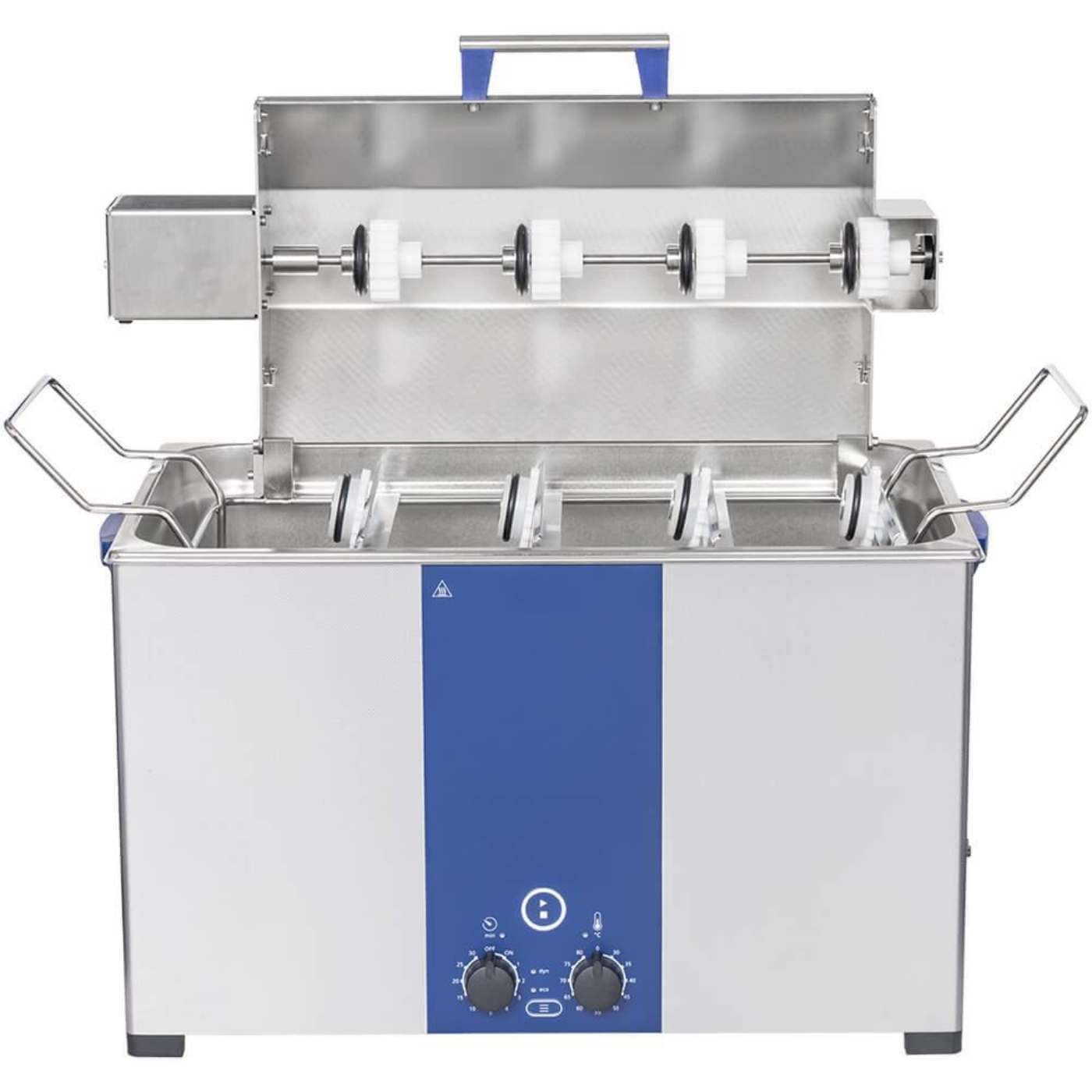

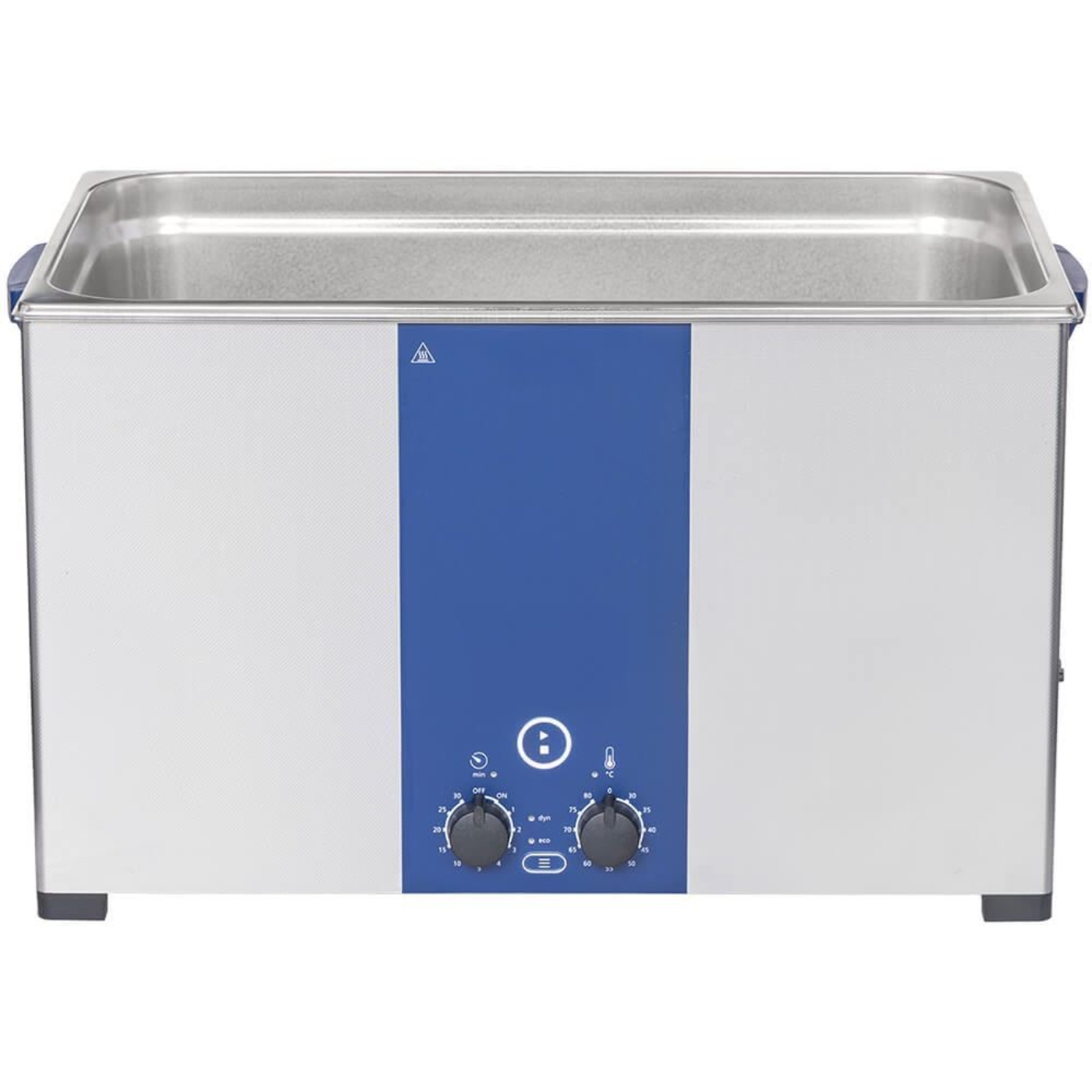

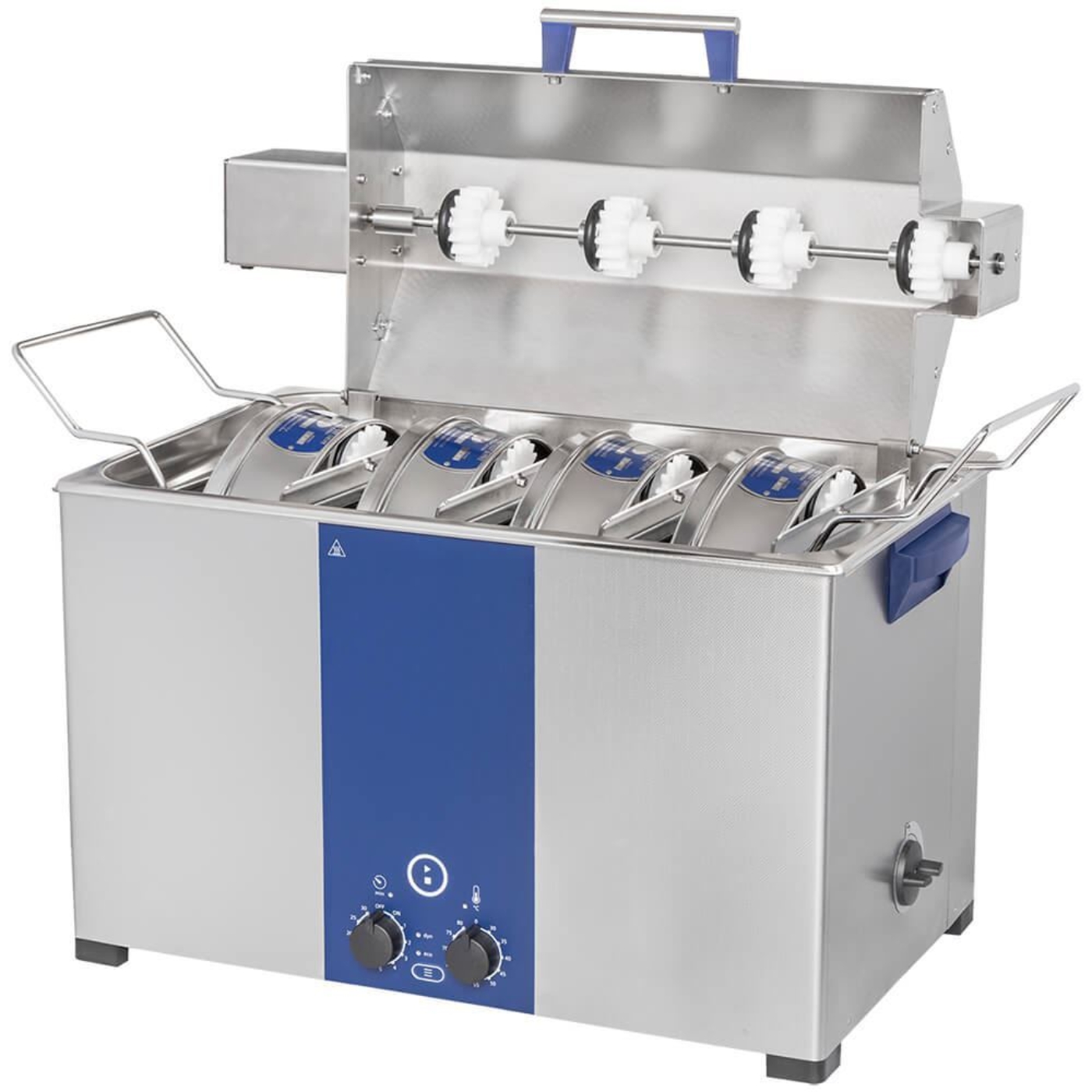

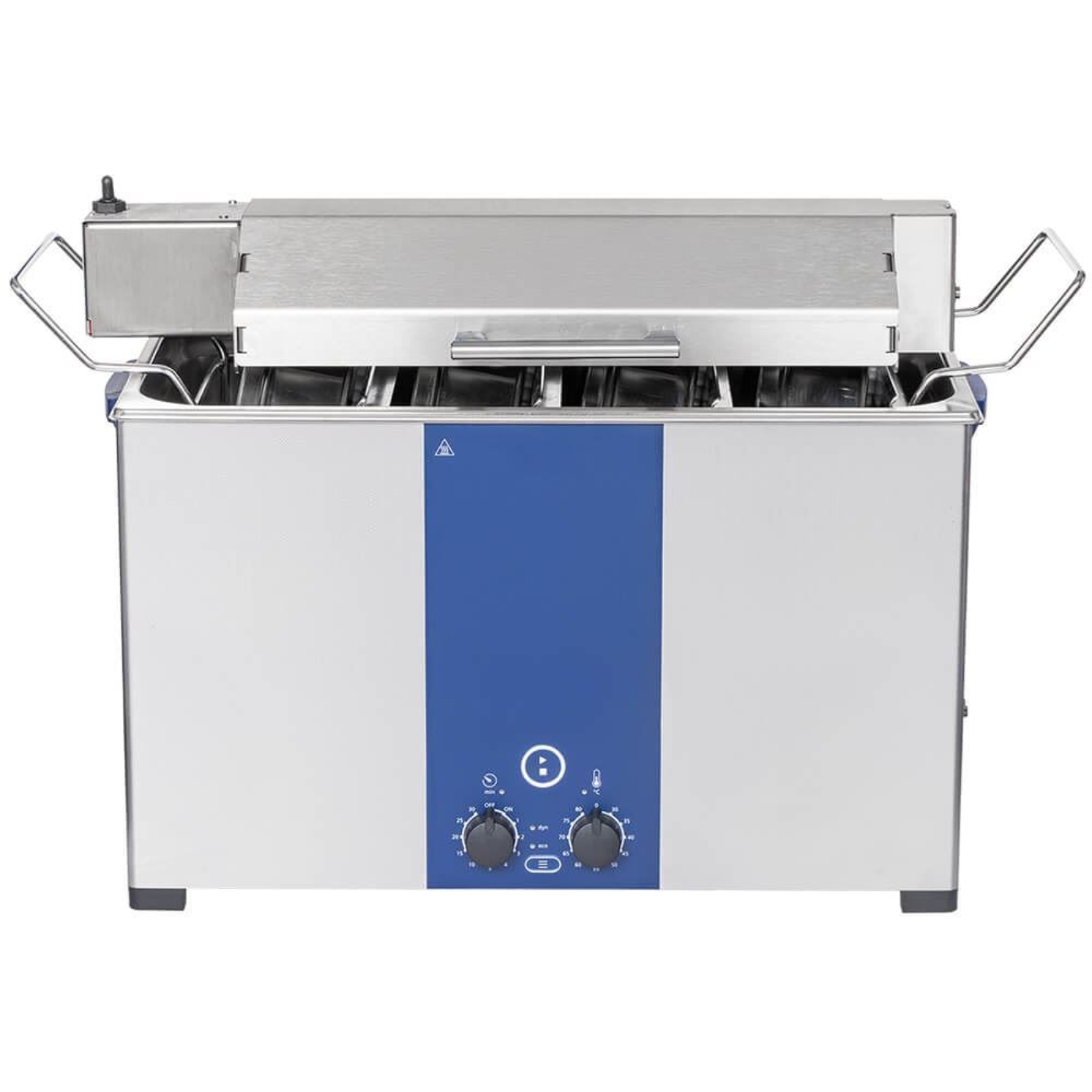

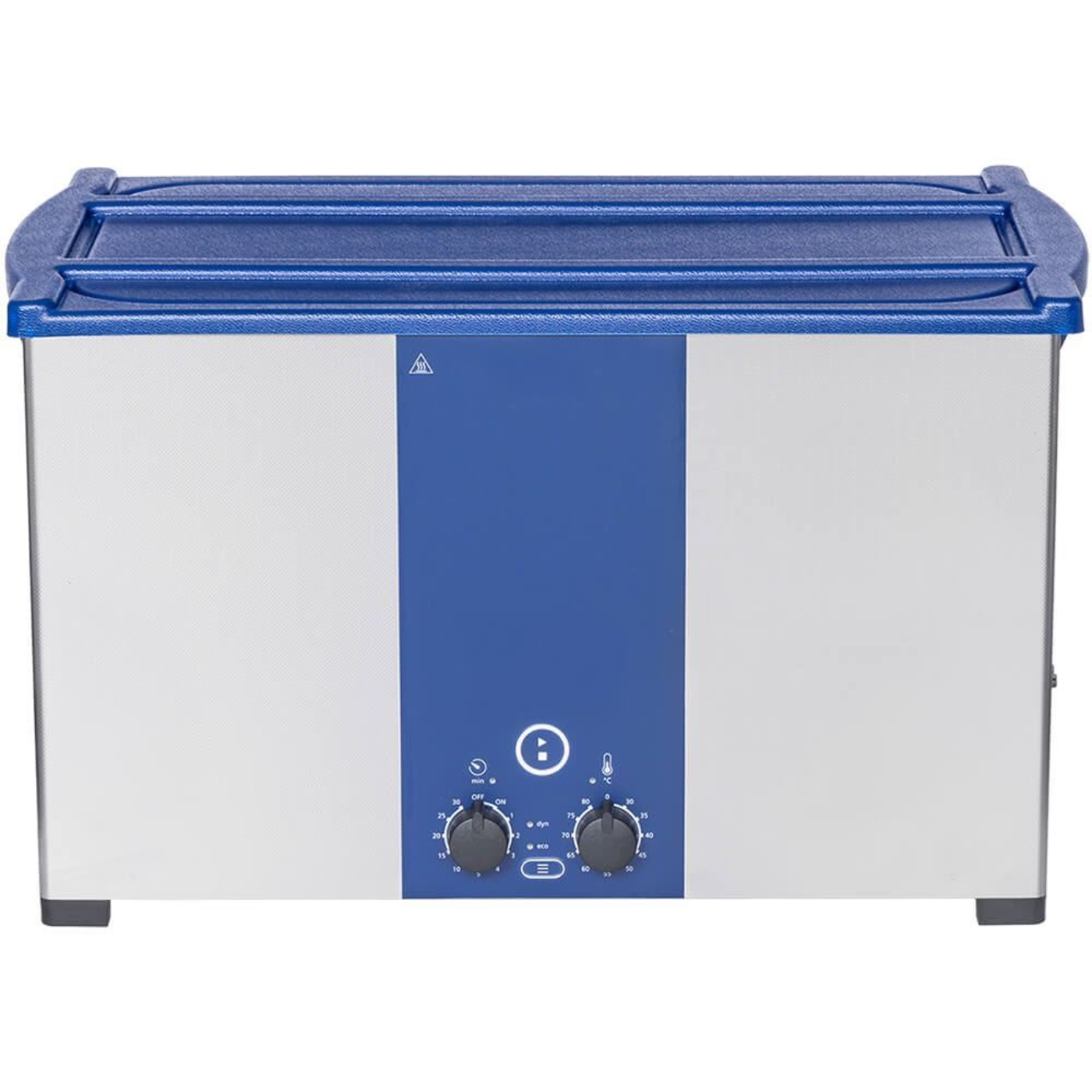

Ultrasonic Rotating 8in Sieve Cleaner features heated operation and a 37kHz ultrasonic frequency for the effective cleaning of both coarse contaminations and fine mesh surfaces. The stainless steel 7.5gal (28L) tank can accommodate the cleaning of four full- or half-height 8in (203mm) sieves up to a temperature of 176°F (80°C), the maximum temperature before ultrasonic cleaning action begins to decrease. Electrically operated rotation baskets rotate the sieves at an angle during cleaning to allow contaminants to fall to the bottom of the cleaning tank, significantly increasing cleaning throughput in high-volume labs.

Two operating modes ensure the removal of contaminants. Dynamic mode optimizes the distribution of cleaning power in the tank and removes tenacious contaminants. Eco mode cleans gently at reduced power and extends the service life of the tank. LED displays indicate which mode is activated and when the set temperature is reached.

The unit features a 30-minute timer with automatic shutdown. Continuous operation with manual shutoff is also available. Automatic shutdown also occurs at 90°C to prevent equipment/unit damage or after six hours to prevent unintended operation. The stainless steel case incorporates a rear-facing drain with a valve located on the side for easy access. Units are CE and cTUVus marked.

Features

  • Heating range of 86° to 176°F (30 to 80°C), in 5° increments to minimize cleaning time
  • Rotating holder for quick throughput
  • Stainless steel case and tank
  • Sealed display and elevated feet
  • Automatic shut-off after 6 hours or at 90°C

Included Items

  • Ultrasonic Rotating 8in Sieve Cleaner

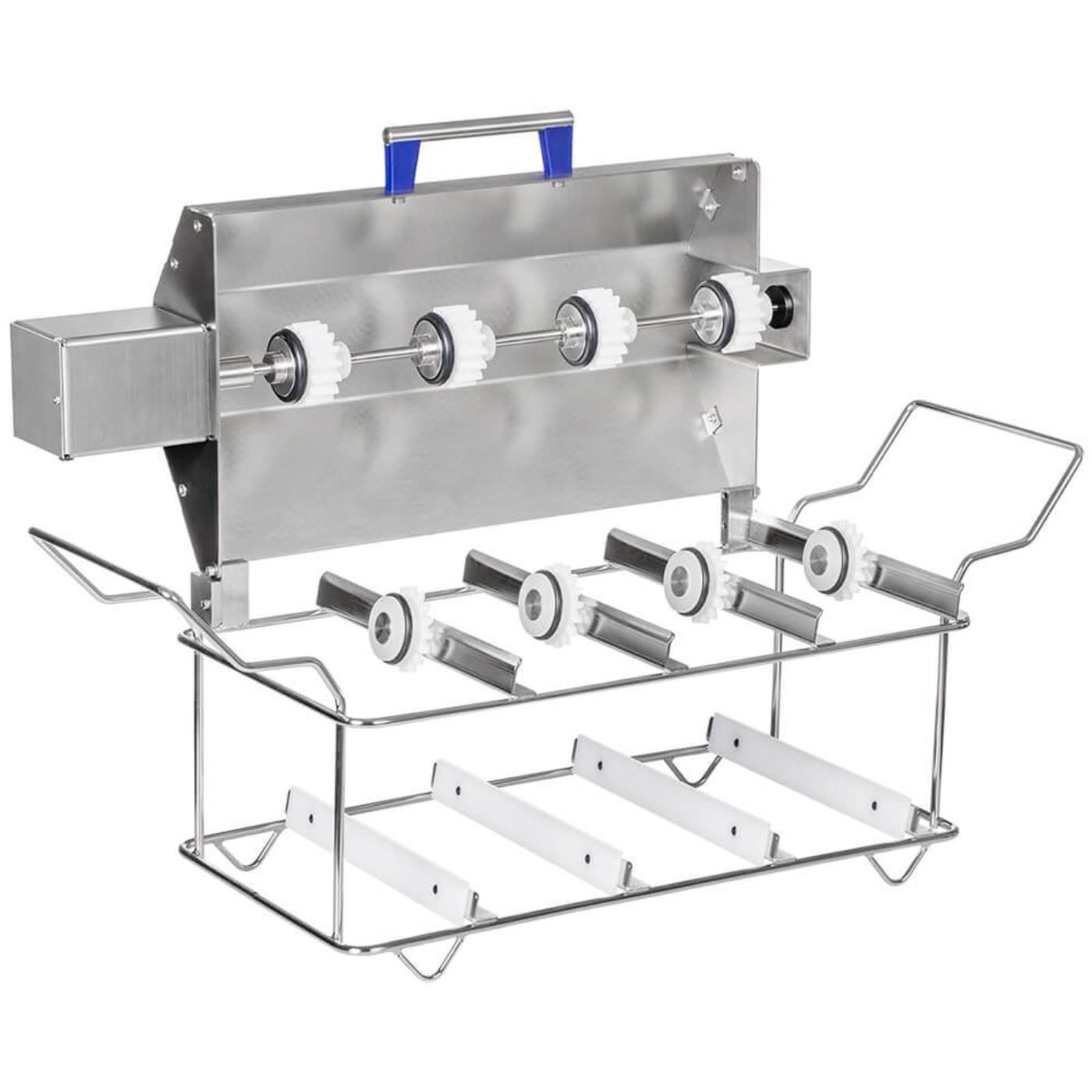

  • Sample Basket

Accessories

Specifications

Attribute name Attribute value
Frequency 37kHz
Capacity 7.5gal (28L)
Sieve Capacity

(4) 8in (203mm) Full-Height Sieves

(4) 8in (203mm) Half-Height Sieves

Electrical

115-120V, 60Hz

Heating Power: 1,250 Watts

Total Power Consumption: 1,630 Watts

Inside Dimensions 19.7x11.6x7.7in (500x295x195mm), WxDxH
Product Dimensions 22.6x14.8x13in (575x375x330mm), WxDxH
Estimated Shipping Weight 45.0lb (20.41kg)
