Vertical Cylinder Cappers are the most popular design for capping concrete test cylinders. These units maintain the cylinder's orientation perpendicular to the bottom plate, assuring end surfaces that are parallel to each other when loaded in a concrete compression machine.
The retaining ring is filled with molten capping compound, and the cylinder is placed into the compound-filled ring and held against the upright guides until the capping compound solidifies. Each bottom plate is ground to 0.002in (0.05mm) planeness, and the vertical guides are removable to permit re-grinding to proper planeness after extended use. The cylinder cappers are also equipped with corner mounting holes for securing to the work surface if desired.
HM-265 for 6x12in (152x305mm) cylinders features vertical uprights to hold cylinders perpendicular to the bottom plate. The 0.625in (15.875mm) thick steel base allows for re-grinding to planeness requirements for extended life.

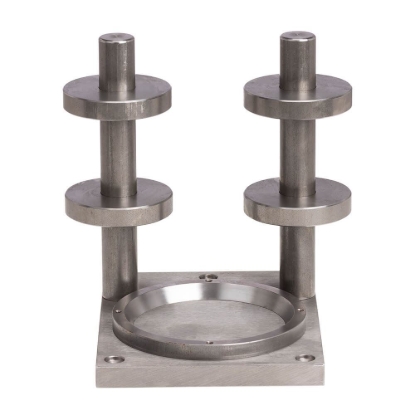

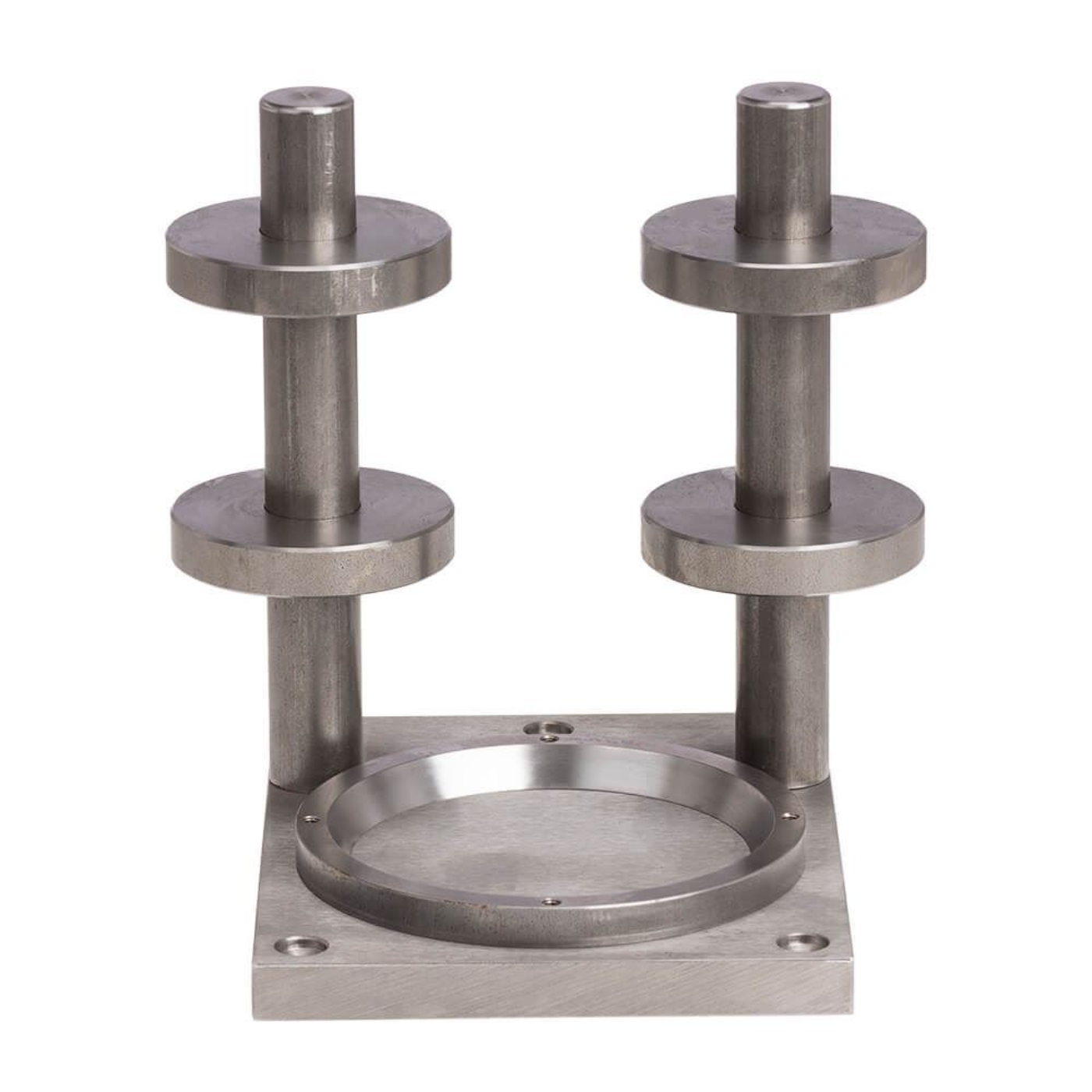

HM-264 for 4x8in (102x203mm) cylinders features vertical uprights to hold cylinders perpendicular to the bottom plate. The 0.625in (15.875mm) thick steel base allows for re-grinding to planeness requirements for extended life.

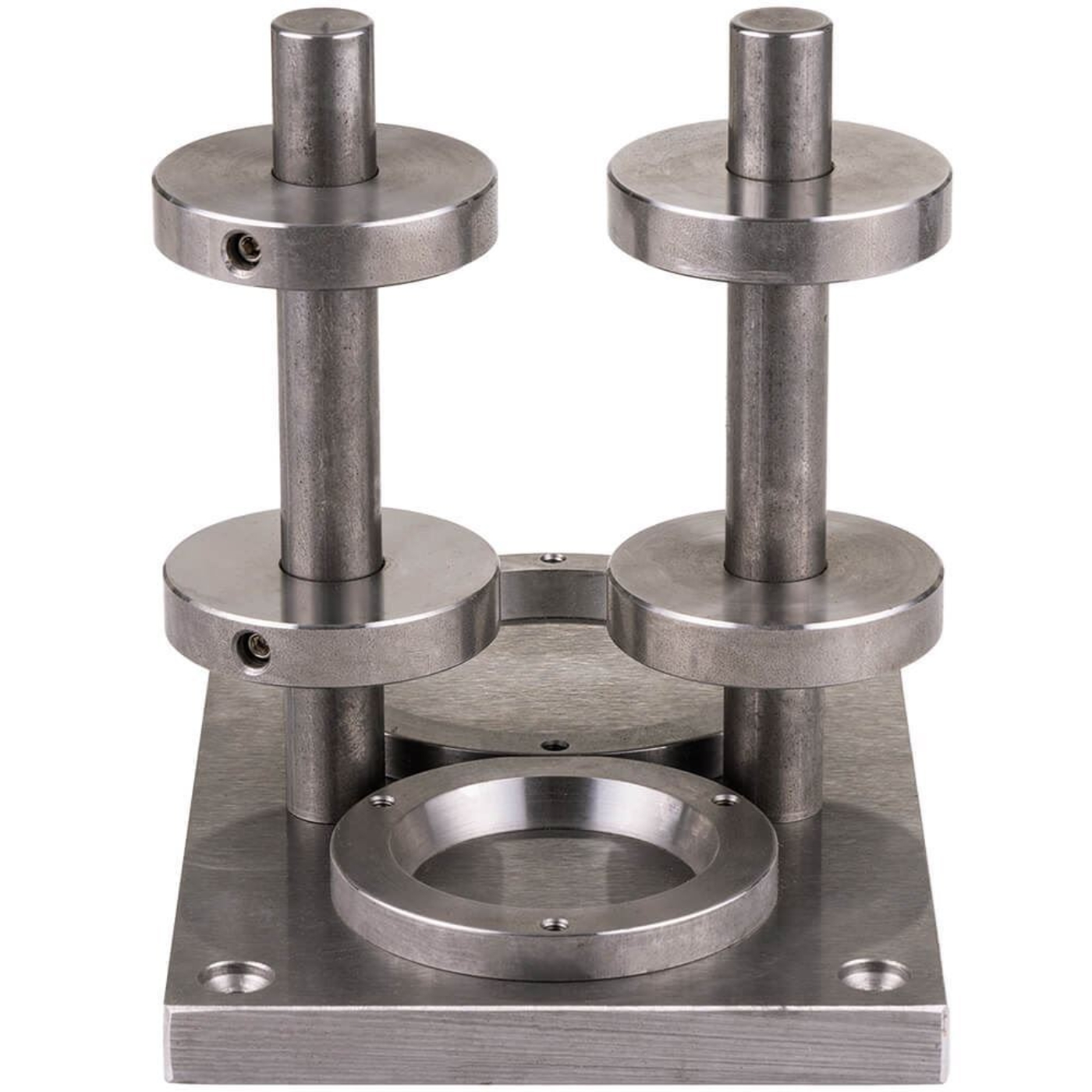

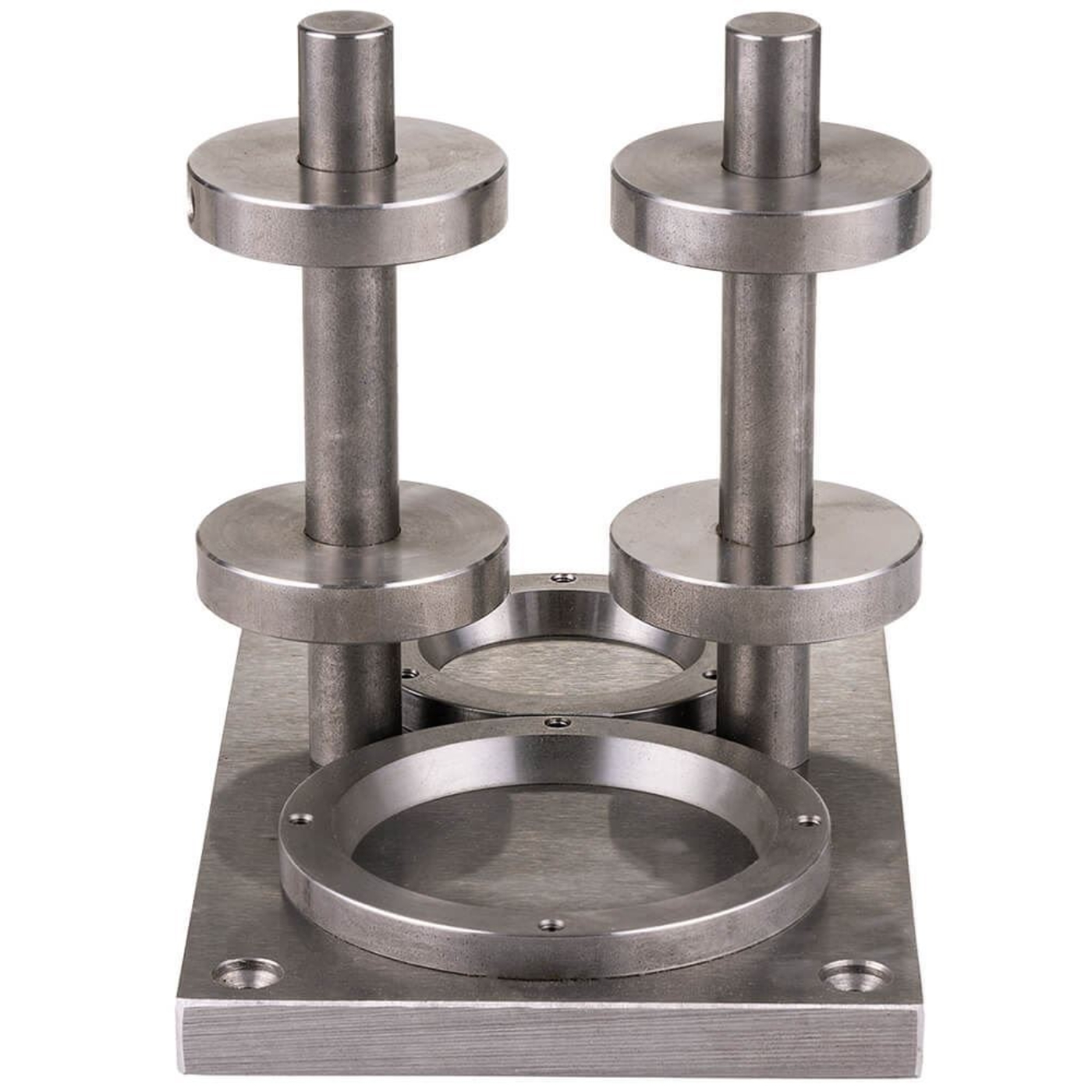

HM-263 is designed for 3x6in (76x152mm) and 2x4in (50.8x102mm) cylinders and includes a separate retaining ring for each cylinder diameter. Rings on the vertical uprights are adjustable so that the cylinders can be held perpendicular to the bottom plate. Its 0.625in (15.875mm) thick steel base allows for re-grinding to planeness requirements for extended life.
Features:
- Removable ring and vertical guide
- Base equipped with mounting holes
- Thick steel bottom plate
Included Items:
- Vertical Cylinder Capper
