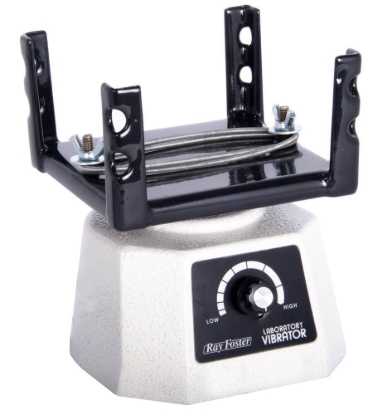

Vibra Pad does double-duty as an agitator to de-air specific gravity specimens and as a light-duty shaker for 3in (76mm) diameter sieves. Particle sizes range from No.10 to No.200 (2mm to 75µm).

The Kentucky Transportation Cabinet specifies these units for fine aggregate specific gravity testing.

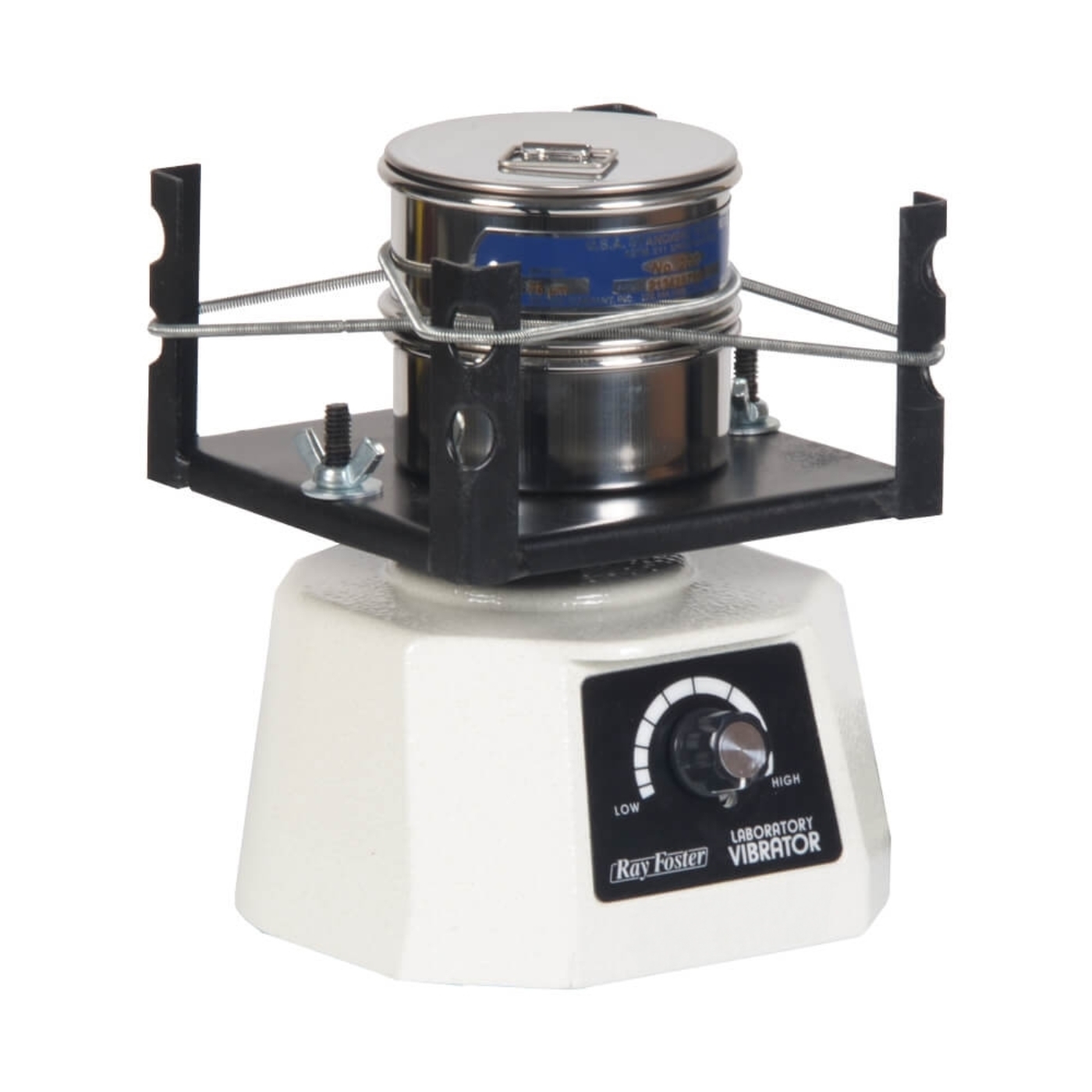

The plastic-coated 5.25in (133mm) square platform has two wing nut fasteners and corner pillars with springs for holding sieves, flasks, or pycnometers up to 5.25in (133mm) diameter in place.

Features:

Effective agitation of specific gravity specimens for deairing in specific gravity determinations
Kentucky Transportation Cabinet specified for fine aggregate specific gravity testing
The plastic-coated platform features a wing-nut fastener and corner pillars to hold flask and pycnometers in place
Ideal for wet or dry use with 3in Nonmetallic Sieves
It can be used as a light-duty shaker for 3in (76mm) in diameter sieves

Included Items:

Vibra Pad (115V, 50/60Hz or 220V, 50/60Hz)

Accessories:

Related blogs:

Characteristics of Aggregates: Shape, Size & Specific Gravity

Specifications

Attribute name	Attribute value
Sieve Frame Diameter	3in (76mm)
Sieve Capacity with Pan	Full Height: (3) 3in Sieves Half Height: (6) 3in Sieves
Particle Size Range	No.10–200 (2.0mm–75µm)
Motion/Agitation	Vibratory
Timing Capacity	N/A
Mounting Capability	No
Electrical	SS-28: 115V, 50/60Hz, 1.4 Amps SS-28F: 220V, 50/60Hz, 0.7 Amps
Product Dimensions	6 x 7 x 6.5in (152 x 178 x 165mm), WxDxH
Estimated Shipping Weight	10.0lb (4.54kg)
