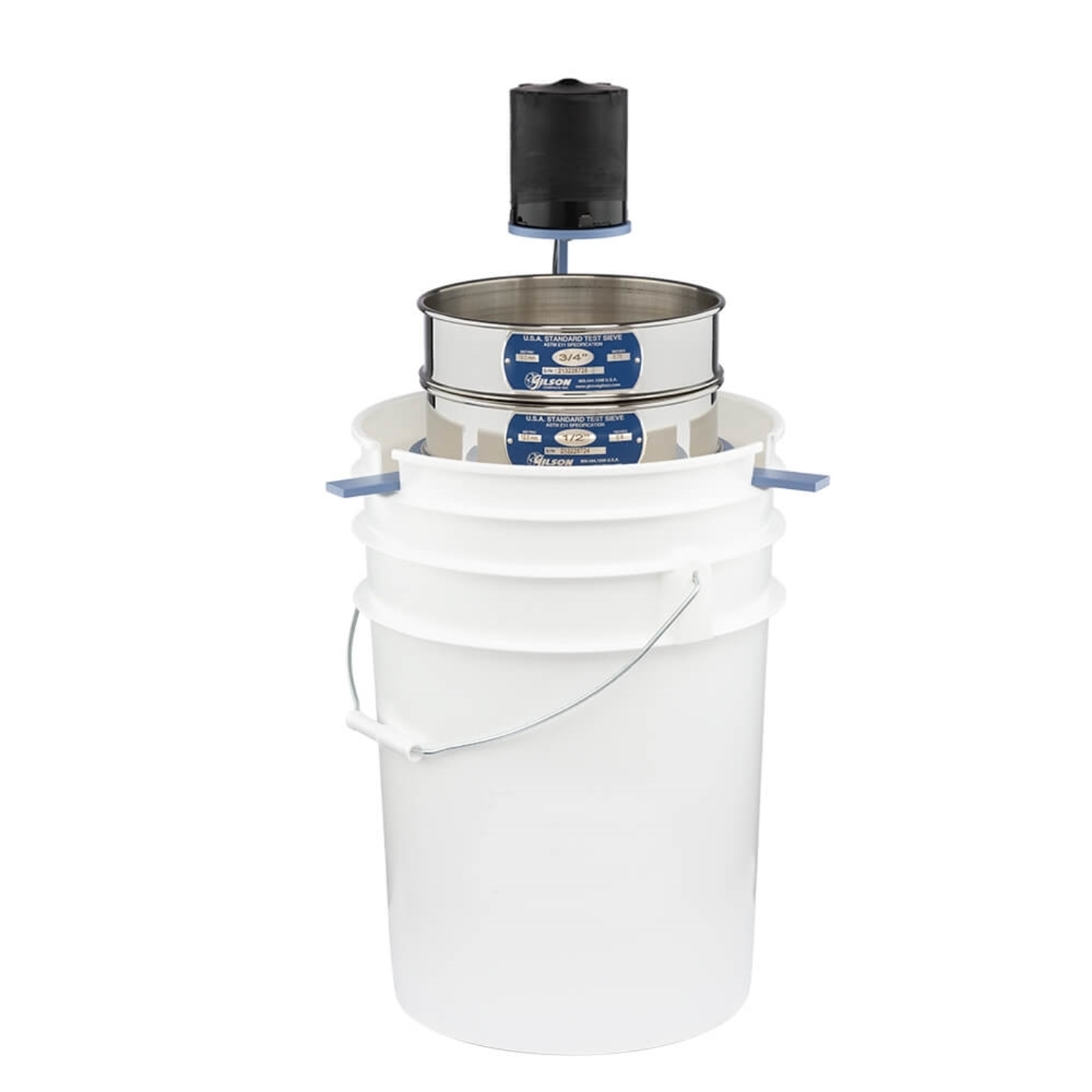

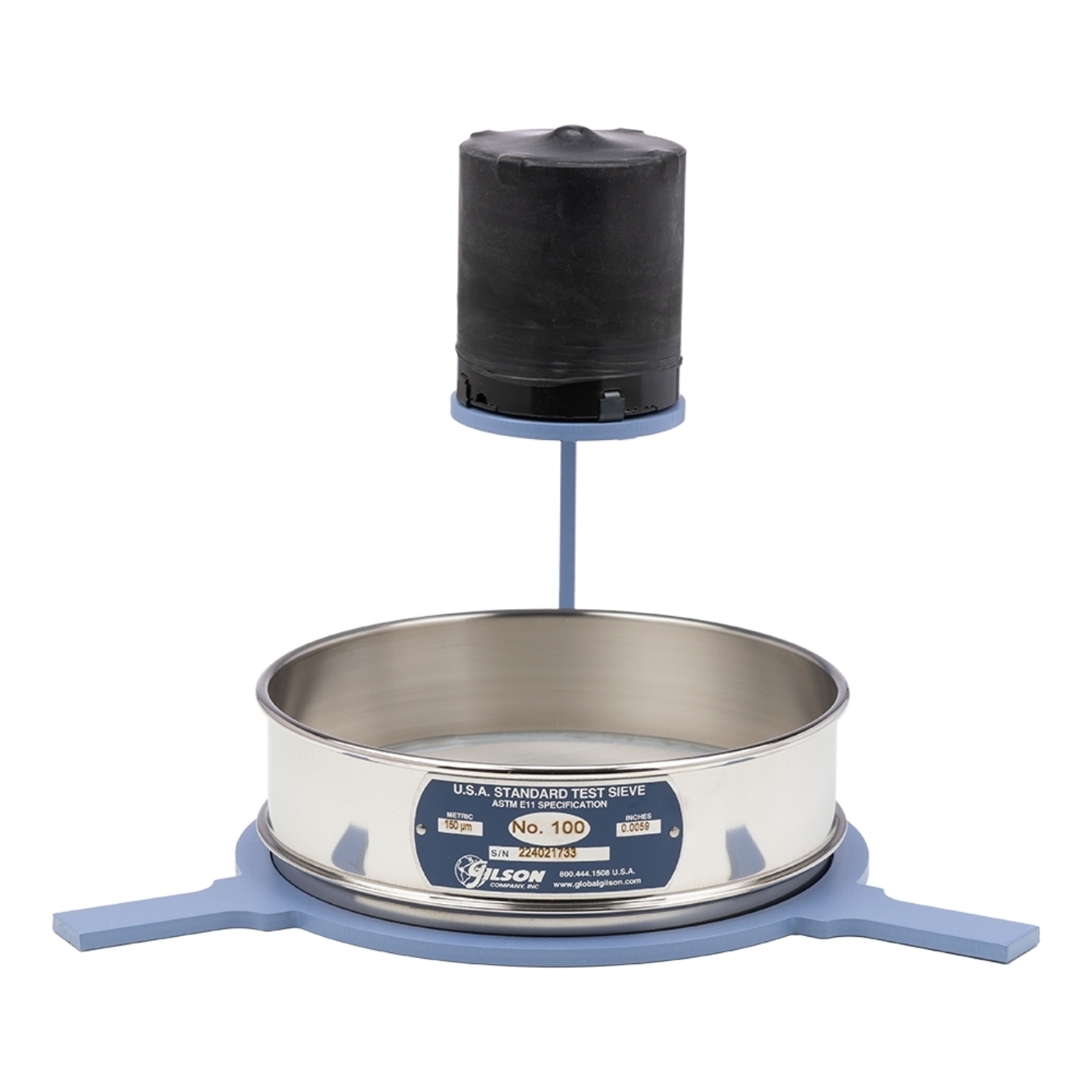

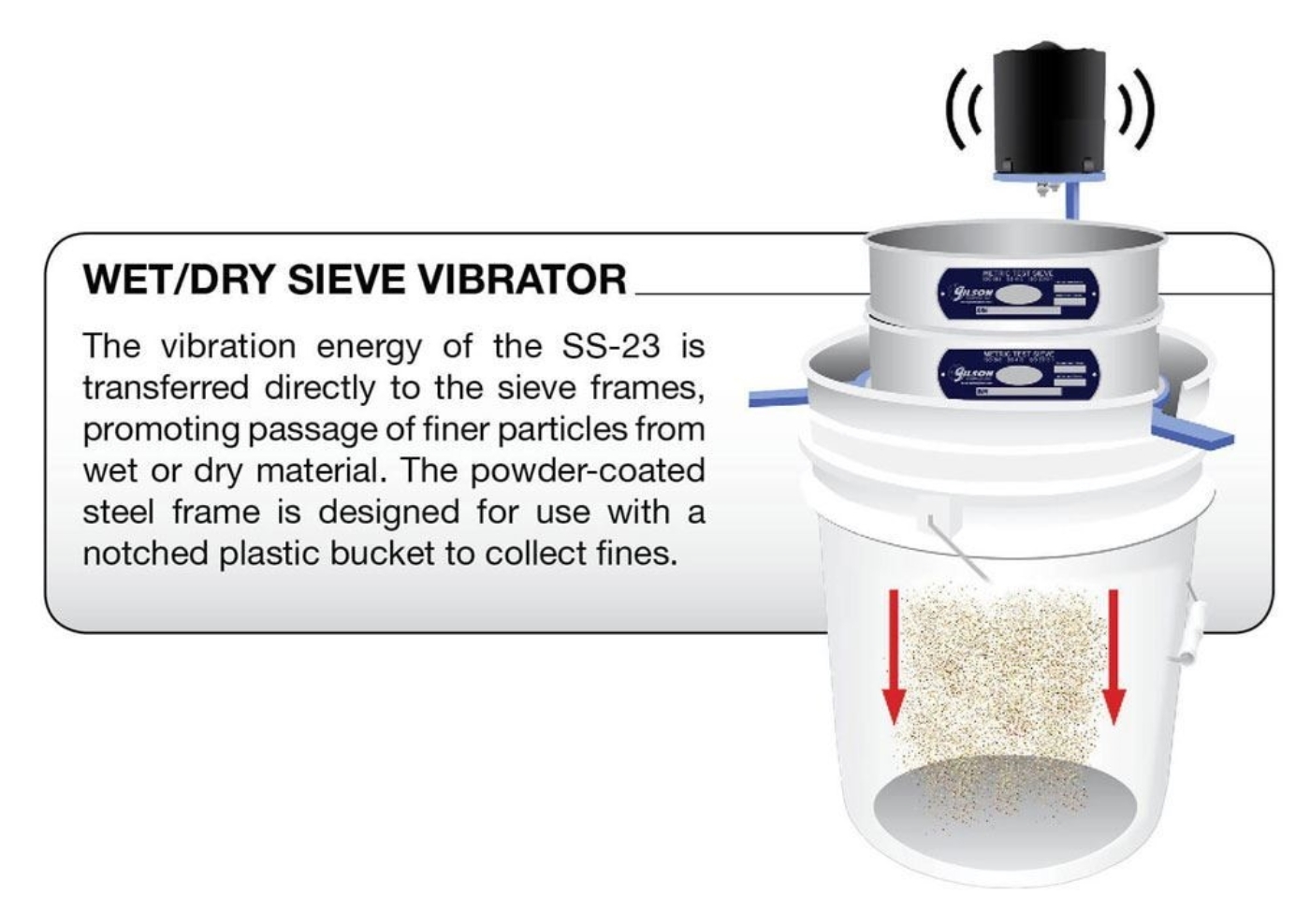

Wet/Dry Sieve Shaker is an economical electric sieve vibrator and is helpful for fast separations of wet or dry materials using one or two 8in (203mm) diameter full-height ASTM test sieves. Vibration energy is transferred directly to the sieve frames, promoting the passage of finer particles from wet or dry material. This unit works with particles ranging in size from 1in–No.200 (25mm–75µm).
For wet samples, use WT-7 Spray Fitting, WT-5 Spray Bottle, or other wet-sieving accessories can be used to assist processing. The vibrating unit is mounted on a durable, powder-coated steel frame designed for use with a notched plastic bucket to collect fines. The SSA-20 Notched Bucket or one sieve and an extended rim sieve pan can be used to catch undersize material.
The Wet/Dry Sieve Vibrator includes a 3-wire cord and plug for 115V, 60Hz operation. For 230V operation, order the TR-502 Step-Up/Step-Down Transformer.
Features
- Inexpensive yet effective unit for fast separations of wet or dry materials
- Durable mounting on a steel frame keeps the unit secure
- Ideal for quick scalping of oversize materials from bulk samples
Included Items
- Wet/Dry 8in Sieve Vibrator
- 3-wire cord and plug for 115V, 60Hz operation
Accessories
- ASTM Test Sieves are available in a wide selection of frame diameters, heights, materials, and opening sizes. Only 8in diameter test sieves are compatible with the SS-23.

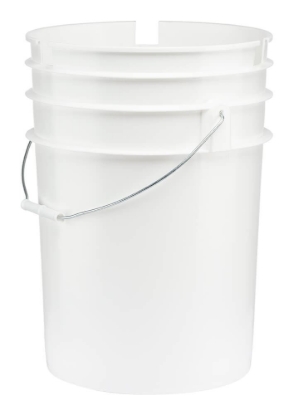

- Notched Bucket is for easy collection of materials during the separation.
- Spray Fitting attaches to unthreaded standard faucets for a fine spray during sieving.
- Spray Bottle with adjustable nozzle allows quick spraying of samples.
- Step-Up/Step-Down Transformer allows the vibrator to operate on 230V power.
