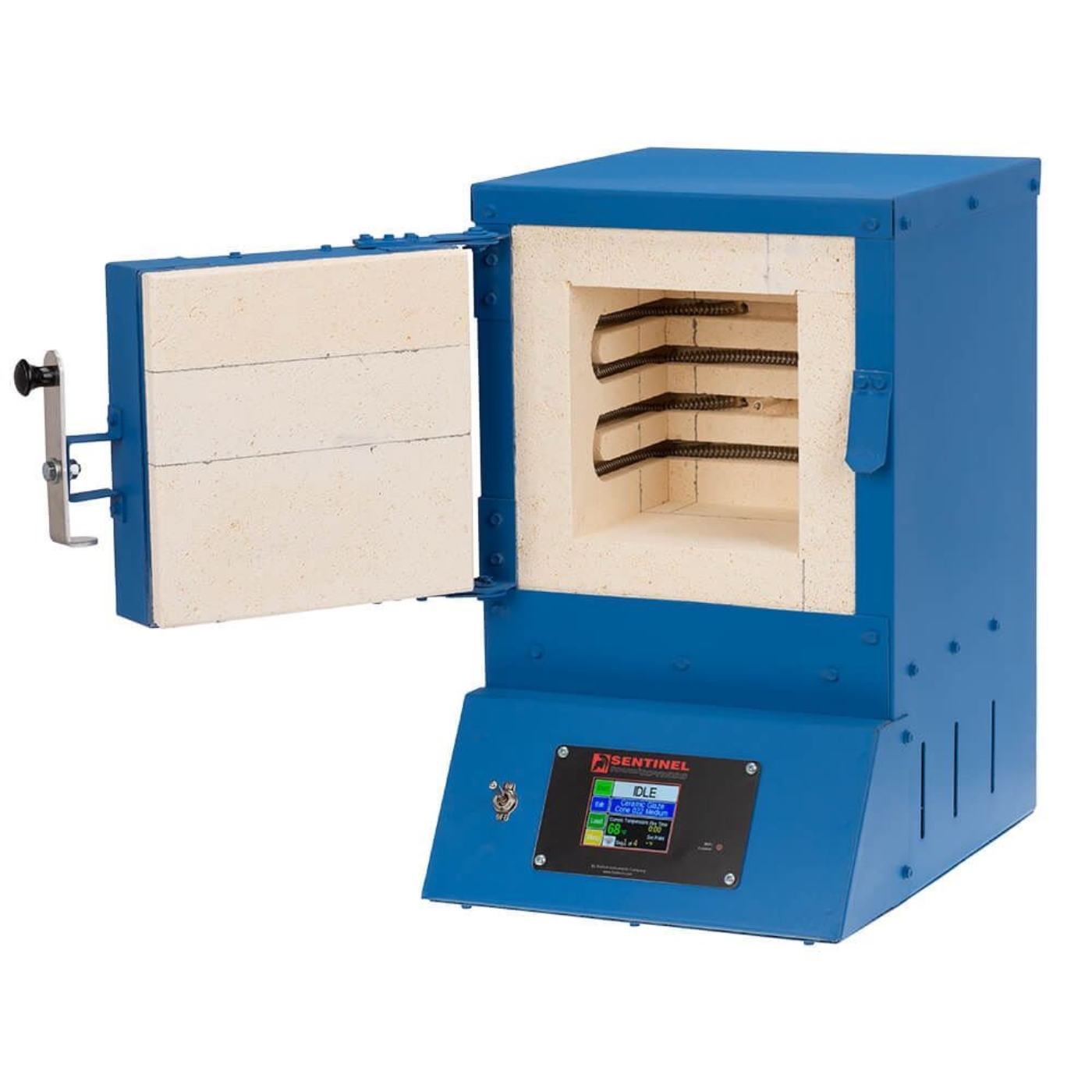

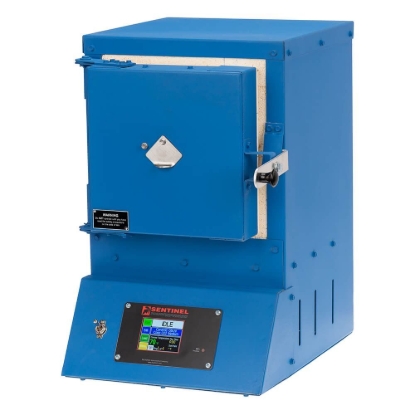

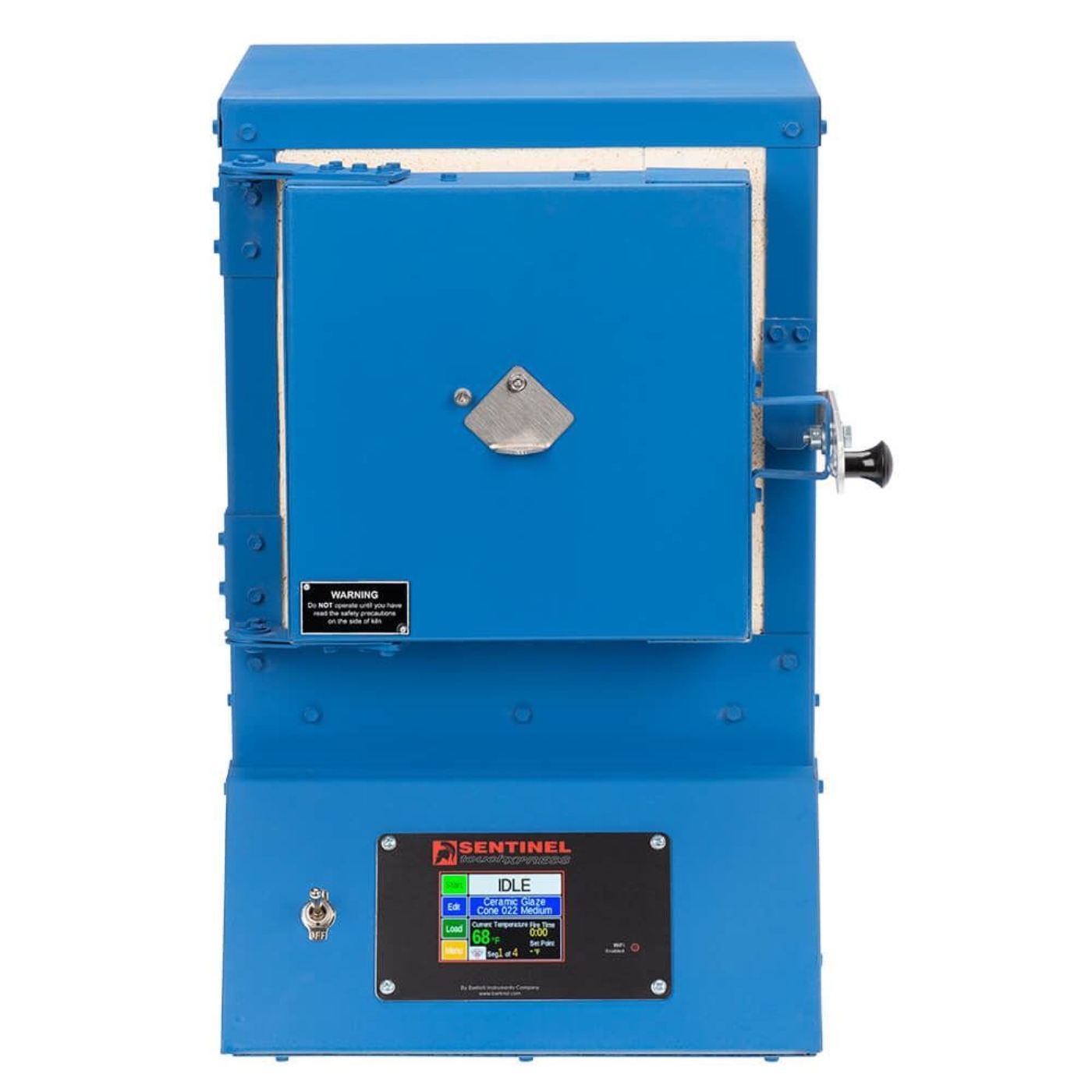

The 0.13ft³ (3.68L) Muffle Furnace with a touchscreen controller is a multipurpose laboratory muffle furnace with a maximum temperature of 2,350°F (1,287°C).
This model opens from the side with an exterior case constructed of painted, heavy-gauge steel. The chamber is constructed of 2.5in (63.5mm) thick refractory firebrick with easily accessible heating elements mounted within. No extra stand is needed, and the built-in base stays cool during operation.
The touchscreen controller features easy-to-follow screen descriptions, different user interface levels, and a graphical display of the firing process. Up to 30 custom user programs can be stored, with each program capable of storing up to 32 segments. Adjustments can be made from the controller during a firing, such as “Add Segments,” “Add Temperature,” and “Skip Segments.” One-year warranty included.
Heating Applications
- Ashing
- Ignition tests
- Gravimetric analyses
- Volatile matter determinations
- Soil testing
- Aggregate testing
- Cement testing
Features
- Rugged construction offers extended service life
- Furnace is housed in heavy steel case
- Chamber interior constructed of 2.5in thick refractory firebrick
- Touchscreen controller features precise programming, an alarm, error codes, and Wi-Fi connectivity
Included Items
- 0.13ft³ Muffle Furnace
- One-year warranty
Accessories
- Crucible or Beaker Tongs to safely remove beakers and other labware from the furnace
- Porcelain Crucibles used for loss-on-ignition testing of cement, fly ash, and soils and are available in 10, 30, or 45mL
- SE-33 Heat Resistant Gloves provide additional operator protection from high temperatures when placing or removing items inside the furnace
