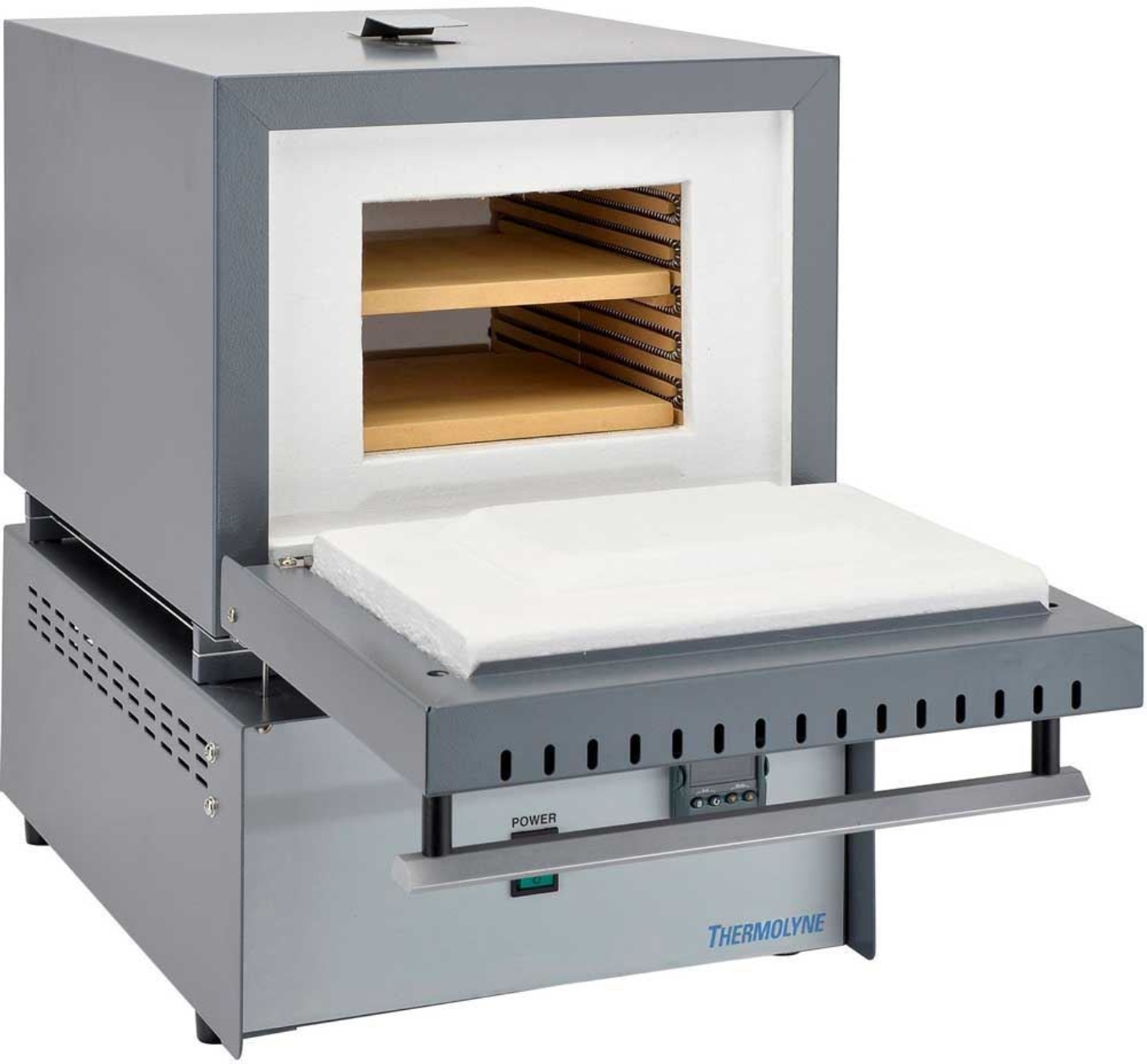

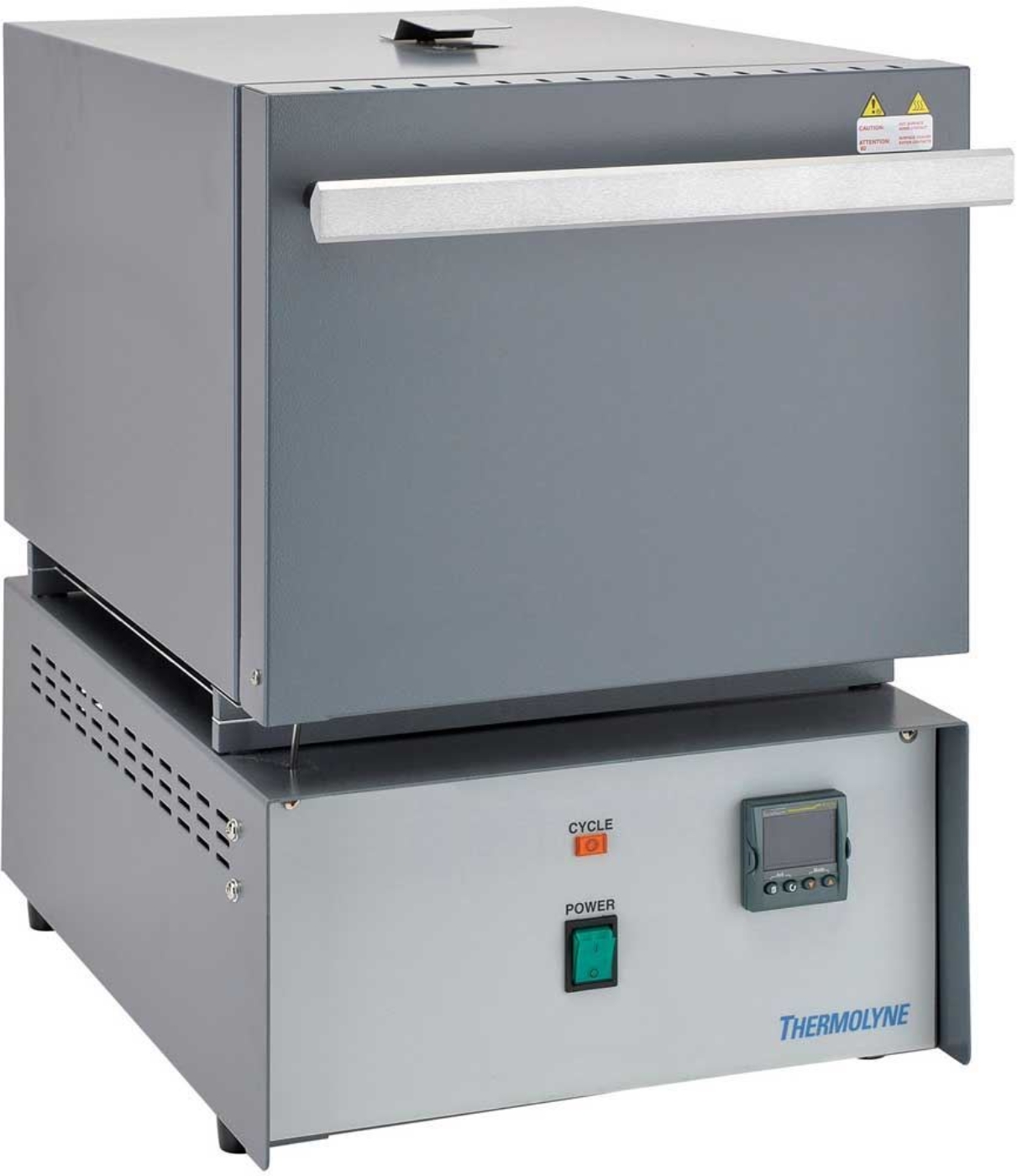

Muffle Furnace with Single Setpoint Controller has a 0.2ft³ (5.8L) capacity and a temperature range of 212–2,192°F (100–1,200°C).
This benchtop-style box furnace has a built-in port that removes moisture and contaminants while extending the heating element and furnace life. It is additionally equipped with thermocouple break protection, two open-coil heating elements for fast and efficient heat-up, thermal-efficient ceramic insulation, an oven door safety switch, and a 0.31in (7.8mm) rear port to monitor chamber temperatures.
These furnaces are designed for operation with ashing, ignition tests, gravimetric analyses, and determination of volatile matter. They also perform well in the testing of soils, aggregates, and cement. Both models come with a digital single setpoint controller, power cord, hearth tray, and a one-year warranty. They are supplied with a NEMA 5-20 plug and require a matching outlet for operation.
Features:
- Solidly constructed for long service life
- Safety features for user protection
- Open coil heating elements assure fast heating
Included Items:
- 0.2ft³ Muffle Furnace with Single Setpoint Controller (120V, 50/60Hz or 240V, 50/60Hz)
- One-year warranty
Accessories:
- Crucible or Beaker Tongs to safely remove beakers and other labware from the furnace
- Porcelain Crucibles used for loss-on-ignition testing of cement, fly ash, and soils and are available in 10, 30, or 45mL
- SE-33 Heat Resistant Gloves provide additional operator protection from high temperatures when placing or removing items inside the furnace
