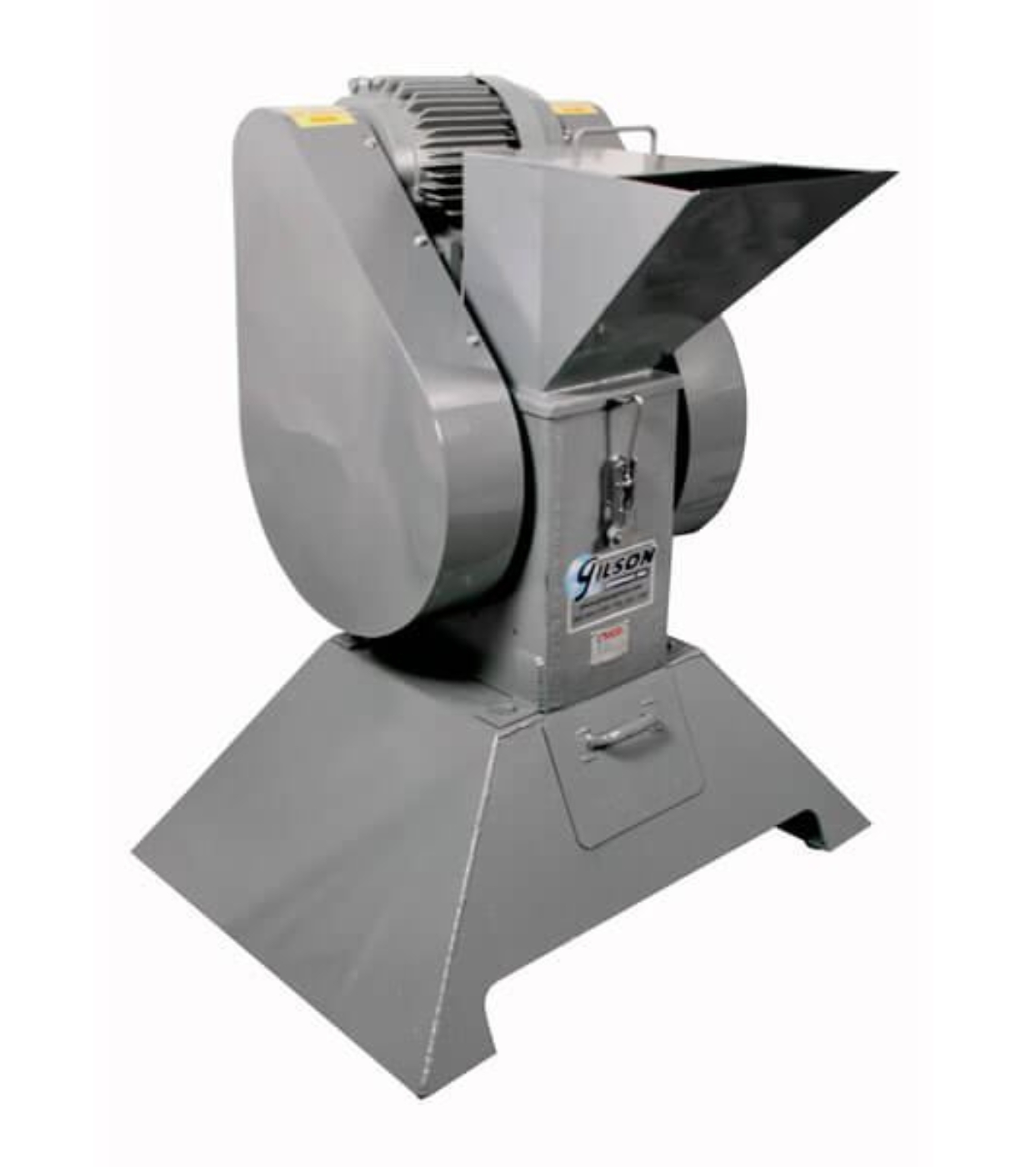

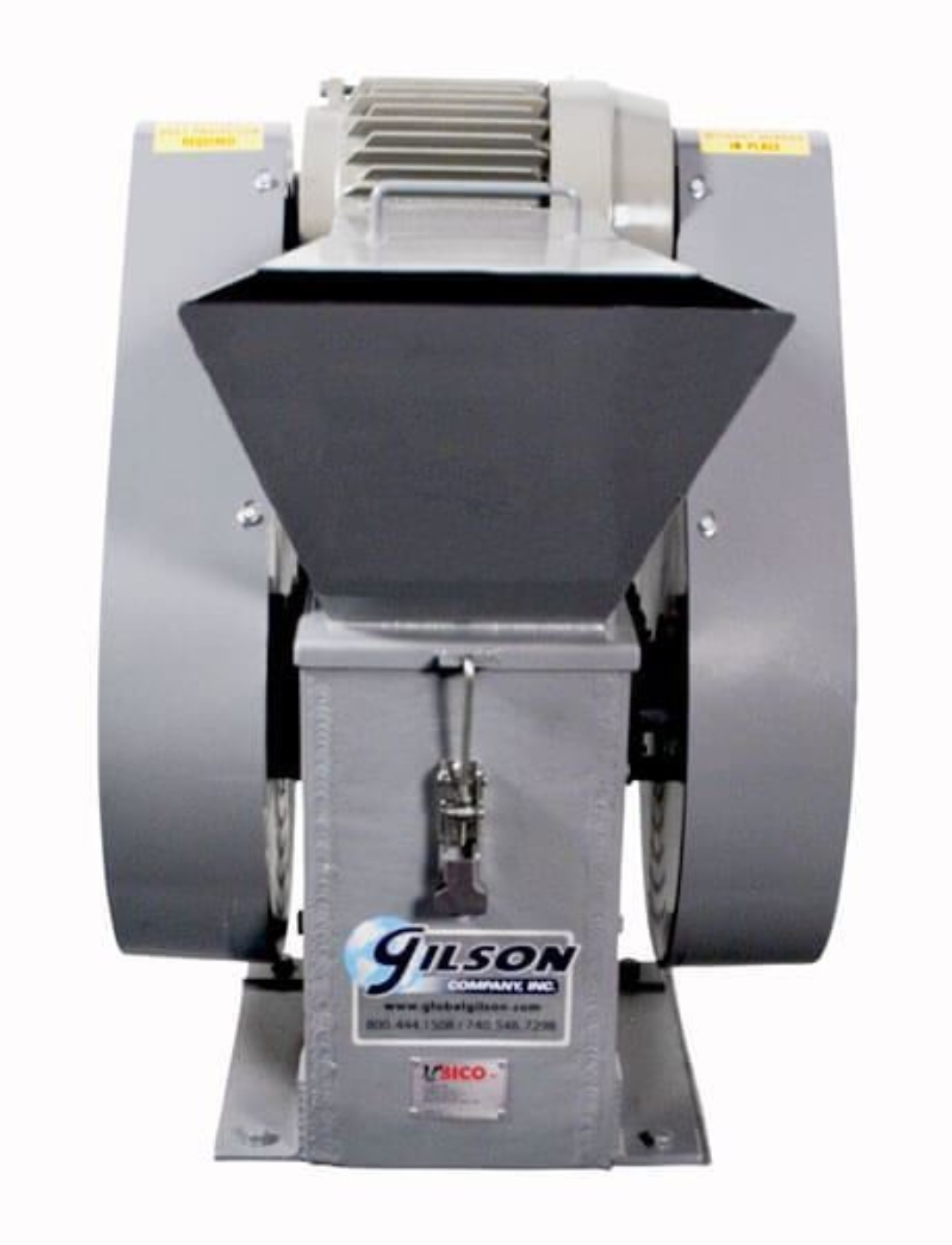

Badger Jaw Crushers have the highest crushing capacity needed for labs and pilot plants. These heavy-duty units have a jaw size of 5x7in (127x178mm). The unique vertical/horizontal jaw action aggressively and efficiently reduces difficult materials.
The Badger has the maximum feed size in our line of Bico Crushers, topsize is 4x6in (102x152mm). The final size for most rock samples is 1/8–3/4in (3–19mm) at a throughput of 1,300lb (589.6kg) per hour for enhanced productivity. Powerful 5hp, three-phase motors. A Feed Hopper, Belt Guards, and Flywheel are included. An electric motor starting switch is included but must be installed on-site.
Features:
- Highest crushing capacity
- 4x6in maximum feed size
- Easily reduces topsize samples to 1/8–3/4in (3–19mm) final size
- Intense vertical/horizontal jaw action
Included Items:
- Badger Jaw Crusher
- Electric Motor Starter Switch (must be installed on-site)
- Feed Hopper
- Belt Guards
- Flywheel
Accessories:

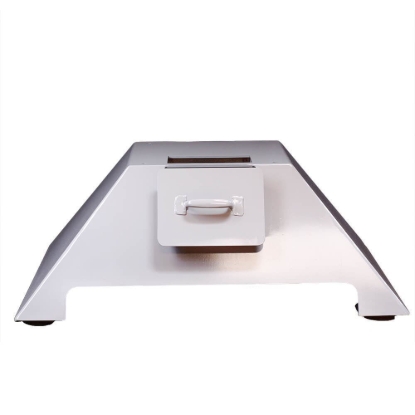

- LCA-57 Dust Collector Base with Pan to hold the LC-37
