Jaw Crushers

Jaw Crushers reduce the particle size of hard rock, ores, minerals, and similar materials in preparing samples for testing. They are often used for primary crushing but can also be used for secondary size reduction. Jaw crushers work by using two hard-faced heavy plates, or jaws, to crush large particles. The final sample size can be determined by adjusting the distance between the two jaws. Gilson offers a selection of standard to heavy-duty laboratory jaw crushers, each with unique features and capabilities, to accommodate a wide range of capacities and particle sizes.

Bico Jaw Crushers

Laboratory Jaw Crushers

Mini Crusher

10in Jaw Crushers

Morse® Jaw Crushers

Fritsch Jaw Crusher

The right jaw crusher for each application depends on the particle size, volume, and properties of the feed material, as well as the desired particle size and quantity of the final sample. Jaw plates are available in a variety of materials for most machines to adapt to the hardness properties of samples and to extend service life.

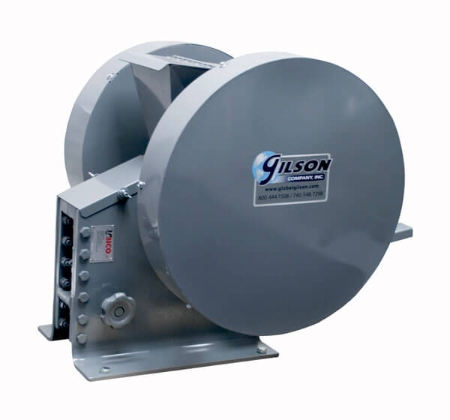

Bico Jaw Crushers are available in Standard Chipmunk, Heavy-Duty Chipmunk, and Badger models. Capacities are 400lb (182kg), 800lb (363kg) and 1,300lb (590kg) per hour, respectively. The standard unit has 6x3in (152x76mm) jaws, while the heavy-duty model jaws are 9x4in (229x102mm) and the Badger units have 5x7in (127x178mm) jaws.

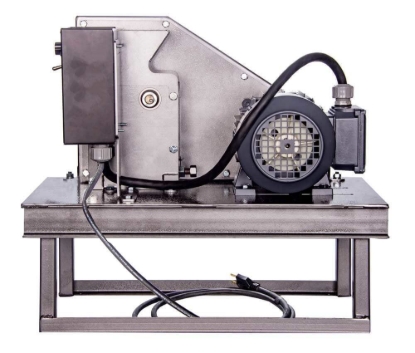

Laboratory Jaw Crushers feature adjustable jaws for control of output size, with high operating rpm for efficient size reduction. Equipped with CSA-rated electric motors. The amount of dust generated is lower than other crushers and pulverizers.

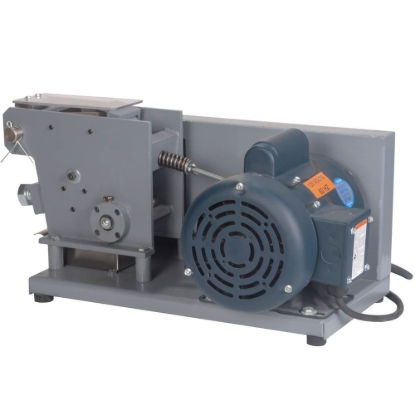

Mini-Jaw Crusher with a 2x2in (51x51mm) feed opening reduces materials up to 1in (25mm) with levels of hardness ranging from soft claystone to hard quartz. A ceramic jaw and cheek set is available to avoid iron contamination, while a tungsten carbide set can be selected for use with extra tough materials.

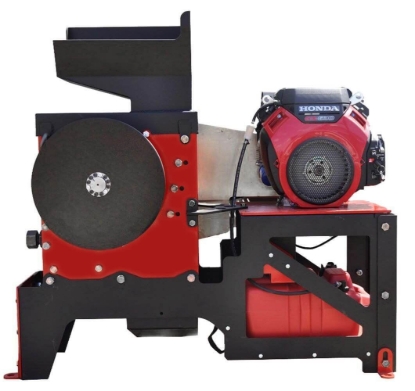

10in Jaw Crushers with 8in (203mm) maximum feed size offer regulated final output size through adjustment of the jaw plates. These crushers feature one to two tons (907 to 1,814kg) throughput per hour and are available powered by a gasoline or diesel engine, or an electric motor.

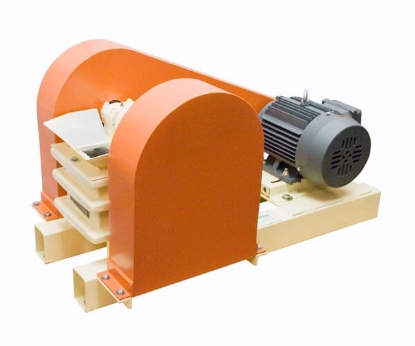

Morse Jaw Crushers handle oversized feed and are available with 4x6in (102x152mm), 5x6in (127x152mm) and 8x8in (203x203mm) jaw sizes. Capacities include 400—1,200lb (182—545kg), 1,000—2,500lb (454—1,134kg), and 1,500—4,000lb (682—1,818kg) per hour respectively.

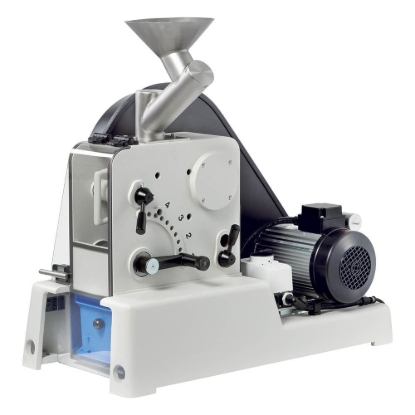

Fritsch Jaw Crushers use one fixed and one movable crushing jaw for the pre-crushing of very hard, hard, medium-hard, brittle, tough, or temperature-sensitive materials. Units have a maximum feed size of 60mm and are capable of batch-wise or continuous operation.
