60psf Basic Swell Consolidometer, 2.44in Diameter

Self-contained Basic Swell Consolidometers are used for swell and expansion tests on soil specimens of 2.44 or 2.50in (62 or 63.5mm) diameters. The simple method provides rapid results to predict the swell potential for soils with no need for a separate loading frame.

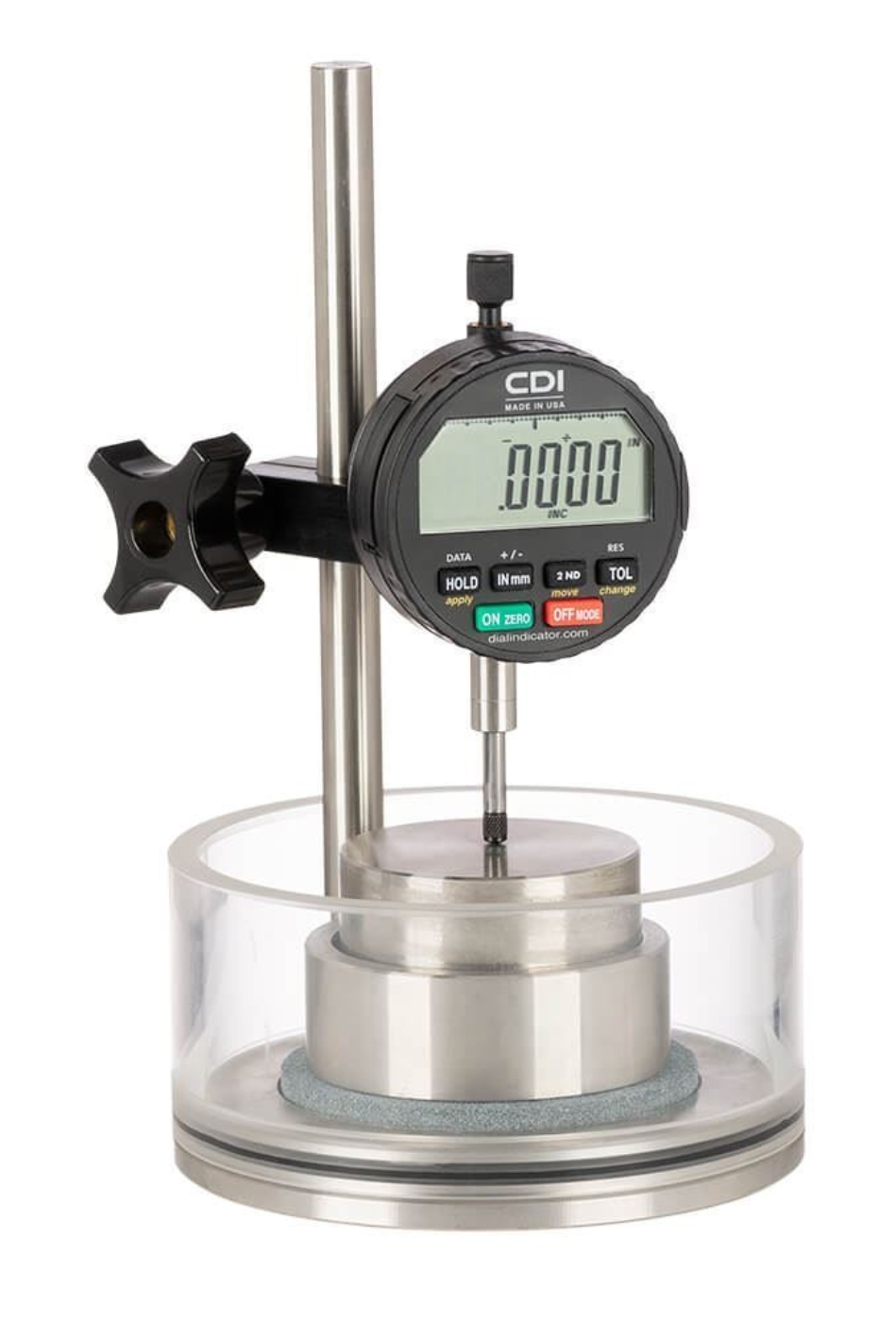

Specimens are prepared by compacting soil into a stainless steel compaction ring. The ring with the specimen is placed in the Consolidometer between two porous stones and loaded to 60 or 100psf (2.87 or 4.7kPa) with the Loading Weight. A dial indicator is set to the initial sample height, and the Consolidometer is filled with water to begin the test.

HM-564 tests 2.44in (62mm) diameter specimens with 60psf (2.87kPa) load capacity.

HM-565 tests 2.5in (63.5mm) diameter samples with 60psf (2.87kPa) load capacity.

HM-568 tests 2.44in (62mm) diameter specimens with 100psf (4.7kPa) load capacity.

HM-569 tests 2.5in (63.5mm) diameter samples with 100psf (4.7kPa) load capacity.

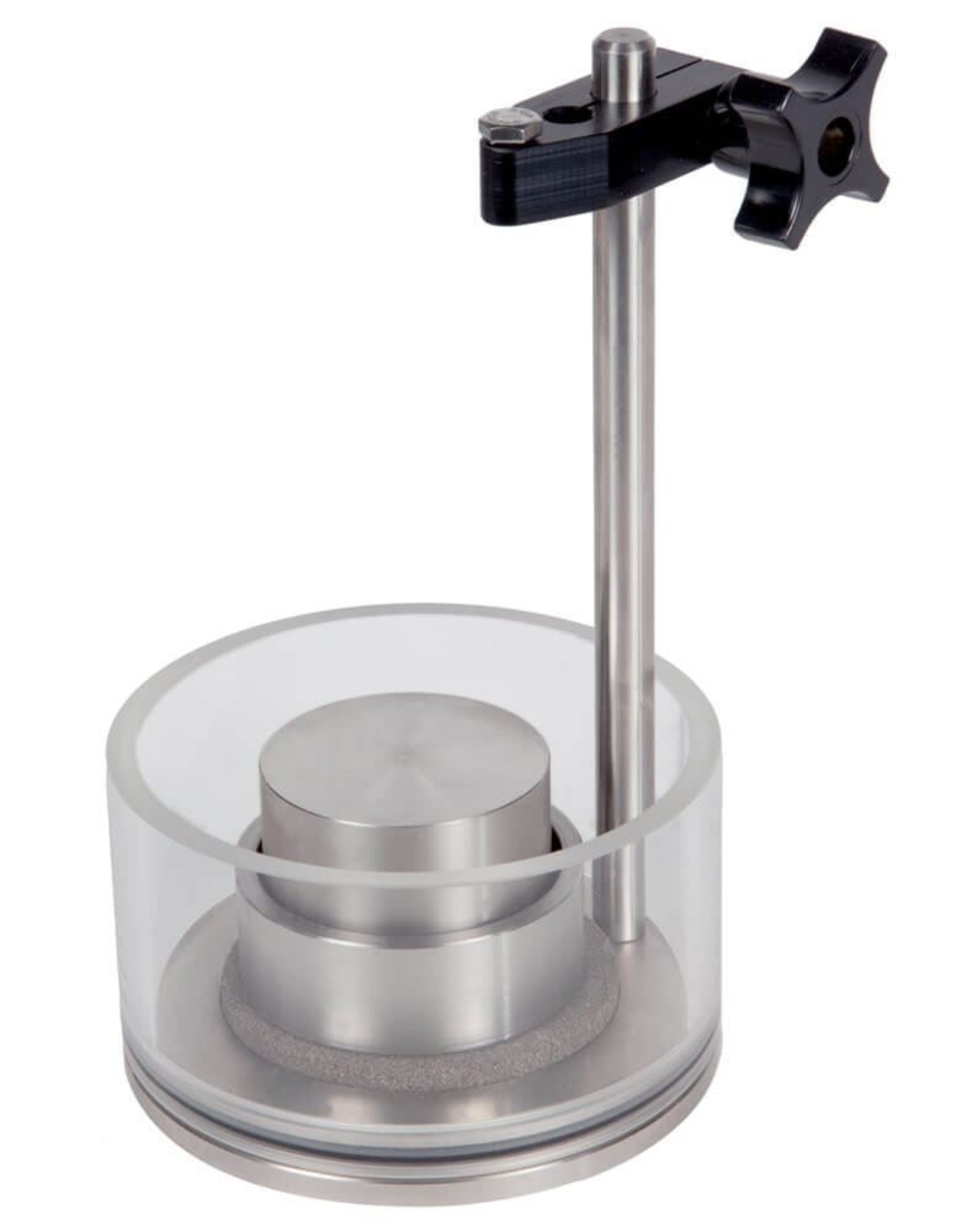

The compact, all-in-one design is equipped with a stainless steel base, Compaction Specimen Ring and Loading Weight, Porous Stones, an acrylic ring to contain the water, and an adjustable dial indicator holder. Loading weights and Porous Stones are also available separately as replacements.

A dial indicator is required and available separately. Additional stainless steel Compaction Rings can be purchased to increase sample preparation efficiency. The HMA-836 Permeability Compaction Hammer is used to compact soil samples into a Compaction Ring secured in a Compaction Base and Collar assembly. The drop hammer is supplied with 100g (0.22lb), 1kg (2.2lb) sliding weights, and a 2in (51mm) diameter tamping foot. Drop Height is adjustable from 4 to 8in (102 to 203mm). Compaction Base and Collar for each specimen size and the Compaction Hammer are all purchased separately.

Features:

• Models available for testing 2.44 or 2.5in specimens
• Offers quick results with no external load frame required
• All-in-one, easy to use the unit

Included Items:

• Basic Swell Consolidometer
• Compaction Ring
• Loading Weight
• Porous Stones
• Dial Indicator Holder

Accessories:

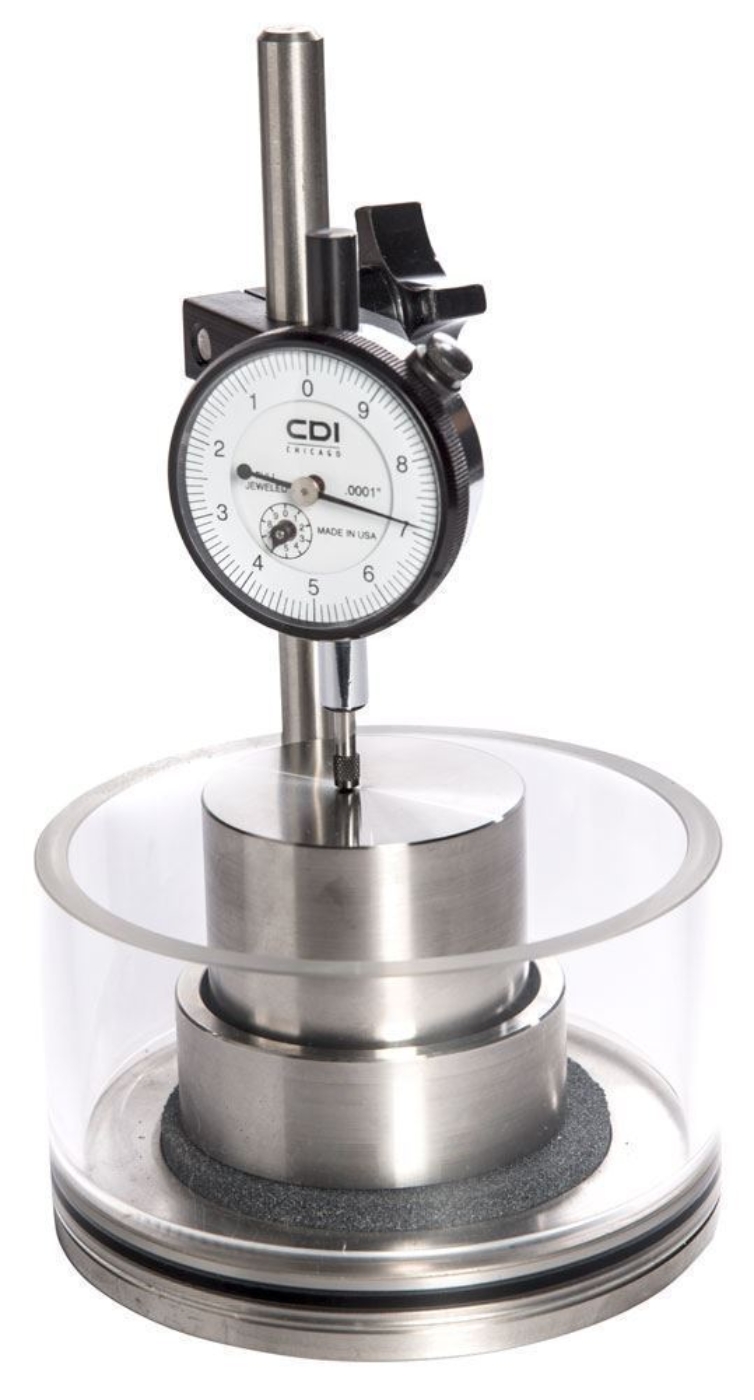

• MA-333 Mechanical Dial Indicator with a range of 0.5x0.0001in
• HMA-836 Compaction Hammer for Granular Soil Permeability to compact remolded soil samples

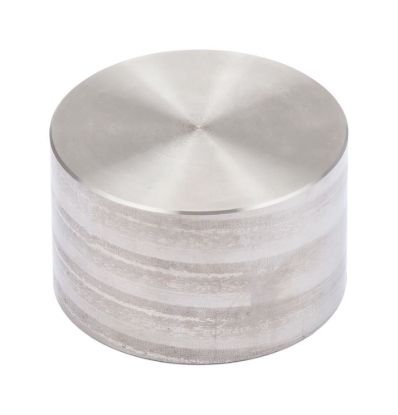

• Loading Weight is included with the consolidometer and can be purchased separately as a replacement

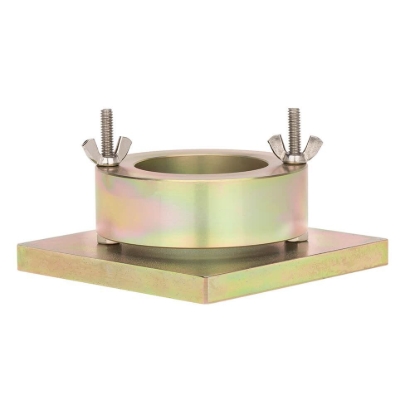

• Compaction Base & Collar is for preparing compacted samples available for 2.44in or 2.5in specimen sizes

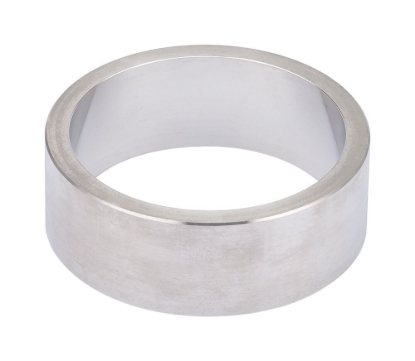

• Compaction Ring for compacting and holding soil specimen
• GSA-217 2.4in Top Porous Stone, 0.25in Thick for HM-564
• GSA-219 2.485in Top Porous Stone, 0.25in Thick for HM-565
• GSA-230 3.31in Bottom Porous Stone, 0.25in Thick for HM-564 & HM-565
• HMA-773 2.8in Filter Paper Grade 55 for use with Porous Stones prevents pore blockage from soil fines
