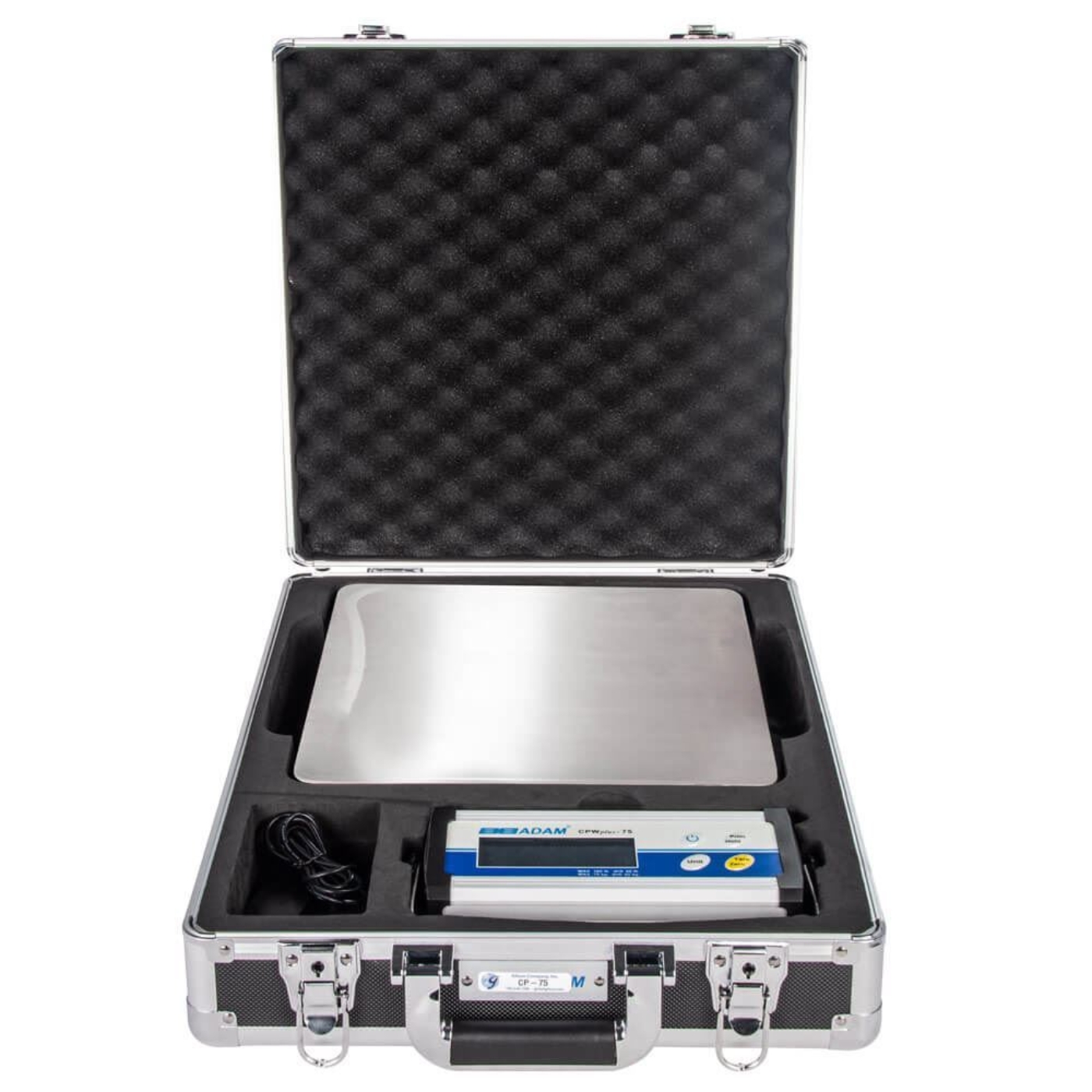

Compact Field Scales offer portable and affordable solutions for weighing concrete, soil, and asphalt samples in remote locations.
Gilson’s digital models have sturdy steel bases, large stainless steel platforms, and a wide range of capacities from 6 to 200kg (13 to 440lb) for fast, accurate weight determinations. Sturdy, foam-fitted carrying cases make all models easily transportable.
A hold function allows the operator to lock the weight reading on the display for convenience. The large stainless steel platform paired with the sturdy steel base adds stability when weighing large samples and is easy to clean. Remote mountable indicators display information in large LCD characters. The user can adjust weighing units between lb, kg, oz, or lb: oz to suit unique application needs. Base dimensions are 11.8x11.8x2in (300x300x50mm).
All models meet ASTM C 29, C 138 and AASHTO T 19, T 121 concrete specifications when paired with Cast Aluminum unit weight measures or Air Meter bases, and the CP-75 is ideal for the most commonly used 0.25ft³ (7.08L) unit weight containers. They also feature a full capacity tare range and operate on six AA batteries or the included AC adapter.
Features:
- Portable, affordable solution for field weights of soil, concrete, and asphalt
- kg, lb, oz, lb:oz selectable weighing units
- Large, easy-to-read LCD display
- Compliant with ASTM C29, C138, and AASHTO T 19 and T 121 for field unit weights and yield tests
- Hold function allows continuous display of weight readings
Included Items:
- Gilson Compact Field Scale
- AC Adapter
- RS-232 interface
- Aluminum carrying case with fitted foam interior
- Wall Mount Bracket
- 1-year warranty
Accessories
- Stainless Steel Flat Bottom Weighing Pan is seamless, durable, and makes it easy to handle and weigh materials. The standard pan is compatible with scales 300g capacity and above, and the large pan is compatible with scales 400g capacity and above.
