Cutting Tool Set for Large Universal Cutting Mill reduces sample size through shearing action, similar to a pair of scissors. Each Cutting Tool Set includes a rotor and fixed knives. A variety of rotors are available to adapt the mill to each cutting application, including rotors with a V-cutting edge, notched edge, or straight edge.
The stainless steel rotor with V-cutting edge is suited for size reduction of tough elastic materials. The tungsten carbide rotor with V-cutting edge is suited for hard-tough materials. The hardened stainless steel rotor with notched edges is suited for samples with residual moisture and temperature-sensitive samples.
Notched edges prevent the grinding chamber from closing completely, allowing air flow and increasing throughput. Straight edges are suitable for hay, fibrous, biological, and other easily cuttable materials.

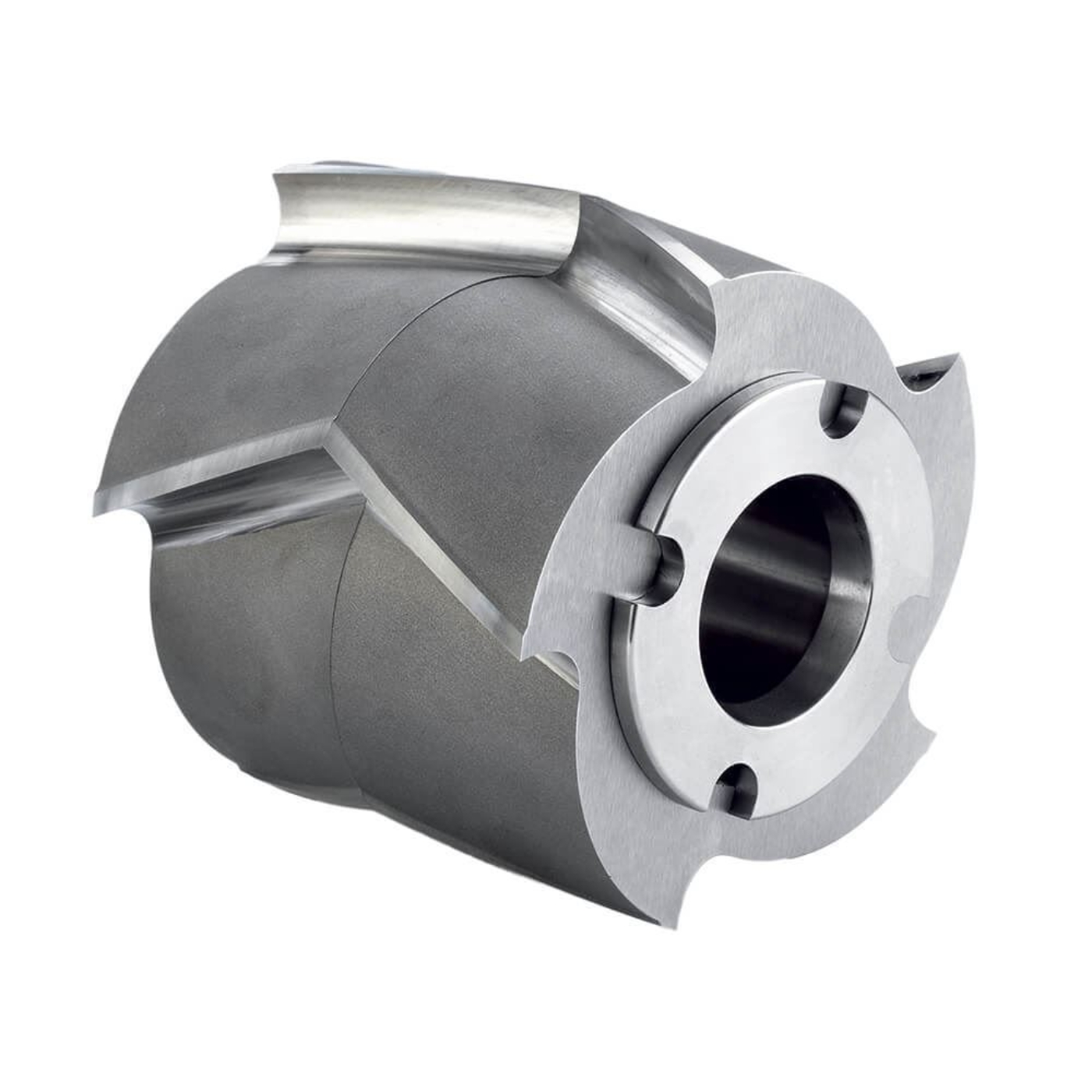

FTA-525 has a rotor with a V-cutting edge and fixed knives made of hardened stainless steel and is suitable for tough-elastic materials and films.

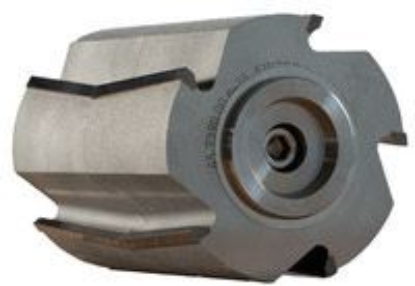

FTA-526has a rotor with a V-cutting edge and fixed knives made of hardmetal tungsten carbide and is suitable for hard-tough materials.

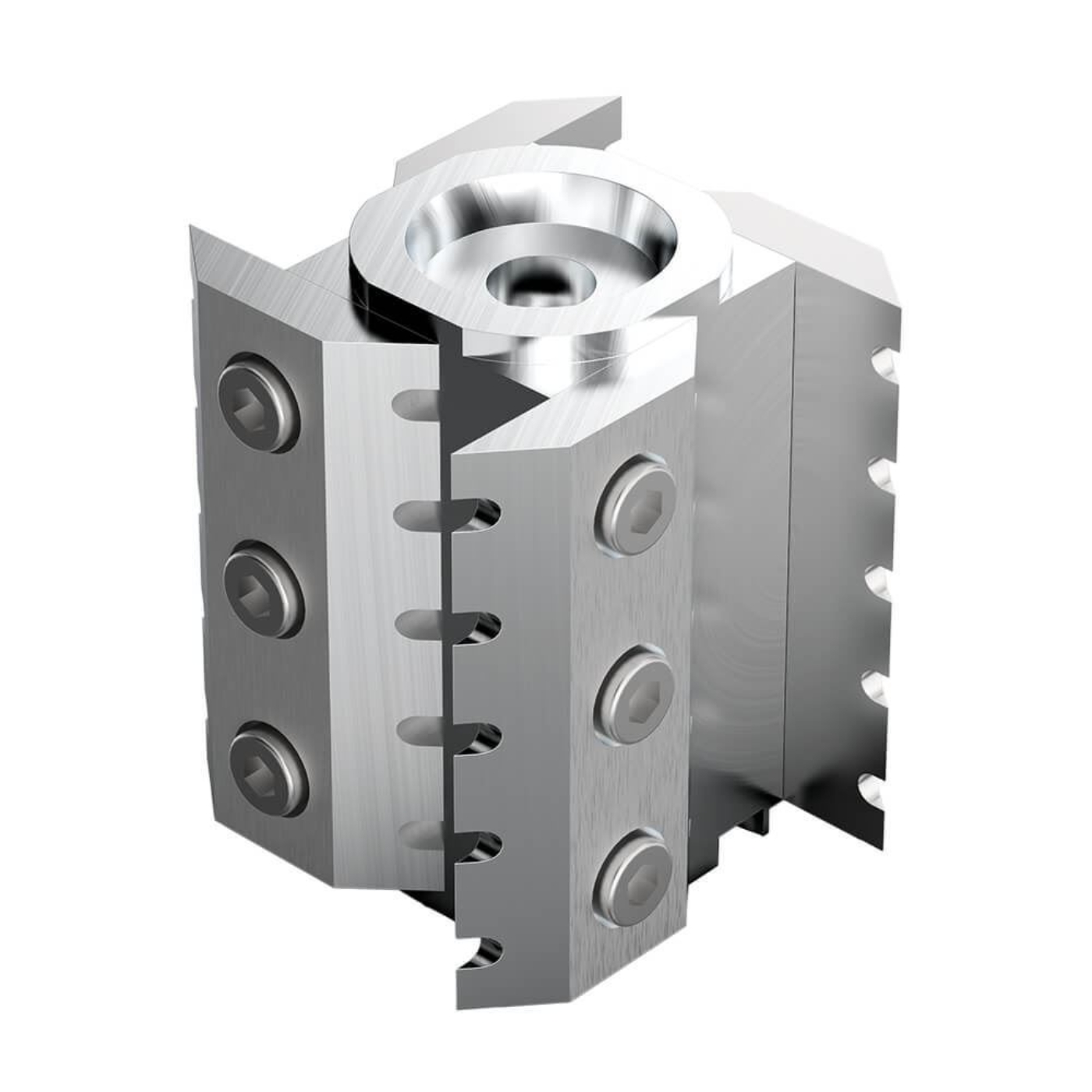

FTA-527 has a rotor with a notched cutting edge and fixed knives made of hardened stainless steel. This set is suitable for samples with residual moisture, such as food, feed, or plants, and temperature-sensitive samples, such as plastics.

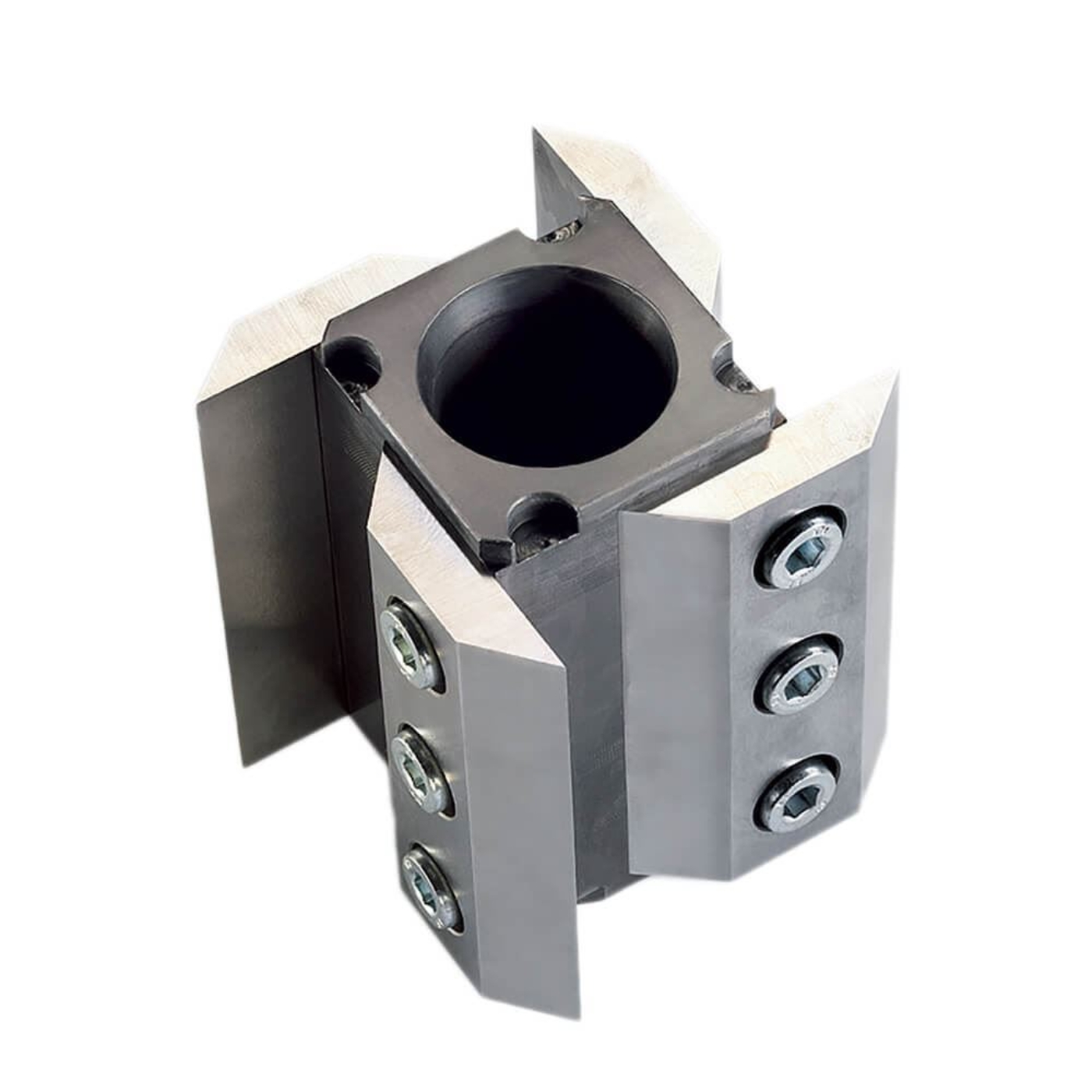

FTA-528 has a rotor with a straight cutting edge and fixed knives made of hardened stainless steel. This set is suitable for hay, straw, fibrous, and biological materials.
Features
- Rotor and cutting edges effectively reduce materials through cutting action
- Range of rotor edges and materials available to adapt the mill to each application
- Rotor can be easily removed for cleaning
Included Items:
- Rotor and Fixed Knives
