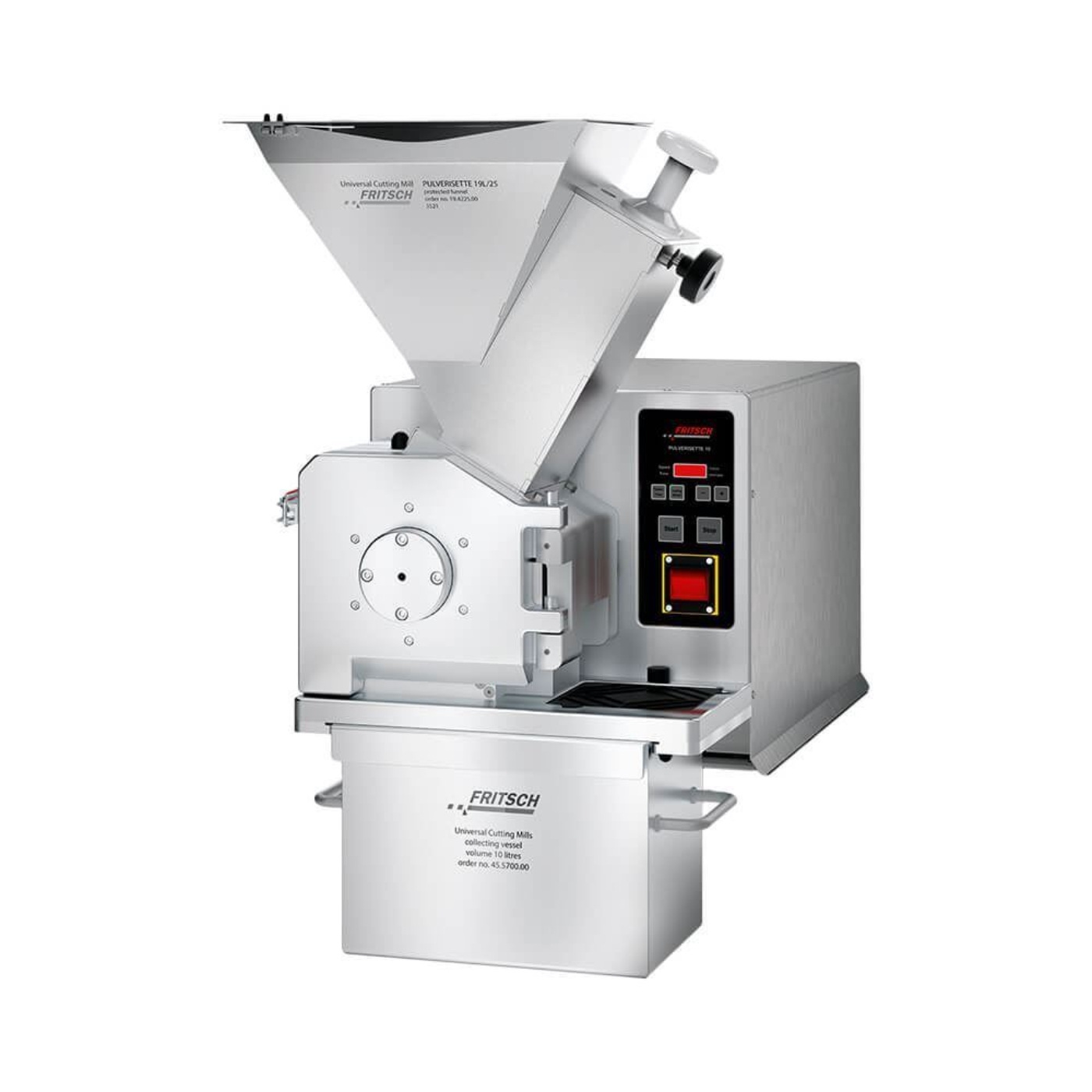

Fritsch Large Universal Cutting Mill (200–240V, 50/60Hz)

Fritsch Large Universal Cutting Mills have variable rotational speed of 300–3,000rpm and are ideal for reducing the size of soft to medium-hard and fibrous materials. These powerful mills can be used in textiles, plastics, agriculture, construction materials, and food products, and permit higher starting material size and throughput.

The rotor and fixed knives reduce materials through cutting action, similar to a pair of scissors. Material is continuously moved during operation and remains in the chamber until passing through the selected sieve insert and into a collecting vessel. On/off switch, plus/minus buttons to adjust rotational speed, and all other functions are accessible on the front panel.

FT-19L is a larger mill designed for larger sample quantities, has a max feed size of 120x85mm, and has a max throughput of 85L/h, depending on the material, funnel, and sieve size. Final fineness is 0.25–20mm.

Standard Universal Cutting Mills are also available, which offer a smaller maximum feed size and throughput.

A cutting tool set, funnel, sieve insert, and collection vessel are required to operate the mill, each purchased separately. Cutting tool sets consist of a rotor and fixed knives and are available with a V-cutting edge, notched edge, or straight edge. Sieve inserts are available with trapezoidal or square perforations in sizes from 0.2–10mm.

Applications

• Agriculture
• Construction materials
• Environmental research
• Food
• Pharmaceuticals
• Plastics
• Plants
• Textiles

Features

• Grinding chamber is fully hinged and lid is removable for fast, residue-free cleaning
• Variety of cutting tool sets and sieve inserts available
• Safety circuit stops the rotor immediately when the instrument is opened
• Filter ensures optimal airflow, fast milling, and protection against clogging

Included Items

• Fritsch Large Universal Cutting Mill

Accessories

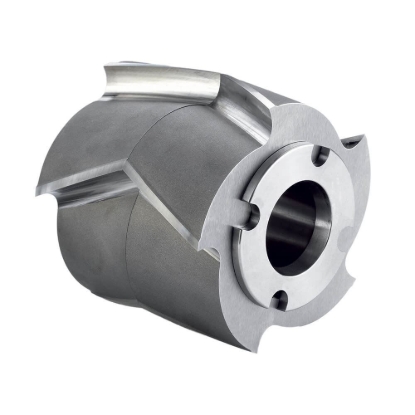

• Cutting Tool Sets include a rotor with V-cutting, notched, or straight edges and are available in several materials.

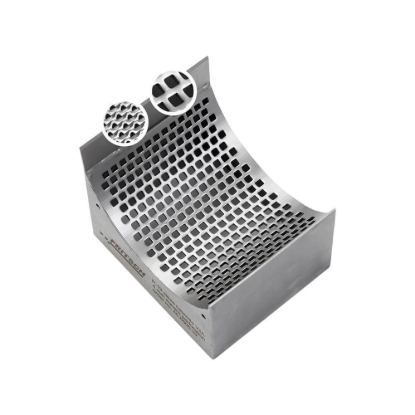

• Sieve Inserts are stainless steel, have trapezoidal or square perforations, and are available in sizes from 0.2–10mm.
• Funnel for Large Cutting Mill guides feed material into the mill and is made of plastic or stainless steel.

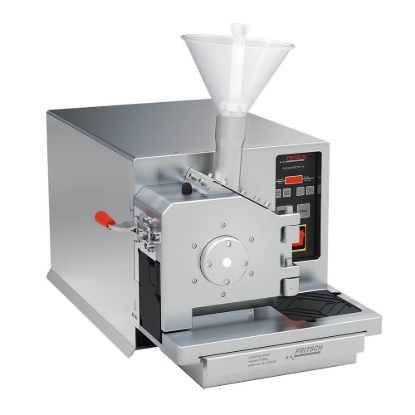

• Collection Vessel contains the sample after milling and is available with 3L or 10L capacity.

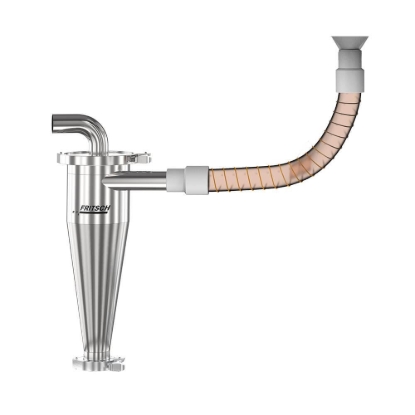

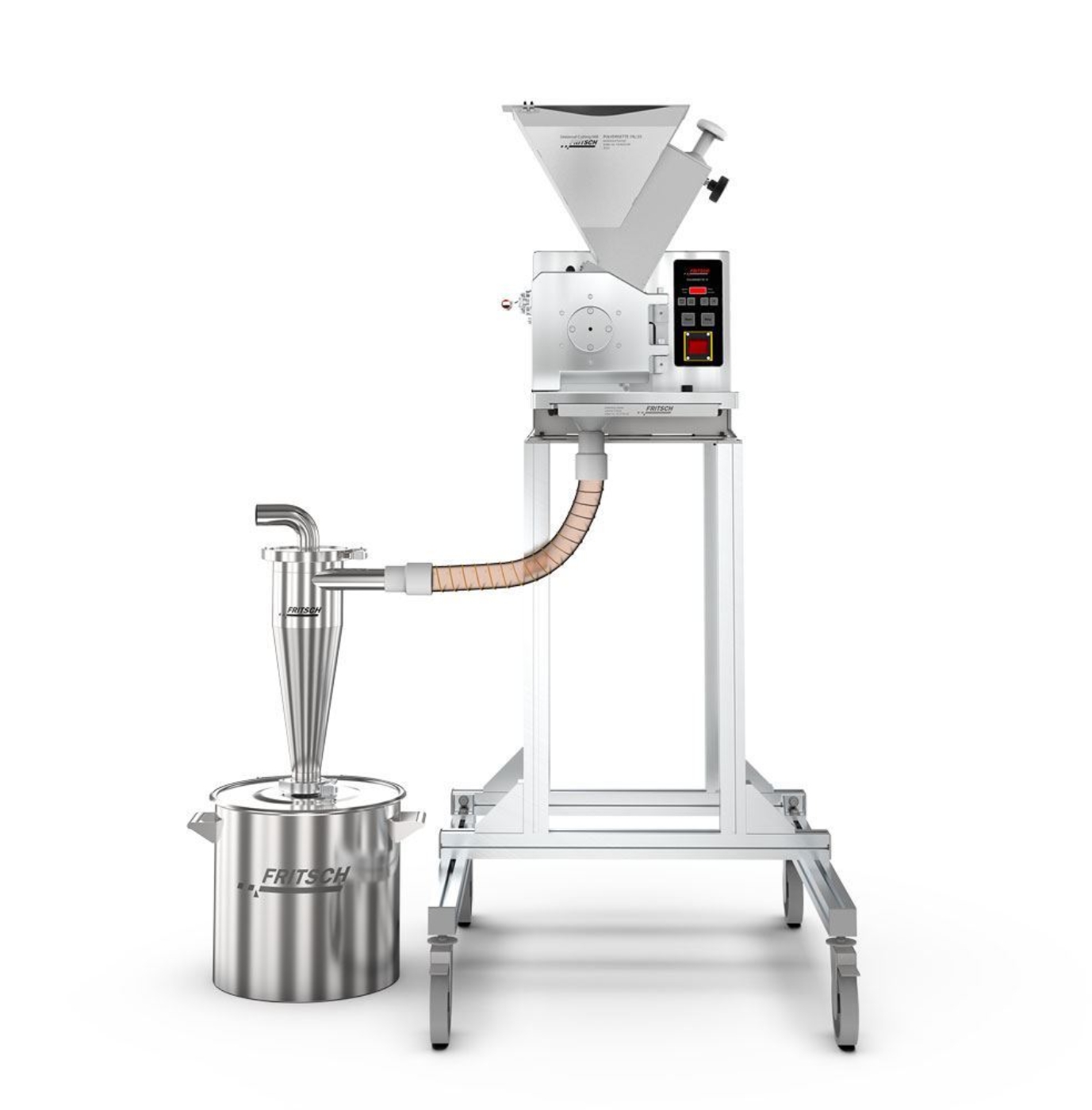

• Cyclone Separator connects to the mill exhaust system for more efficient operation.

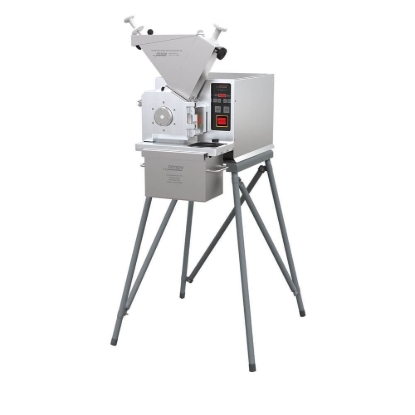

• Support Stand can be used to support Fritsch Cutting Mills or Beater Mills.
