Dropping-Weight Soil Cement Compactor

Name: Dropping-Weight Soil Cement Compactor
SKU: HM-228
Price: 1646.00 USD
Availability: InStock

Model: HM-228

$1,646.00

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Questions? Talk to a Product Expert

Get help from our in-house testing equipment specialists.

Open M–F: 8:00am–5:00pm

Call Us: (800) 444-1508

Description
Specifications
Accessories
Quick Compare
Q&A

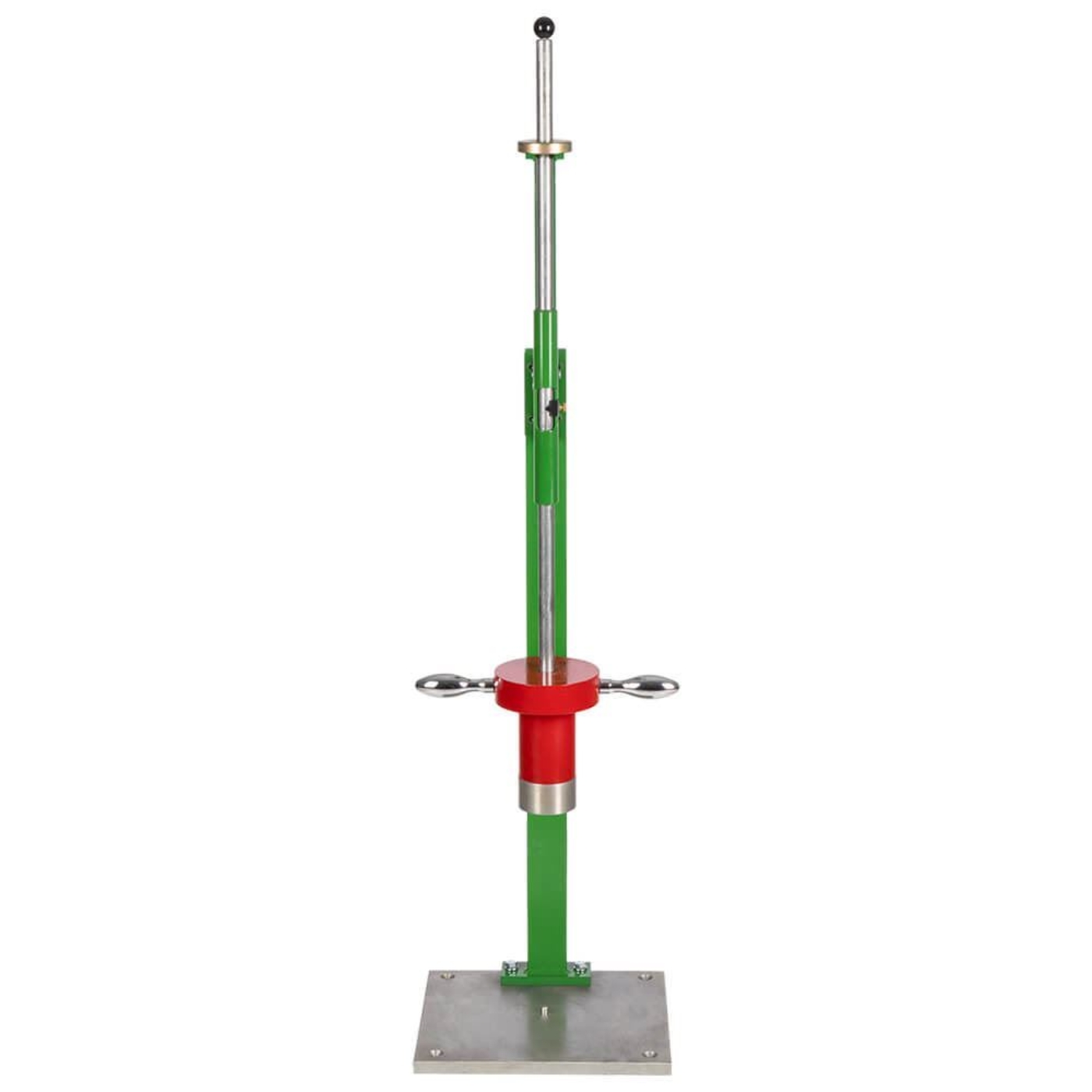

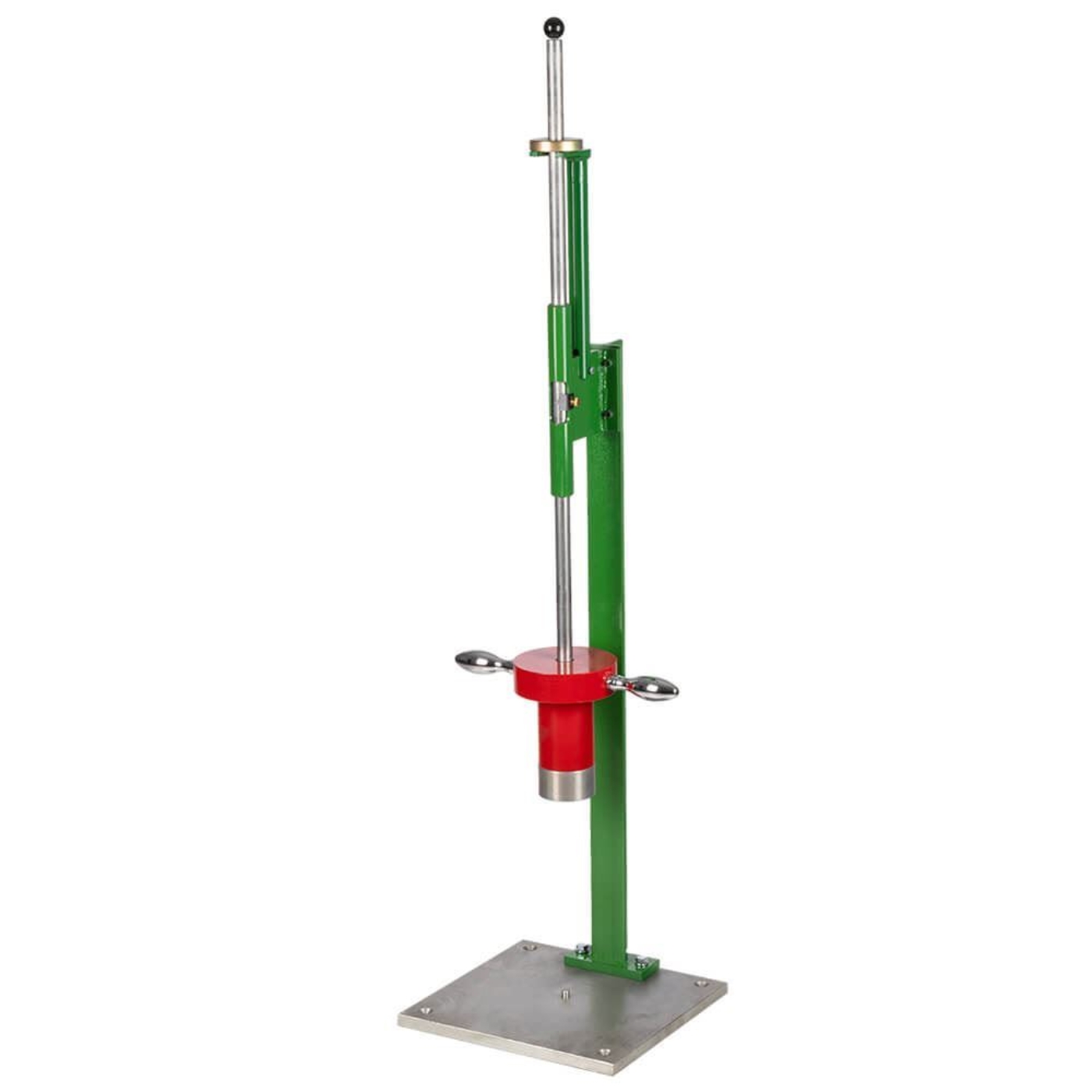

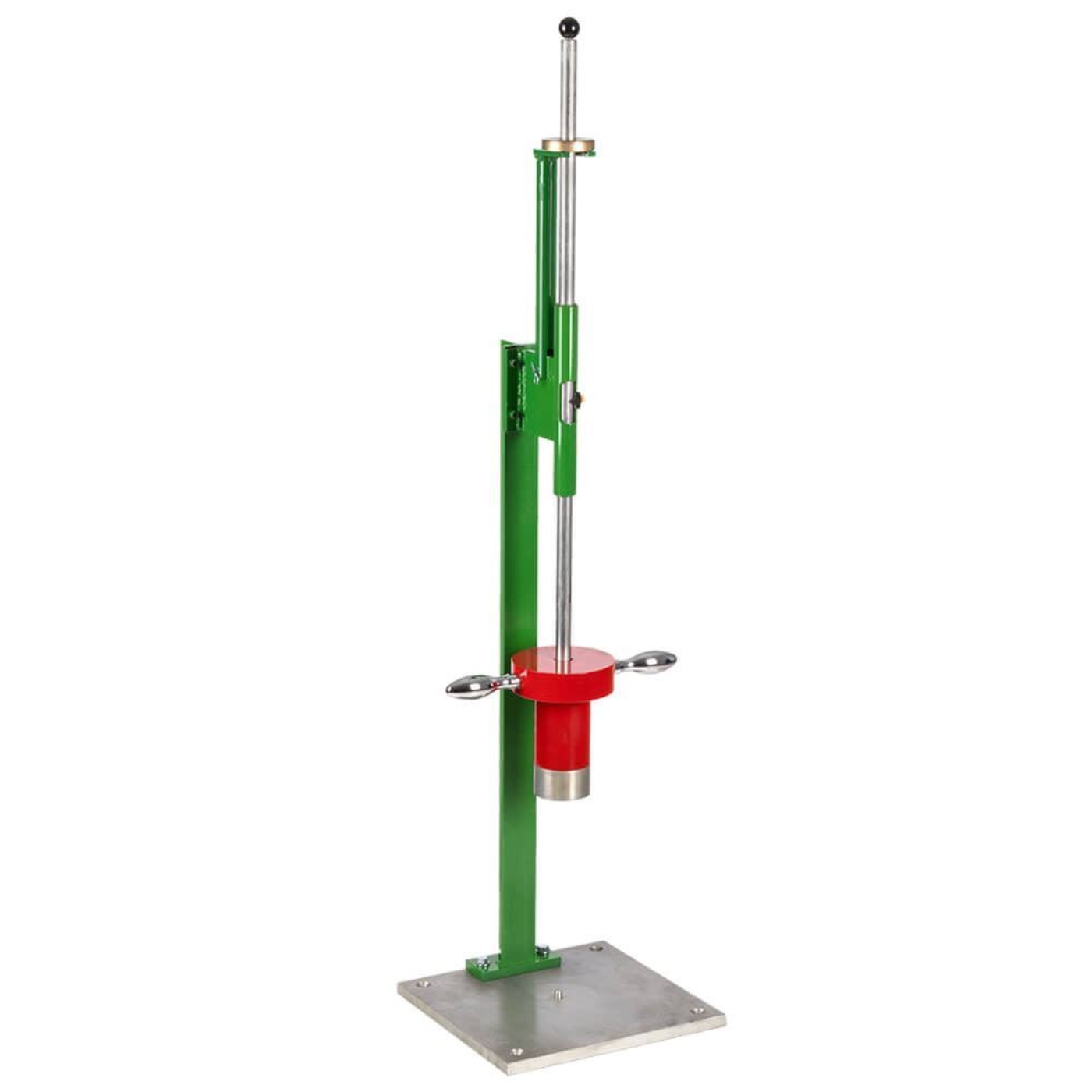

Dropping-Weight Compactor is used with Soil-Cement Molds for sample preparation of soil-cement compressive strength specimens. A 15lb (6.8kg) falling weight on a 3/4in (19mm) shaft guide strikes the top piston of the mold set for dynamic consolidation of the specimen. The Compactor base features a locating pin, assuring precise centering of the Test Mold Set. Drop height is controlled by a clip on the compactor shaft guide.

Features:

Meets ASTM D1632 and D1633 requirements
Locator pin on base for precise mold location
Sturdy steel construction

Included Items:

Dropping-Weight Compactor

Accessories:

HM-229 Soil-Cement Mold Set has components to prepare samples for testing compressive strength
HMA-125 Tamping Rod for Soil Cement is used in the initial specimen consolidation
HM-516 Sample Ejector for 4in or 6in Molds easily and efficiently extrudes compacted specimens from molds
HMA-122 9in Mold Only for Soil Cement Mold Set allows for additional efficiency in specimen preparation and curing
HMA-123 9in Mold with 6in Extension for Soil Cement Mold Set with collar to connect and extend the standard 9in mold
HMA-124 Top & Bottom Piston Set for Soil Cement Mold Apparatus for placing in extra molds used for additional sample preparation

Specifications

Attribute name	Attribute value
Product Dimensions	12 x 12 x 38in (305 x 305 x 965mm), WxDxH
Estimated Shipping Weight	70.0lb (31.75kg)
