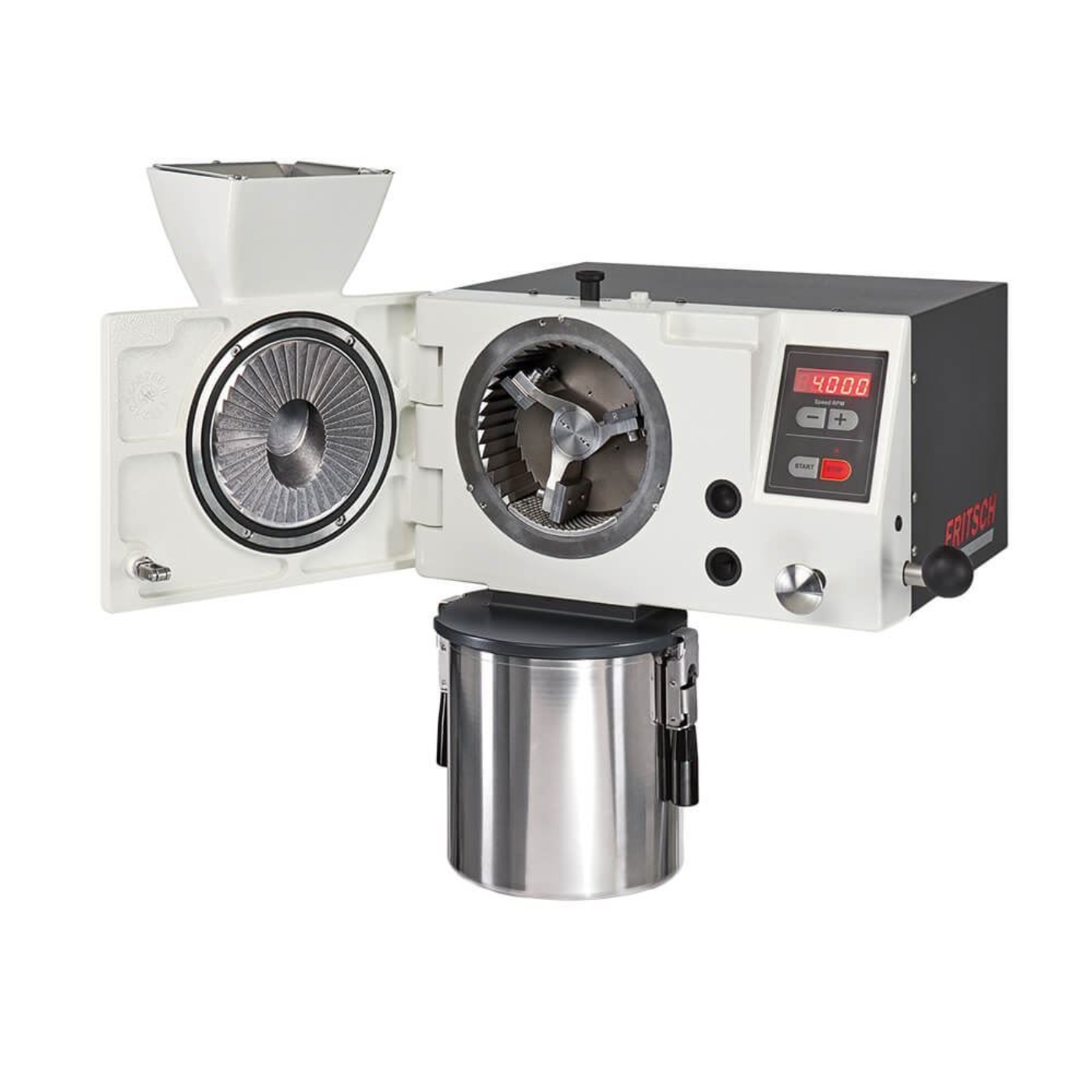

Fritsch Cross Beater Mill performs pre-crushing and fine grinding of medium-hard, brittle materials up to Mohs hardness of 6, and can also handle softer materials such as grains, seeds, dried plants, and resins. These universal mills feature an adjustable rotor speed of 2,000–4,000rpm in 200rpm intervals and are ideal for agriculture, forestry, geology, mineralogy, mining, ceramics, plastics, textiles, metallurgy, and construction materials.
Cross Beater Mills reduce materials by impact, friction, and shearing forces. The feeding funnel guides grinding material into the grinding chamber. Material is reduced between the impact plates of the beater and the teeth of the grinding insert. Maximum feed size is up to 25mm and maximum throughput is 80L/h.
Final fineness is 120µm–10mm depending on the material and bottom sieve inserts, which are available with trapezoidal openings from 120µm–10mm or with round openings from 3–10mm. Trapezoidal sieve inserts are used for faster milling with medium-hard to soft materials, while round inserts are ideal for brittle materials of medium fineness with uniform material size.
Cross Beater Mills are powered by a 1.1kW 3-phase motor with overload protection. A safety switch stops the rotor if the quick-clamping lock is opened. Units operate on 200–240V, 50/60Hz.
FT-16 consists of a grinding insert and cross beater made of cast iron with impact plates made of hardened steel.
FT-16V consists of a grinding insert, cross beater, and impact plates made of stainless steel.
Grinding insert, cross beater, impact plates, and 5L collecting vessel with filter hose are included. Bottom Sieve Insert must be ordered separately.
Applications
- Agriculture
- Ceramics
- Construction materials
- Geology
- Mining
- Plastics
Features
- Adjustable rotor speed of 2,000–4,000 rpm (in 200 rpm steps)
- Safety switch stops rotor if quick-clamping lock is opened unintentionally
- Powered by a 3-phase motor with overload protection
- Grinding insert, cross beater, and bottom sieve can be easily removed and cleaned
Included Items
- Fritsch Cross Beater Mill
- 5L Collecting Vessel with Filter Hose
Accessories

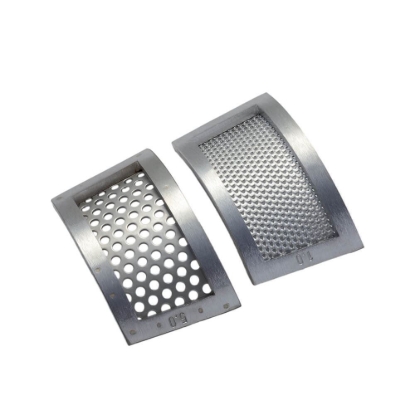

- Bottom Sieve Inserts are made of stainless steel and available with trapezoidal or round perforations in 0.12–10mm sizes.
- Support Stands supports the mill and provides maneuverability in the lab.

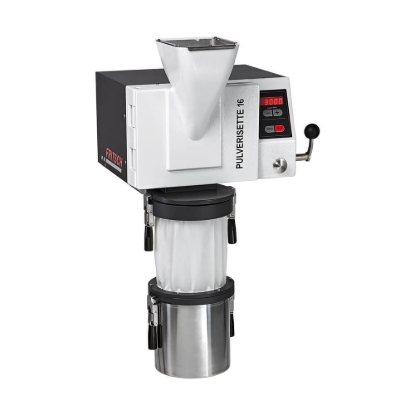

- Collecting Vessel with Filter Hose has a 30L capacity and is ideal for milling larger quantities.
