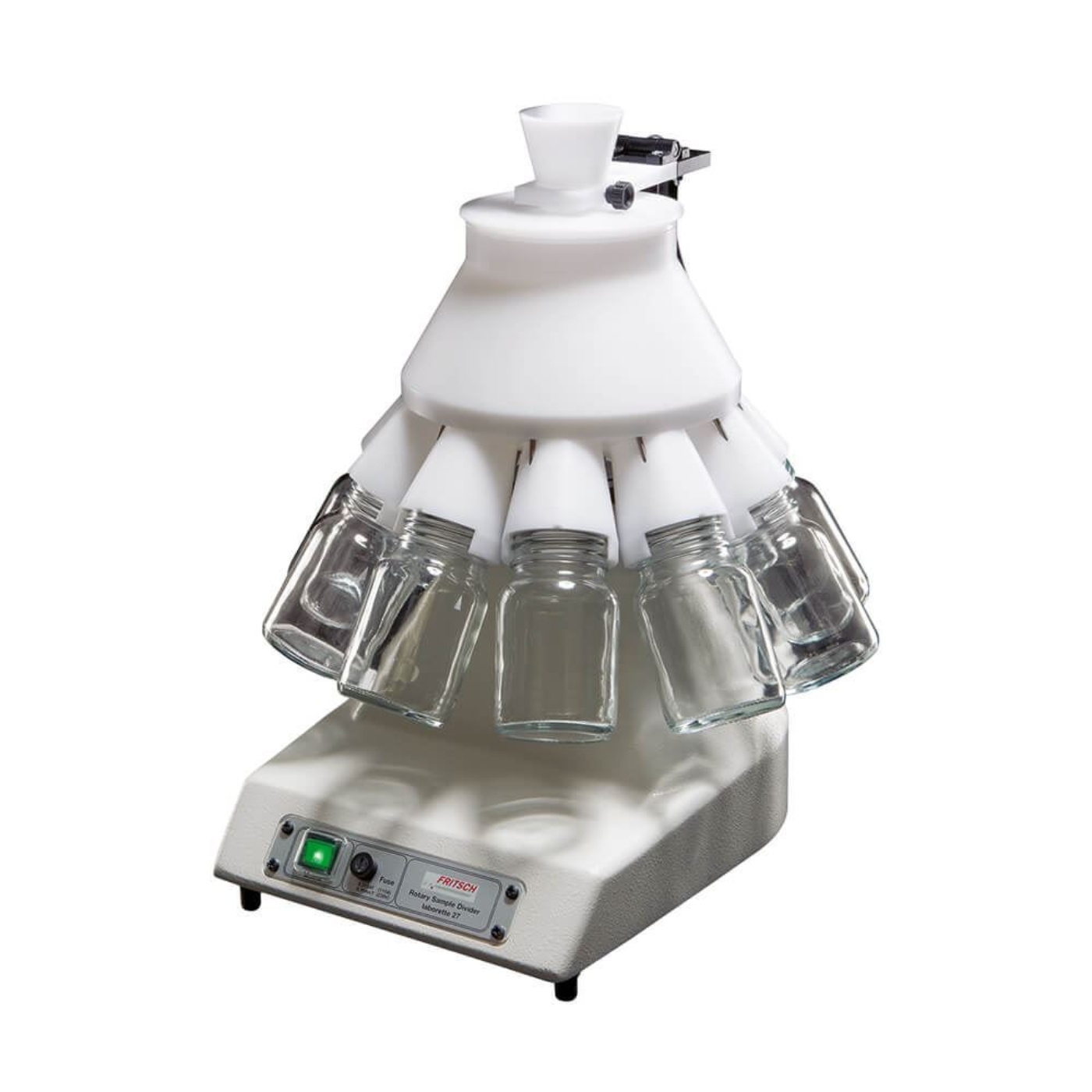

Fritsch Rotary Cone Sample Divider (115V, 50–60Hz)

Fritsch Rotary Cone Sample Divider separates samples with a maintenance-free 80-120pm variable speed motor that accelerates material outwards into 3, 8, or 10 identical subsamples. Equip any of six interchangeable Dividing Heads made of polyoxymethylene (POM) plastic or aluminum for sampling ratios of 1:8, 1:10, or 1:30. POM plastic heads are suitable for most routine work, including metal-free sampling, while aluminum heads are suitable for materials and suspensions with abrasive properties.

The Rotary Cone Sample Divider offers high precision and is capable of dry and wet division with up to 99.9% accuracy. The sample feed funnel guides material onto the point of the rotating cone while the rapid rotation accelerates the material outwards, dividing it through up to 30 channels.

Dividing heads are purchased separately and are supplied with a 10mm diameter funnel. PTFE Coated Aluminum Dividing Head 1:30 is available for especially aggressive solids and suspensions. 1:8 Dividing Heads include eight 500mL bottles, 1:10 Dividing Heads include ten 250mL bottles, and 1:30 Dividing Heads include three 15mL bottles plus an additional 5mm funnel and catch basin to collect the remainder of the sample.

The 22mm funnel is necessary when using coarse materials with 1:8 and 1:10 heads. For dry powders of limited topsize, the 5mm Funnel is recommended for 1:8 and 1:10 heads. Sample bottles are available from 15–500mL, up to 4L total volume, and are dishwasher safe. FTA-622 Sample Insert has 32mL capacity and can be placed inside 250 or 500mL sample bottles for dividing the smallest sample quantities. Sample capacities are limited by sample bottle or reject container sizes.

A Dividing Head is not included and must be purchased separately. Dividing heads are supplied with Sample Bottles and a Funnel. Additional sample bottles and funnels can also be purchased separately.

Features

• 80-120rpm variable speed motor
• Division accuracy is 99.9%
• Capable of dividing wet or dry samples
• Rugged cast aluminum housing
• Removable dividing head provides easy cleaning

Included Items

• Fritsch Rotary Cone Sample Divider

Accessories

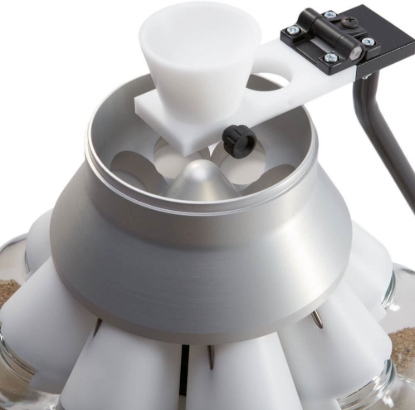

• Dividing Heads separate the material into identical subsamples. Available in POM plastic, aluminum, or PTFE coated aluminum.

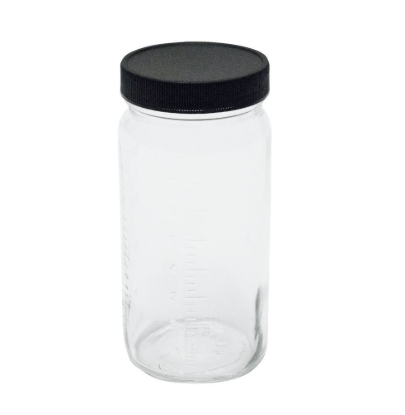

• Sample Glass Bottles collect samples and have 5–500mL capacity.
• Small Sample Insert can be placed inside 250 or 500mL sample glass bottles to collect small samples.

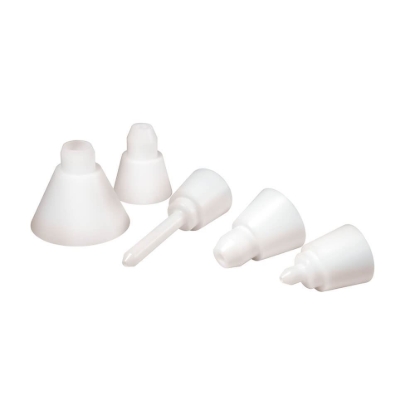

• Funnels guide the sample material into the sample bottles and are available with 5, 10, 15, or 22mm diameter.

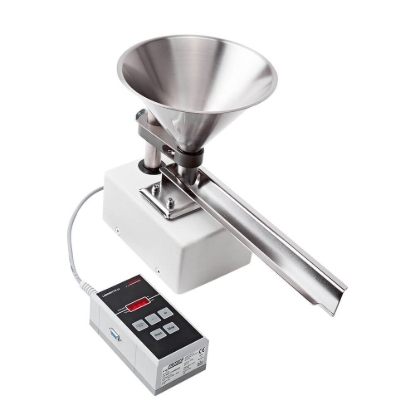

• Vibratory Feeder with V-Shaped Channel performs uniform feeding of free-flowing materials into the mill.

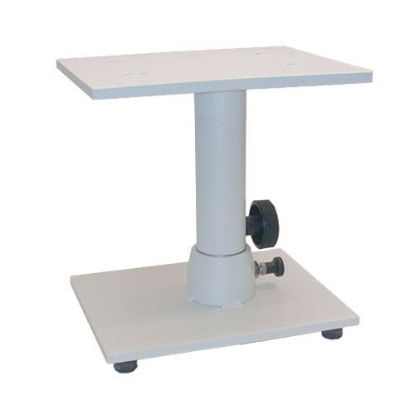

• Stand for Vibratory Feeder is slip-resistant, height-adjustable, and rotatable.
