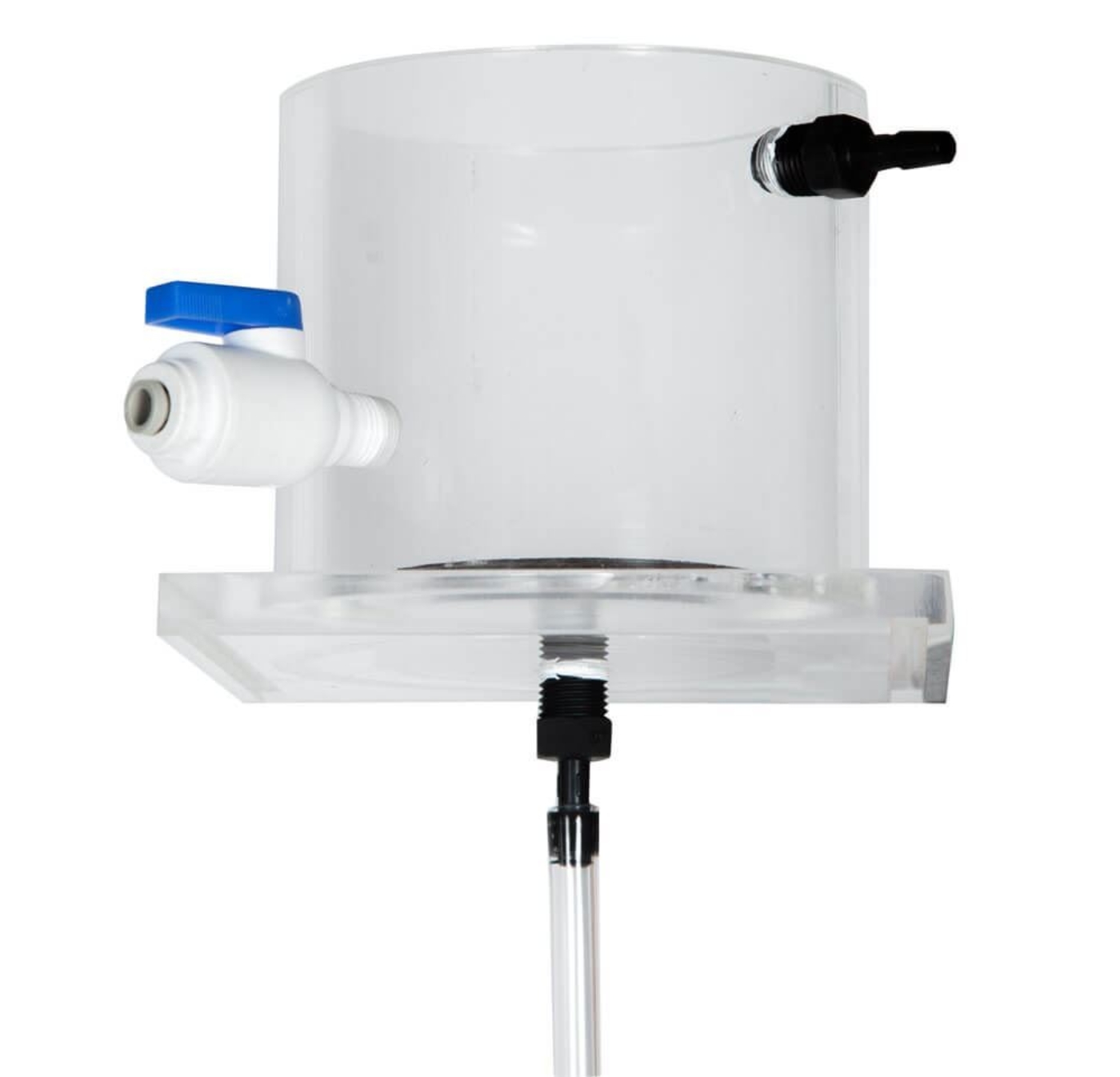

HMA-837 Constant Head Tank is a 1,000cc acrylic tank with a regulating valve for flow control of water during constant head permeability testing of soils and used with Constant Head Permeameters. A porous media on the bottom filters out air bubbles and an overflow port maintain constant water head pressure. It also allows connection to tap water or a deaired water source. Wall mount rails with adjustable brackets to control height are included. The unit is also equipped with a saddle valve for connection to a water source and necessary tubing for connection to the Permeameter.
Features:
- Made of clear acrylic
- Used for constant head permeability testing with Granular Soil Permeameters

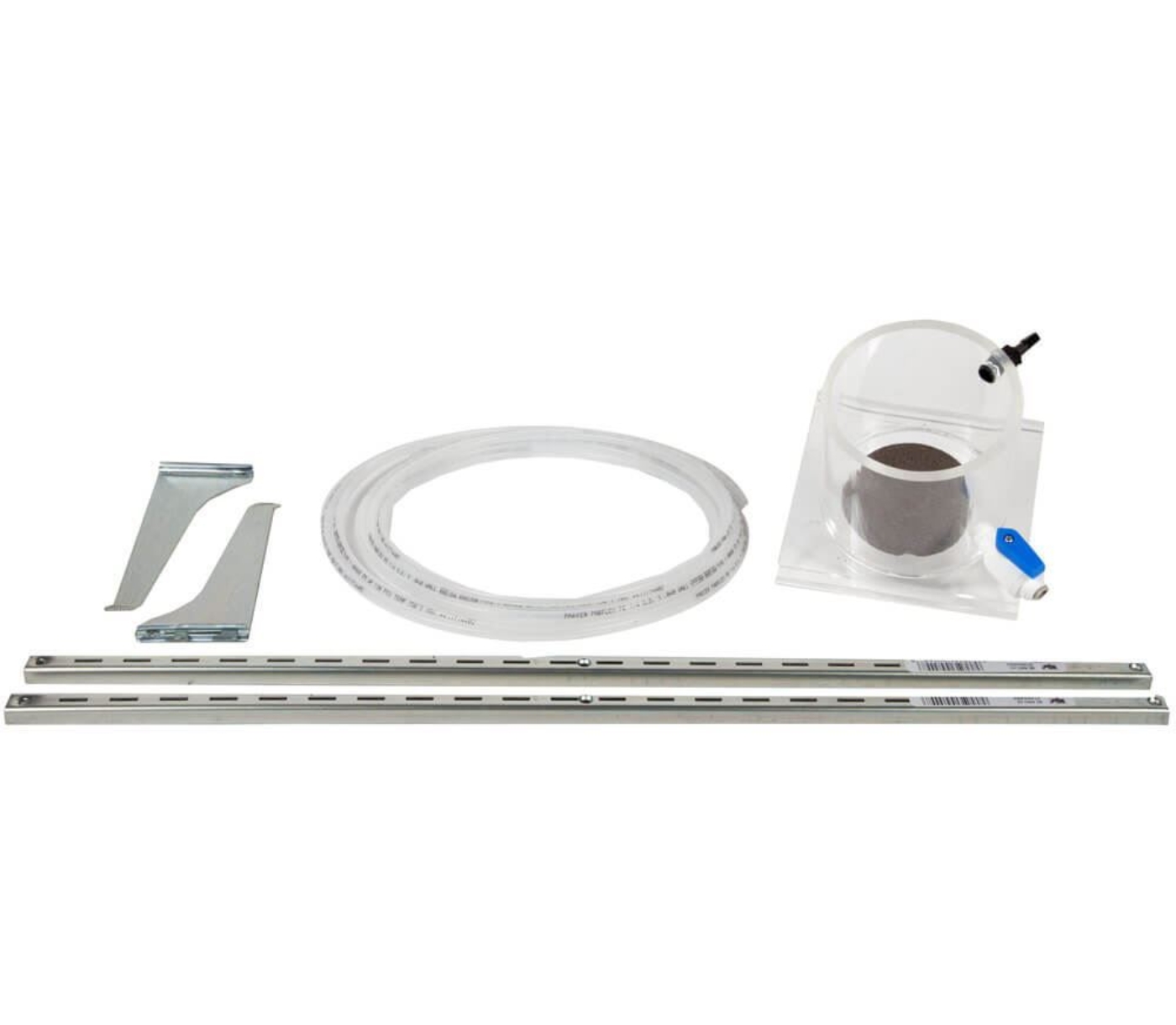

Included Items:
- Constant Head Tank
- Saddle Valve
- 15ft x 1/4in, Lx O.D. Tubing
- 10ft x 1/4in, Lx I.D. Tubing
- Adjustable Mounting Brackets
