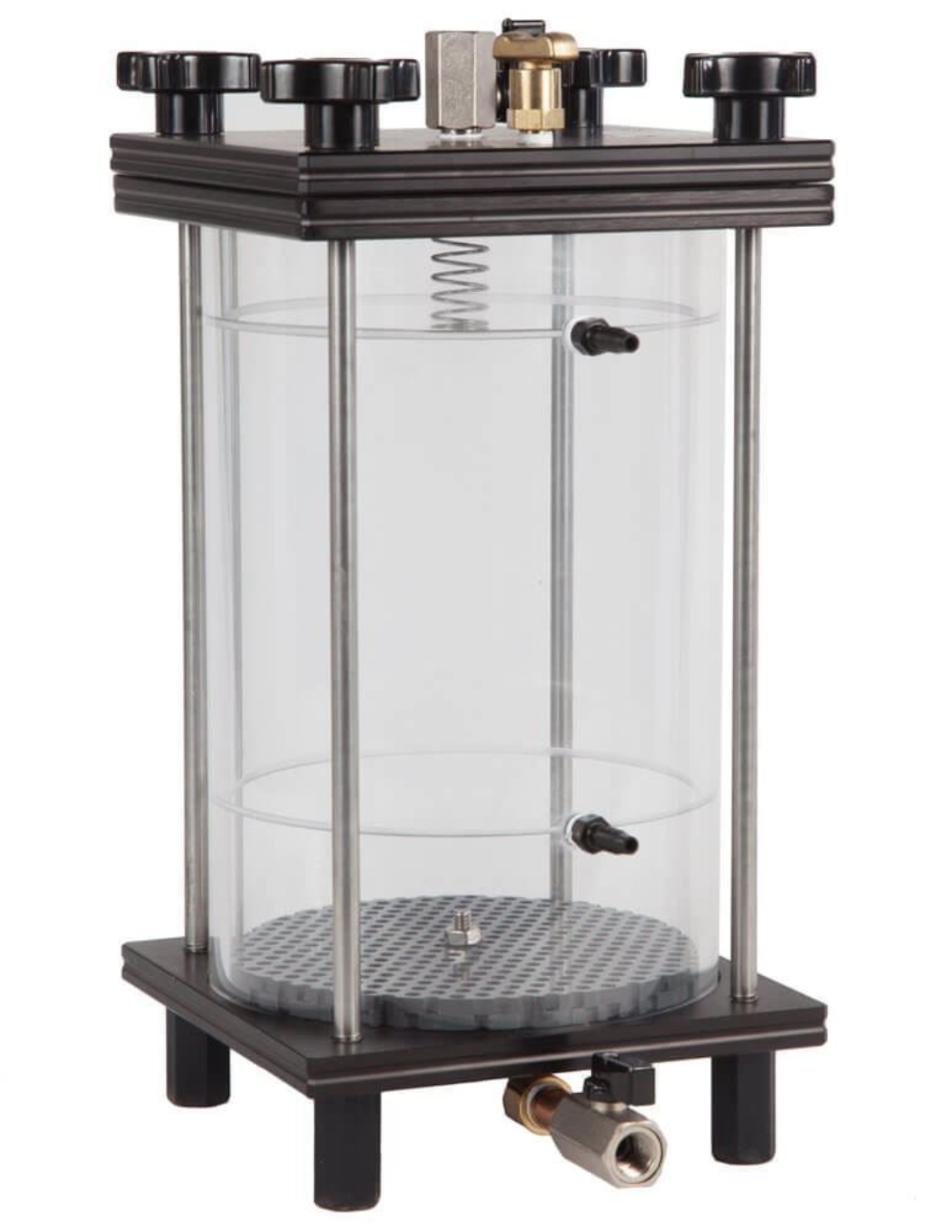

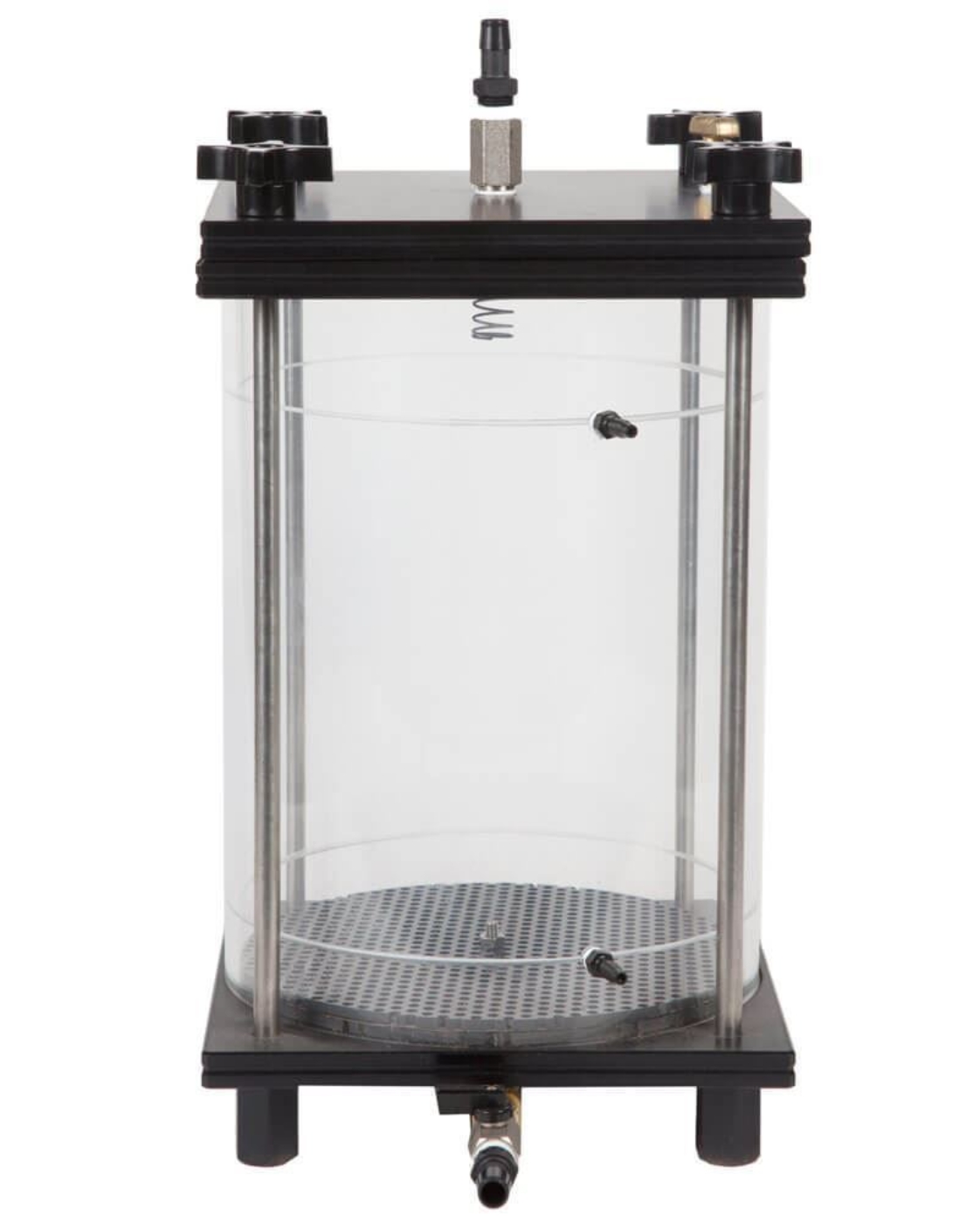

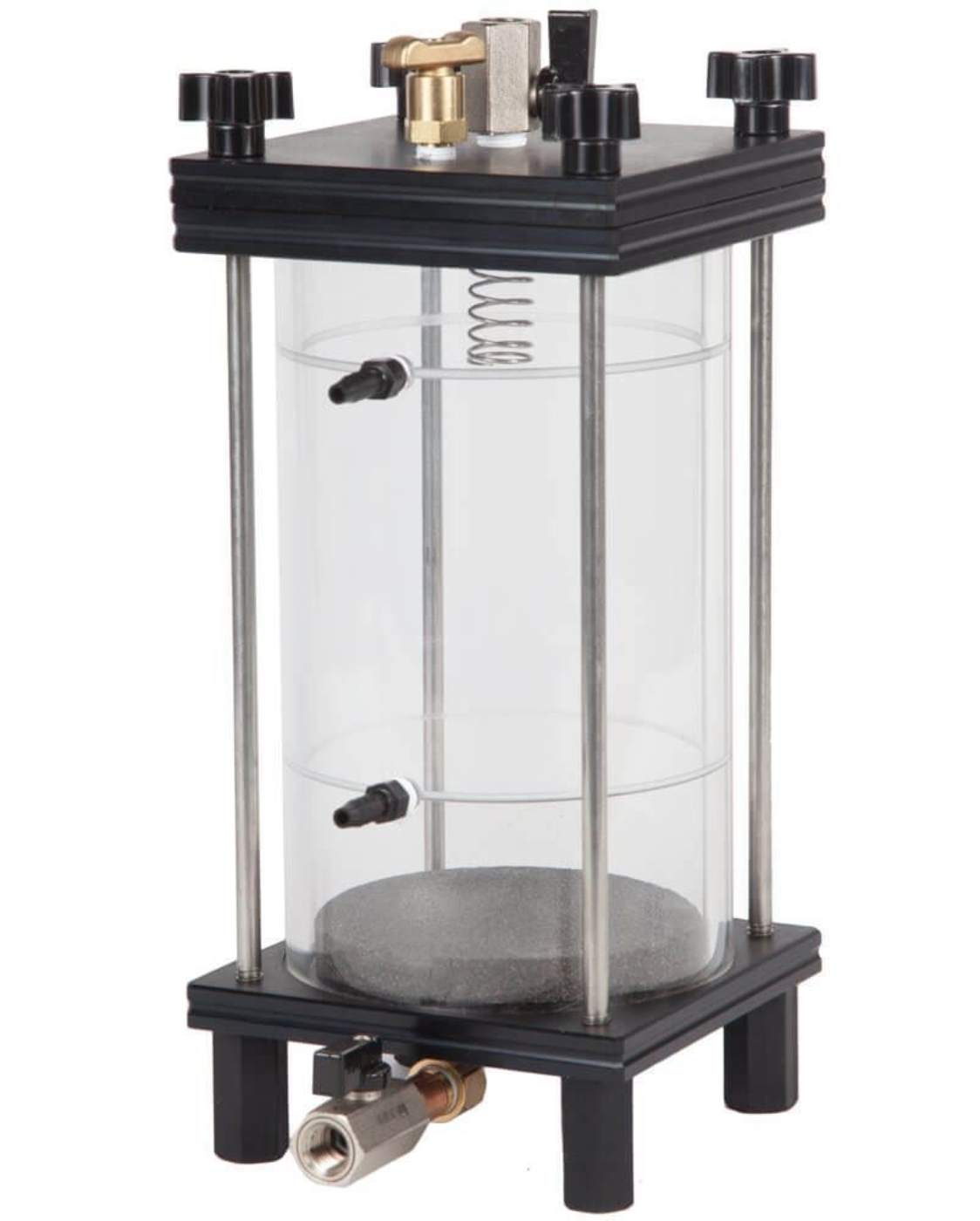

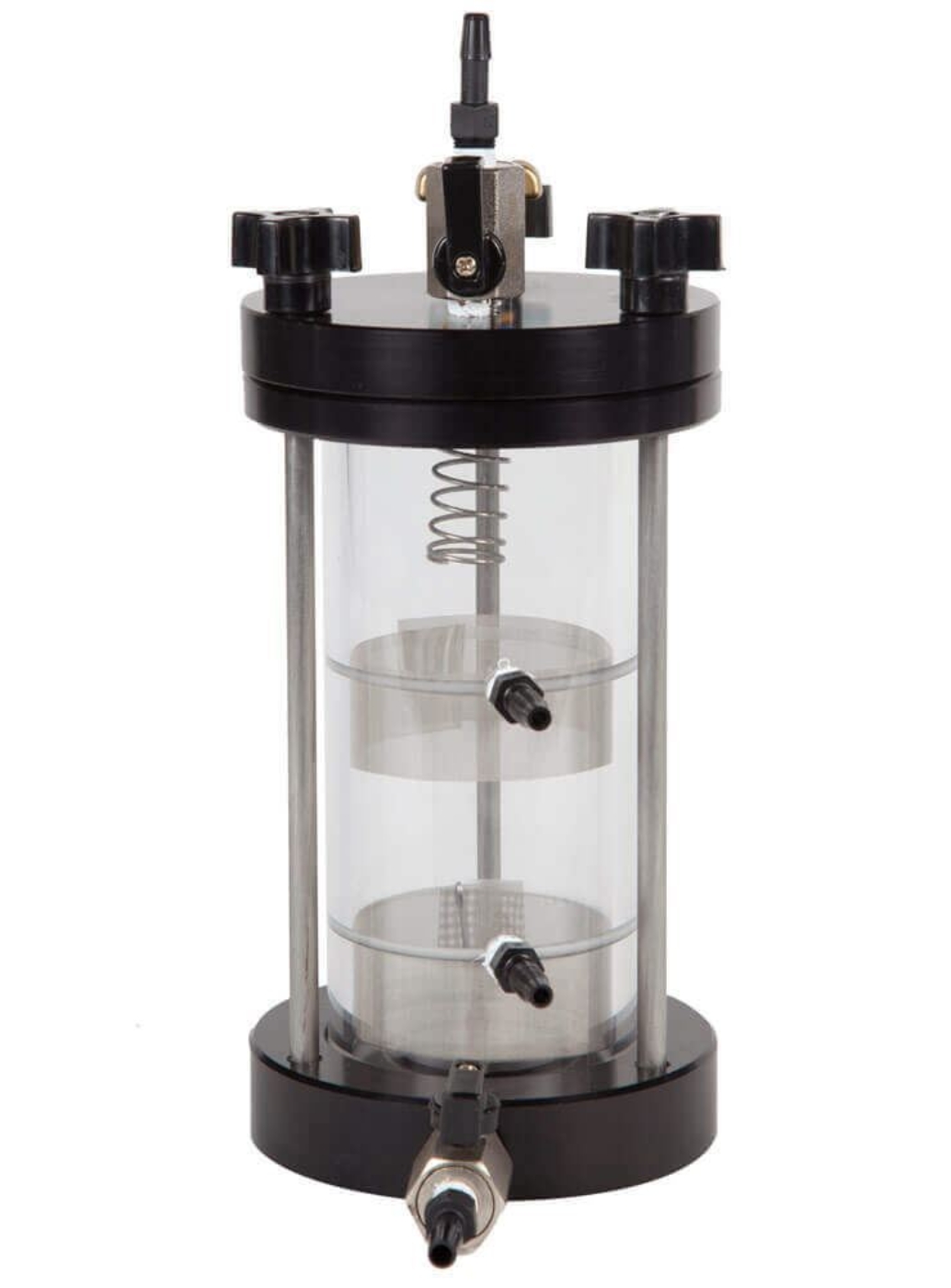

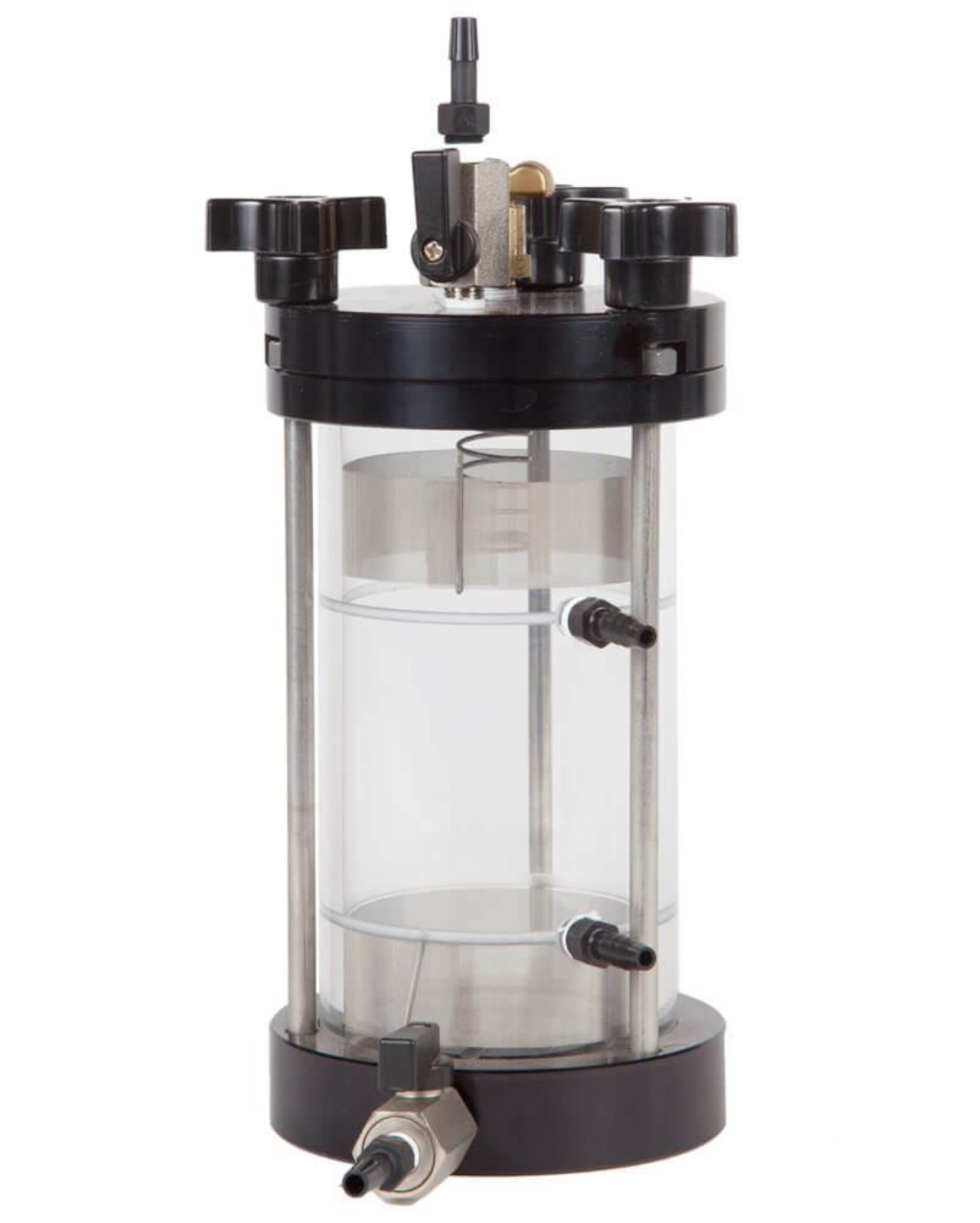

ASTM/AASHTO Constant Head Permeameters use the constant head method for the laminar flow of water through granular soils to determine the coefficient of permeability. Models HM-831 to HM-835 come in sizes ranging from 2.5–9.0in (63.5–228.6mm) diameter to accommodate granular soil permeability testing of a wide range of particle top sizes. The permeameter’s clear acrylic sample chamber allows for easy viewing during testing.

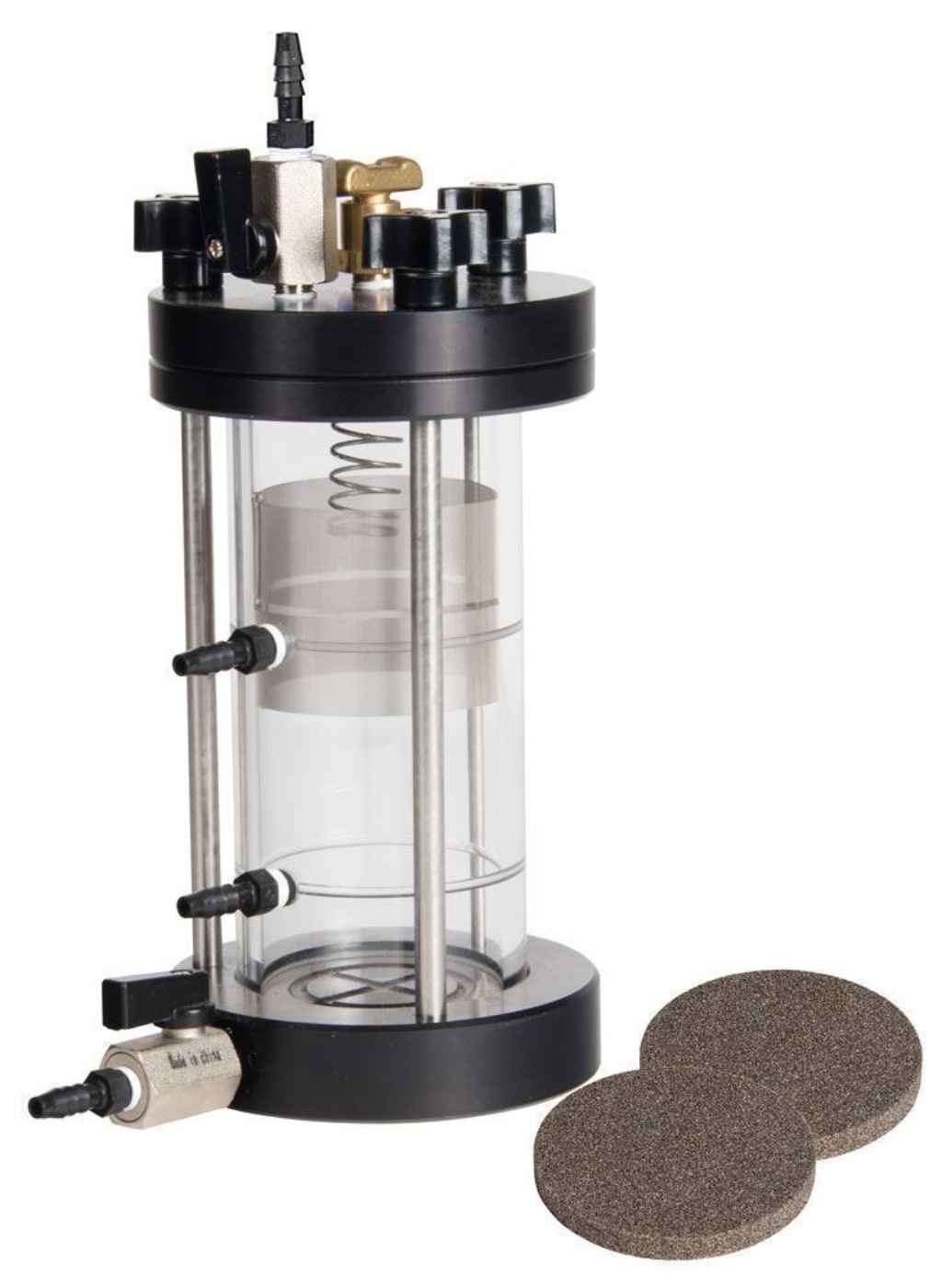

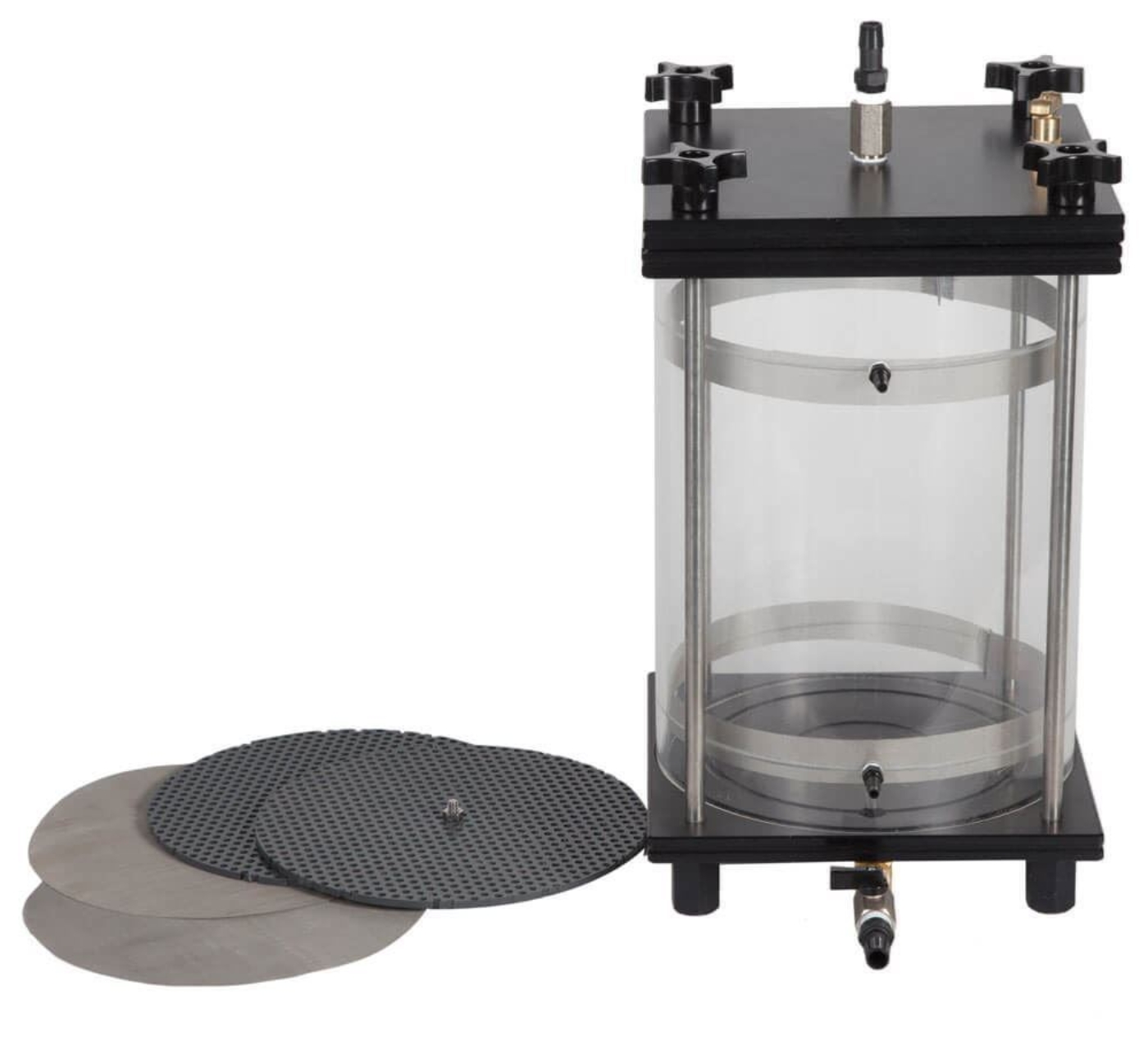

The Permeameters have two sidewall manometer ports covered with No.100 (150µm) stainless steel mesh to deter material into the manometer. A compression spring attached on the top cap to apply 5–10lbs (2.3–4.5kgs) force against the top porous stone or perforated plate to prevent soil density changes while running tests. Tubing is included, plus anodized aluminum end caps with valves and ports for vacuum and water sources. The 6.0 and 9.0 models include porous plates for use on top and bottom of the specimens. Smaller sizes include porous stones.

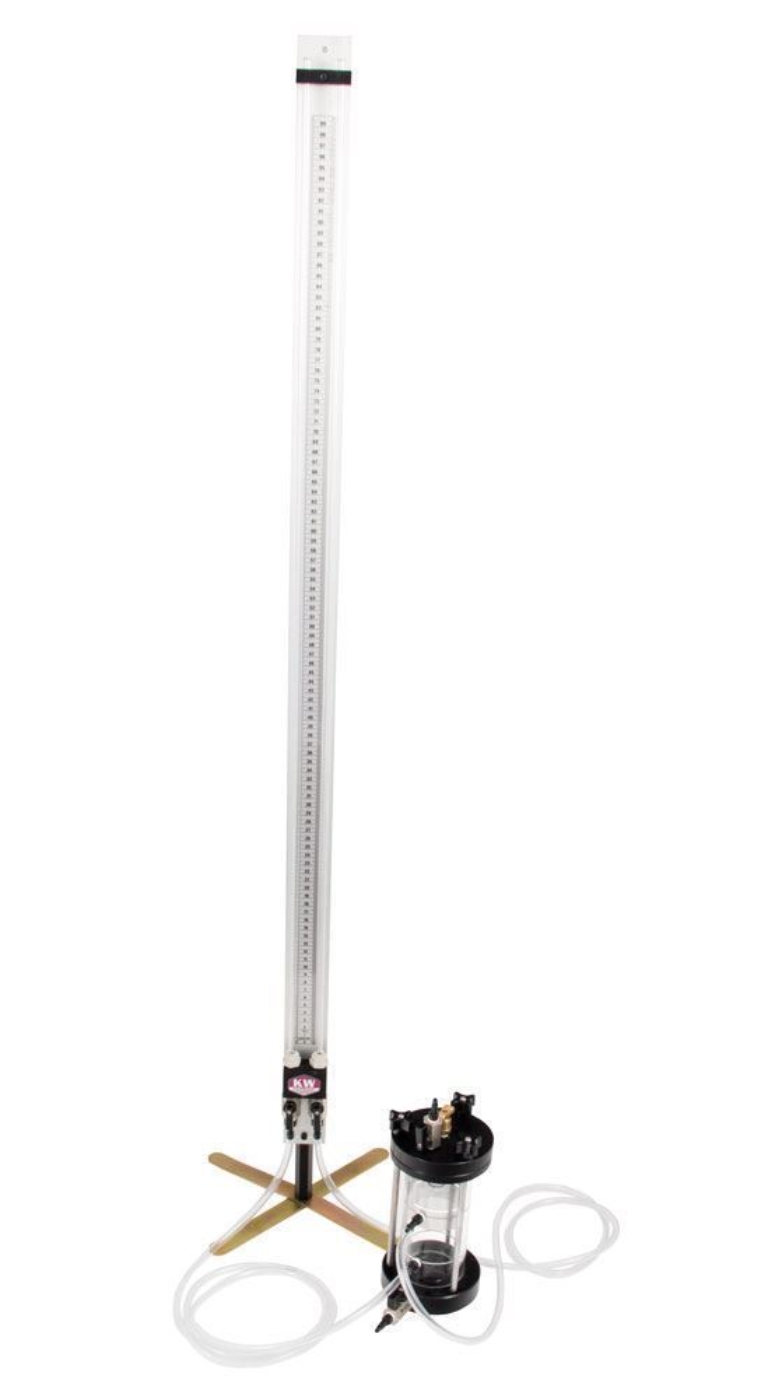

A manometer, sold separately, is a required accessory for an ASTM/AASHTO compliant permeameter. Gilson offers the HMA-838 Free-Standing Manometer or the HMA-839 Wall-Mounted Manometer
Features:
- Clear acrylic chamber for easy viewing
- No.100 mesh placed over manometer ports prevents loss of soil materials
- ASTM/AASHTO-compliant
- Several models to accommodate a wide range of particle top sizes
Included Items:
- ASTM/AASHTO Constant Head Permeameter (2.5, 3, 4.5, 6, or 9in diameters)
- Compression Spring
- Anodized Aluminum End Caps
- Porous Stones or Porous Plates
- Tubing
Accessories:

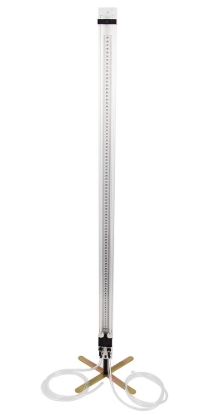

- HMA-838 Free-Standing Manometer or HMA-839 Wall-Mounted Manometer required for use. Both measure permeability of soil samples by constant head or falling head method
- HMA-837 Constant Head Reservoir 1,000cc acrylic tank with regulating valve. Controls the flow of water during a constant head permeability soil test
- HMA-836 Compaction Hammer for Granular Soil Permeability has sliding weight and tamping foot and is for use with Granular Soil Permeameters
- HMA-774 3in Filter Paper Grade 55 for use with HM-832 3in Permeameter to prevent blockage of pores
- HMA-776 6in Filter Paper Grade 55 is used with HM-834 6in Permeameter to prevent blockage of pores
