1 Tier Jar Mill (115V / 50-60Hz)

Model: LC-91

$4,318.90

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

1 Tier Jar Mill (115V / 50-60Hz)

Model: LC-91

$4,318.90

1 Tier Jar Mill (220V / 50-60Hz)

Model: LC-91F

$4,386.00

SKU: LC-91F

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Questions? Talk to a Product Expert

Get help from our in-house testing equipment specialists.

Open M–F: 8:00am–5:00pm

Call Us: (800) 444-1508

Description
Specifications
Accessories
Quick Compare
Q&A

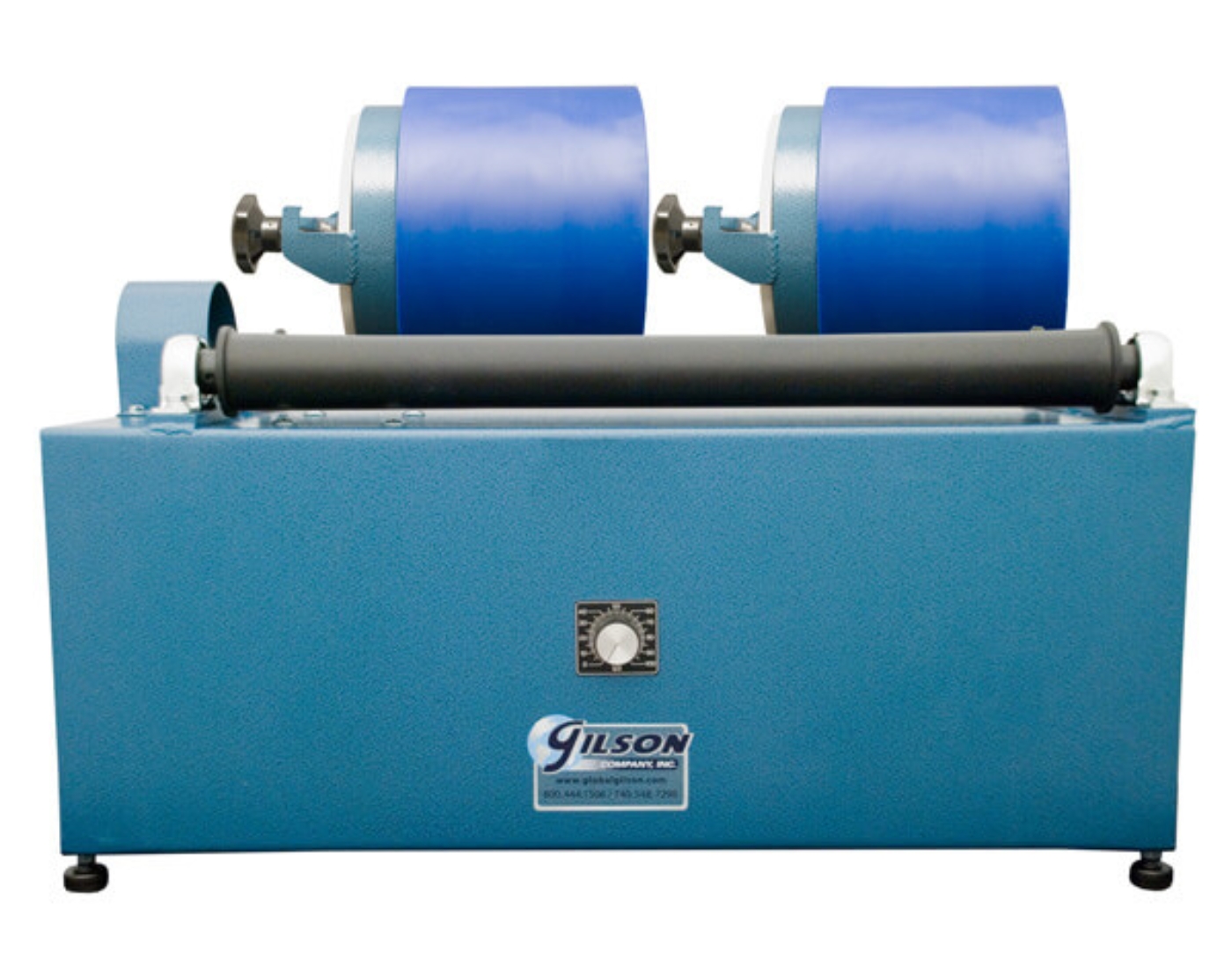

Jar Mills are a single tier, bench-style unit, and accommodate one or two Grinding Jars on 2in (50.8mm) neoprene rollers. Rollers are configured to keep jars centered during operation and spacing adjusts easily to accommodate jars from 2 to 15in (51 to 381mm) diameter. The maximum batch capacity is 6.6gal (25L). The bench units have welded steel frames and roller chain drives. The sealed ball bearings offer a long service life. Uses Roalox™ Porcelain or High Alumina Grinding Jars. Grinding Jars and Grinding Media are required for use and are sold separately.

Features:

Fully enclosed 1/4hp DC motor
Adjustable speed settings range from 20-300rpm
2in (50.8mm) diameter neoprene-covered rollers are configured to keep jars centered
1mm particle topsize; final size 1-50µm

Included Items:

Bench Jar Mill (115V or 220V)

Accessories:

Specifications

Attribute name	Attribute value
Maximum Particle Size	0.04in (1mm)
Final Size	1-50µm
Maximum Load	75lb (34kg)
Grinding Elements	Jars/Media
Application	Ores, Ceramics, Chemicals
Electrical	LC-91: 115V / 50-60Hz, 4.05 Amps LC-91F: 220V / 50-60Hz, 2.03 Amps
Product Dimensions	30 x 13 x 16in (762 x 330 x 406mm), WxDxH
Estimated Shipping Weight	90.0lb (40.82kg)

Quick Compare

Features	1 Tier Jar Mill (115V / 50-60Hz)	1 Tier Jar Mill (220V / 50-60Hz)
Pricing	$4,318.90	$4,386.00
Electrical	115V, 50/60Hz	220V, 50/60Hz
Estimated Shipping Weight	90.0lb (40.82kg)	90.0lb (40.82kg)
