2 Tier Jar Mill (115V/ 50-60Hz)

Questions? Talk to a Product Expert

Get help from our in-house testing equipment specialists.

Open M–F: 8:00am–5:00pm

Call Us: (800) 444-1508

2 Tier Jar Mill (115V / 50-60Hz)

Model: LC-92

$5,352.00

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

2 Tier Jar Mill (115V / 50-60Hz)

Model: LC-92

$5,352.00

2 Tier Jar Mill (230V / 50Hz)

Model: LC-92F

$5,631.30

SKU: LC-92F

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Questions? Talk to a Product Expert

Get help from our in-house testing equipment specialists.

Open M–F: 8:00am–5:00pm

Call Us: (800) 444-1508

Description
Specifications
Accessories
Quick Compare
Q&A

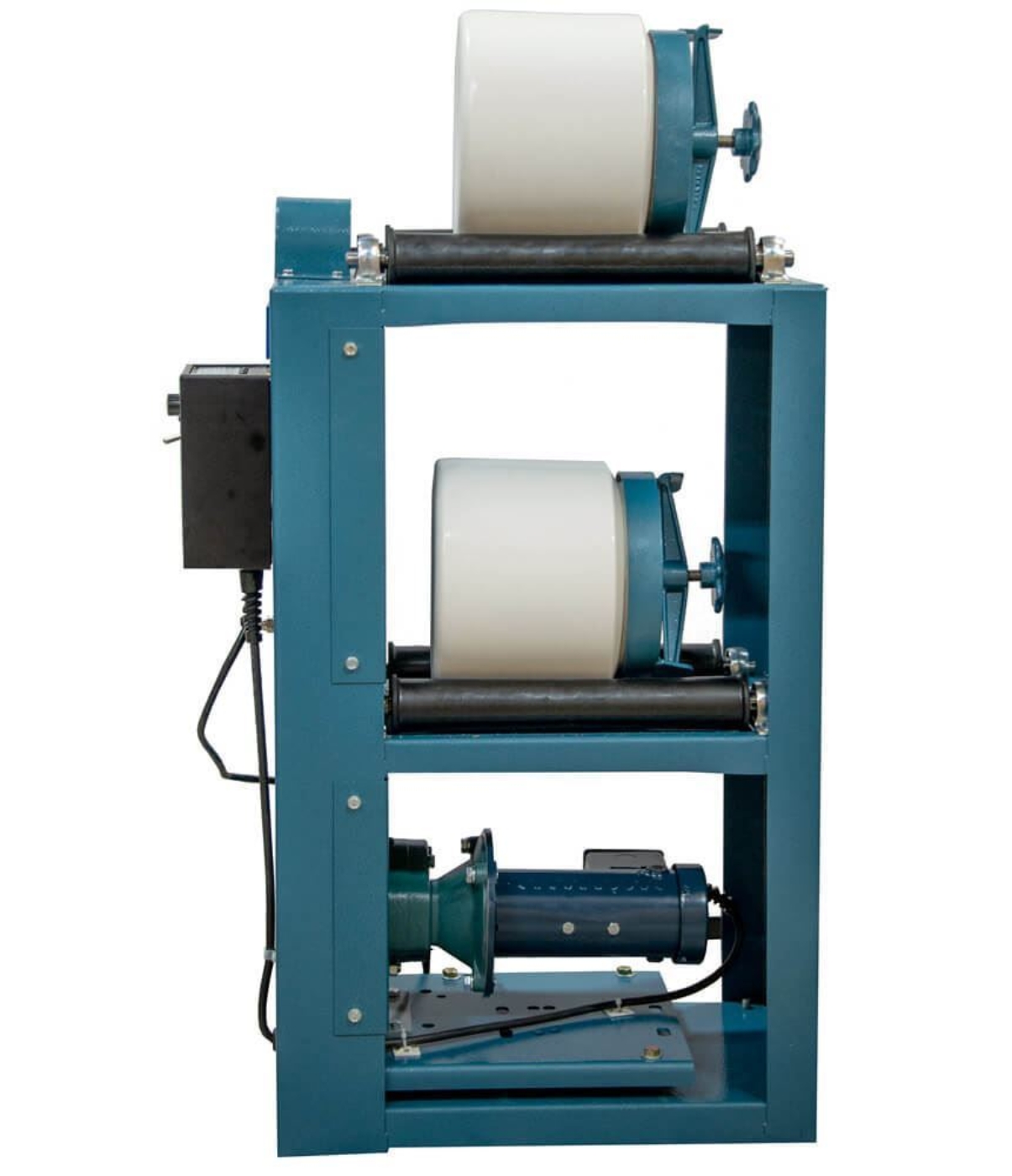

Jar Mills are 2-tier, floor-model, and accommodate one or two jars centered during operations by neoprene rollers. They have welded steel frames and roller chain drives. Sealed ball bearings offer a long service life. The LC-92 comes in models that operate on 115V/50-60Hz or 230V/50Hz.

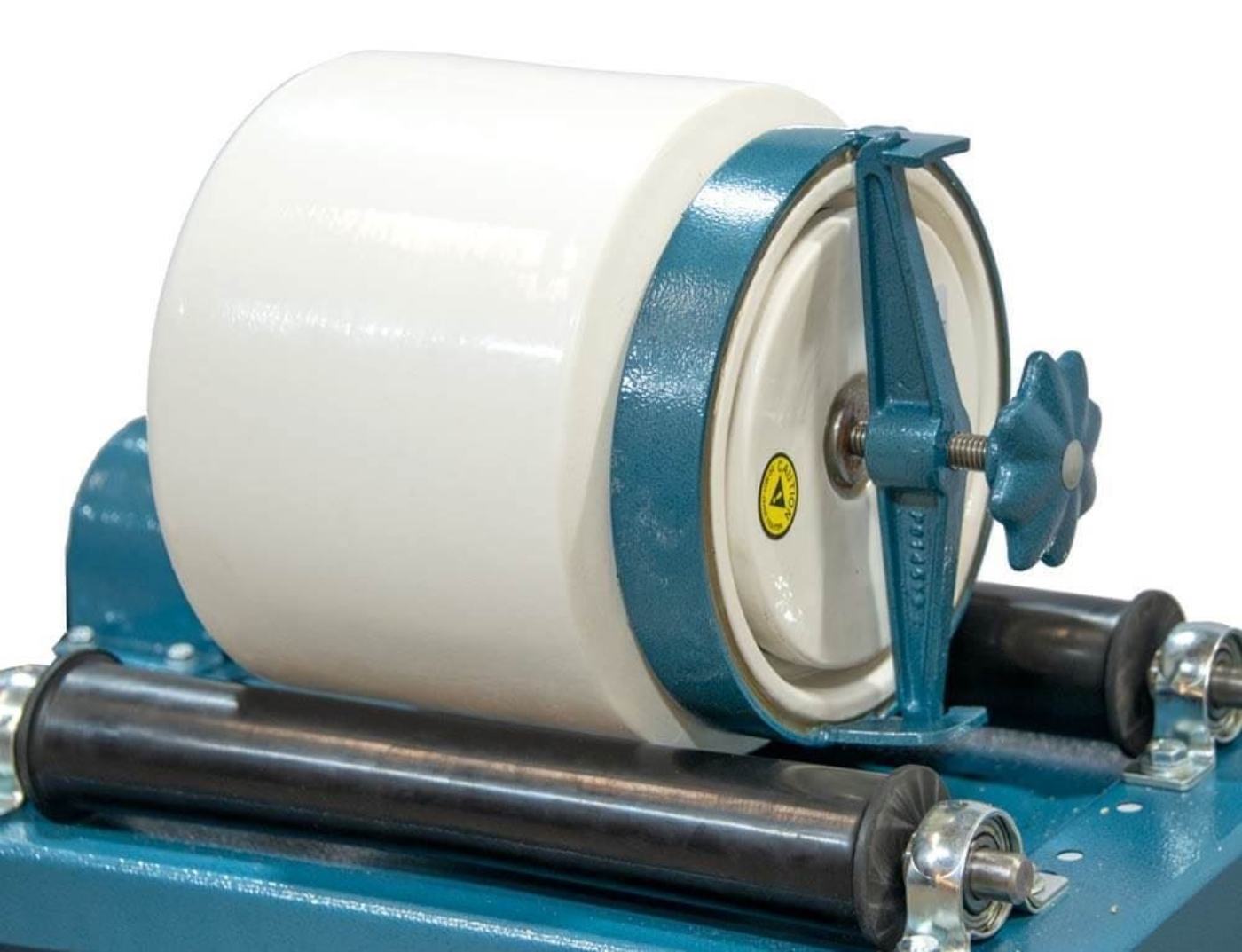

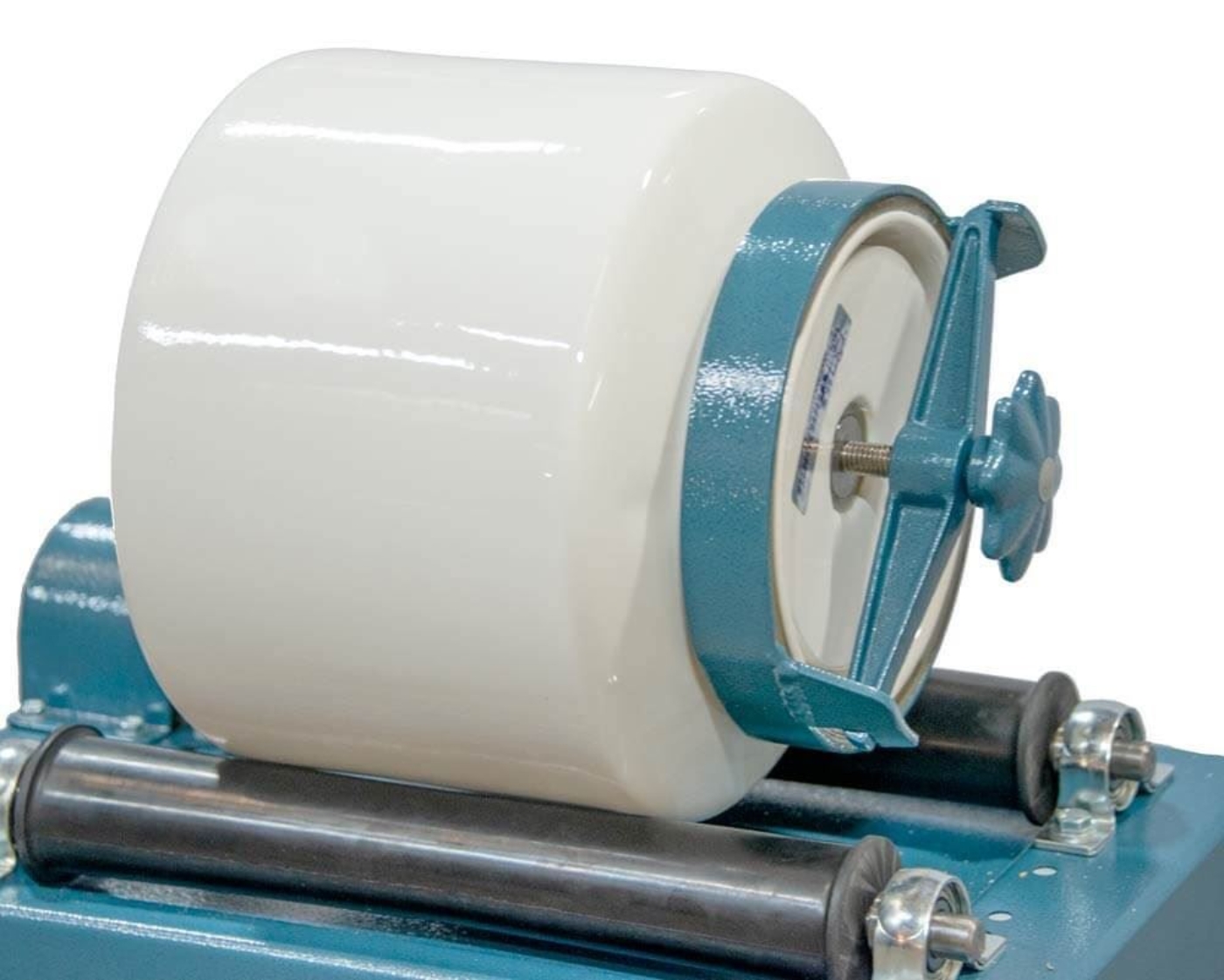

These units use Roalox™ Porcelain or High Alumina Grinding Jars. Grinding Jars and Grinding Media are required with Jar Mills and sold separately.

Features:

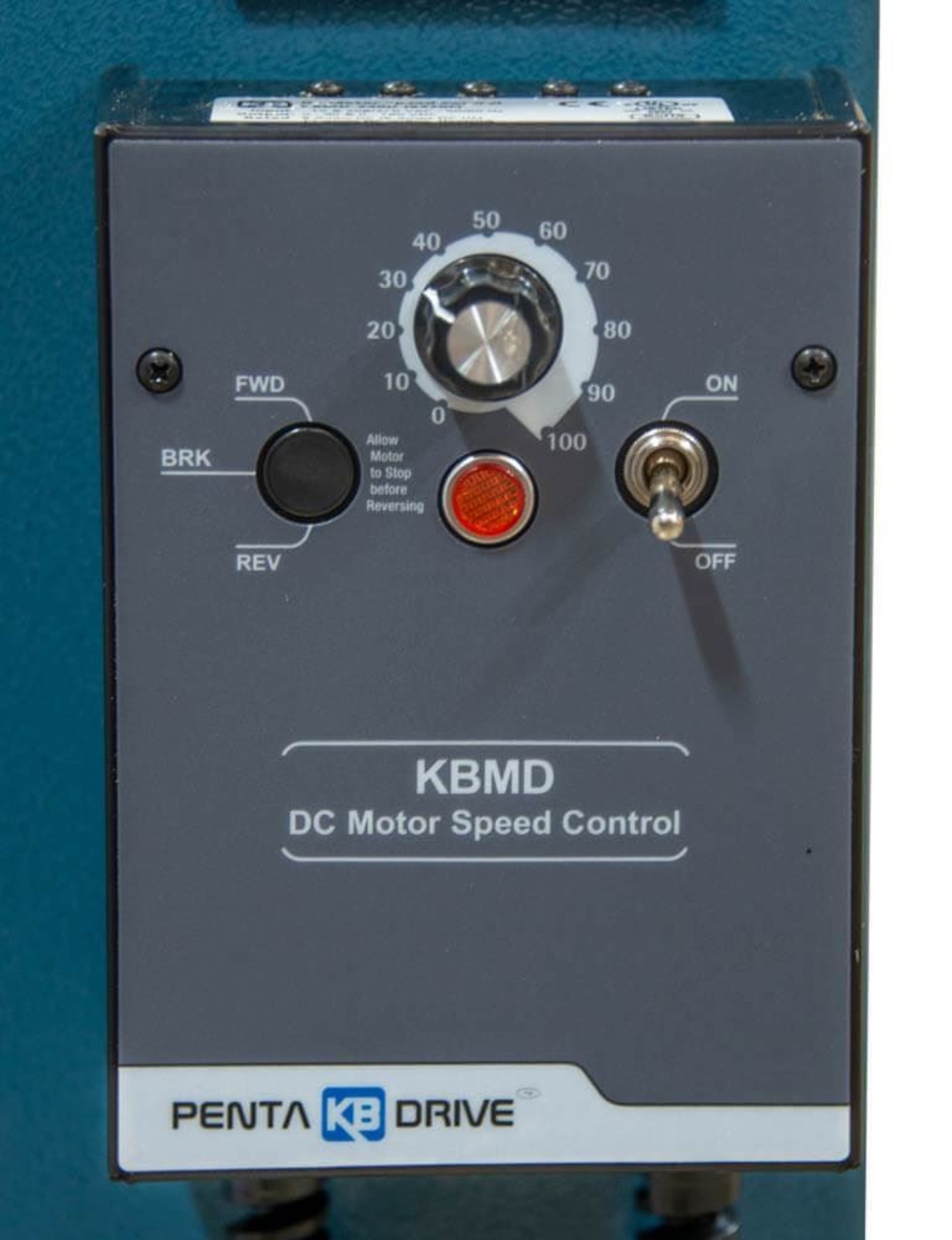

Fully enclosed DC motor for solid-state roll speed control
Adjustable speed range of between 20-300rpm
1mm particle topsize; final size 1-50µm
2.5in (63.5mm) diameter neoprene rollers

Included Items:

2 Tier, Jar Mill

Accessories:

Specifications

Attribute name	Attribute value
Maximum Particle Size	0.04in (1mm)
Final Size	1-50µm
Grinding Elements	Jars/Media
Application	Ores, Ceramics, Chemicals
Electrical	LC-92: 115V / 50-60Hz, 4.05 Amps LC-92F: 230V / 50Hz, 2.03 Amps
Product Dimensions	20 x 12 x 34in (508 x 305 x 864mm), WxDxH
Estimated Shipping Weight	130.0lb (58.97kg)

Quick Compare

Features	2 Tier Jar Mill (115V / 50-60Hz)	2 Tier Jar Mill (230V / 50Hz)
Pricing	$5,352.00	$5,631.30
Electrical	115V, 50/60Hz	230V, 50Hz
Estimated Shipping Weight	130.0lb (58.97kg)	130.0lb (58.97kg)
