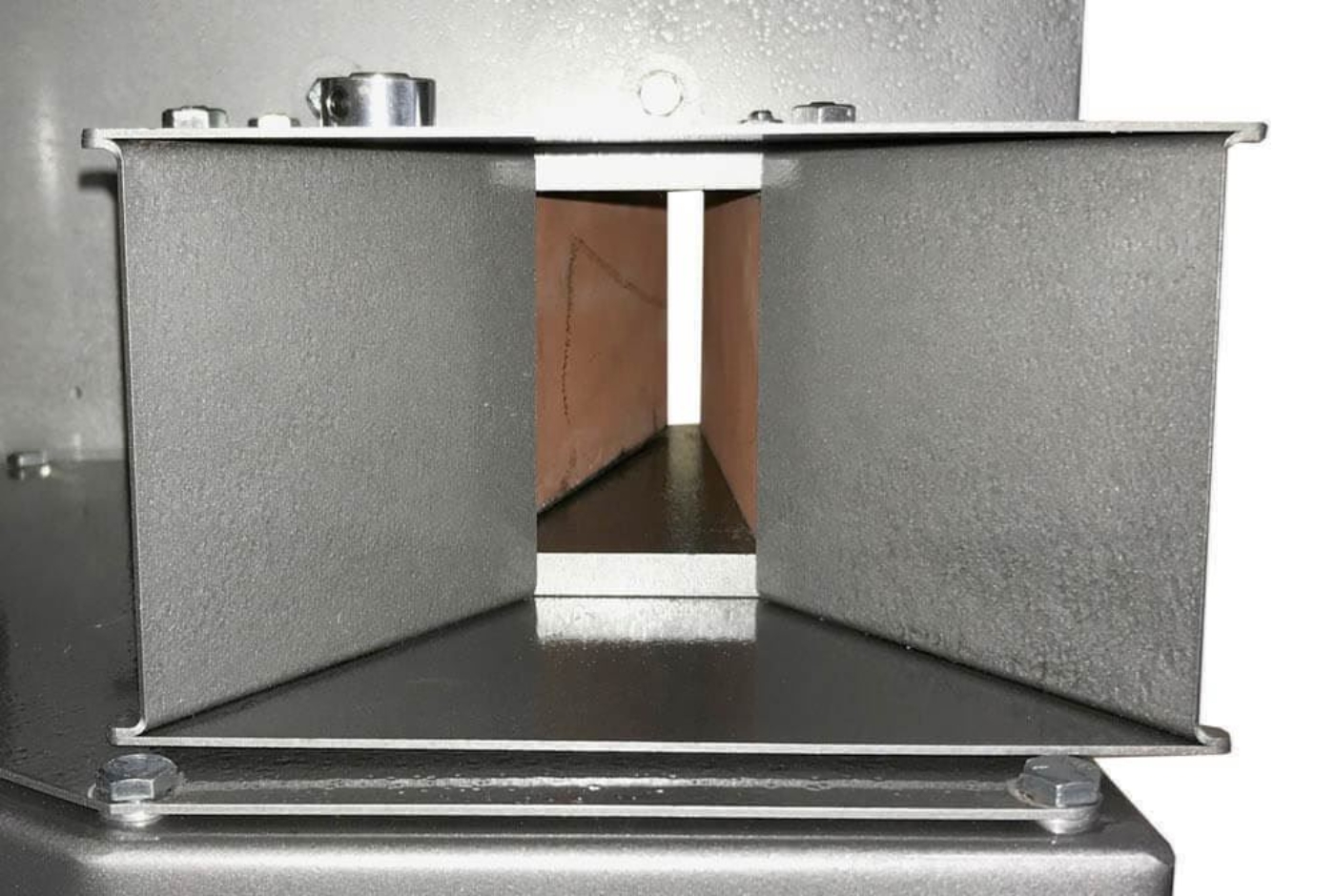

Laboratory Jaw Crushers are designed for economic size reduction of typical aggregates and common minerals at an output scaled for laboratory testing. Adjustable jaw openings allow close control of output size. High operating rpm promotes efficient size reduction with lower dust generation compared to other crushers and pulverizers. Crushers are mounted on sturdy welded steel base frames with CSA-rated electric motors and are fully equipped with pulleys, feed hoppers, and safety guards. Replacement Jaw Plate sets are available.

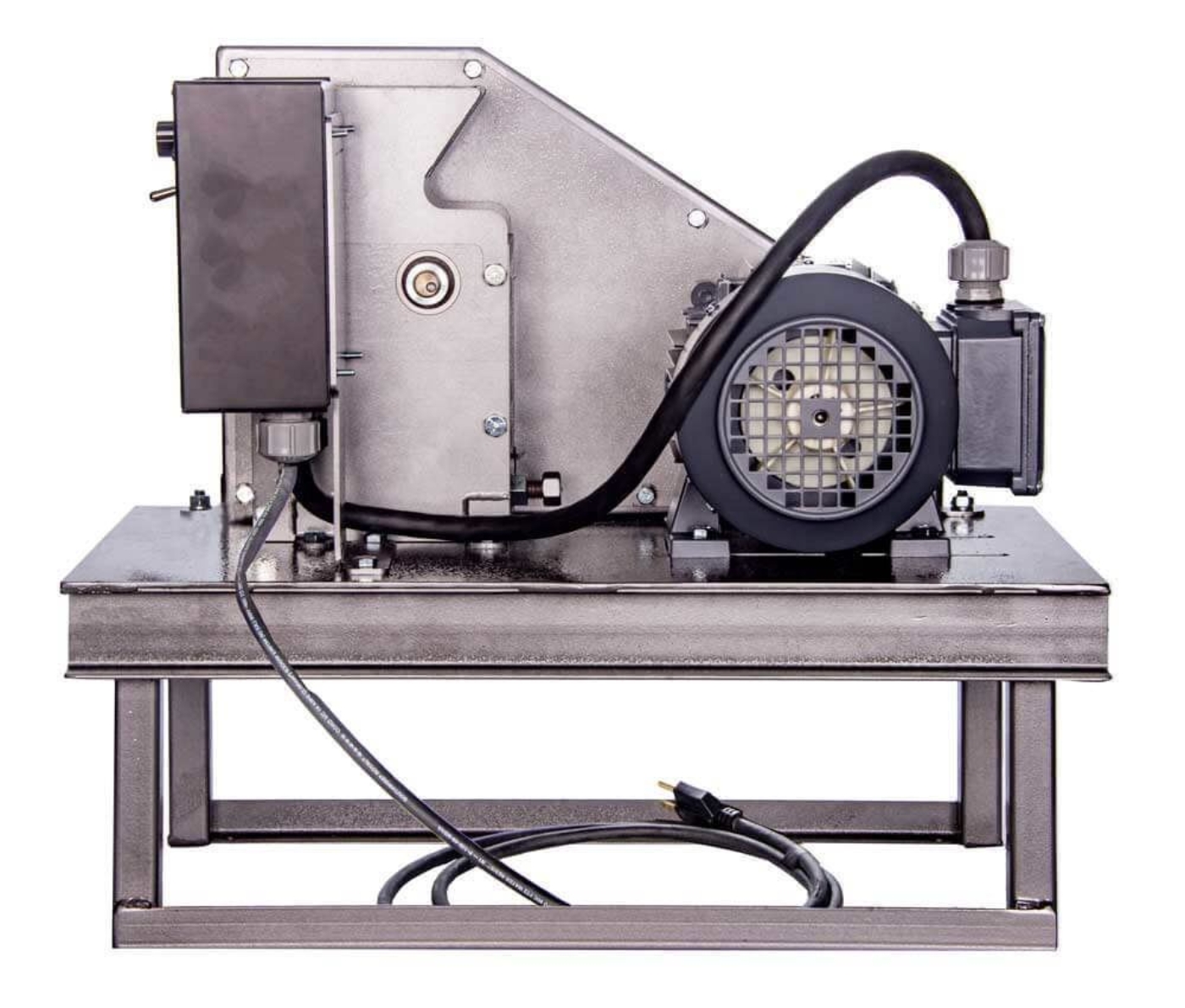

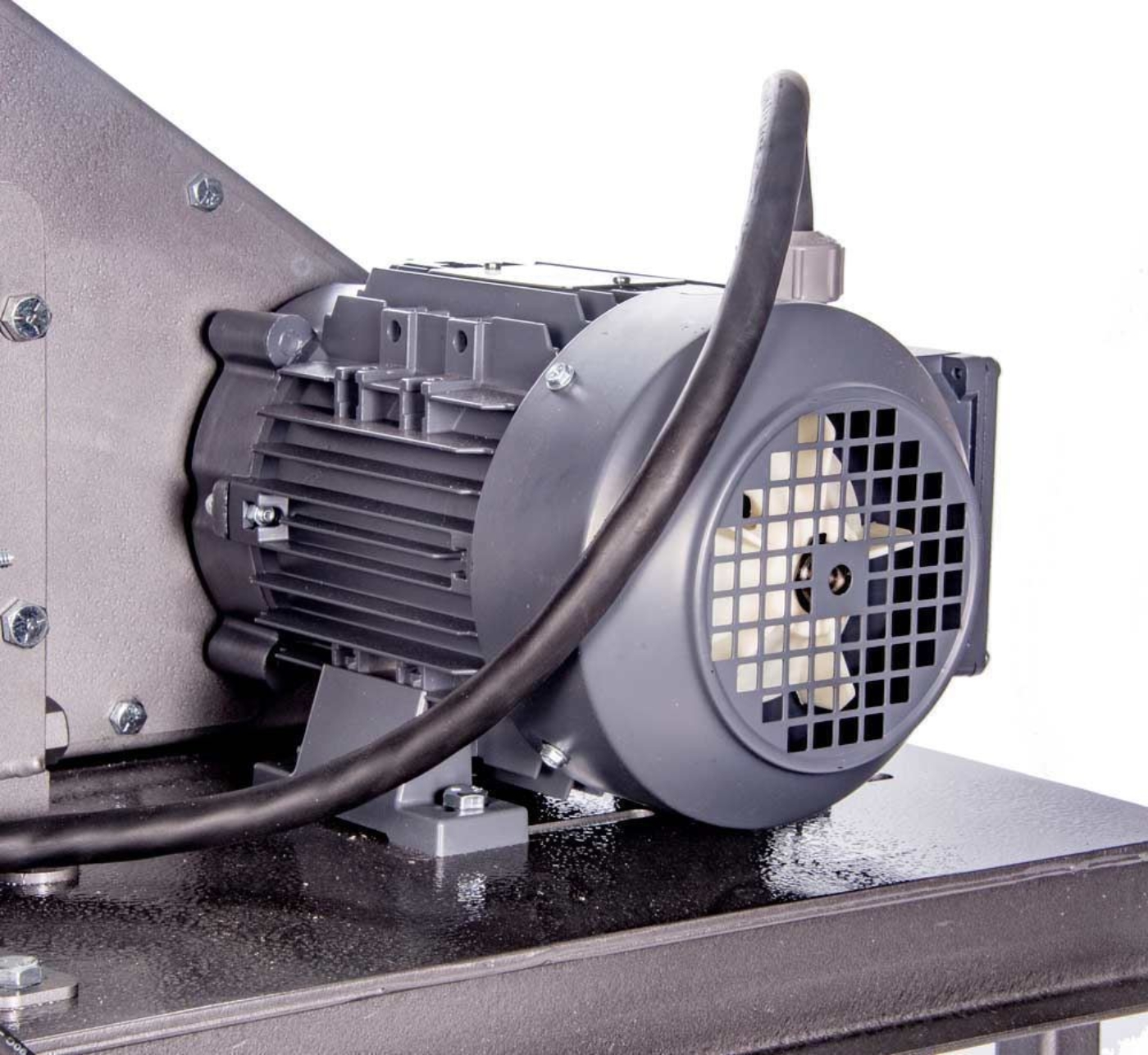

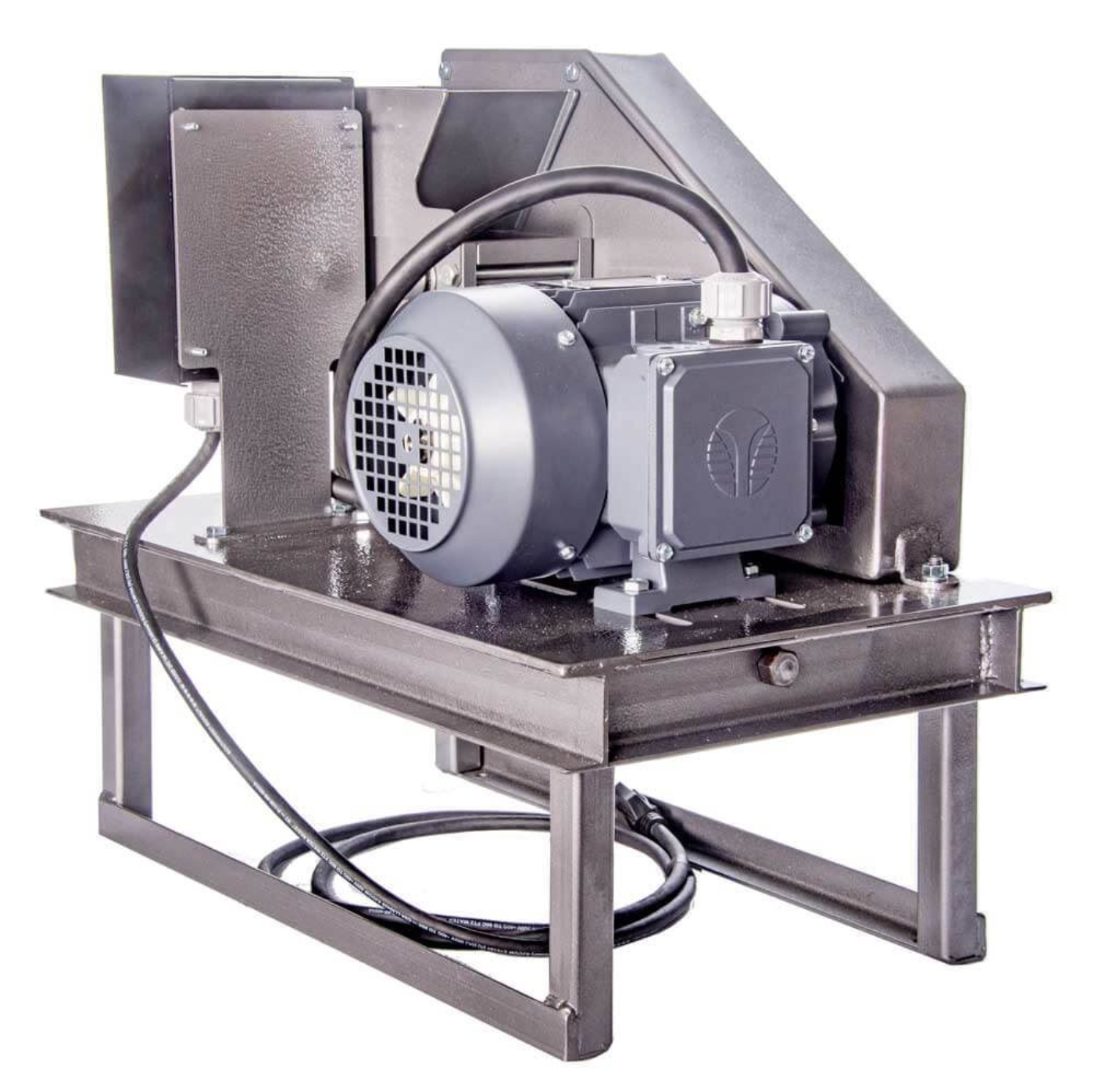

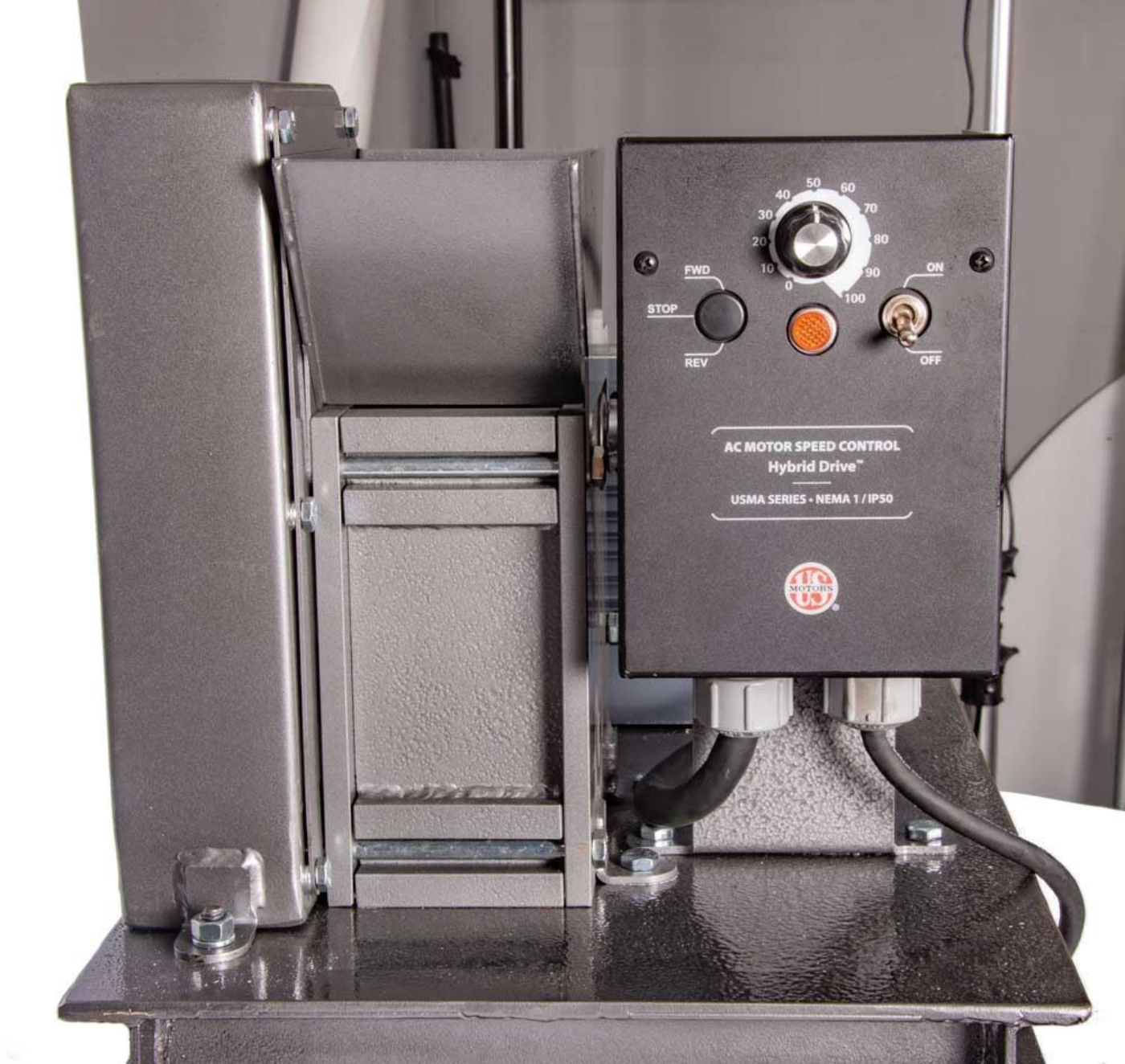

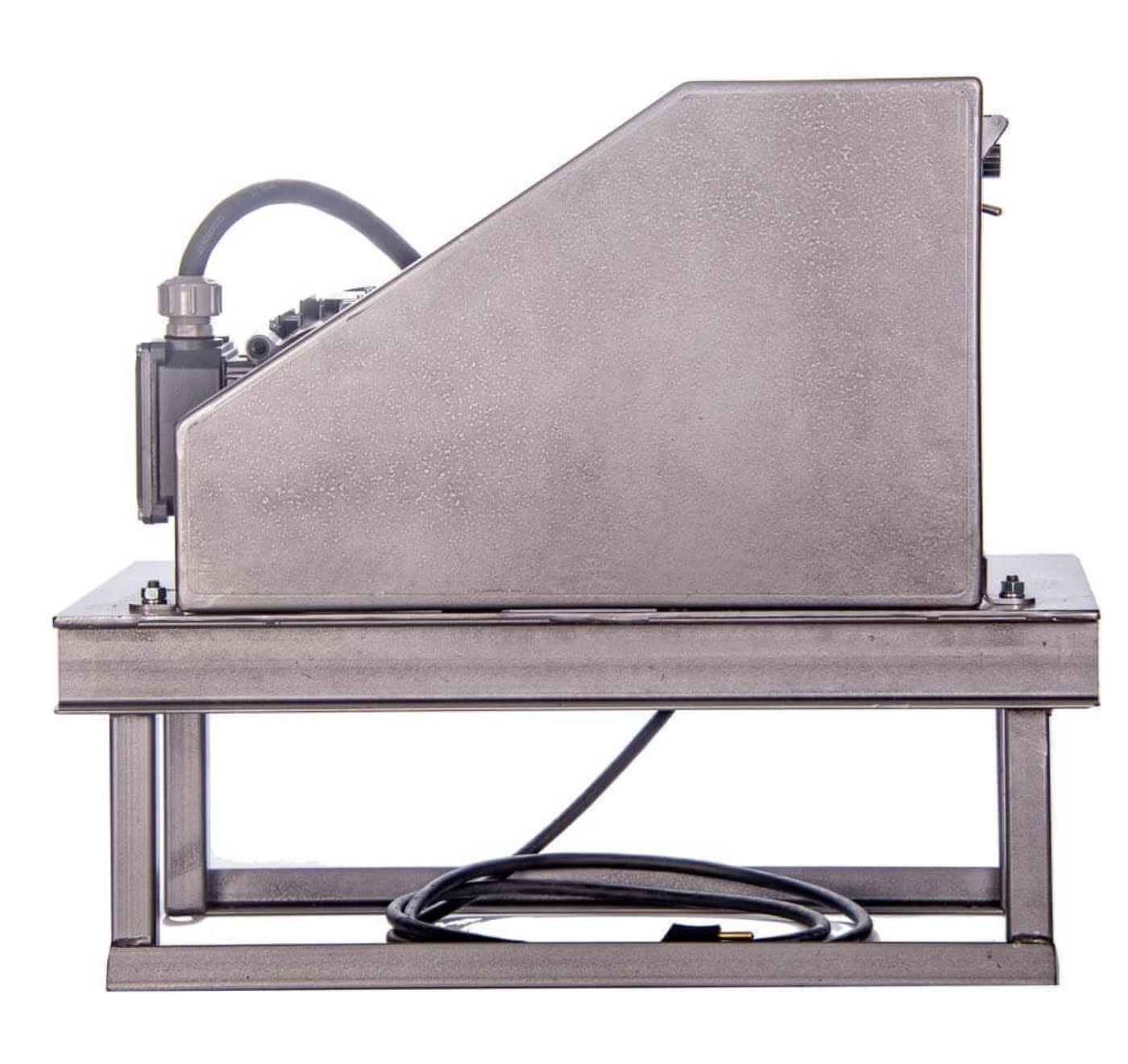

LC-27 2.25x3in Laboratory Jaw Crusher reduces 2in (50mm) aggregate, ore, and rock materials to a product with 80% passing a No.14 (1.4mm) sieve. Jaw opening easily adjusts down to 1mm minimum to closely control output size. The maximum throughput is approximately 50lb (22.7kg) per hour at 525rpm. The rate of operation is regulated by the variable speed controller. Jaw plates are high-impact, wear-resistant AR450 steel. It has a 1hp electric motor. Electrical cord and plug are included for operation on 115V, 50/60Hz electrical supplies. A variable speed controller can also operate on 220V, 50/60Hz power sources with a slight reduction in speed.

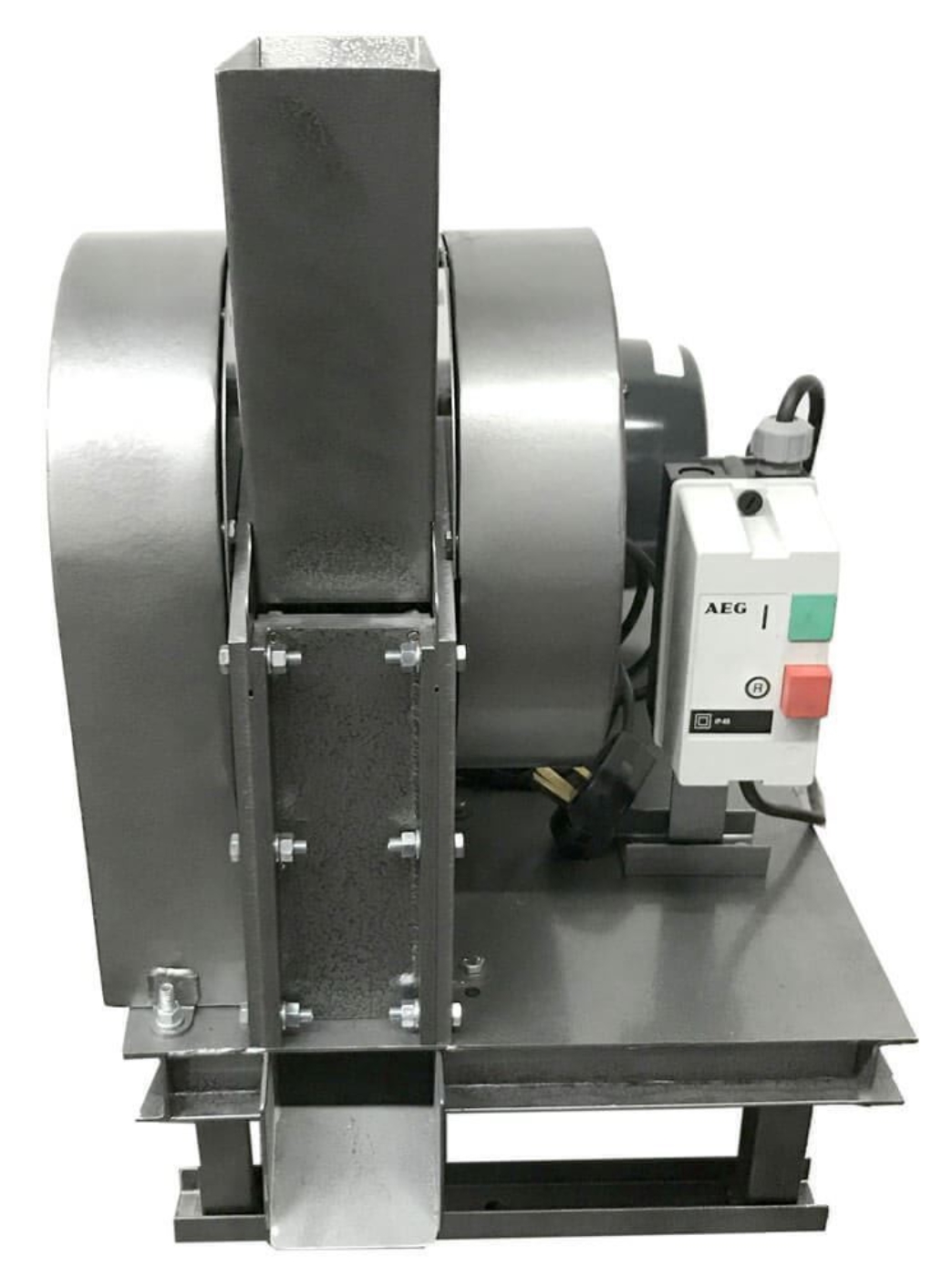

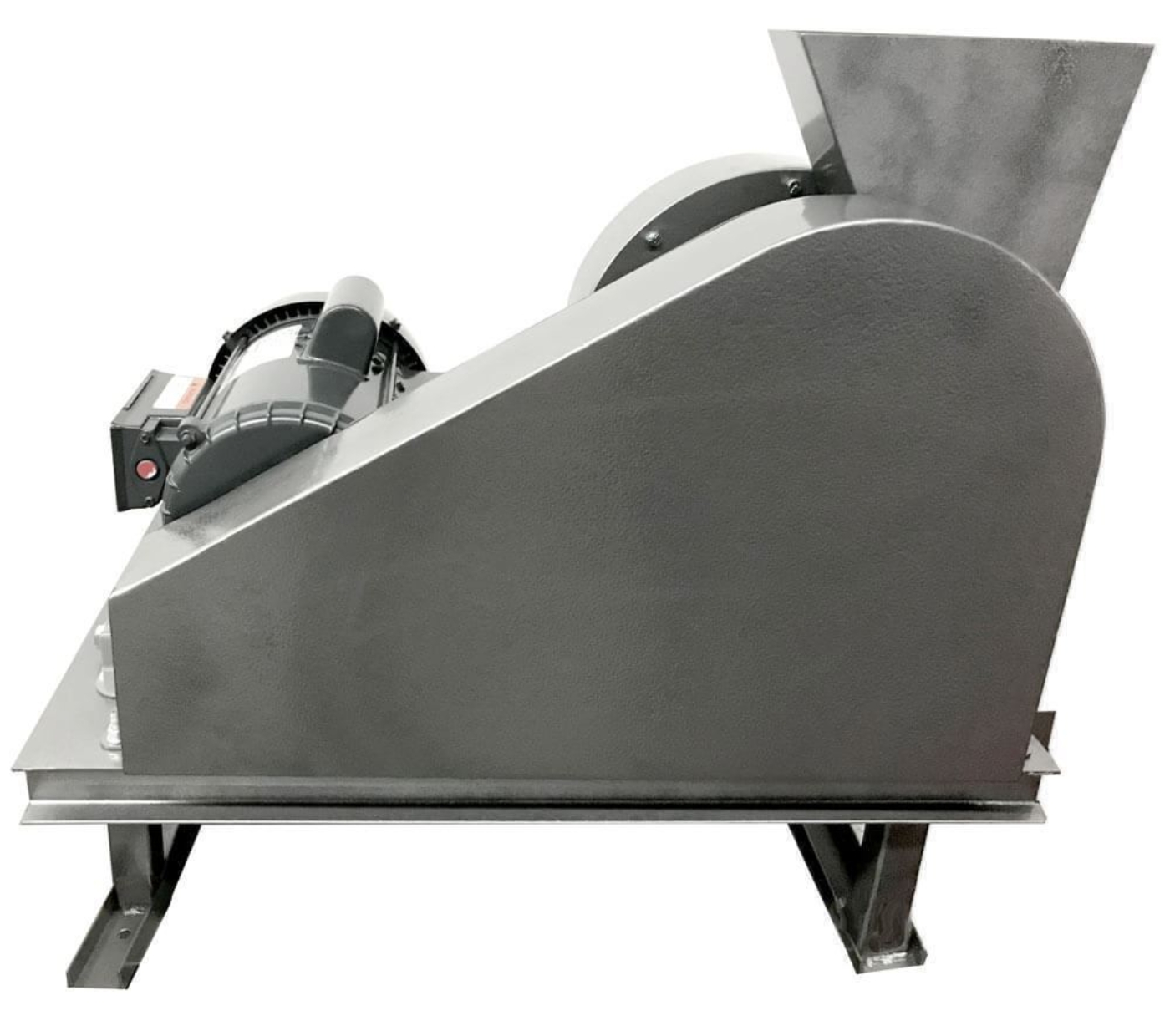

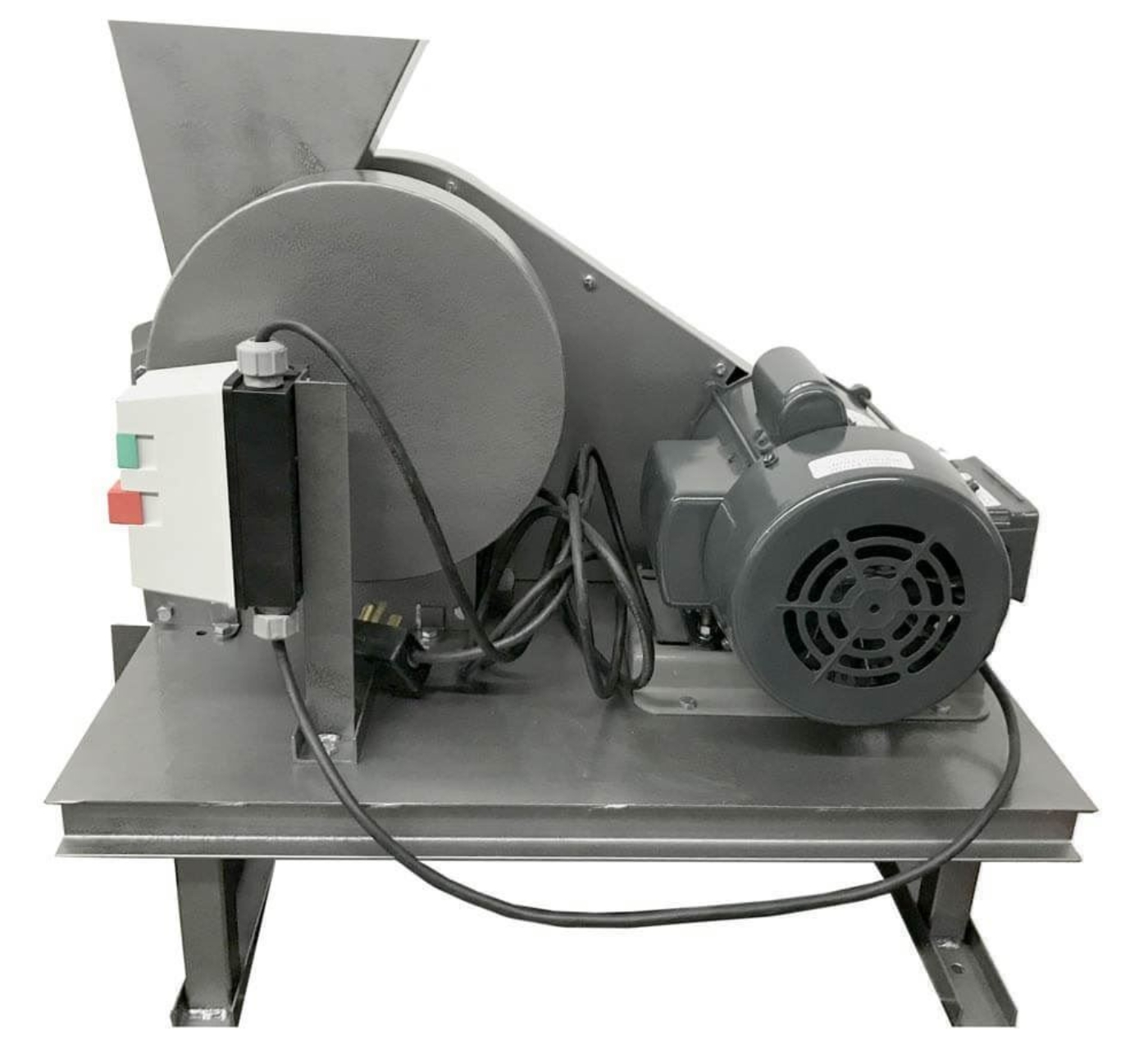

LC-28 3x4in Laboratory Jaw Crusher reduces 3in feed aggregate and rock material to a product with 50% passing a 1/4in (6.3mm) sieve. Jaw opening quickly adjusts from 0.375 to 1.5in (9.5 to 38mm). The operation of the overhead eccentric is regulated by the variable speed controller up to 375rpm and quickly crushes material for final testing or to prepare for secondary crushing. Throughput is up to 500 pounds (226.8kg) per hour for most materials. High-manganese steel jaw plates can be rotated when worn for extended service life. Operates on 220V, 50/60Hz electrical supplies.
Features:
- Adjustable crushing jaws control output size
- Economic performance with lower dust output
- High operating rpm offers efficiency in size reduction
- Base frame is constructed of welded steel
Included Items:
- 2.25x3in, or 3x4in Laboratory Jaw Crusher (115V, 50/60hz or 220V, 50/60Hz)
- Power cord and plug
Accessories:
- Replacement Jaw Sets are available for easy replacement within the crusher feed hopper
