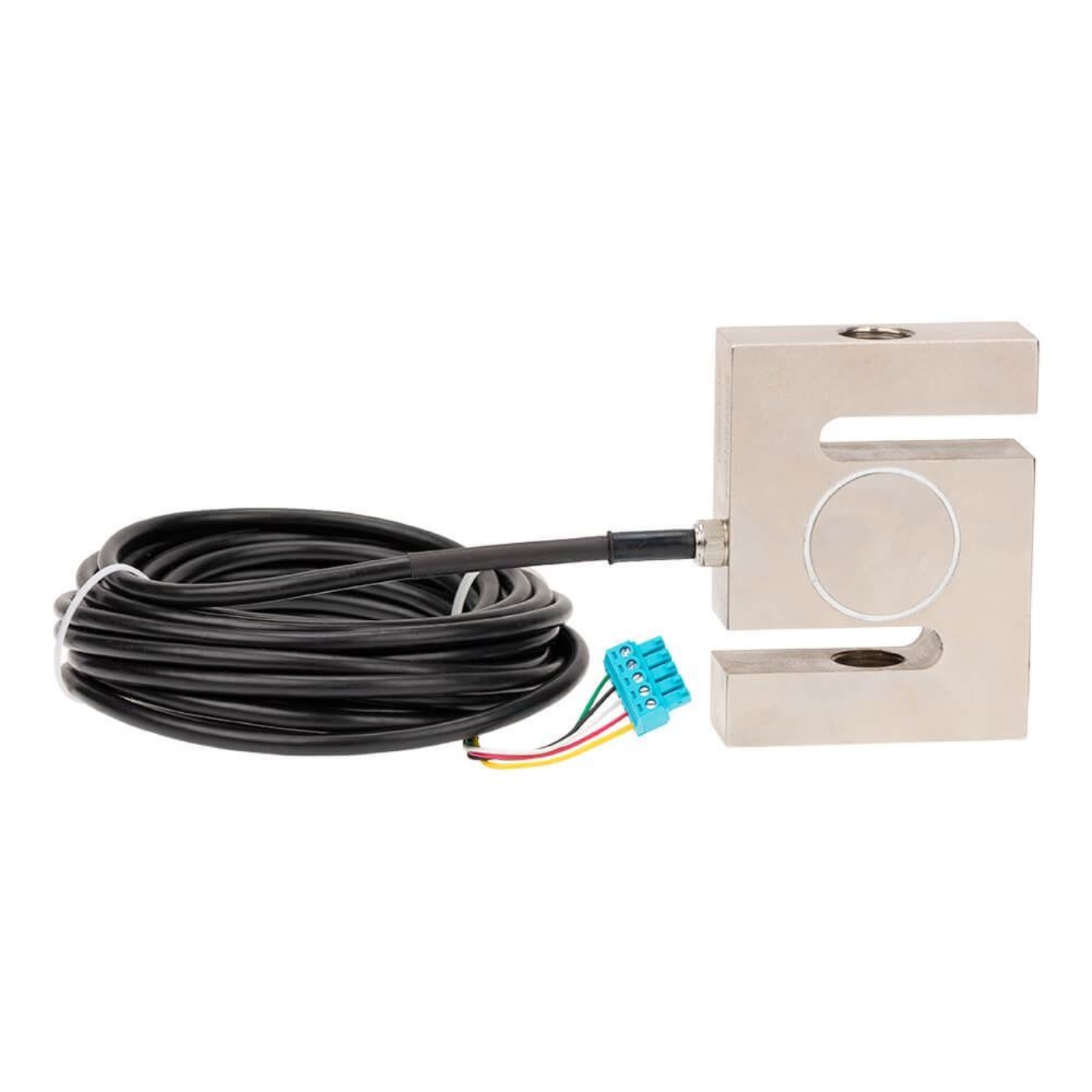

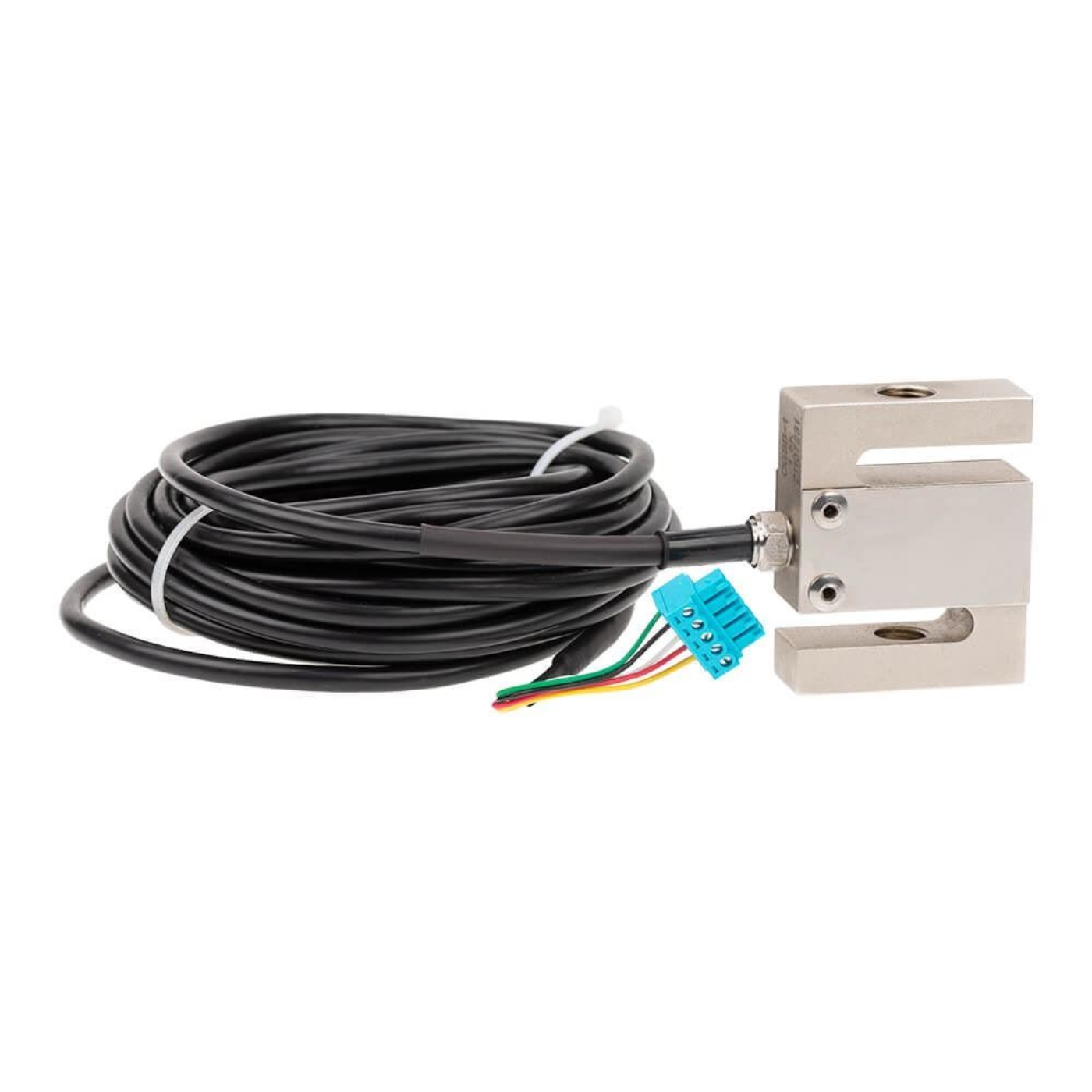

S-Type Load Cells measure tension and compression forces and have many applications for geotechnical and other construction materials testing. These load sensors are available in capacities ranging from 500 to 20,000lbf (2.2 to 89kN). All include a four-wire cable to output voltage signals for a two-channel or four-channel Data Readout (sold separately). They have top and bottom threaded mounting holes.
- For compression tests like unconfined compression or CBR/LBR, the load cells are mounted between the load frame and test apparatus or penetration piston.
- For direct-shear applications measuring both compression and tension, load cells are mounted between the shear box and a fixed point on the loading frame.
- For triaxial shear, Marshall stability, indirect tensile, Lottman, SCB, or similar tests, a uniform point of contact is required between the load cell and testing fixtures.

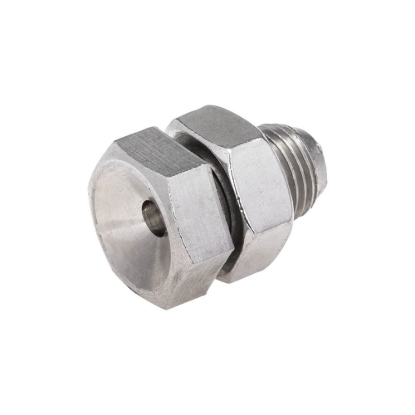

Note: Gilson machined steel loading buttons are purchased separately and threaded into the lower mounting hole of the load cells.
| Load Cell Models | Load Capacity | Mounting Hole Diameter Thread Size | Loading Button Model Compatibility |

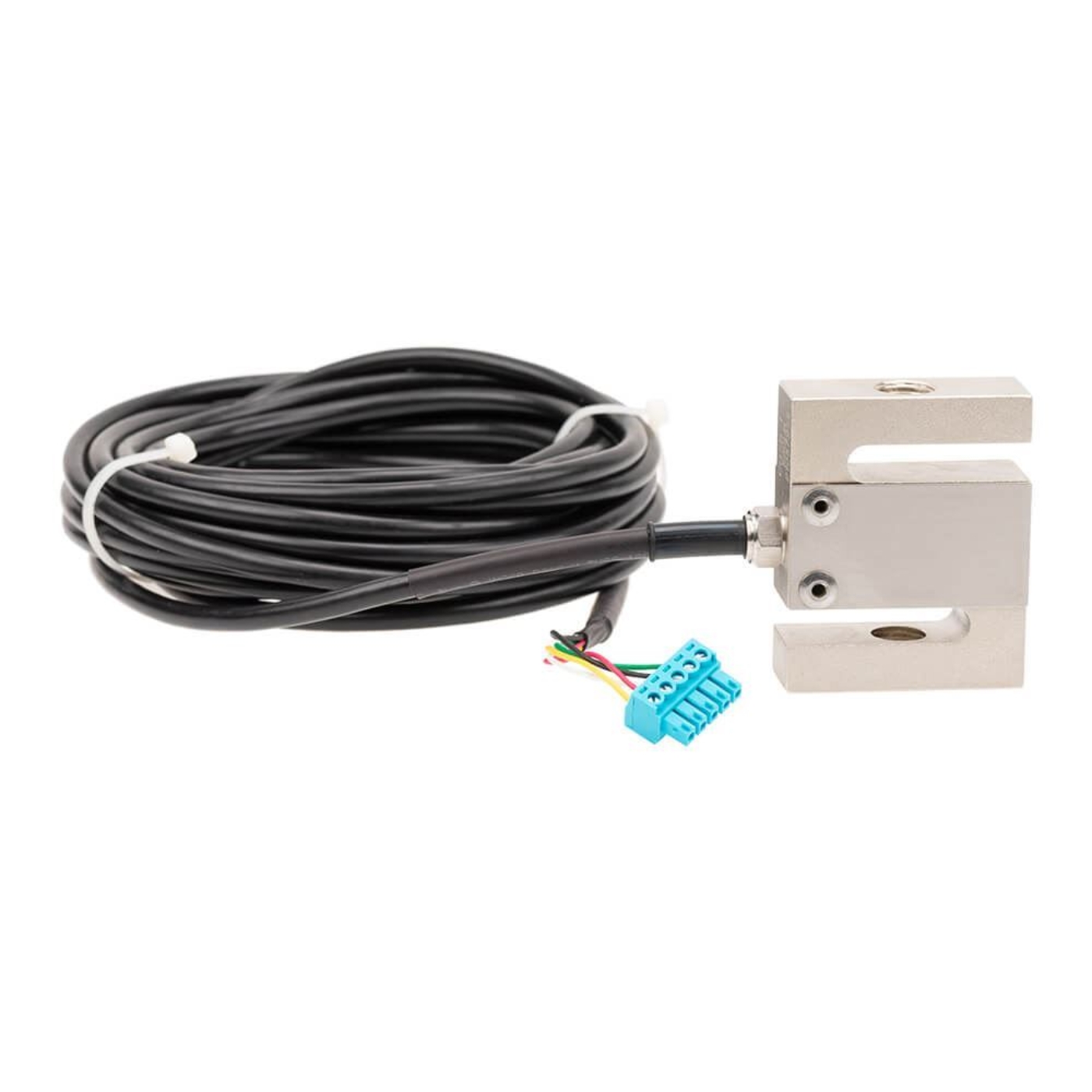

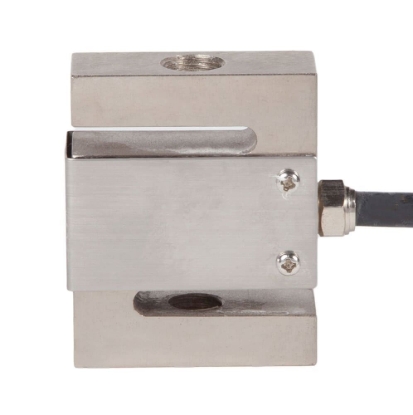

| HM-421D | 500lbf (2.2kN) | 1/2in x 20tpi | HMA-405 |

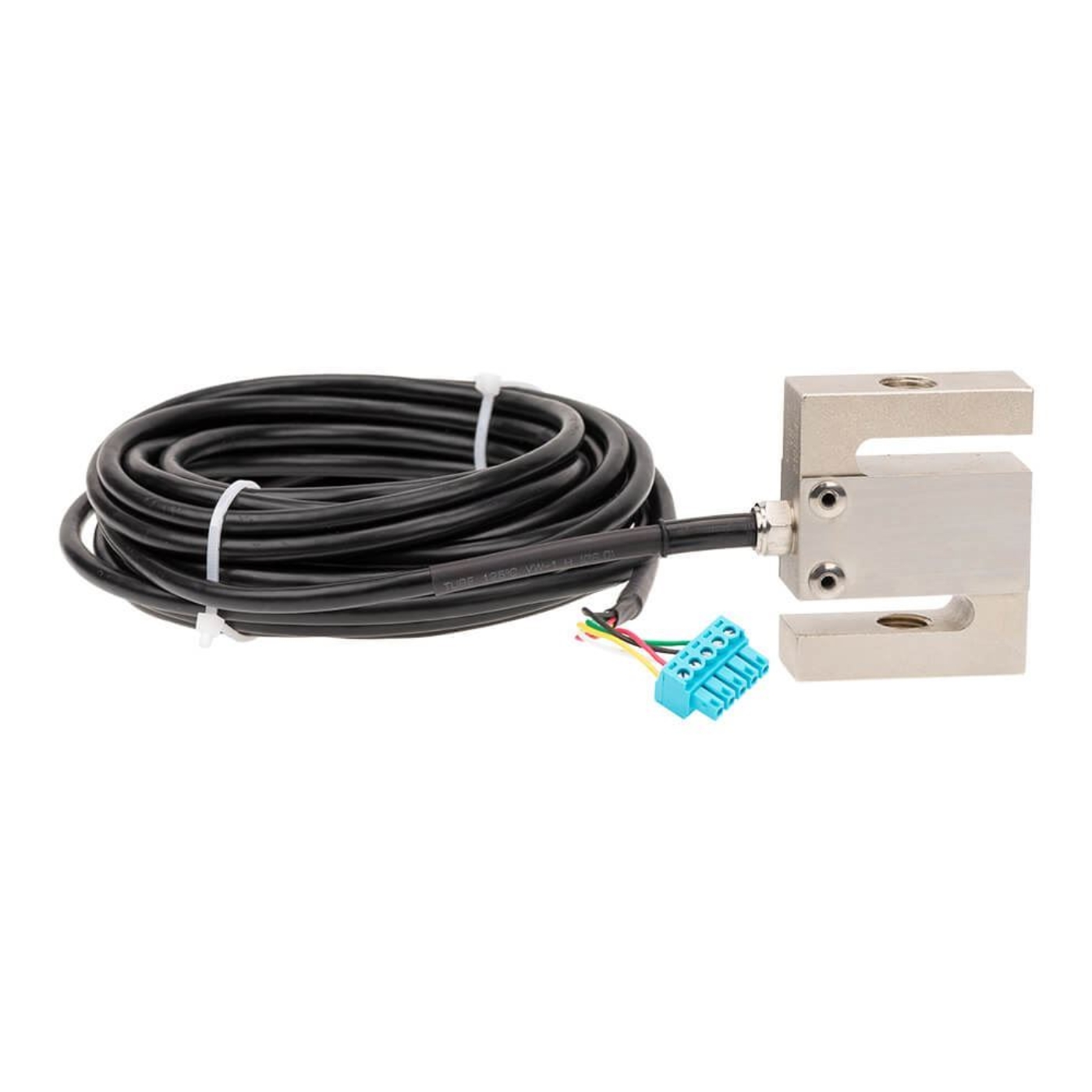

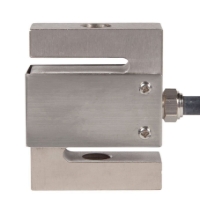

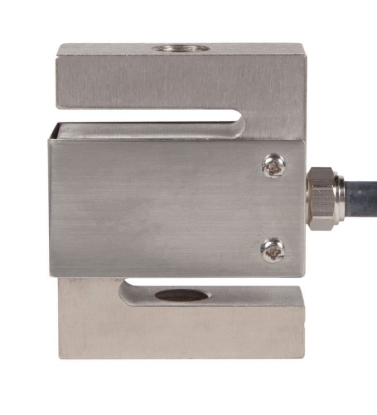

| HM-422D | 1,000lbf (4.4kN) | 1/2in x 20tpi | HMA-405 |

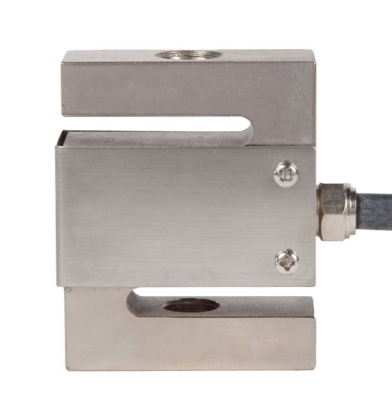

| HM-424D | 1,500lbf (6.6kN) | 1/2in x 20tpi | HMA-405 |

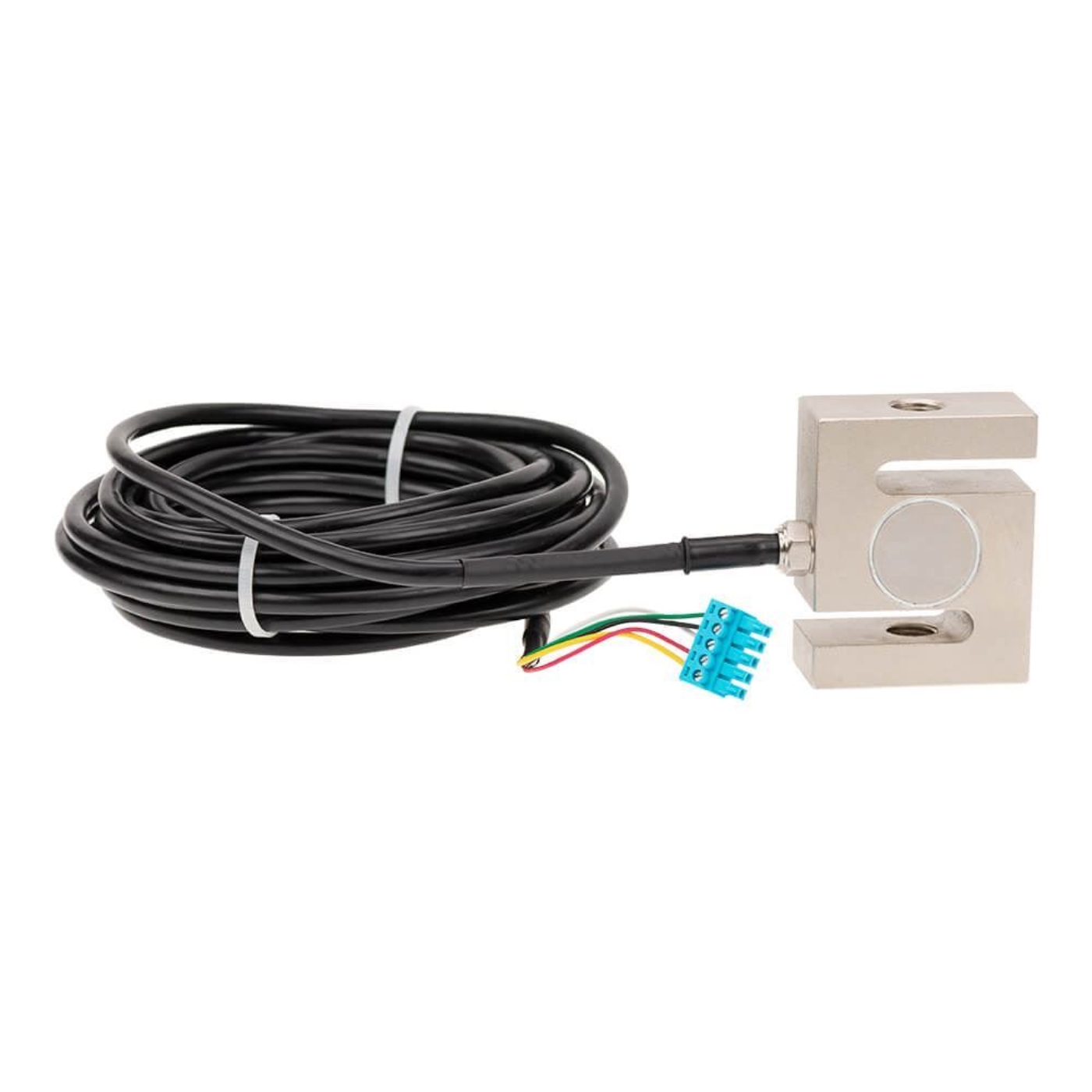

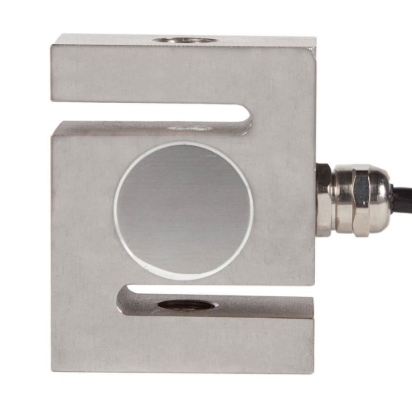

| HM-425D | 2,000lbf (8.8kN) | 1/2in x 20tpi | HMA-405 |

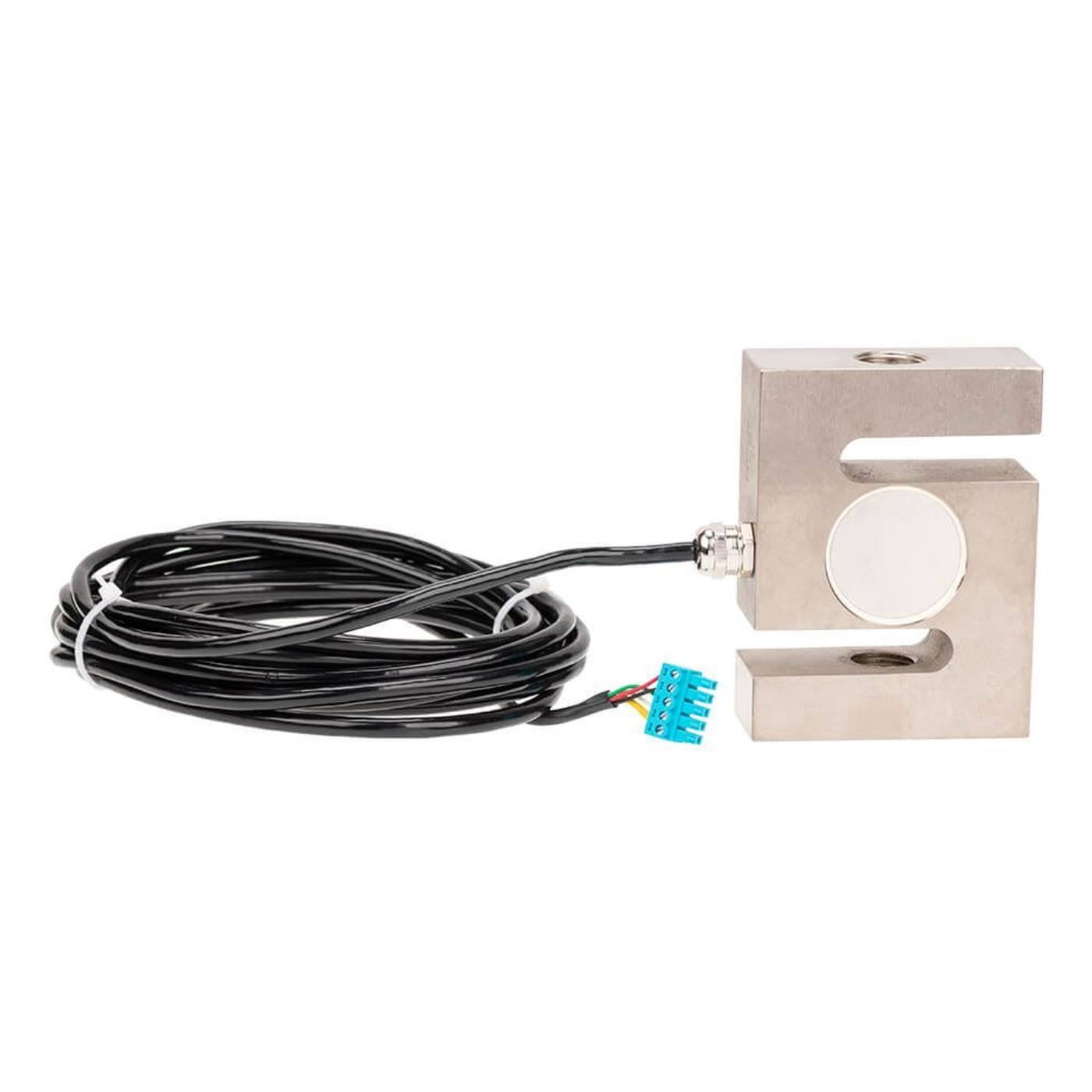

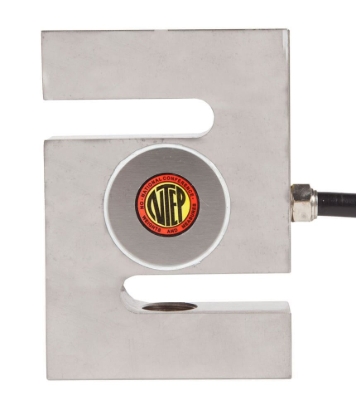

| HM-428D | 5,000lbf (22.2kN) | 3/4in x 16tpi | HMA-407 |
| HM-430D | 10,000lbf (44.4kN) | 3/4in x 16tpi | HMA-407 |

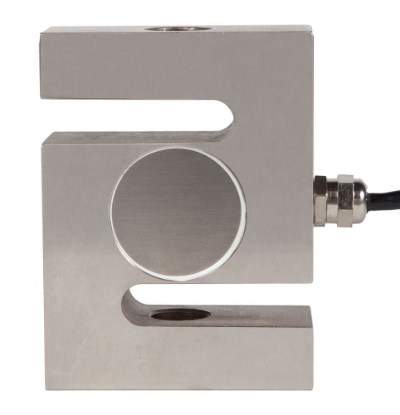

| HM-438D | 20,000lbf (88.9kN) | 1-1/4in x 12tpi | HMA-409 |
Features:
- S-type design measures tension or compression force
- Machined stainless steel or nickel alloy plated steel construction
- Four-wire for connection to data readout units
- Threaded mounting holes
Included Items:
- S-Type Load Cell
- Four-wire connection cable
Accessories:
- Loading Buttons thread into load cell mounts to provide a uniform contact point for testing fixtures
- Data Readouts accept input from the digital force, pressure, and displacement devices and come with two or four channels
- Data Acquisition Software records specimen and real-time test data for a wide range of soil laboratory tests and prepares reports following applicable ASTM and AASHTO requirements.
