Load & Displacement Measurement

Component Sets configure laboratory load frames from Gilson and many other manufacturers to measure load and deformation values in a wide range of laboratory soil tests. ASTM and AASHTO test methods include California Bearing Ratio (CBR), Limerock Bearing Ratio (LBR), Marshall Stability, Triaxial, Unconfined Compressive Strength (UCS), and Soil Cement.

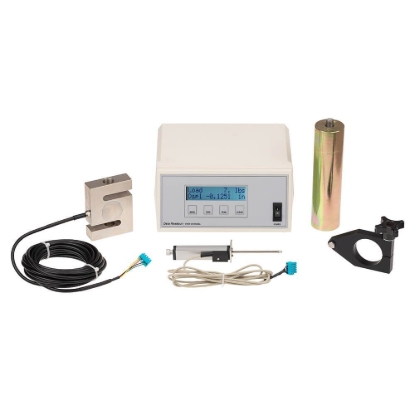

CBR Component Sets

Starting From $902.00

View Details

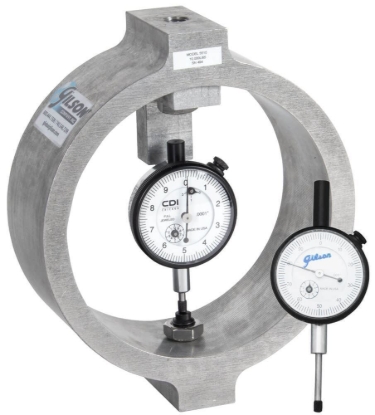

Triaxial Analog Component Set with 1,000lbf Load Ring

$682.00

View Details

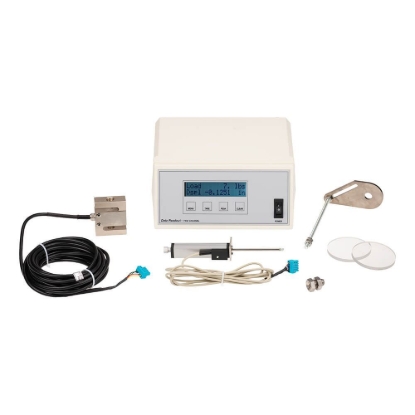

Unconfined Component Sets

Starting From $722.00

View Details

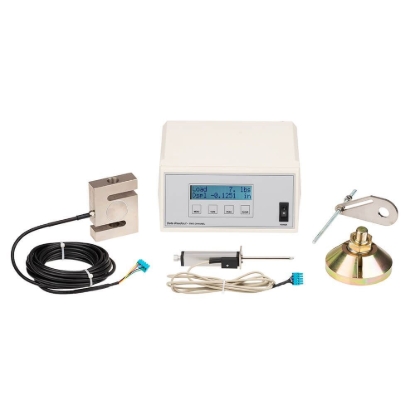

Soil-Cement Component Sets

Starting From $1,052.00

View Details

Two-Channel Data Readout Kits

Starting From $1,982.10

View Details

Pore Pressure Transducer with Digital Readout

Starting From $969.50

View Details

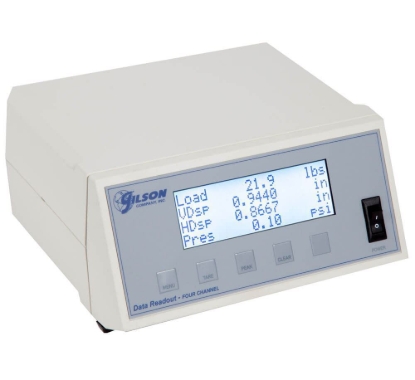

Data Readouts

Starting From $1,760.00

View Details

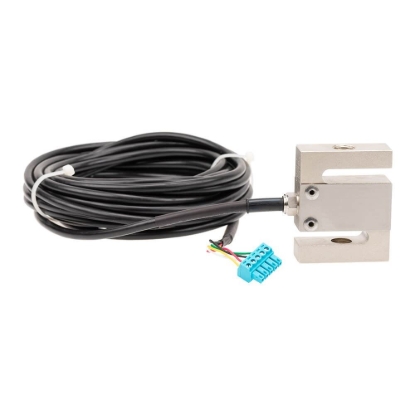

S-Type Load Cells

Starting From $350.00

View Details

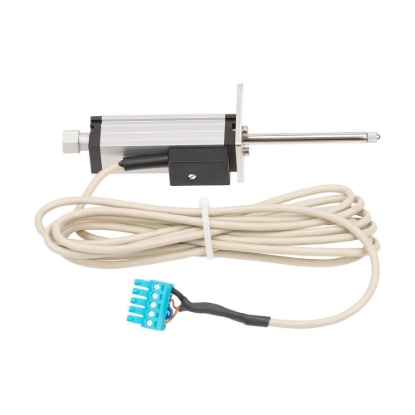

Linear Variable Displacement Transducers

Starting From $425.00

View Details

Load Rings

Starting From $550.00

View Details

Digital Dial Indicators

Starting From $416.70

View Details

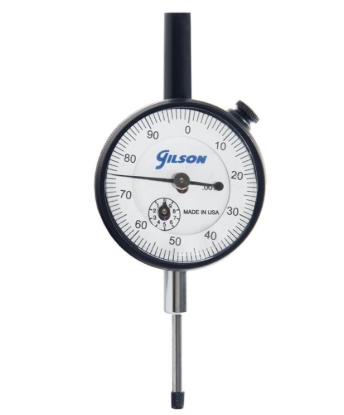

Mechanical Dial Indicators

Starting From $141.40

View Details

Load & Displacement Measurement for Soil Sample Testing

California Bearing Ratio (CBR) Component Sets are used for CBR or Limerock Bearing Ratio (LBR) testing. Sets are available with analog or digital components in 6,000lbf (26.7kN) or 10,000lbf (44.5kN) capacities.
Analog Triaxial Loading Component Sets include analog or digital sets with components to measure load and sample displacement during typical triaxial soil tests.
Unconfined Compressive Strength (UCS) Component Sets come in analog or digital sets for measuring load and soil sample deformation. Available for 500lbf (2.2kN) or 1,000lbf (4.4kN) capacities.
Soil-Cement Component Sets contain analog or digital components for testing compressive strengths up to 10,000lbf (44.5kN) total load.

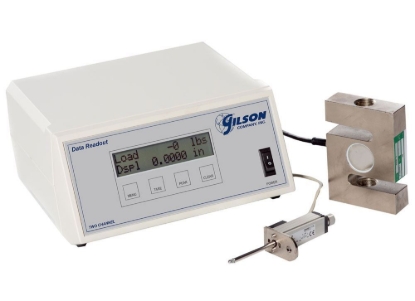

Load & Displacement Readout Kits can adapt select Load Cells and Displacement Transducers to Digital Read-Out Box for use in different testing applications.

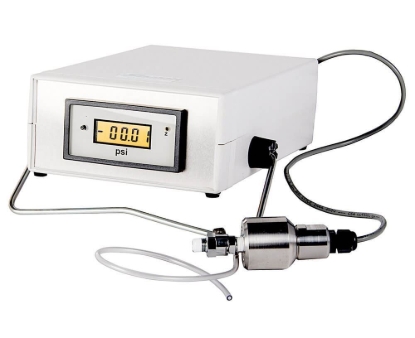

Pore Pressure Transducer with Digital Readout precisely measures pore water pressure of soil specimens during triaxial testing.
Data Readouts display electronic measurements on two or four channels from Load Cells and Displacement Transducers.
Load Cells electronically measure applied loads from 500lbf (2.2kN) up to 20,000lbf (89kN).
Linear Variable Displacement Transducers measure soil deformation or movement and are available in 1in (25.4mm) and 2in (50.8mm) ranges.

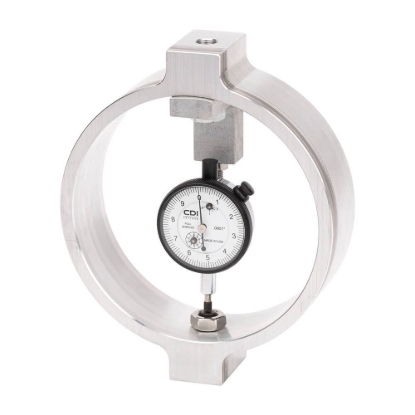

Load Rings range in capacity from 250lbf (1.1kN) to 10,000lbf (44.5kN) and provide analog force measurements.

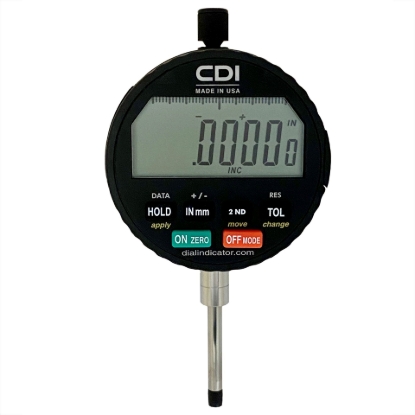

Digital Dial Indicators are available in different ranges and resolutions to display movement and displacement measurements.
Mechanical Dial Indicators are low-friction analog units for accurate displacement readings.
