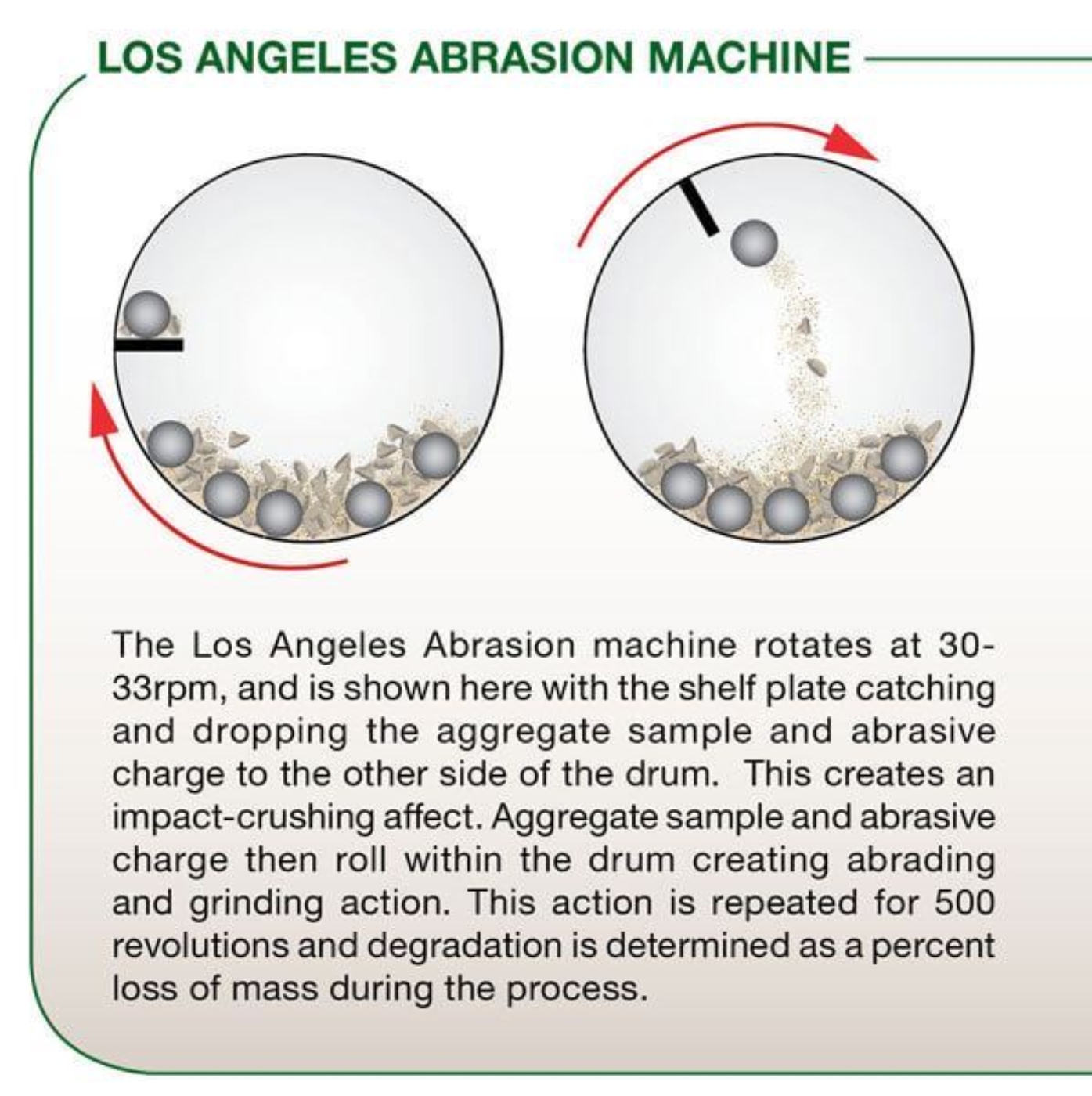

The Los Angeles Abrasion test, also known as the L.A. Abrasion test for short, is widely used as an indicator of aggregate quality. The test measures the degradation of standard gradings of aggregates subjected to abrasion and impact in a rotating steel drum containing an abrasive charge of steel balls. Up to twelve balls are used, depending on the gradation of test samples.

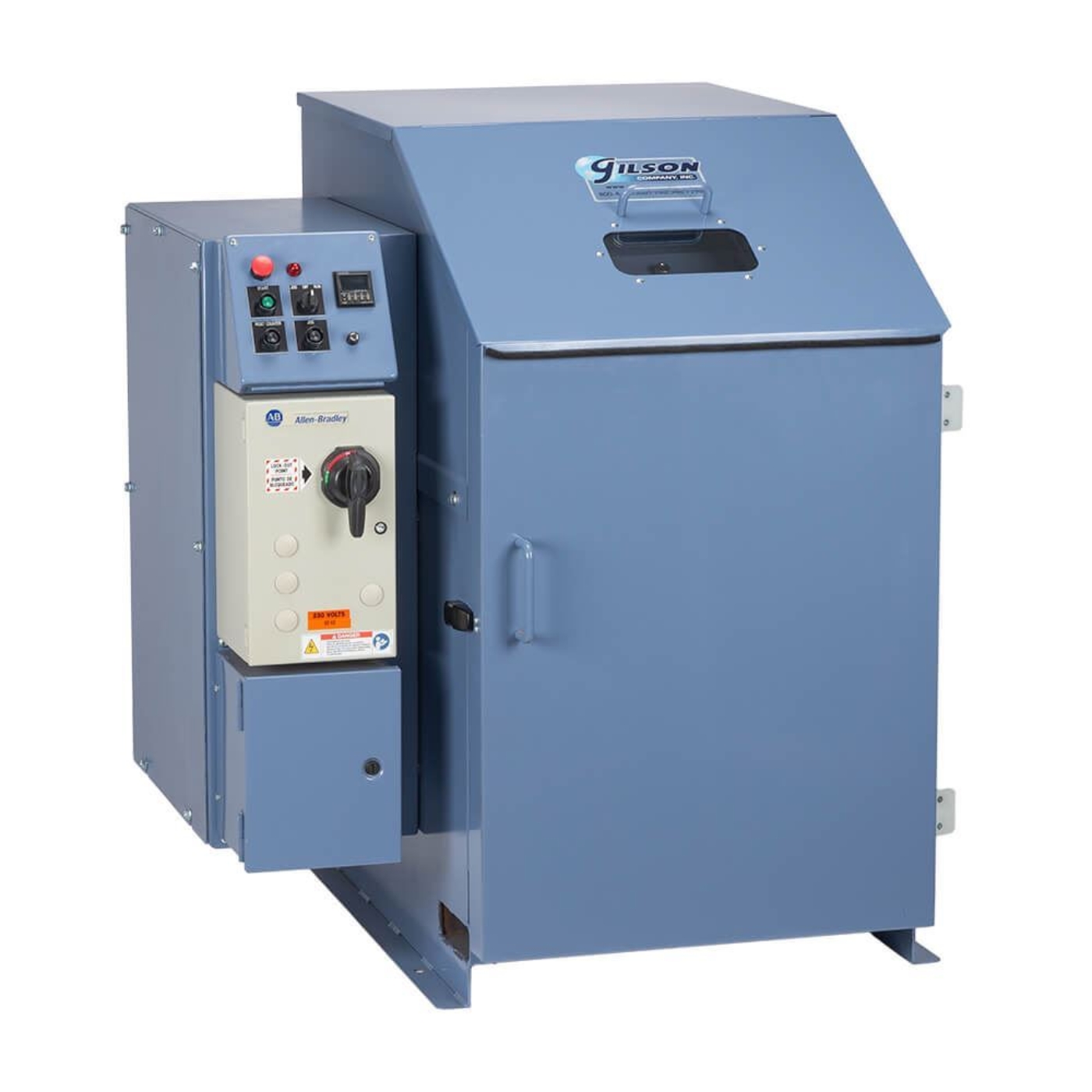

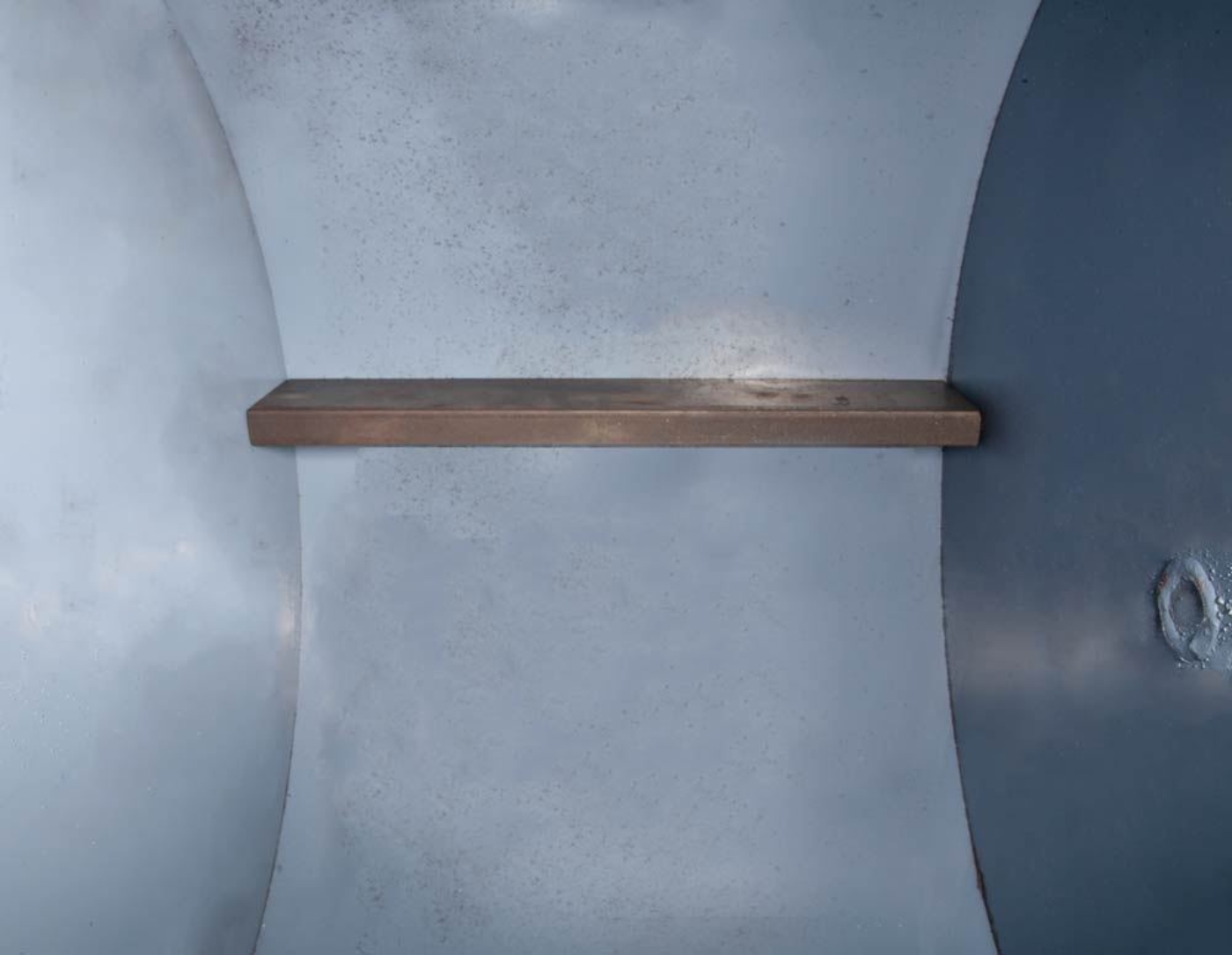

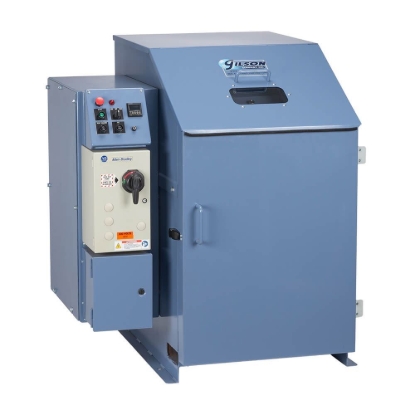

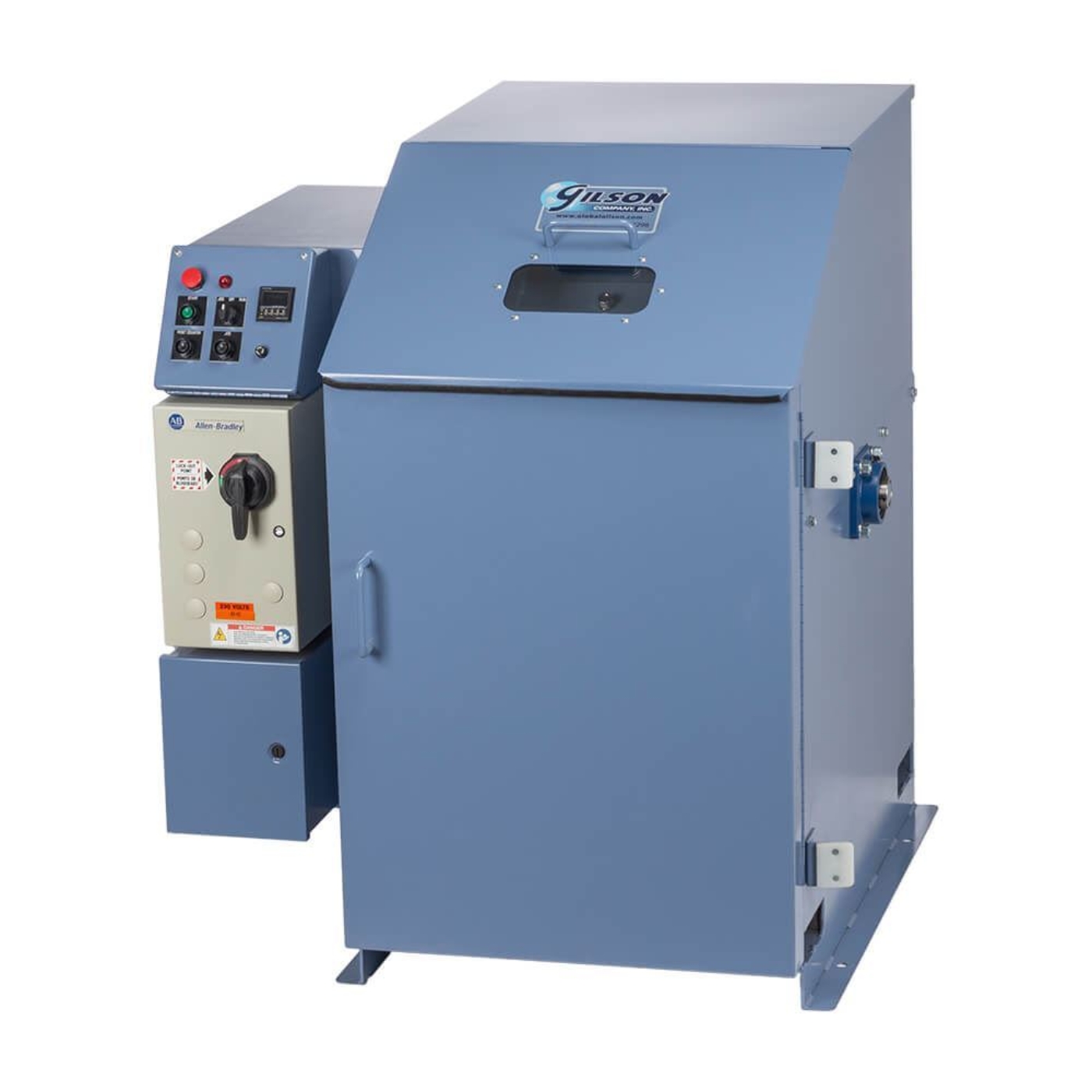

Gilson's Los Angeles (LA) Abrasion Machine design has integrated safety features with user controls on the outside of the built-in sound enclosure. An electrical safety interlock allows the machine to operate only when the double-hinged lid and the door are closed. No moving parts are exposed during operation. The drum is positioned for loading and unloading using a jog button while watching through a viewing window in the enclosure. The 1in (25mm) thick steel shelf of ASTM's “preferred design” extends the width of the drum. A wear-resistant shelf of hardened steel is optionally available. Sound is absorbed by the heavy, painted steel enclosure with sound-attenuating foam and membrane lining.

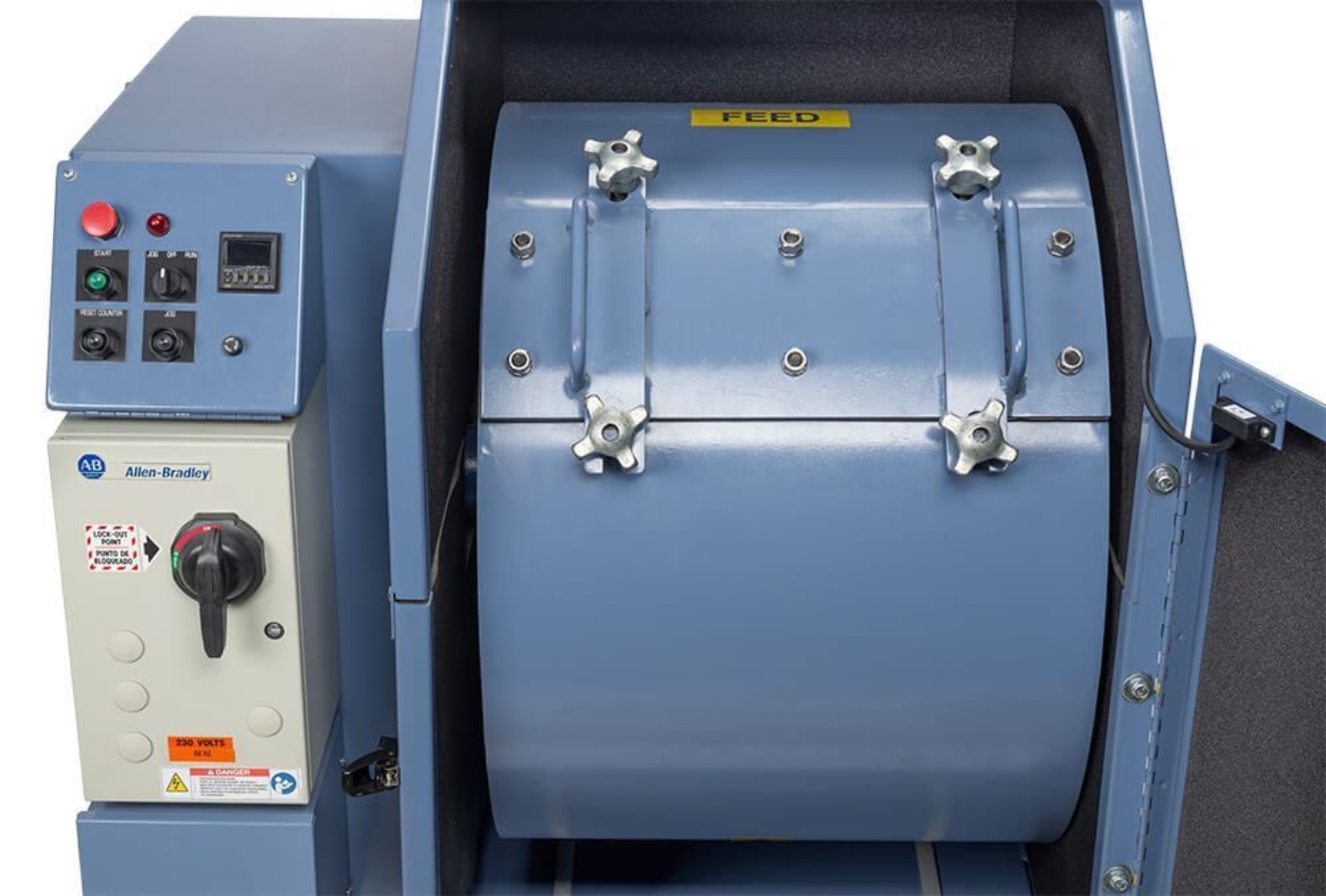

A 1hp electronically controlled gear motor rotates the drum at 30–33rpm via an enclosed chain drive. Drum assembly rotates in flanged ball bearings with dust seals and grease fittings. The controller console with overload protection has large JOG and On/Off push-button controls, and an automatic counter stops rotation after a preset number of revolutions. An abrasive charge of twelve hardened steel balls 46-48mm in diameter and 390–445 grams are included.
Features:

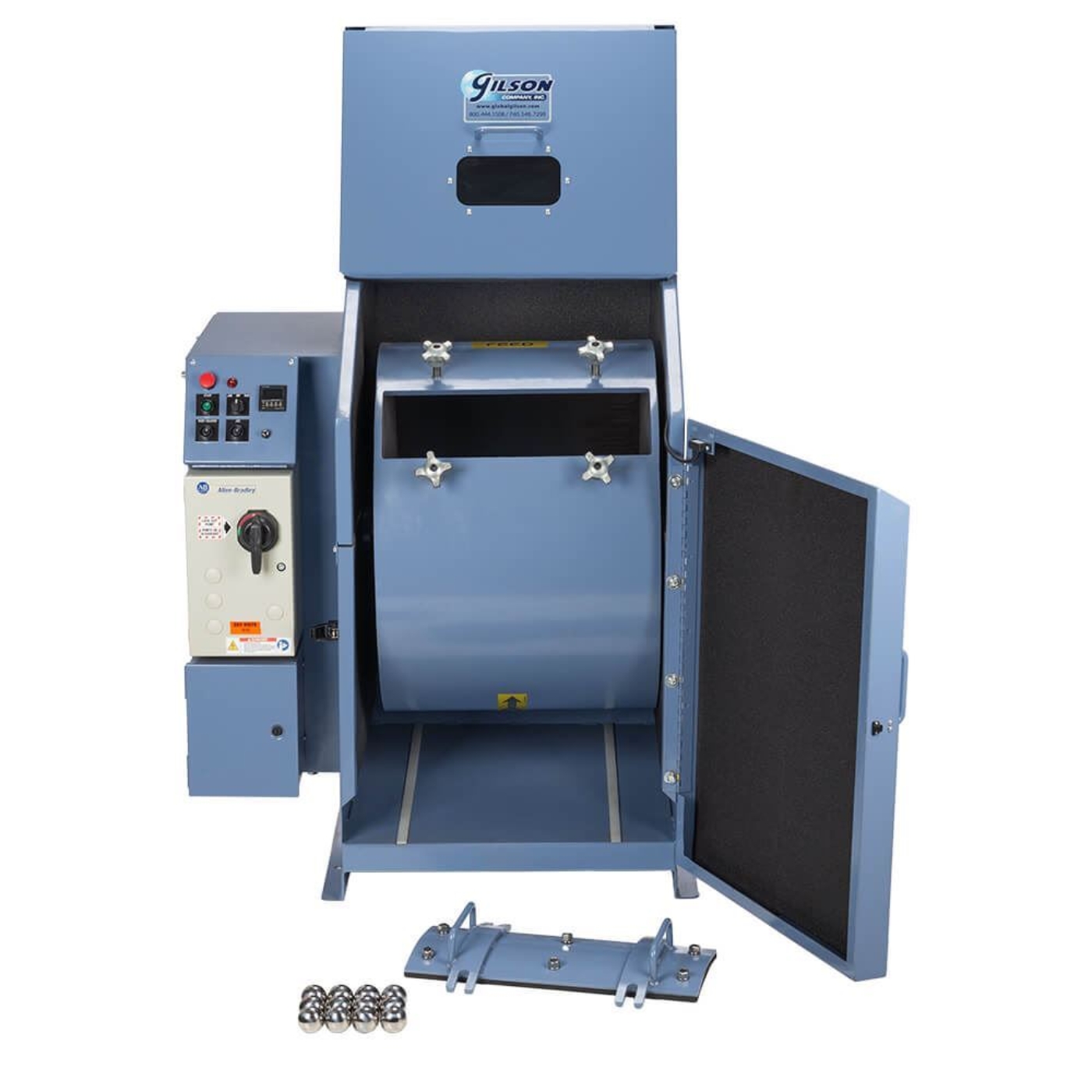

- New design is more ergonomic with a single door
- Powerful 1hp motor rotates drum through an overload-protected slip-clutch chain drive
- Electronic safety interlock allows operation only with door and double-hinged lid secured

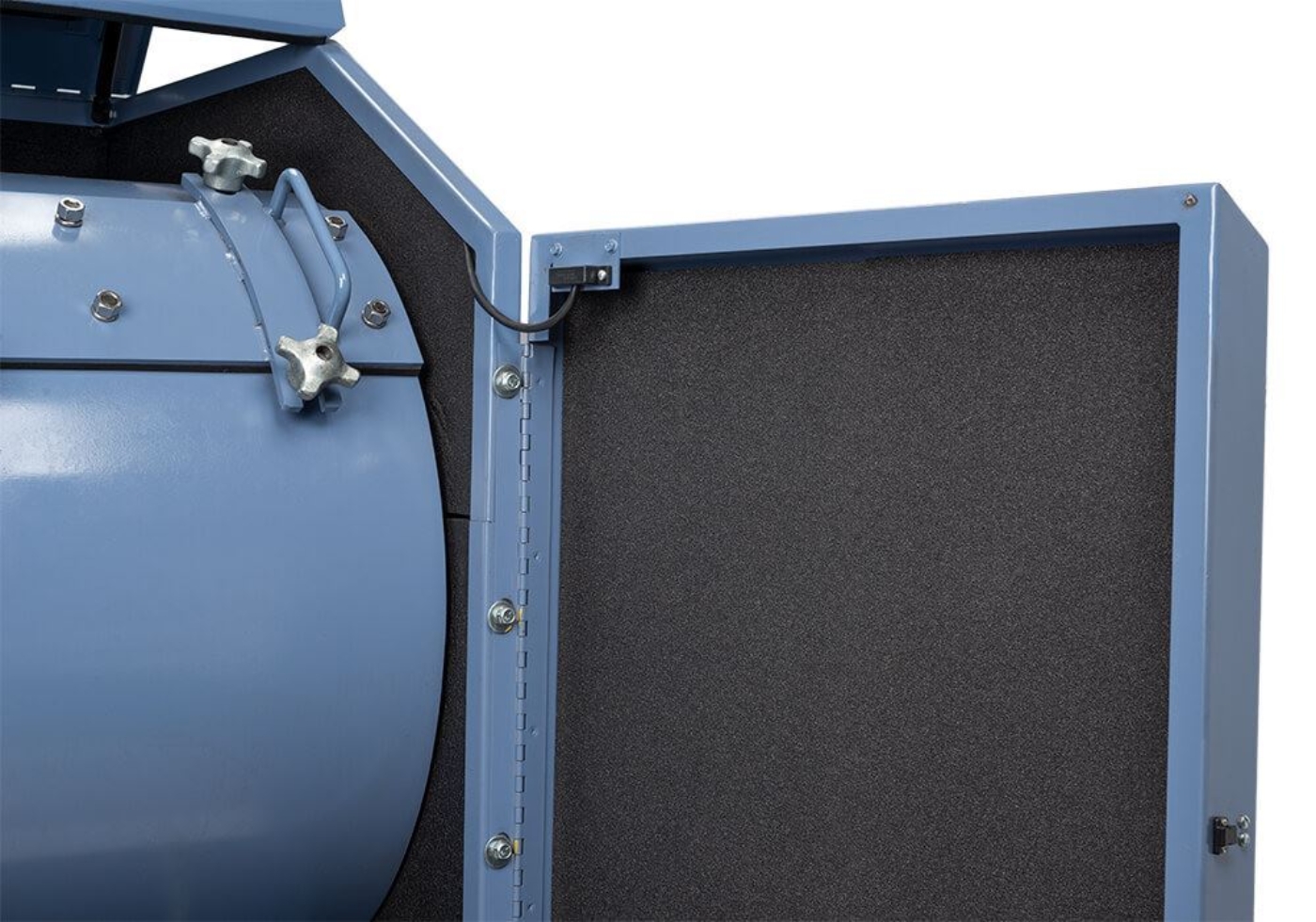

- Sound-attenuating foam-lined enclosure reduces noise levels
- 1in thick wear-resistant steel shelf meets ASTM's preferred placement
- Meets AASHTO T 401 Cantabro test requirements for abrasion loss of asphalt specimens
Included Items:
- L.A. Abrasion Machine

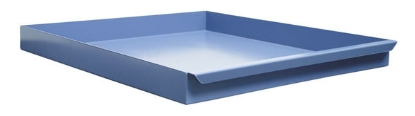

- Catch Pan
- Abrasive charge of twelve hardened steel balls
Accessories:
- HMA-131 Extra Catch-Pan for LA Abrasion additional catch-pan improves sample handling efficiency
- HMA-132 Steel Shelf for LA Abrasion Machine replacement for standard steel shelf in machine

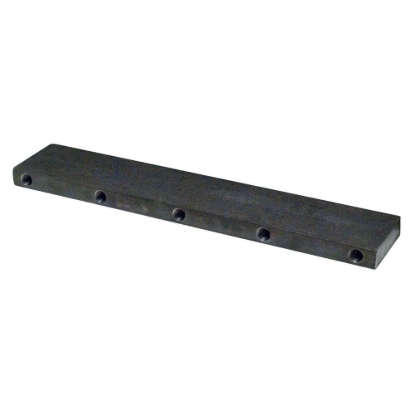

- HMA-132WR Wear-Resistant Steel Shelf for LA Abrasion Machine optional wear-resistant shelf is an upgrade and offers a maximum service life

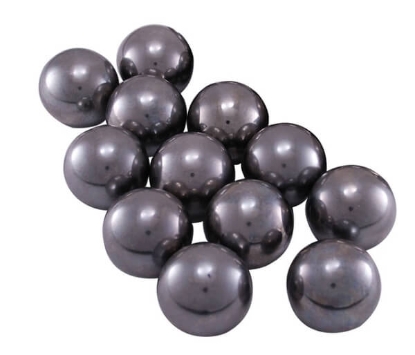

- HMA-130 Replacement LA Abrasion Charge (12 balls) additional sets recommended for increased sample preparation efficiency
