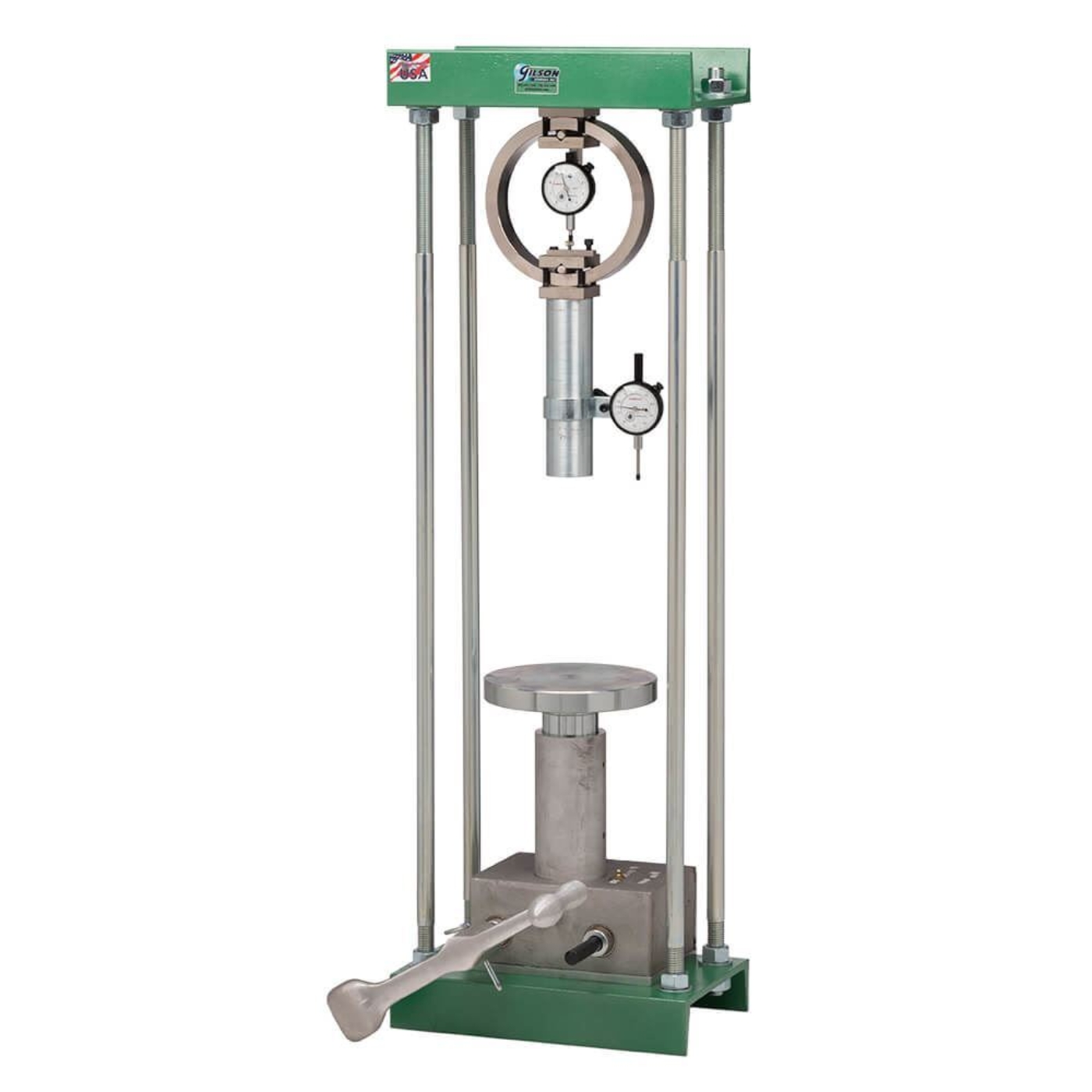

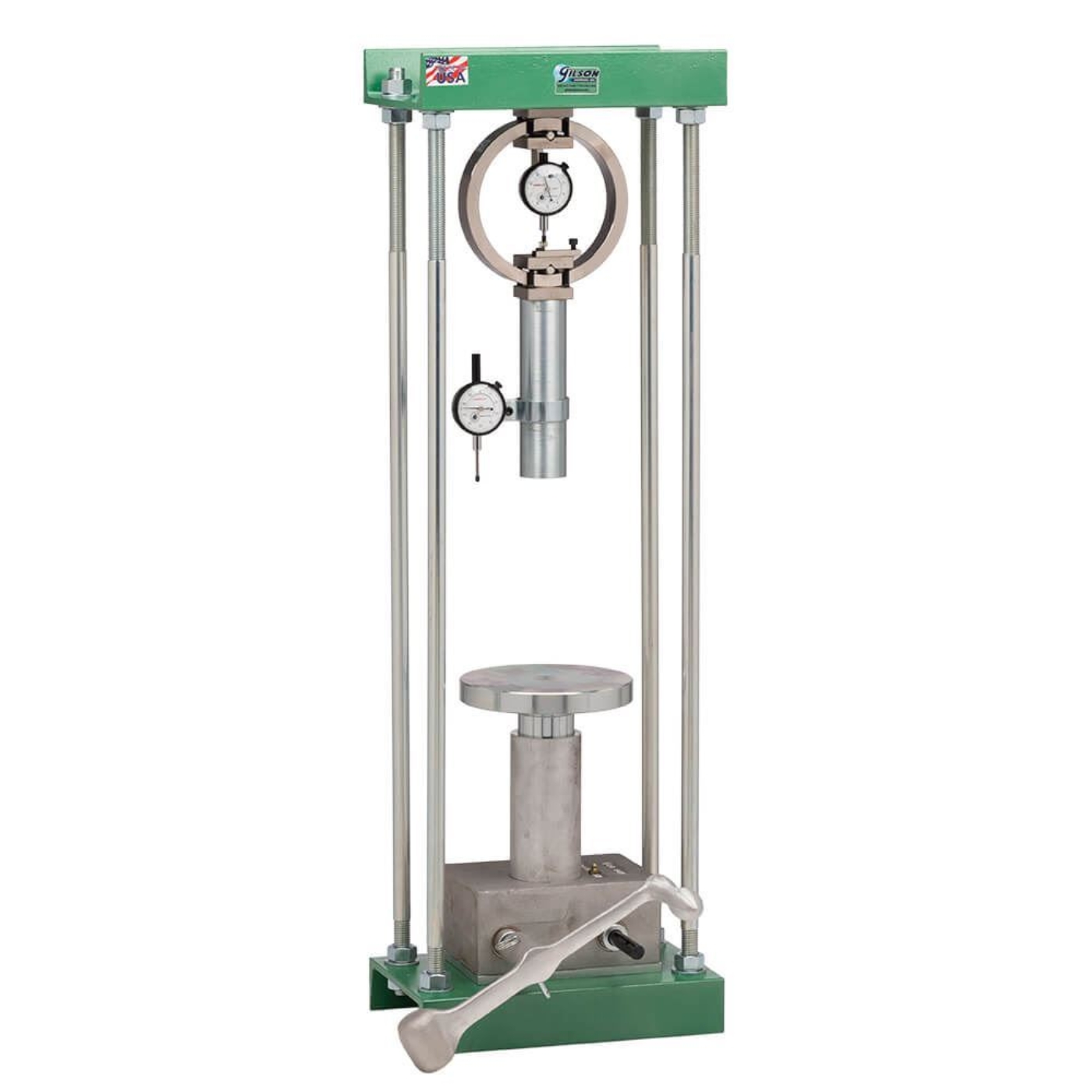

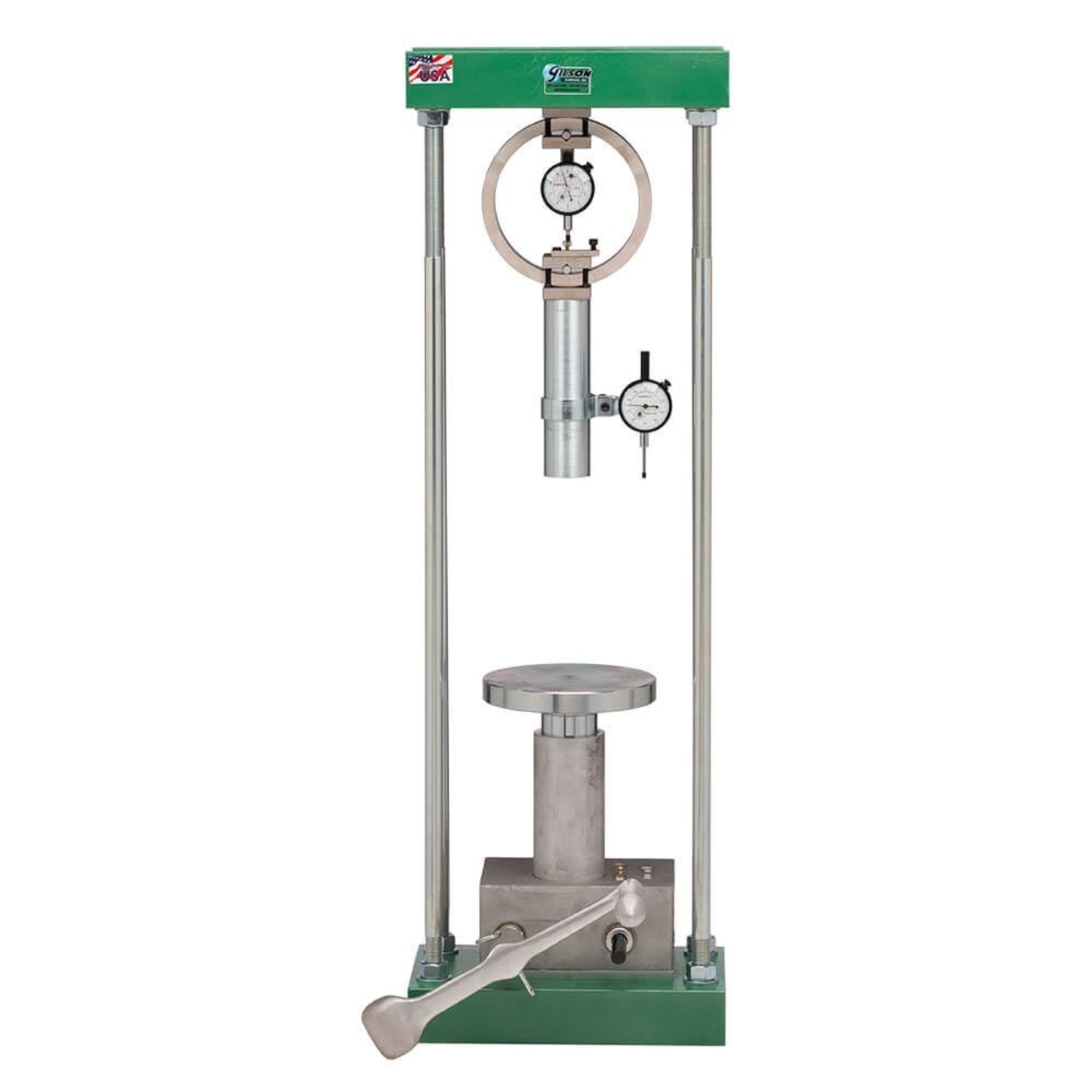

The Gilson BR-10 Manual CBR Load Frame is an affordable solution for CBR testing applications. Built with separate cranks for platen positioning and sample loading operation, the press meets specifications when cranked at the required speed. Does not require the purchase of a separate component set. Load Ring, Dial Indicator and Penetration Piston are included.
Features:
- Cost-effective manual option for CBR tests
- Compliant with AASHTO T193 and ASTM D1883 specifications
Included Items:
- Manual CBR Load Frame
- 11,000lbf (48.8kN) load ring with dial indicator
- Penetration piston with 3in² (1,935.5mm²) face
- 1x 0.001in penetration dial indicator with holder
Accessories:
- CBR Surcharge Weights are 5lb and available in annular or slotted models
- BRA-55 CBR Test Set has components needed for CBR testing to ASTM and AASHTO standards
- BRA-67 CBR Swell Plate with threaded stem for easy insertion and removal in CBR testing
- BRA-68 CBR Swell Tripod for accurate soil swell measurements
- BRA-61 CBR Spacer Disc used with mold to ensure proper size of soil sample
- CBR Filters made of paper or No.100 Stainless Steel Mesh and used in compaction to separate spacer disc from soil
- BRA-70 CBR Cutting Edge for removal of field samples
