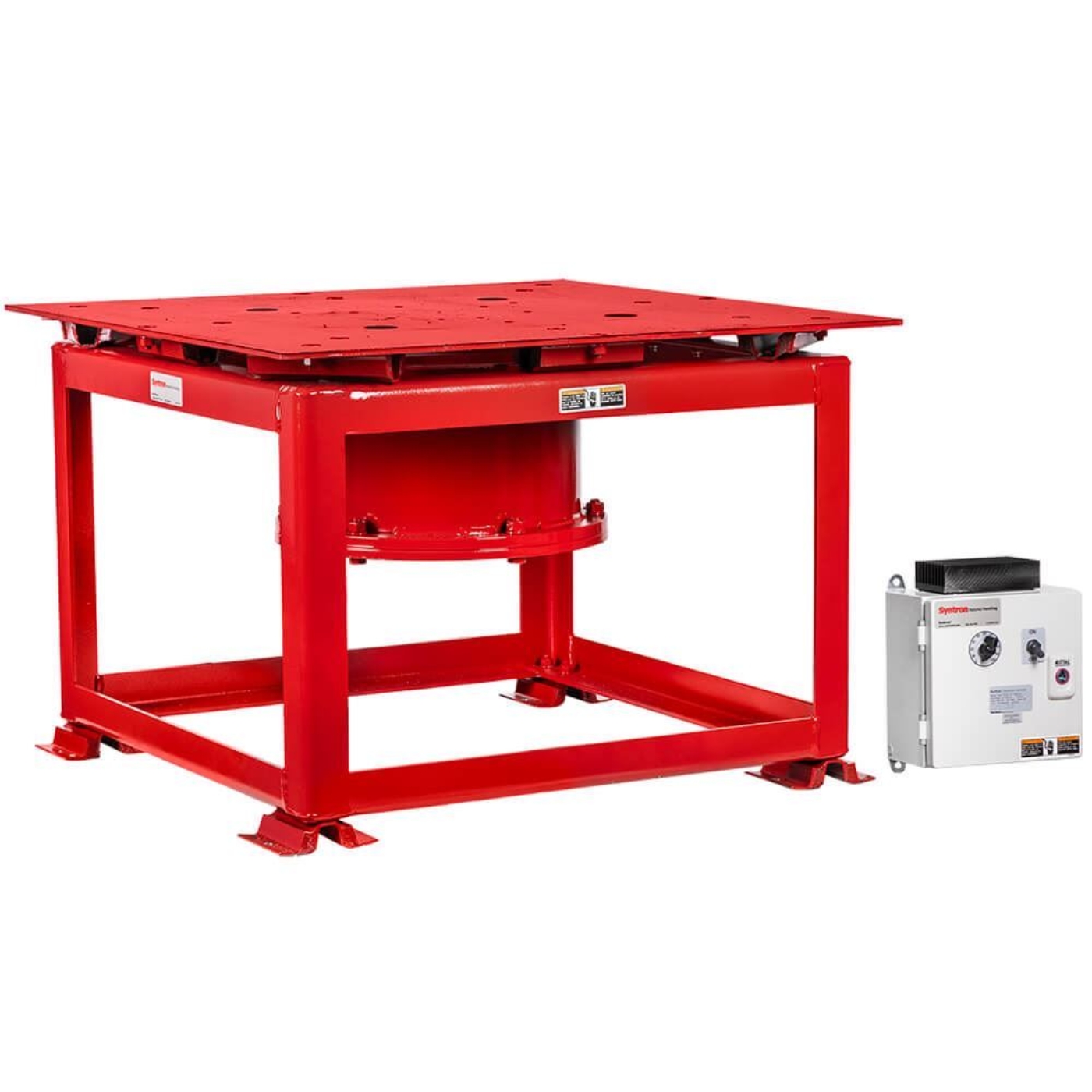

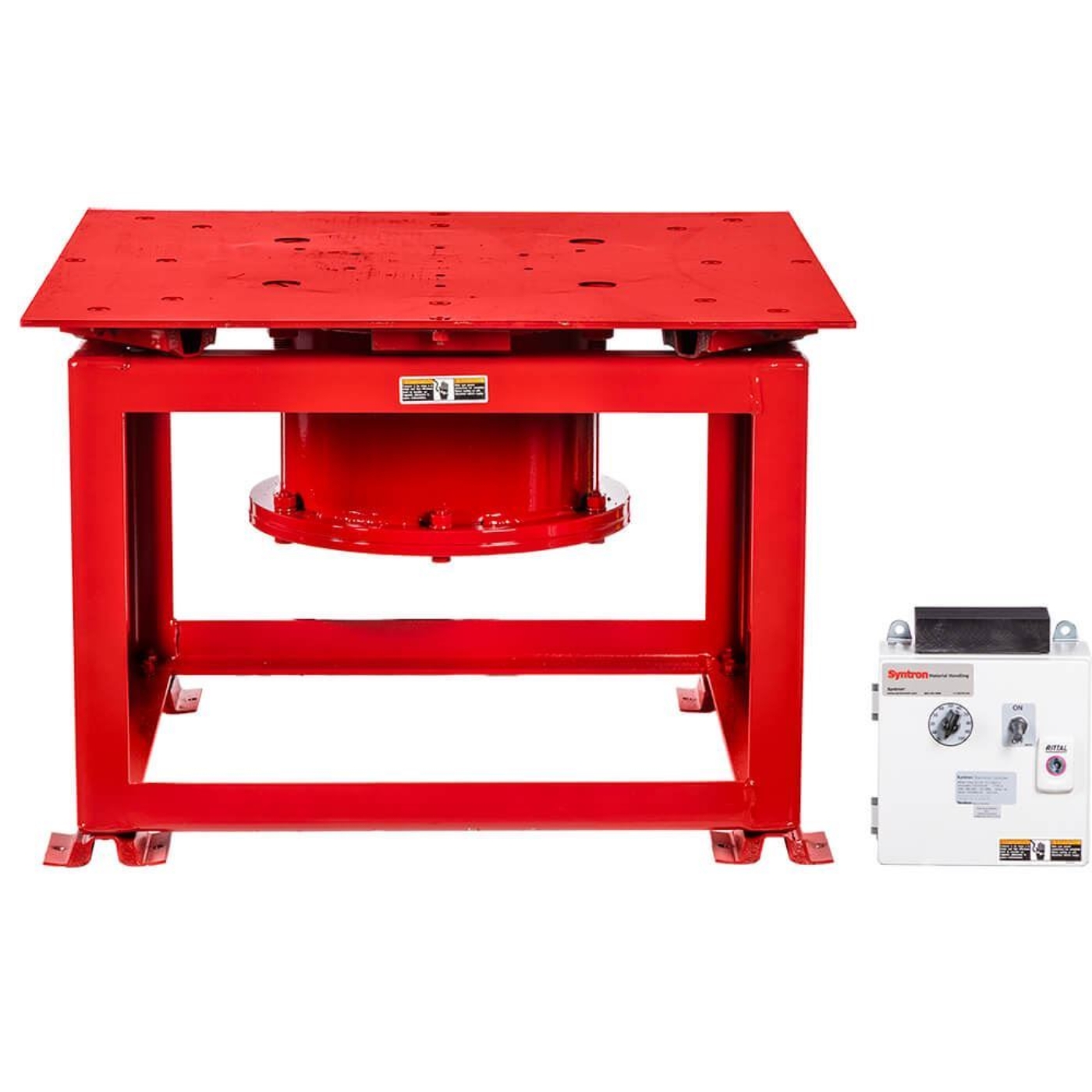

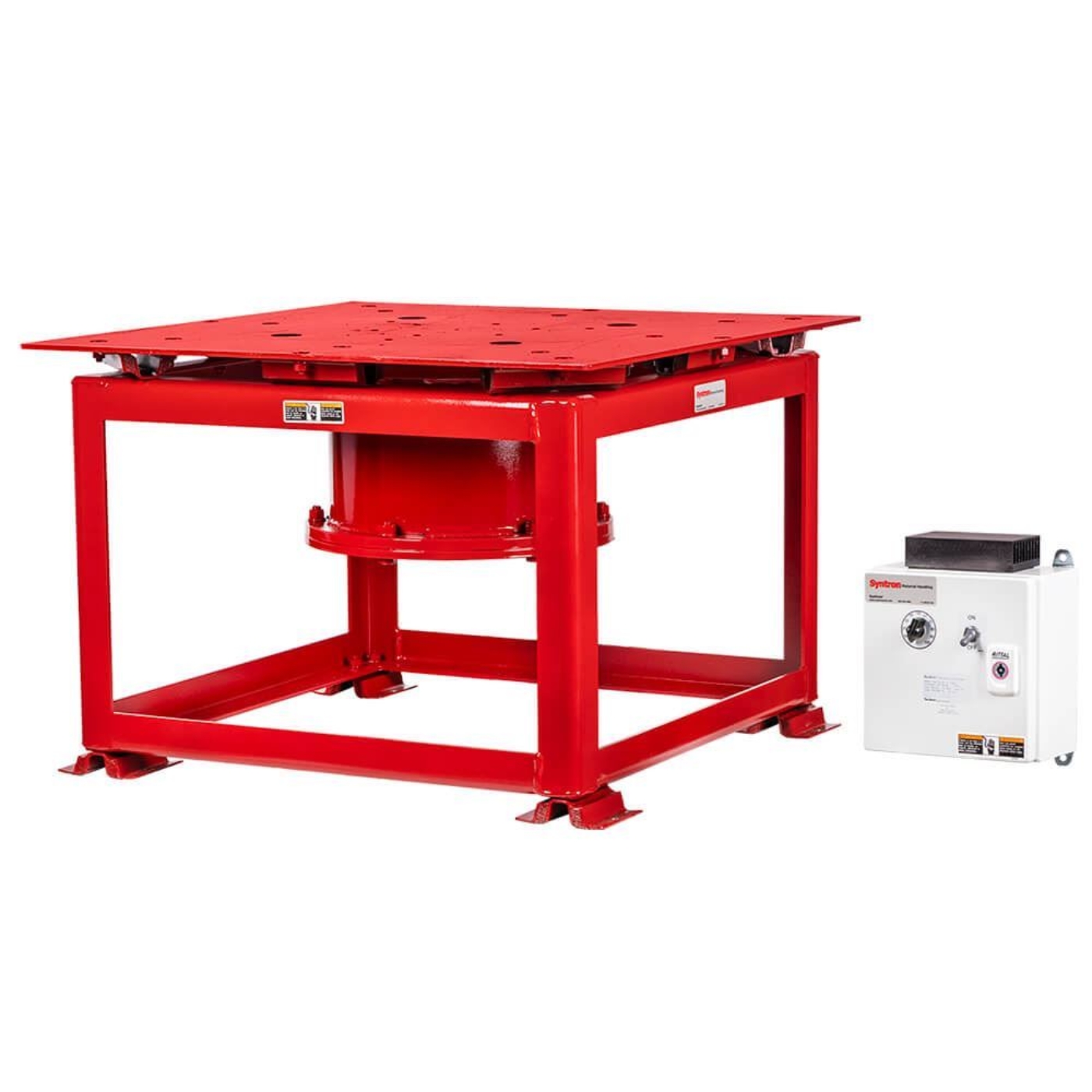

Relative Density Vibrating Table for relative density testing consolidates granular soils that do not respond well to Proctor moisture density testing.
The table has a 30x30in (762x762mm) cushioned steel vibrating deck with a 750lb (341kg) load capacity, and The deck is activated by an electromagnetic vibrator with an over 100lb (45.5kg) actuator. The vibration rate is 3,600VPM, and the amplitude adjusts in accordance with ASTM requirements.
The 21in (533mm) high table is equipped with solid-state circuitry that allows for precise amplitude control even with fluctuating voltage supplies. It requires 800W, 12amps at 230V.
Each table comes with a Syntron Conductor™ Control with adjustable soft-start and selectable full/half-wave operation.
Features:
- Cushioned steel vibrating deck
- Precise amplitude control
- 750lb (341kg) load capacity
Included Items:

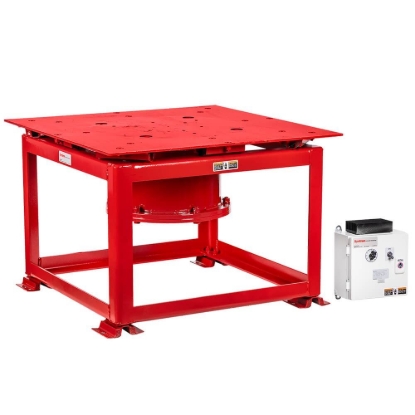

- Relative Density Vibrating Table (230V, 60Hz or 230V, 50Hz)
- Syntron Conductor™ Control
Accessories:
- HMA-60 Relative Density Pouring Funnel Set used for loose placement of 3/8in (9.5mm) and finer soil
- HM-319 Relative Density Gauge Set to measure the distance from the top of the mold to the top of the base plate

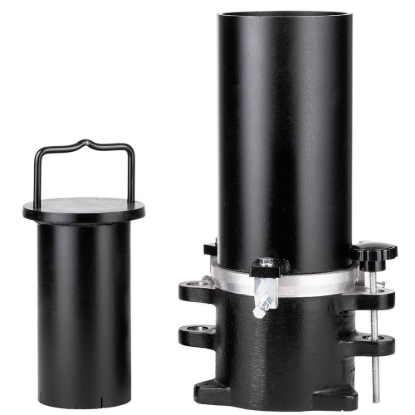

- Relative Density Mold Sets used to determine minimum index density through loose placement
