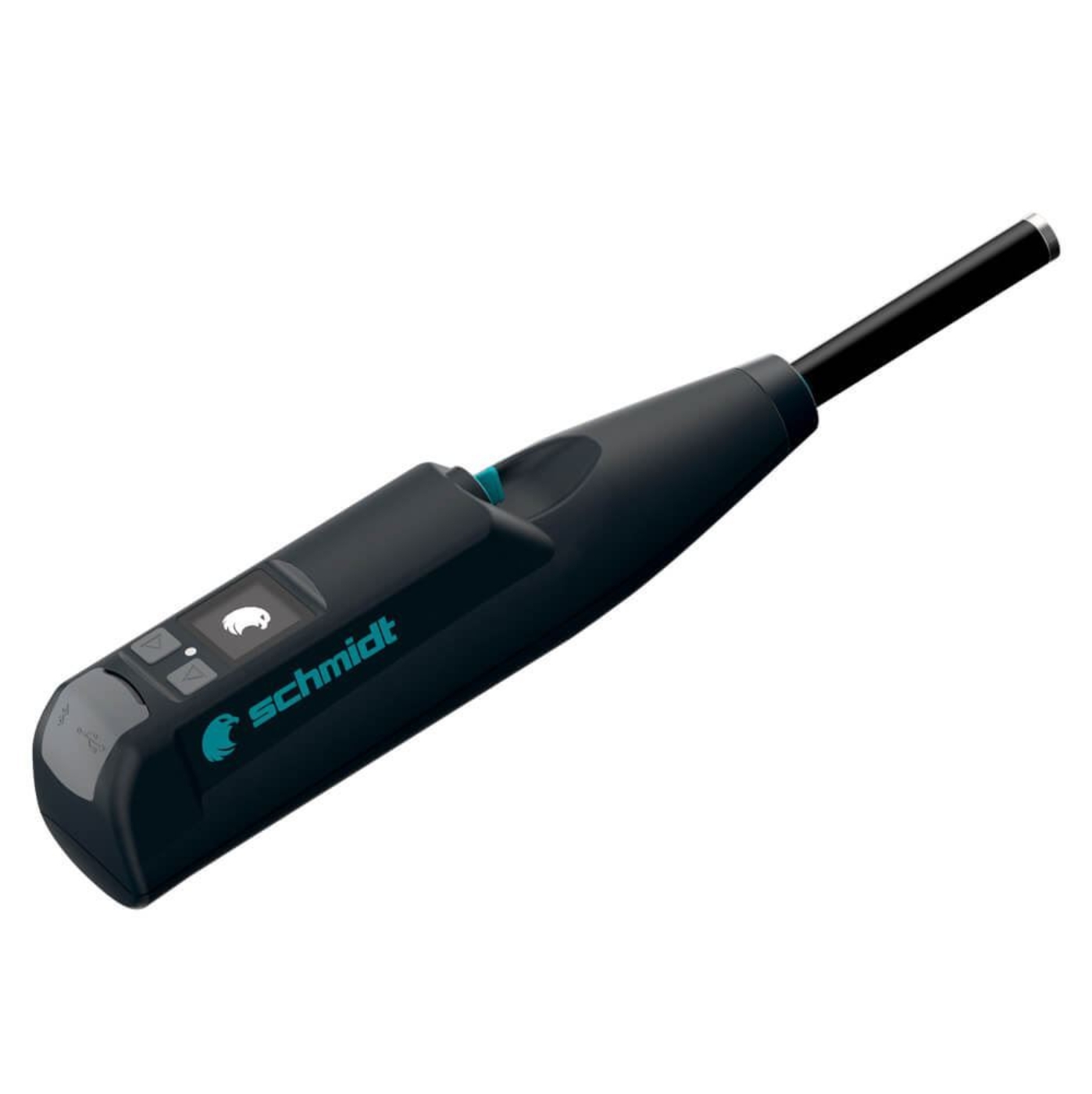

Rock Schmidt Type L Test Hammer features low-impact energy for improved repeatability and minimal damage in geological applications evaluating weak or porous rock formations and those with thin weathering crusts. The Type L Rock Schmidt determines hardness, strength, and consistency data for the evaluation of engineering properties. The Rock Schmidt meets ASTM D5873 requirements and features intuitive menu-guided operation, electronic data processing, automatic correction for testing positions, and test data storage. Estimated battery life for 20,000 or more impacts between charges.
Data management and information-sharing features are optimized through the Schmidt Live app, a free download for Apple iOS and Android devices. The iOS version features text-to-speech operation for rapid and efficient test logging. Connection to a web-based reporting tool via Bluetooth enables real-time sharing of test data. A logbook feature allows GPS positioning, notes, images, and audio comments to be added to the reports. The app also allows for instantaneous report generation in PDF and CSV formats. Electronic processing of rebound and impact velocities maximizes accuracy and repeatability.
Features:
- Fast and cost-effective condition assessment of geological formations
- Enhanced accuracy, repeatability, and ease of use over traditional concrete test hammers
- The low impact energy of 0.735Nm (0.54ft-lbf) for testing weak or thin sections of rock
- Unconfined compressive strength estimations from 2,900 to 21,750psi (20 to 150mPa)
- Useful for testing rock cores larger than 2.2in (54.7mm) diameter or formations less than 4in (100mm) thickness
- Memory capacity up to 400 test series of 10 impacts each
Included Items:
- Rock Schmidt Type L Test Hammer
- Carrying bag
- Carborundum stone
- NiMh Battery charger with a USB cable
- Certificate of conformity
Accessories:
- HMA-861 Silver Schmidt Calibration Anvil verifies proper calibration of the Silver and Rock Schmidt Hammers.
- HMA-864 Original Schmidt Calibration Anvil verifies proper calibration when used with HMA-863 Calibration Anvil Adapter
- HMA-863 Calibration Anvil Adapter allows the user to adjust the Calibration Anvil to adapt both Type N and Type L Silver Schmidt and Rock Schmidt Test Hammers.
