Soil Resistance Meters are required for soil resistivity testing with the HM-940 Soil Resistivity Kit to determine the average resistivity of the soil to a depth equal to the spacing between electrodes. The soil resistivity meters are available with analog or digital features, and both include a NIST Traceable Certificate of Calibration.

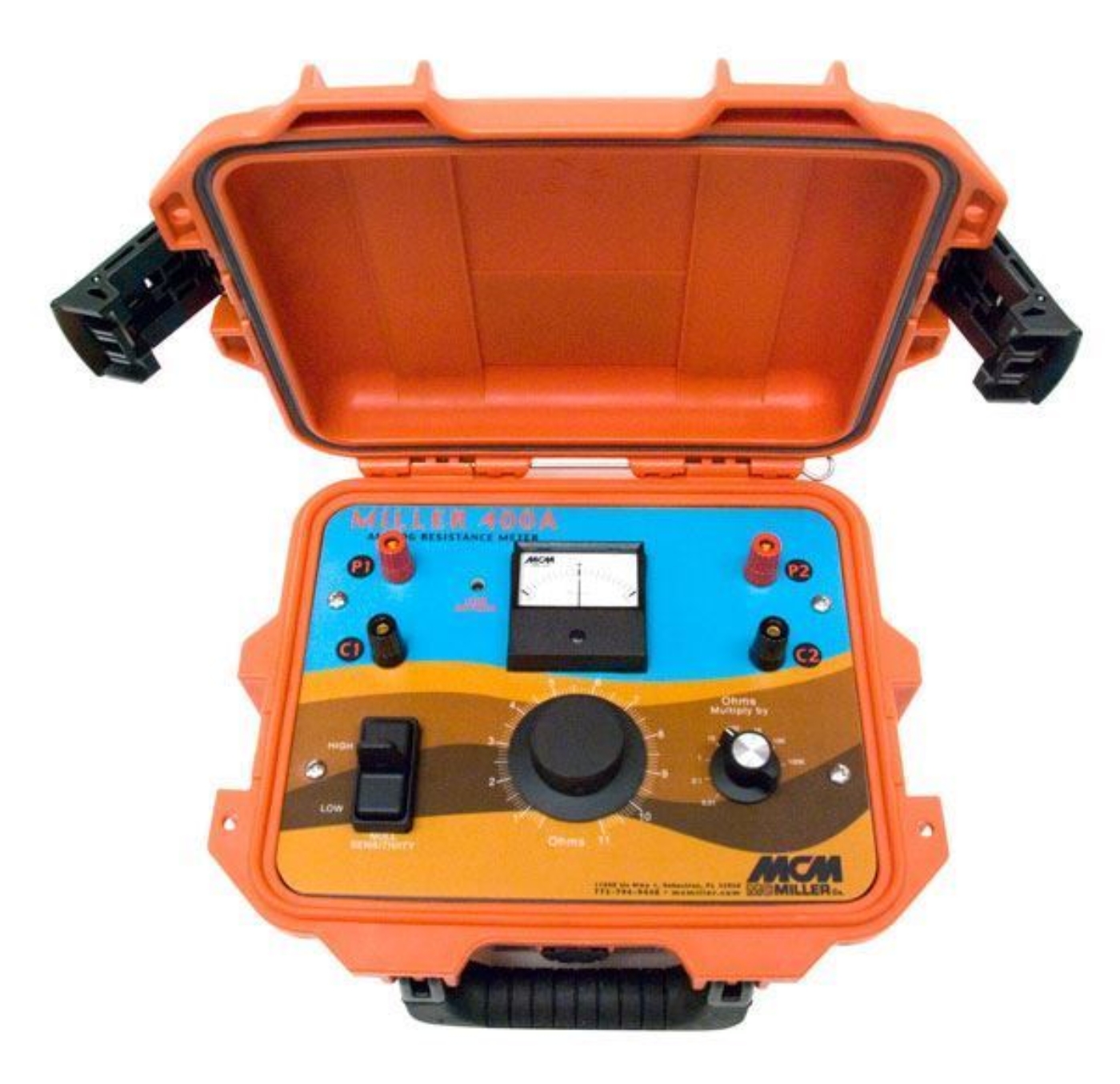

HM-942 Analog Soil Resistance Meter provides soil resistance values to be read directly from the analog dial without performing additional calculations. The wide-range, high-sensitivity soil resistivity meter has a large dial for easy readability and eight ranges from 0.01 ohms to 1.1 megaohms. It operates on C-cell alkaline batteries.

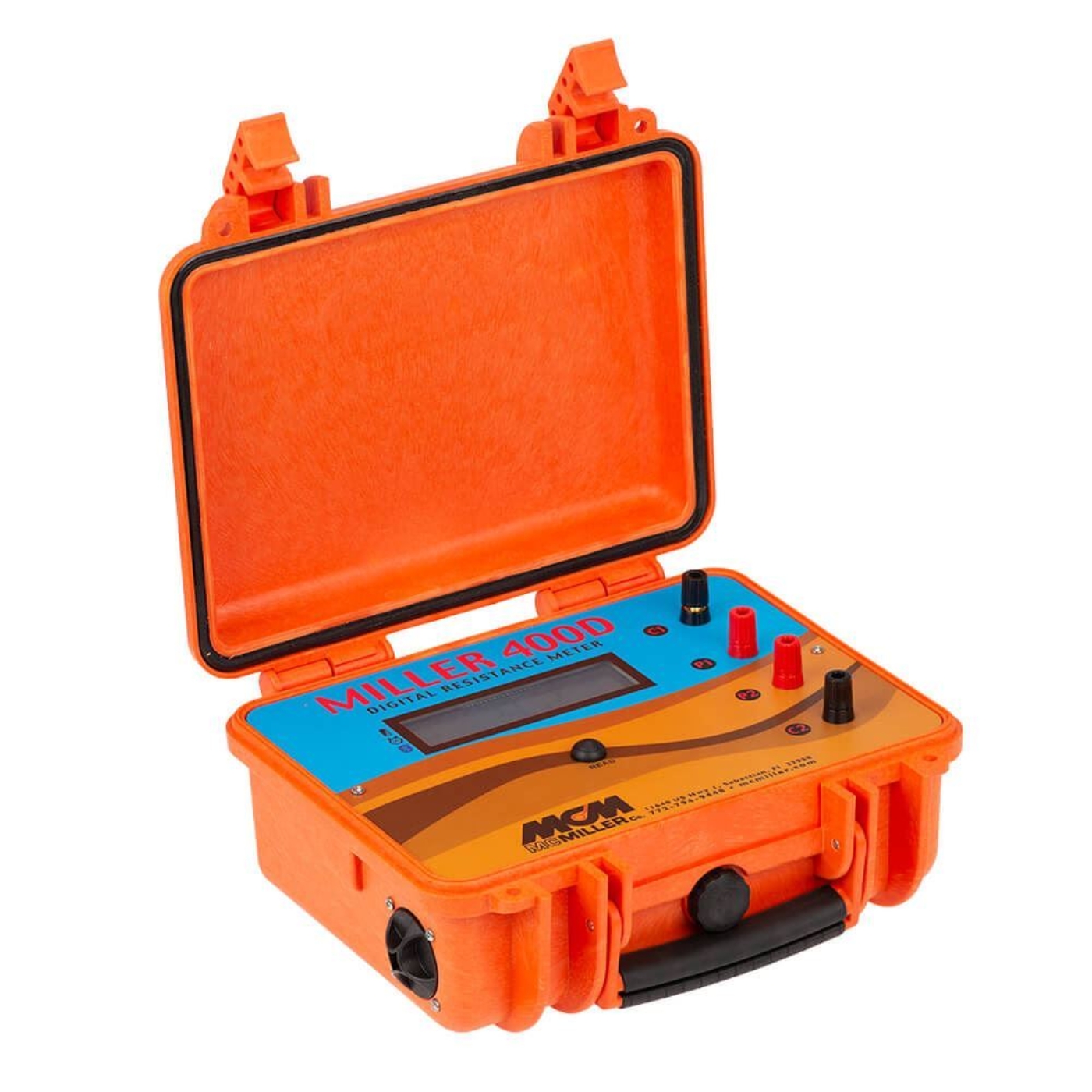

HM-944 Digital Soil Resistivity Meter selects the range and adjusts dials automatically. It features an instant resistance reading at the push of a button on a high-resolution digital display. It has a total range from 0.01 Ohms to 10 megaohms. The included ProCP Soil Resistivity Software allows optional data logging via wireless connectivity to a PC or Android device (not included). Logged readings can be automatically dated and time-stamped with positioning when integrated with GPS features from the user’s handheld device. Powered by D-cell replaceable alkaline batteries. Can perform 10,000 single readings on a new set of batteries.
The meters are encased in lightweight, rugged, weatherproof IP67-rated plastic.
Features:
- Quick and easy-to-read results
- Readings require no operator calculations
- Rugged weatherproof case, safe to use on wet ground
- Uses the 4-Pin Wenner Method
Included Items:
- Soil Resistivity Meter, Analog or Digital
- NIST Traceable Certificate of Calibration
Accessories:
- HM-940 Soil Resistivity Test Kit contains components necessary for testing with the 4-pin Wenner method
- Soil Boxes select from small or large sizes to connect to the meter with soil test lead wires
- HMA-670 Soil Resistivity Reel includes four color-coded wires, which are plugged into its hub and connect to the meter
- Soil Pins serves as an electrode in testing with the 4-pin Wenner method
- HMA-673 Leads for Soil Box connect to the soil box and meter during testing
