Speedy 2000 Moisture Testers are widely accepted for rapid, accurate, and reliable moisture tests on materials such as sand, aggregates, ores, coal, soils, ceramics, abrasives, and other powders. The Speedy moisture testers are portable, easy to use, and do not require a power supply.
Samples can be tested on-site in minutes, eliminating the risk of moisture loss during transport. Place a weighed sample in the tester with a measured quantity of MAA-44 Calcium Carbide Reagent (due to shipping restrictions is sold separately) and seal with the cap. Upon agitation, free moisture in the test sample reacts with calcium carbonate to form acetylene gas. The pressure gauge reads directly in percent moisture by weight within 1–3 minutes. Moisture ranges can be doubled for all models by using 1/2 specimen weight and multiplying gauge reading by two.

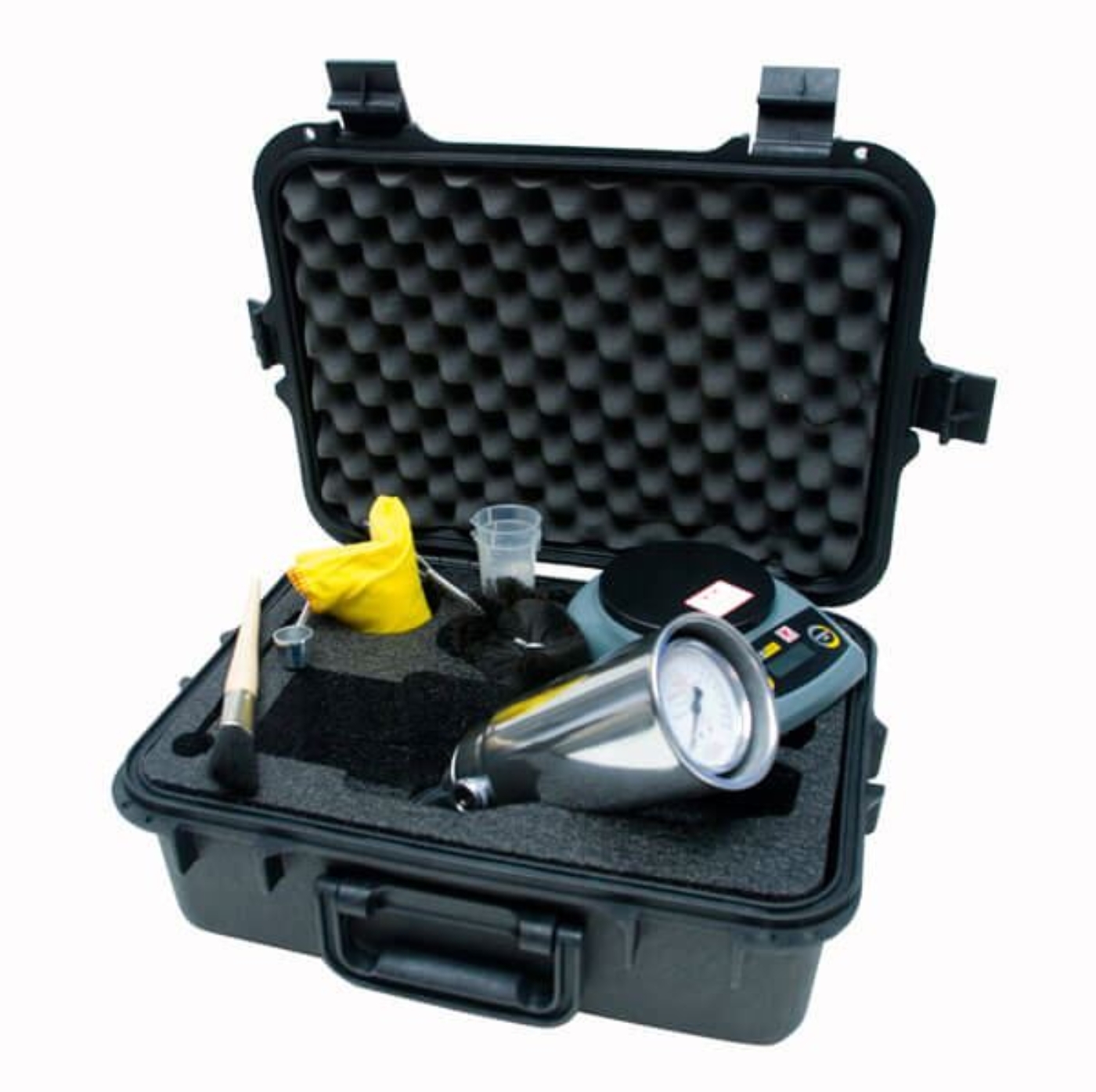

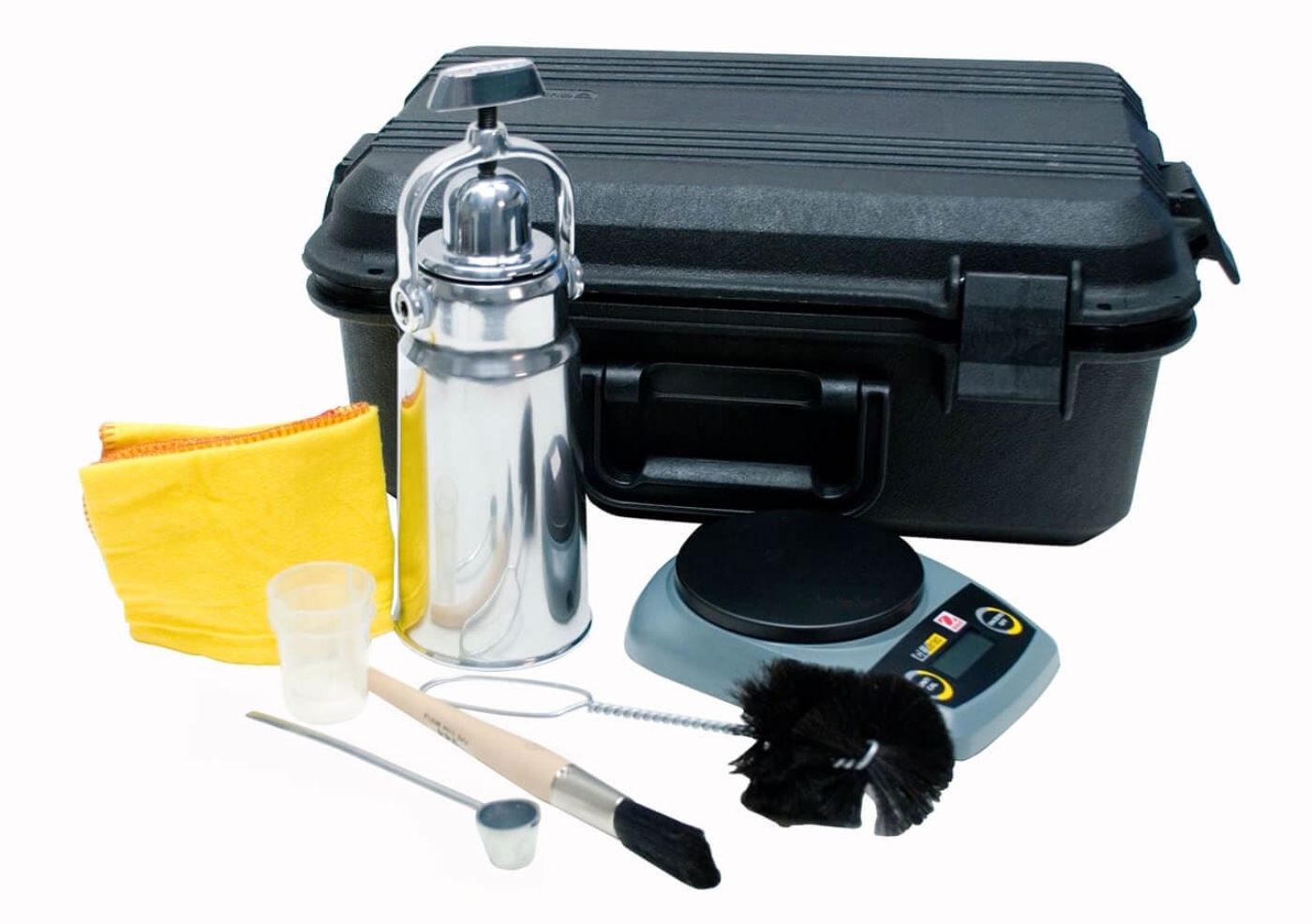

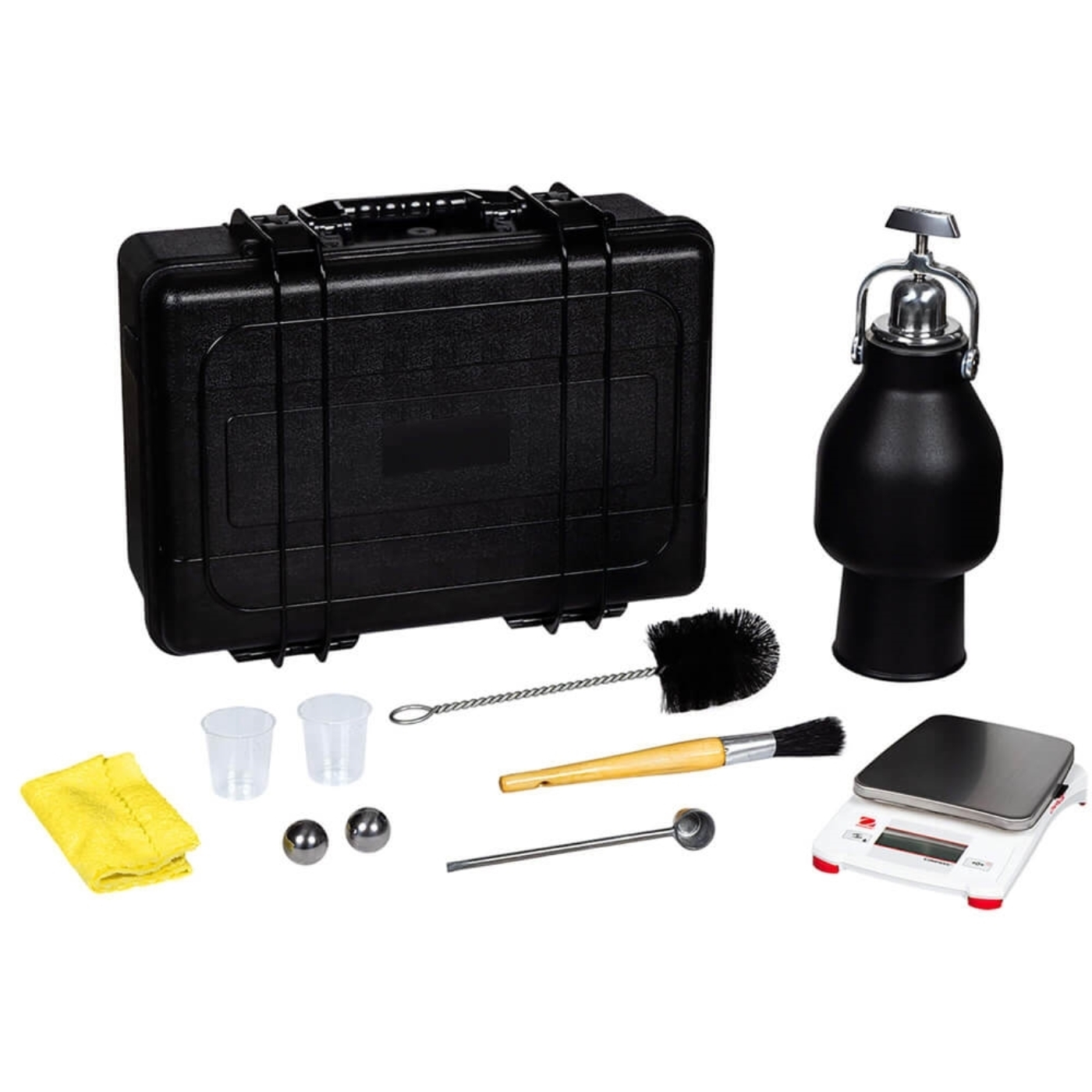

Testers are available in four different models based on sample material, percent moisture range, and desired gauge accuracy. Each tester comes as a kit that contains testing components needed for moisture testing. All units have a tough, die-cast polished aluminum pressure chamber with an integral dial gauge. Each Speedy 2000 kit includes an electronic balance, reagent measuring scoop, brush, cleaning cloth, and instructions in a heavy-duty, waterproof case.

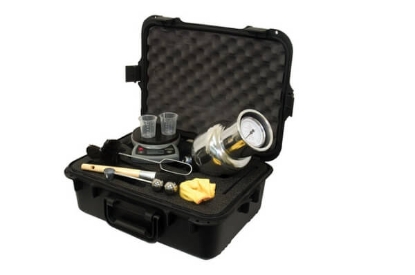

MA-20A and MA-21A Standard Speedy 2000 Moisture Testers units are used for sand, grains, clays, and fine powders. Both have a maximum particle size of 10mm.
- MA-20A has a moisture range of 0–10% x 0.1% and a specimen weight of 12g
- MA-21A has a moisture range of 0–20% x 0.2% and a specimen weight of 6g

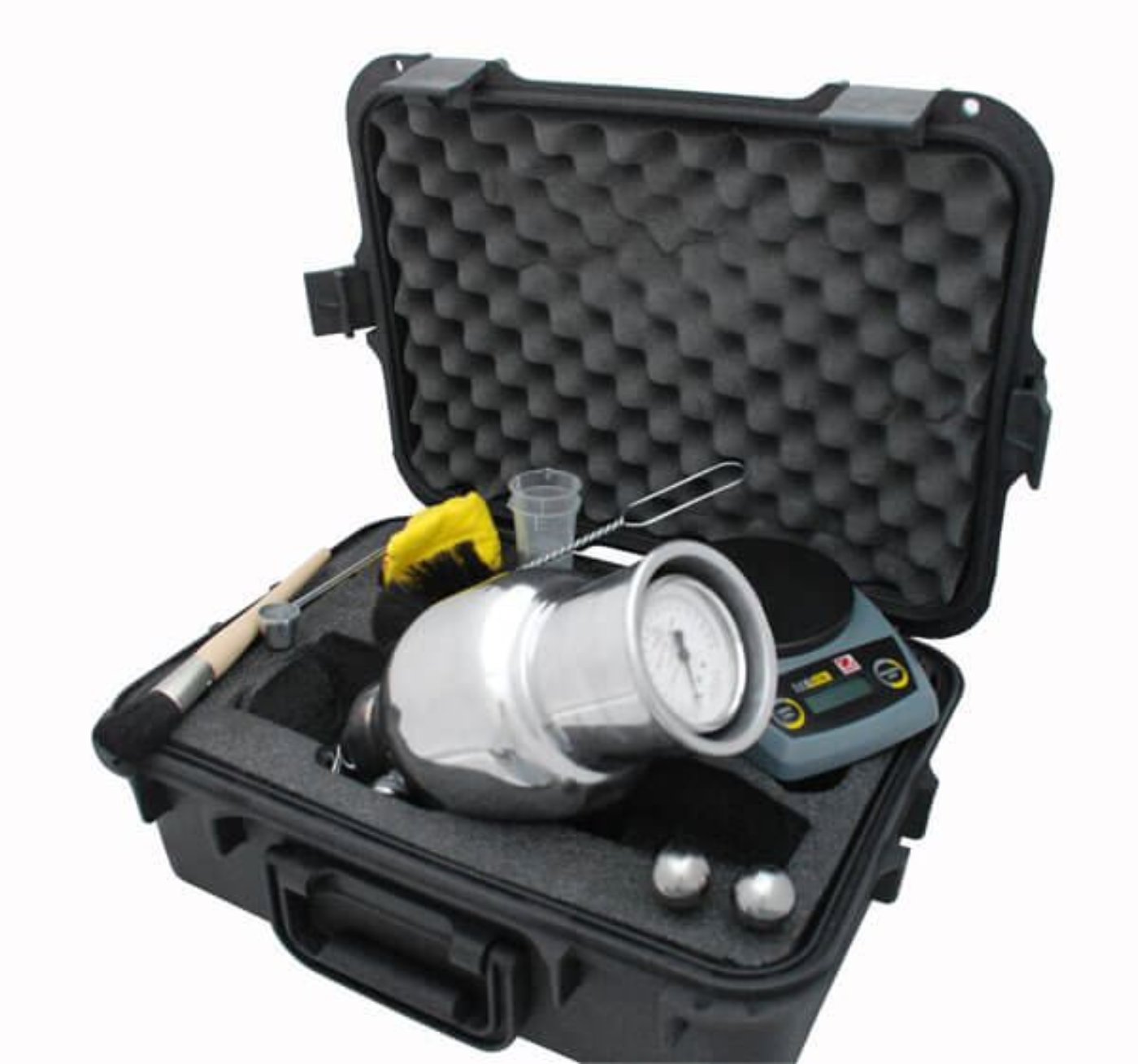

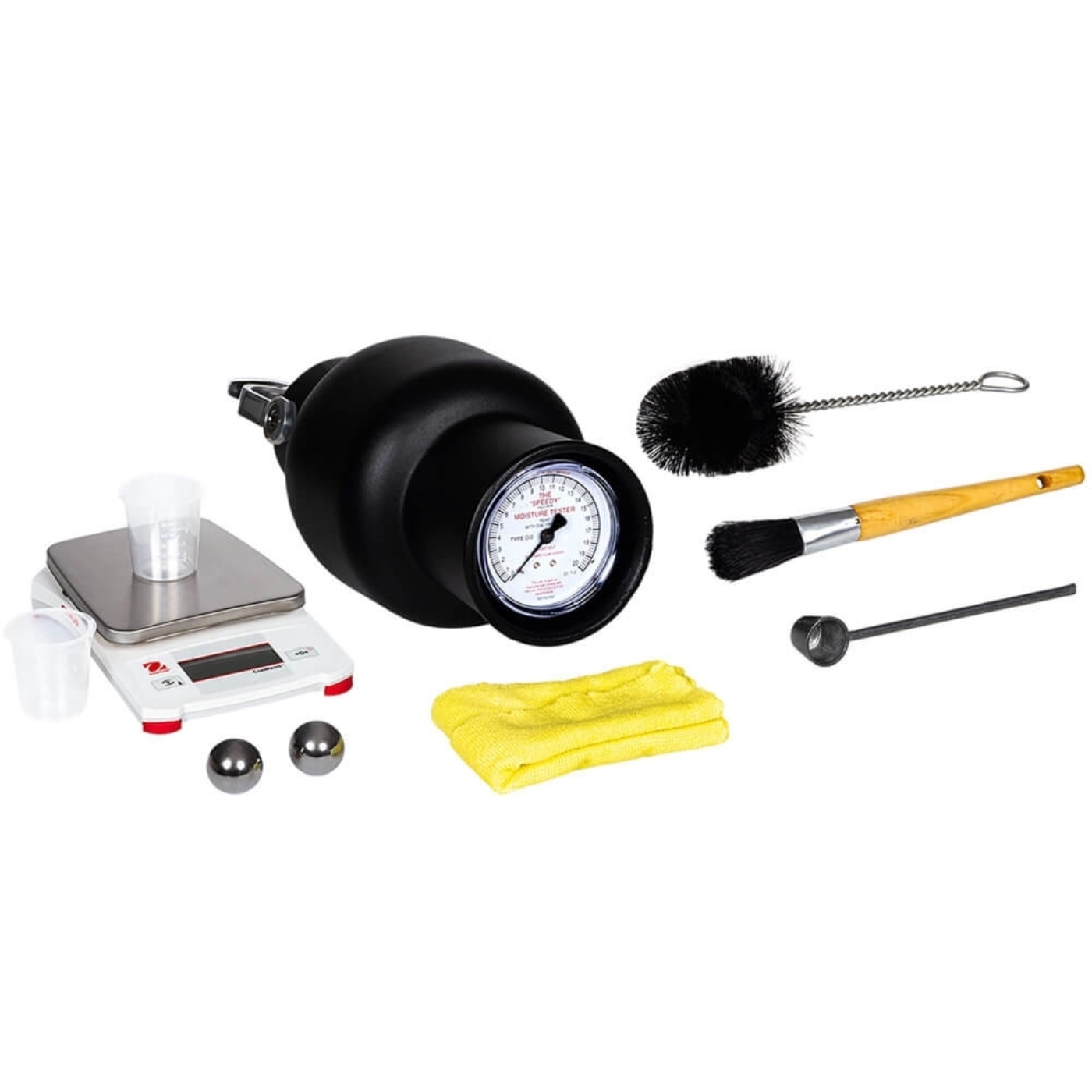

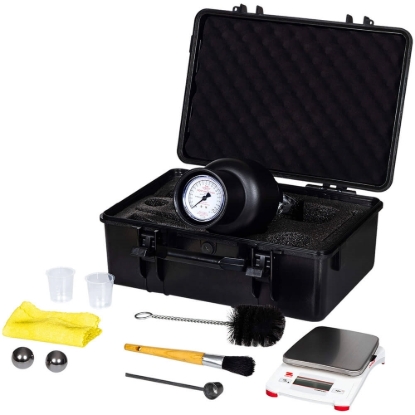

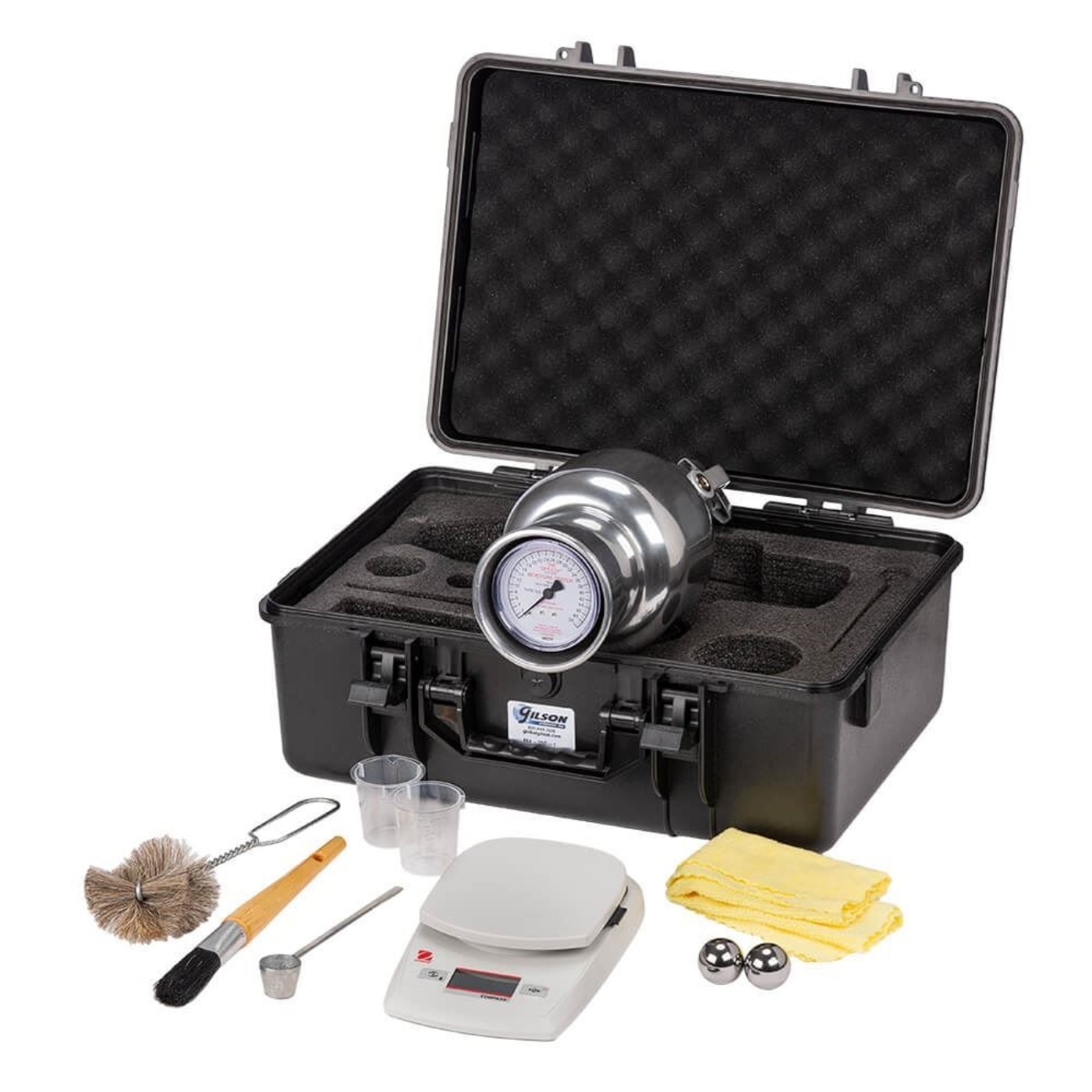

MA-25 and MA-25C Large Speedy 2000 Moisture Testers are designed for testing soils, aggregates, coal, and ores with particle sizes up to 20mm. The Large Speedy Moisture Tester kits also include two MAA-47 Pulverizing Steel Balls for pulverizing the specimens.
- MA-25 has a moisture range of 0–20% x 0.2% and a specimen weight of 20g which is in accordance with ASTM and AASHTO standards for soil moisture measurements.
- MA-25C has a moisture range of 0–50% x 0.5% and a specimen weight of 8g
Features:
- A fast, accurate proven method for moisture testing on many material types
- MA-25 unit meets ASTM, AASHTO, and Florida DOT requirements
- Portable, easy to operate, and no power supply required
- Reduced risk of moisture loss during transport
Included Items:
- Standard or Large Speedy 2000 Moisture Tester
- Electronic digital balance
- Reagent measuring scoop
- Brush
- Cleaning cloth
- Instructions
- Two steel pulverizing balls (MA-25 and MA-25C only)
- Heavy-duty waterproof plastic case
Accessories:
- MAA-50 Small Fine Bristle Brush for gentle cleaning of residue from testers
- MAA-47 Pulverizing Steel Balls are used with 8 and 20g large models for pulverizing samples
- MAA-44 Calcium Carbide Reagent for Moisture Testers reacts with free moisture in test sample during agitation to form acetylene gas
- MAA-48 Long-Handled Reagent Scoop is cast aluminum for safe measuring of calcium carbide reagent
- MAA-46 Heavy-Duty Waterproof Plastic Case securely stores moisture tester and all related components
- MAA-45 Aqua-Check Pressure Gauge replacement gauge with calibration certificate is also compatible for use with Speedy 2000 models
- MAA-52 Plastic Sample Cup holds samples up to 1.75oz (50ml)
- SC-116 Plastic Sample Containers are for holding and covering samples, and available in 2, 4, 8, 16, or 32oz capacities
- MA-20A Large Coarse Clean-Out Brush is for cleaning coarser residue from moisture tester
- OB-205 Ohaus Compact Scale is used for measuring and weighing samples in accordance with test requirements
