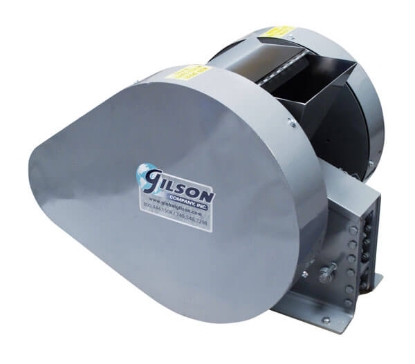

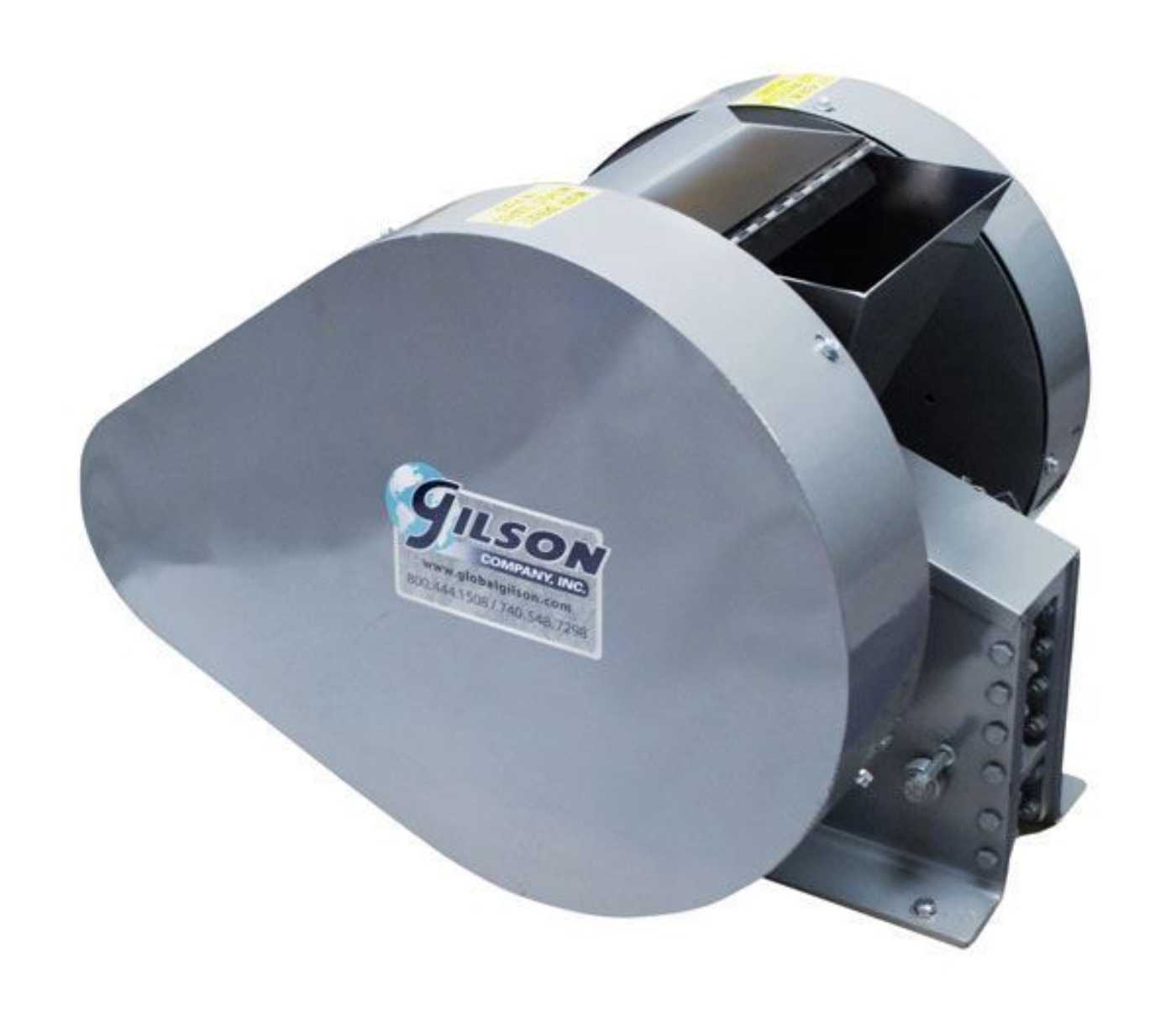

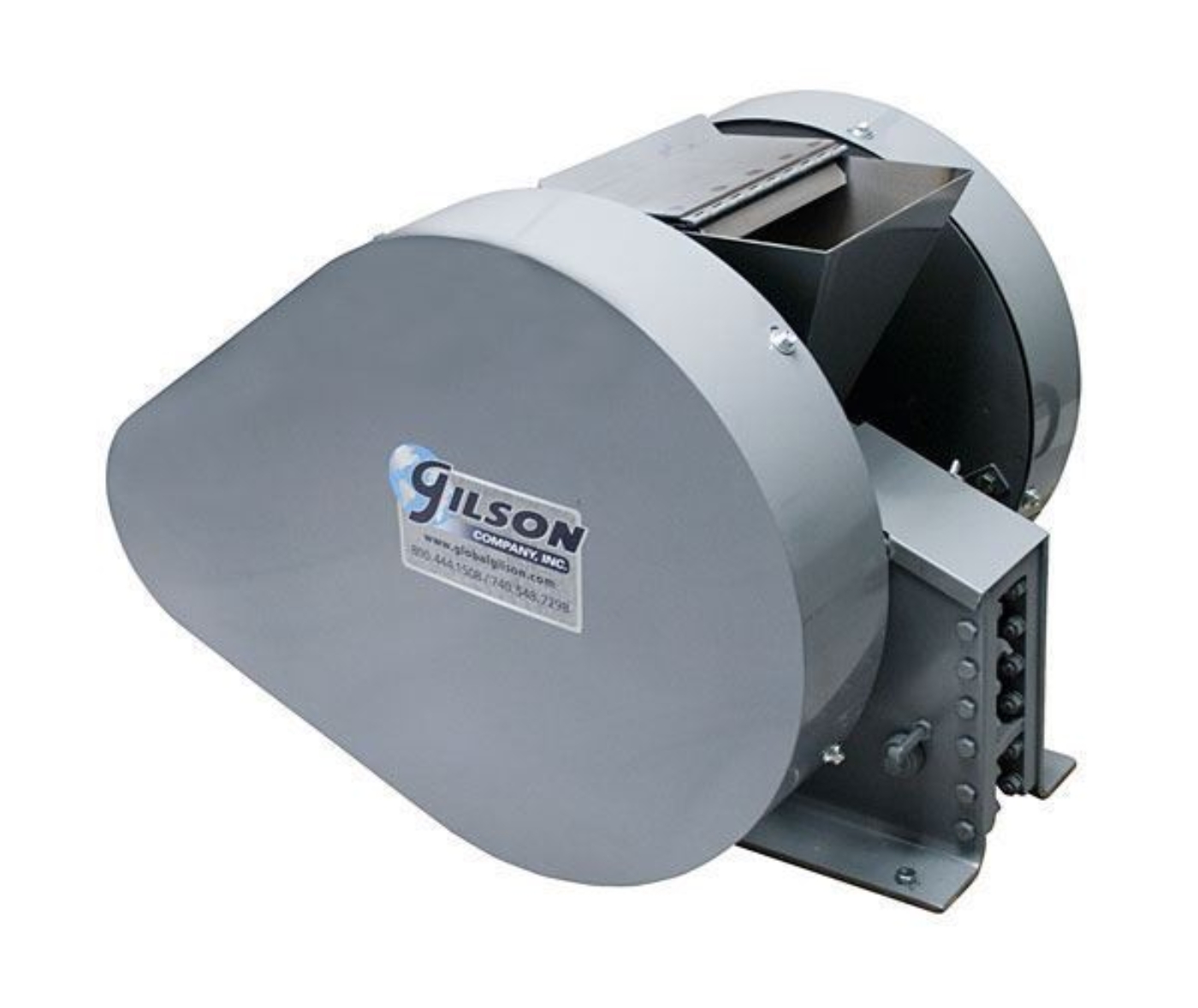

Standard Chipmunk Jaw Crushers have rugged construction and exceptional capacity to easily reduce hard rock, ores, and minerals while consuming minimal power. Reversible jaw plates extend service life, and the stationary jaw lifts easily from the frame to expose the inner components for cleaning. Jaw size is 3x6in (76x152mm) with a 3x2.25in (76x57mm) opening. The side-mounted handwheel adjusts wedge blocks to control discharge to 1/16–3/8in (1.6–9.5mm) particle size. Maximum feed size is 2.2x3in (56x76mm), with a 400lb (182kg) capacity per hour. Optional Dust Enclosure Bench and Replacement Filter are available.
Made of wear-resistant alloy steel with sealed bronze bearings and alloy steel shafts. All components can be easily reached for cleaning. Units come with a Sample Pan, Feed Hopper, Belt Guards, and Flywheel. An electric motor starting switch is included but must be installed on-site. Units are shipped without a power cord.
Features:
- Wedge blocks allow for adjustable discharge opening
- Highest crushing capacity
- Maximum feed size is 2.2x3in (56x76mm)
- Reversible jaw plates
Included Items:
- Standard Chipmunk Jaw Crusher
- Electric Motor Starter Switch (installed on-site)
- Sample Pan
- Feed Hopper
- Belt Guards
- Flywheel
Accessories:
- LCA-91 Dust Enclosure Bench for pulverizers and crushers helps contain nuisance dust during operations
- LCA-92 Replacement Filter for Dust Enclosure Bench is easily removed and replaced as needed
