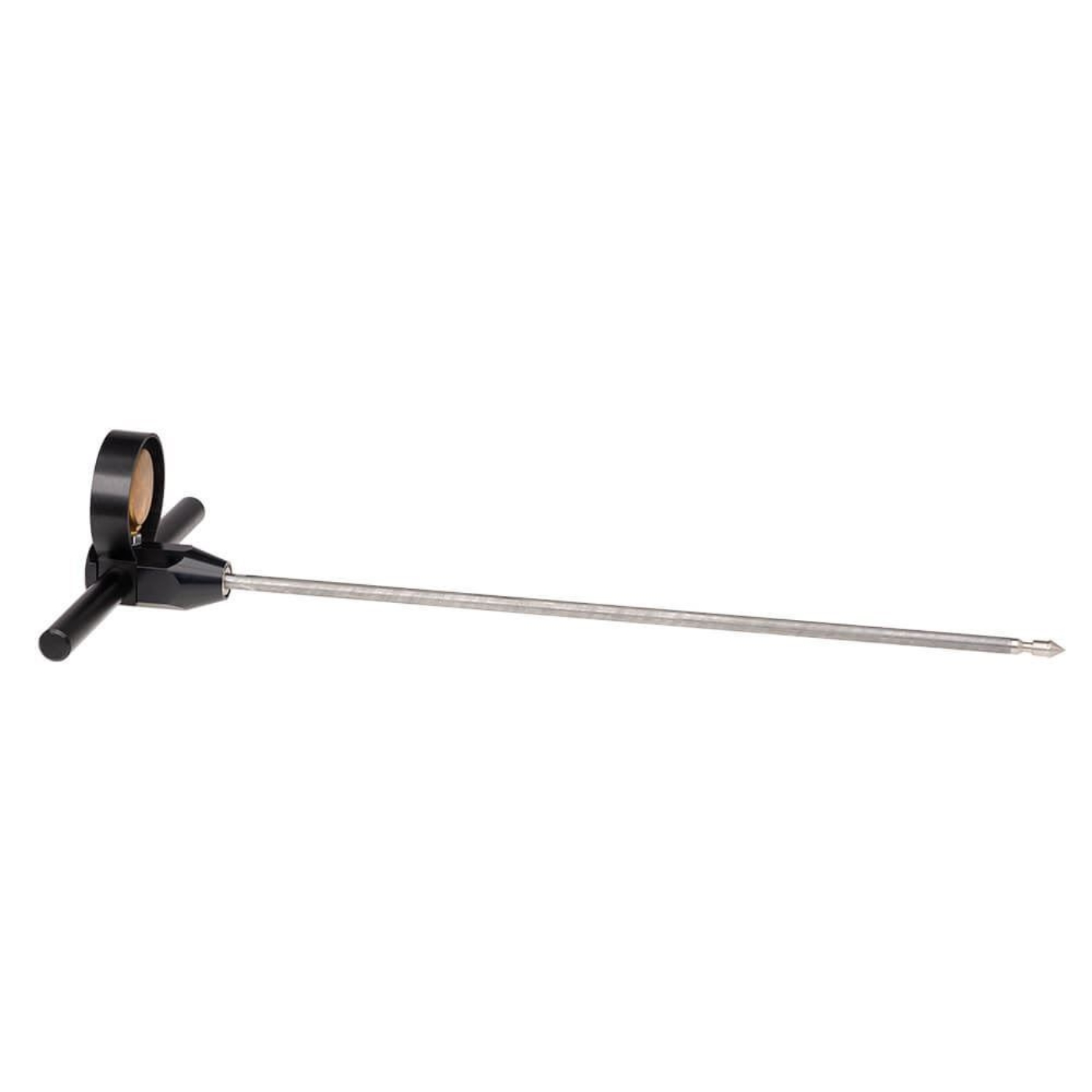

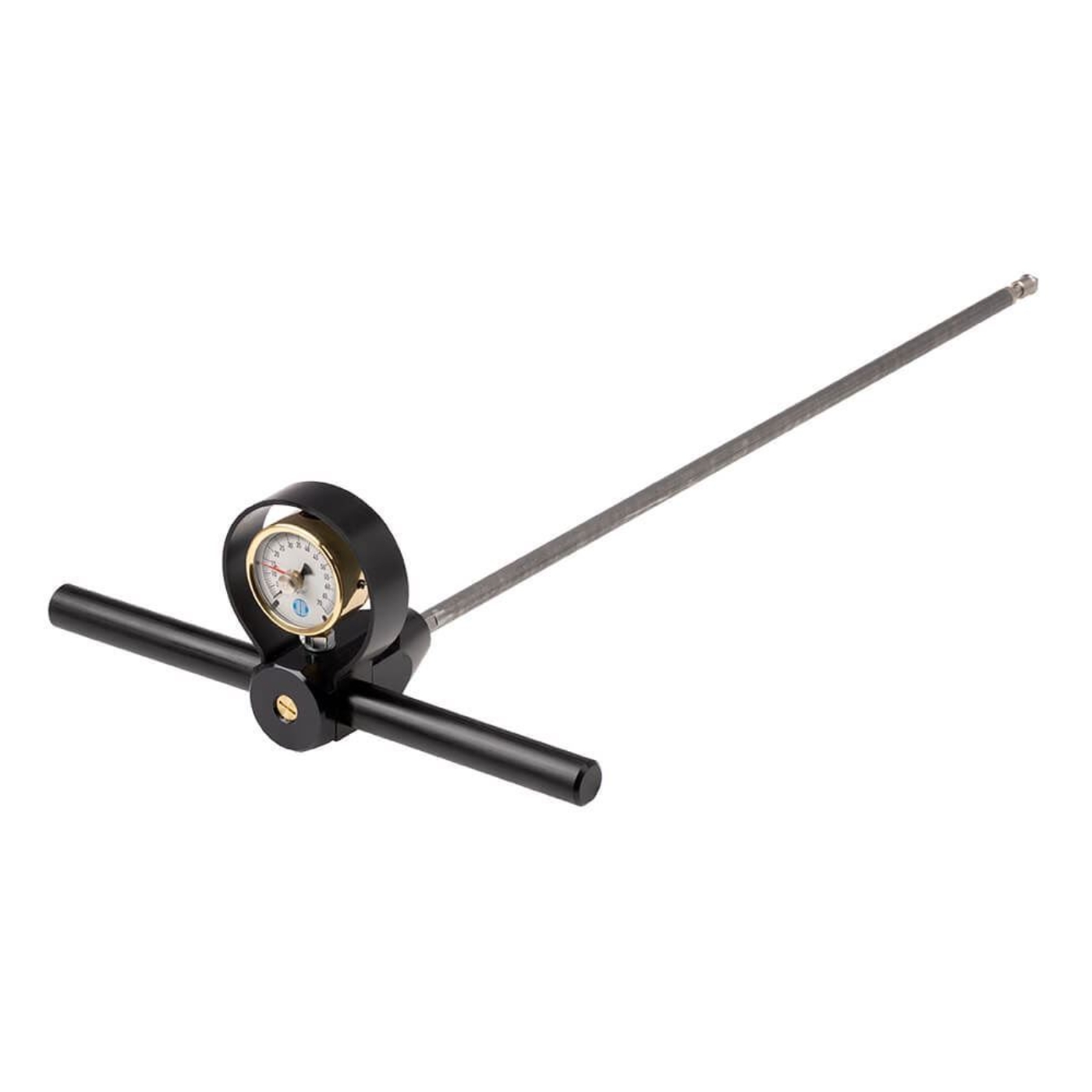

Static Cone Penetrometer evaluates soil compaction, soil consistency, and bearing capacity of foundations and pavement subgrades. Press the penetrometer into the soil 6in (152mm), take a reading from the gauge, then advance another 6in to take the next reading, and continue to the desired depth. Fine-grained, soft soils yield the most accurate results, while gravel and rocks in the soil can cause inaccurate readings.
Penetration cones are required for use with the Static Cone Penetrometer a 1.5cm² cone is included or a 3cm² cone can be purchased separately.
Features:
- Inner/Outer rod construction eliminates the effects of soil friction
- High-strength chrome alloy and 316 stainless steel construction
- Simple to use
- Uses 60° penetration cones with 1.5cm² or 3.0cm² area

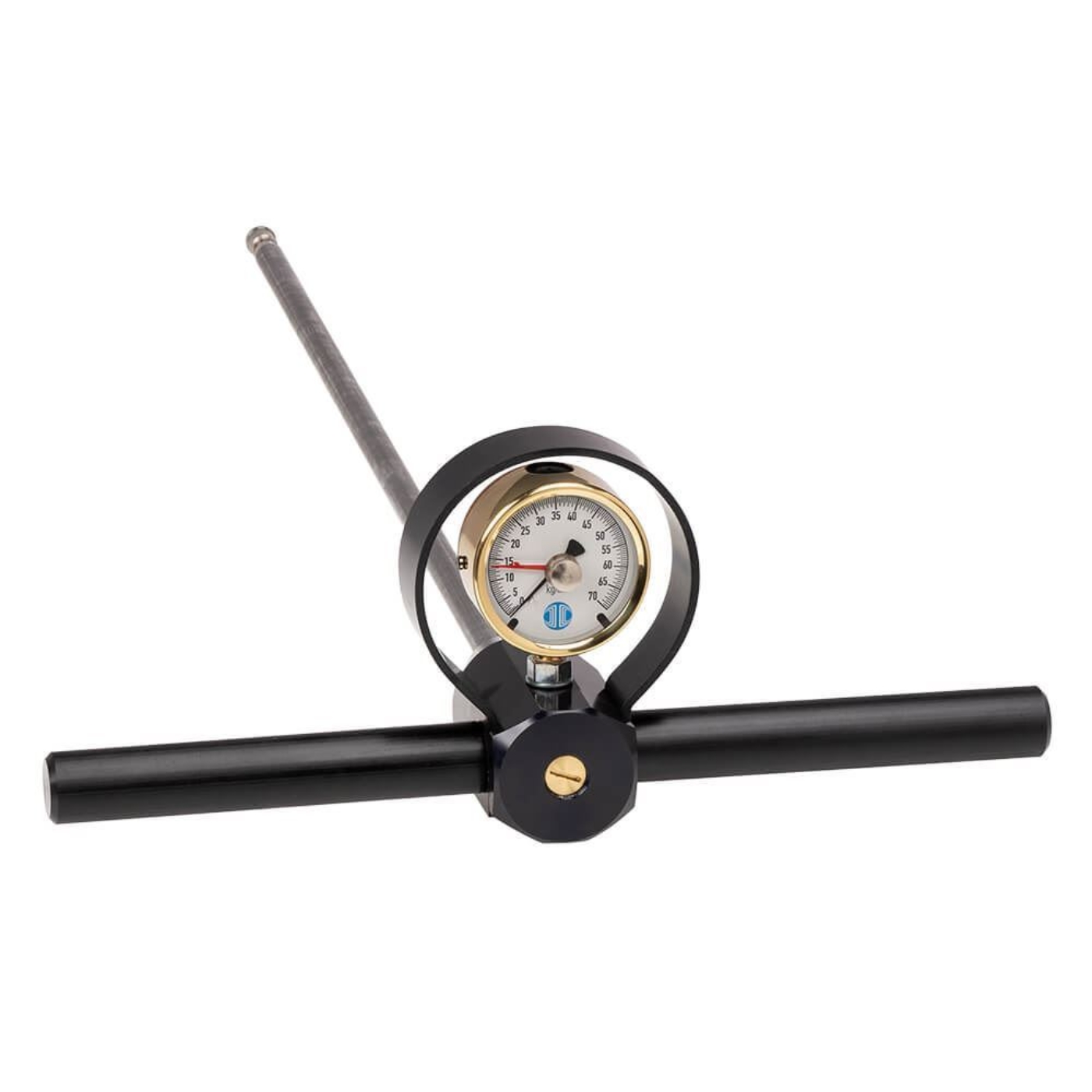

- Pressure gauge of hydraulic load cell reads cone stress directly
Included Items:
- Static Cone Penetrometer
- 1.5cm² Cone
- 0–70kg/cm² gauge
- T-handle
- 2ft (610mm) starter rod
Accessories:

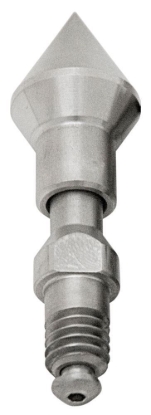

- HMA-272 3cm² Cone connects to starter or extension rods when taking penetrometer readings and is required for the operation of the Static Cone Penetrometer

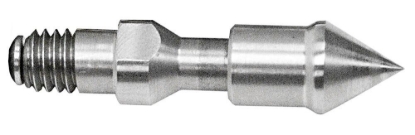

- HMA-277 1.5cm² Cone connects to starter or extension rods when taking penetrometer readings and is required for the operation of the Static Cone Penetrometer
- HMA-276A 2ft Starter Rod replacement starter rod used with or without 2ft extensions for deeper penetration
- HMA-271A 2ft Extension Rod can be added to the starter rod for greater depth capability
