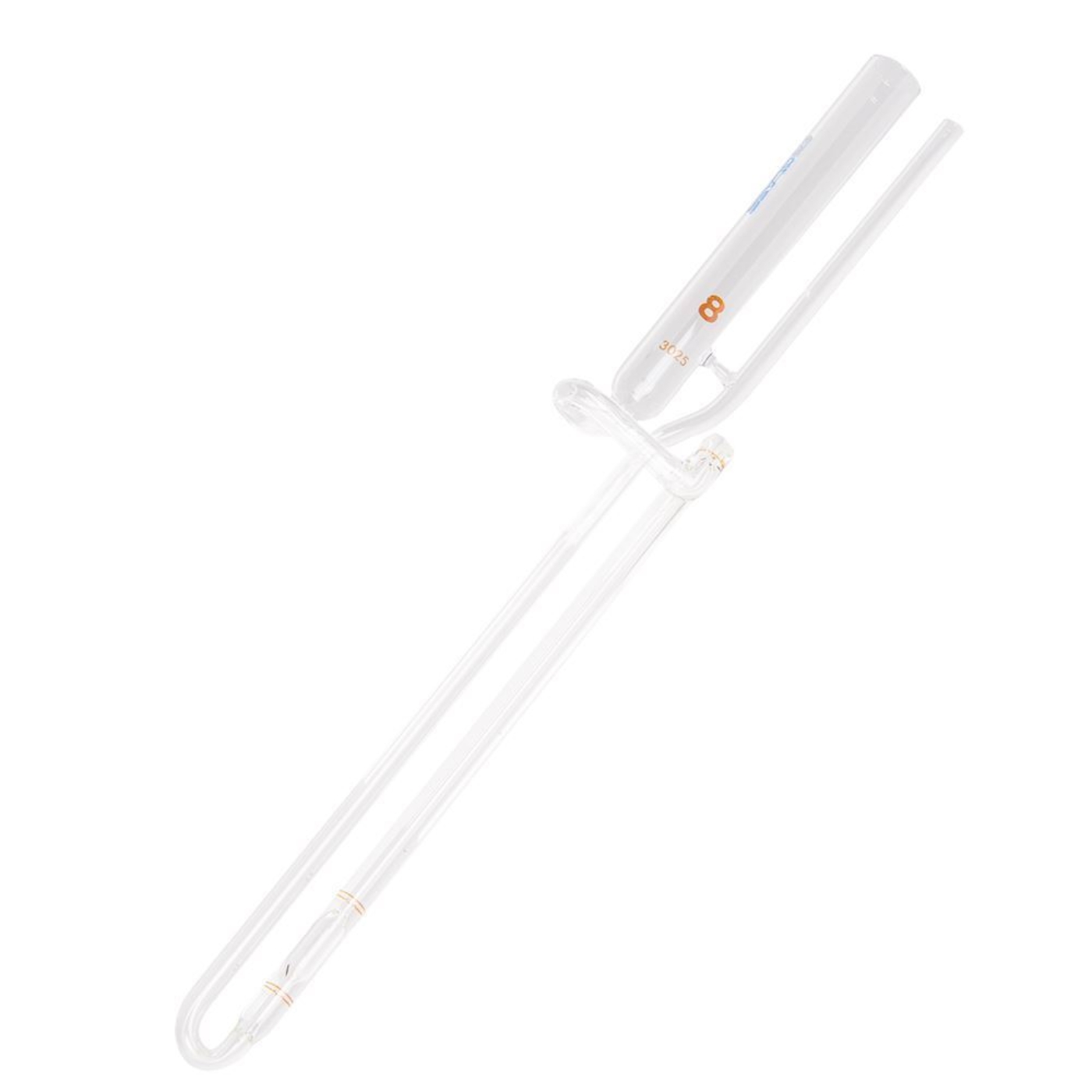

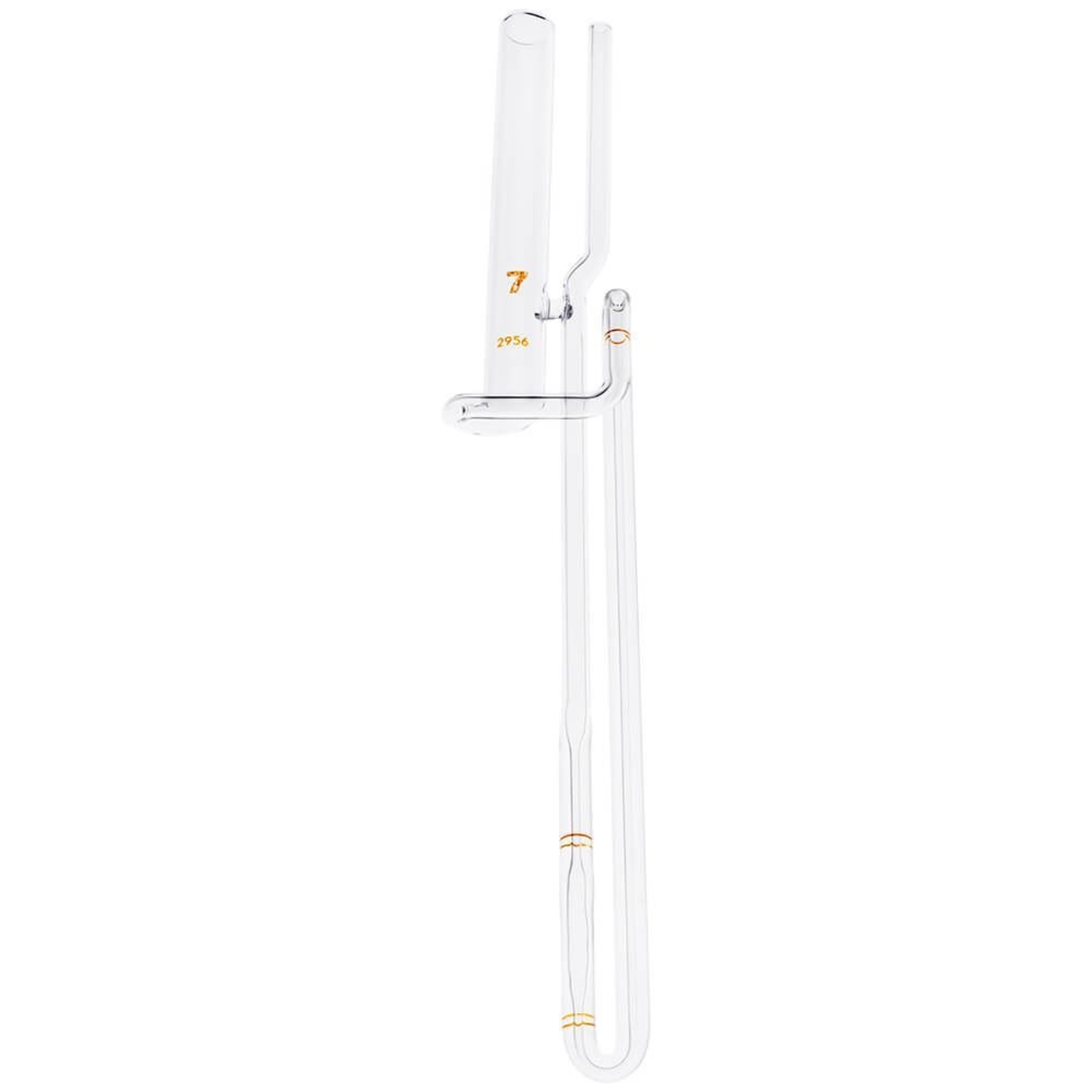

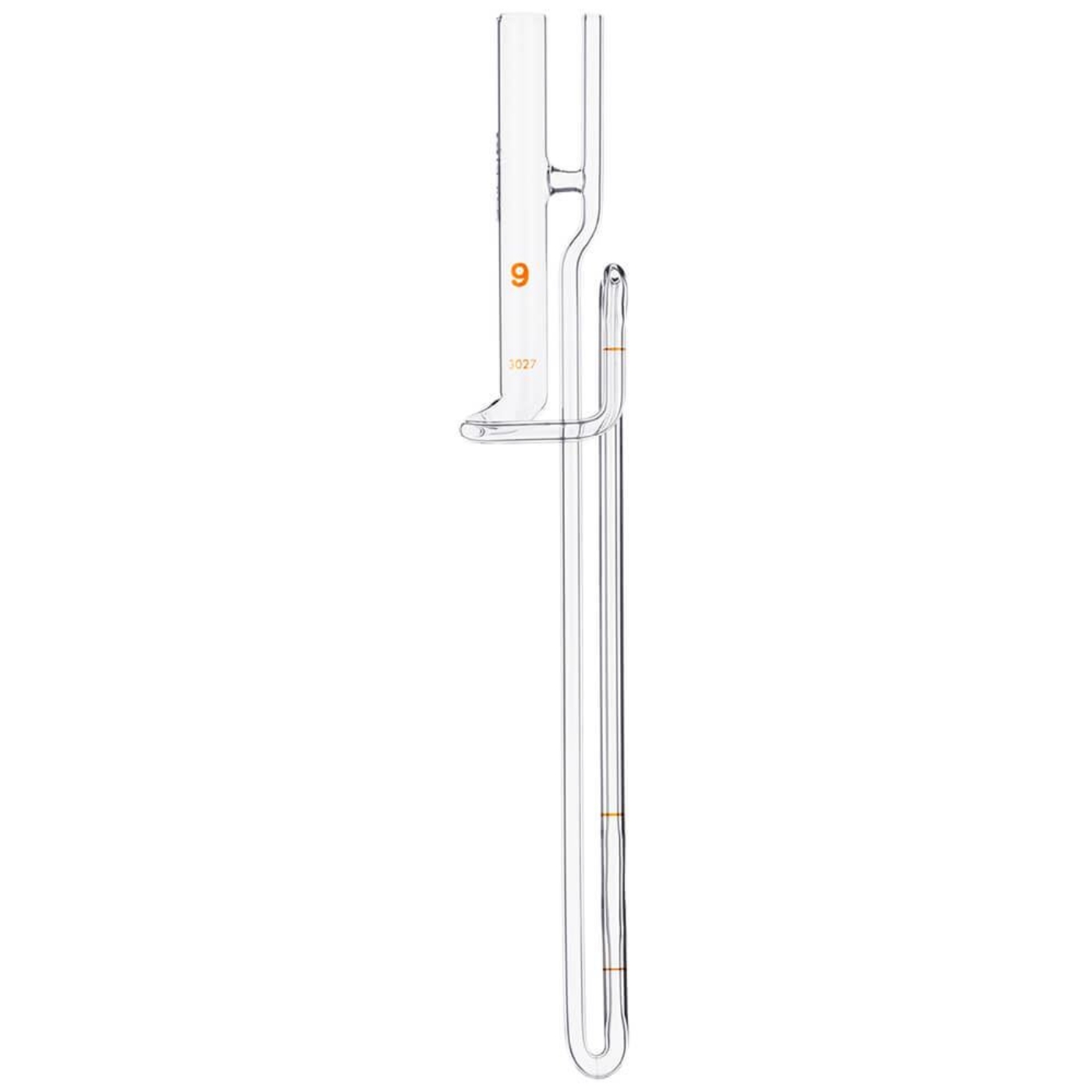

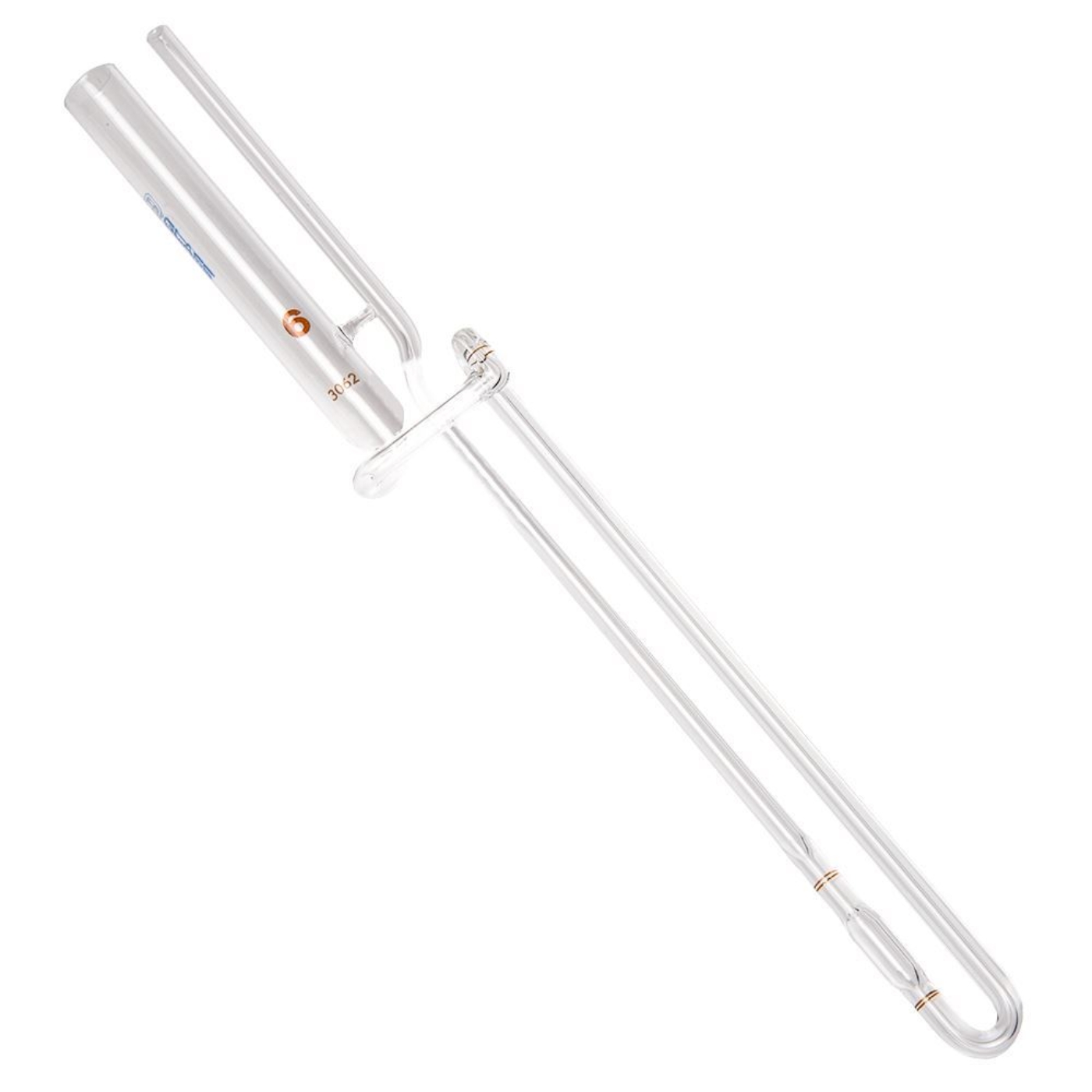

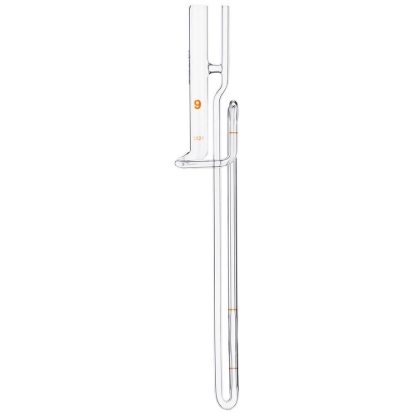

Zeitfuchs® Cross-Arm Viscometers measure the kinematic viscosity of bitumen and road oils at 140°F (60°C) and asphalt cements at 275°F (135°C). Viscometer models test a wide range of product viscosities from 0.6 to 100,000 centistokes (cSt), each with ±0.2% precision of the stated viscosity range.

The small sample volume of 1 to 3mL allows the viscometers to easily be filled or cleaned while immersed in Constant Temperature Viscosity Bath. A minimum immersion depth of 9in (230mm) is required. Each unit is supplied with a Certificate of Calibration. A 2in (51mm) diameter holder is required and purchased separately.

Features:

Viscosity range of 0.6 to 100,000 centistokes
Can be cleaned and filled when immersed
Meets AASHTO and ASTM standards

Included Items:

Zeitfuchs® Cross-Arm Viscometer
Certificate of Calibration

Accessories:

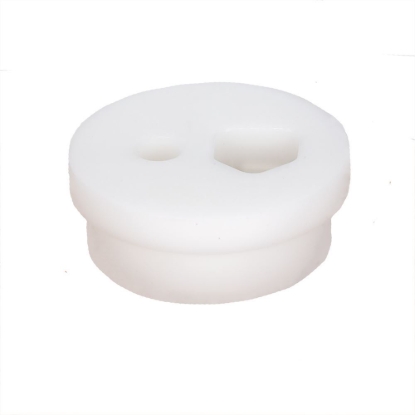

Viscometer Holder is required and purchased separately. Rubber or plastic holders are available.
Constant Temperature Viscosity Bath meets ASTM D445 and has selectable temperature presets and variable control options.

Specifications

Attribute name	Attribute value
Size	PT-101: 1 PT-102: 2 PT-103: 3 PT-104: 4 PT-105: 5 PT-106: 6 PT-107: 7 PT-108: 8 PT-109: 9 PT-110: 10
Viscosity Range	PT-101: 0.6–3 Centistokes PT-102: 2–10 Centistokes PT-103: 6–30 Centistokes PT-104: 20–100 Centistokes PT-105: 60–300 Centistokes PT-106: 200–1,000 Centistokes PT-107: 600–3,000 Centistokes PT-108: 2,000–10,000 Centistokes PT-109: 6,000–30,000 Centistokes PT-110: 20,000–100,000 Centistokes
Approximate Constant	PT-101: 0.003 cSt/s PT-102: 0.01 cSt/s PT-103: 0.03 cSt/s PT-104: 0.1 cSt/s PT-105: 0.3 cSt/s PT-106: 1.0 cSt/s PT-107: 3.0 cSt/s PT-108: 10 cSt/s PT-109: 30 cSt/s PT-110: 100 cSt/s
Estimated Shipping Weight	1.0lb (0.45kg)

Product Q&A

Displaying Q&A 1-4 of 8

Q: Will this work with fan-forced heaters?

I'm very satisfied with this product. It was exactly what I wanted in my travel trailer, for a lot more accurate heating. Now I can pinpoint it to exactly the temperature I want, instead of guessing, sliding the conventional thermostat back and forth. Will for sure save on propane too! Nice back light when adjusting the temperature, making it easy to see even at night.

Q: Will this work with fan-forced heaters?

I'm very satisfied with this product. It was exactly what I wanted in my travel trailer, for a lot more accurate heating. Now I can pinpoint it to exactly the temperature I want, instead of guessing, sliding the conventional thermostat back and forth. Will for sure save on propane too! Nice back light when adjusting the temperature, making it easy to see even at night.

Q: Will this work with fan-forced heaters?

I'm very satisfied with this product. It was exactly what I wanted in my travel trailer, for a lot more accurate heating. Now I can pinpoint it to exactly the temperature I want, instead of guessing, sliding the conventional thermostat back and forth. Will for sure save on propane too! Nice back light when adjusting the temperature, making it easy to see even at night.

Q: Will this work with fan-forced heaters?

I'm very satisfied with this product. It was exactly what I wanted in my travel trailer, for a lot more accurate heating. Now I can pinpoint it to exactly the temperature I want, instead of guessing, sliding the conventional thermostat back and forth. Will for sure save on propane too! Nice back light when adjusting the temperature, making it easy to see even at night.

Displaying Q&A 1-4 of 8

Features	Size 1, Zeitfuchs® Cross-Arm Viscometer	Size 2, Zeitfuchs® Cross-Arm Viscometer	Size 3, Zeitfuchs® Cross-Arm Viscometer	Size 4, Zeitfuchs® Cross-Arm Viscometer	Size 5, Zeitfuchs® Cross-Arm Viscometer	Size 6, Zeitfuchs® Cross-Arm Viscometer	Size 7, Zeitfuchs® Cross-Arm Viscometer	Size 8, Zeitfuchs® Cross-Arm Viscometer	Size 9, Zeitfuchs® Cross-Arm Viscometer	Size 10, Zeitfuchs® Cross-Arm Viscometer
Pricing	$473.90	$504.30	$504.30	$473.90	$473.90	$473.90	$473.90	$473.90	$473.90	$473.90
Size	1, 1	2, 2	3, 3	4, 4	5, 5	6, 6	7, 7	8, 8	9, 9	10, 10
Viscosity Range	0.6–3	2–10	6–30	20–100	60–300	200–1,000	600–3,000	2,000–10,000	6,000–30,000	20,000–100,000
Approximate Constant	0.003 cSt/s	0.01 cSt/s	0.03 cSt/s	0.1 cSt/s	0.3 cSt/s	1.0 cSt/s	3.0 cSt/s	10 cSt/s	30 cSt/s	100 cSt/s
Estimated Shipping Weight	1.0lb (0.45kg)	1.0lb (0.45kg)	1.0lb (0.45kg)	1.0lb (0.45kg)	1.0lb (0.45kg)	1.0lb (0.45kg)	1.0lb (0.45kg)	1.0lb (0.45kg)	1.0lb (0.45kg)	1.0lb (0.45kg)
	Learn More	Learn More	Learn More	Learn More	Learn More	Learn More	Learn More	Learn More	Learn More	Learn More
