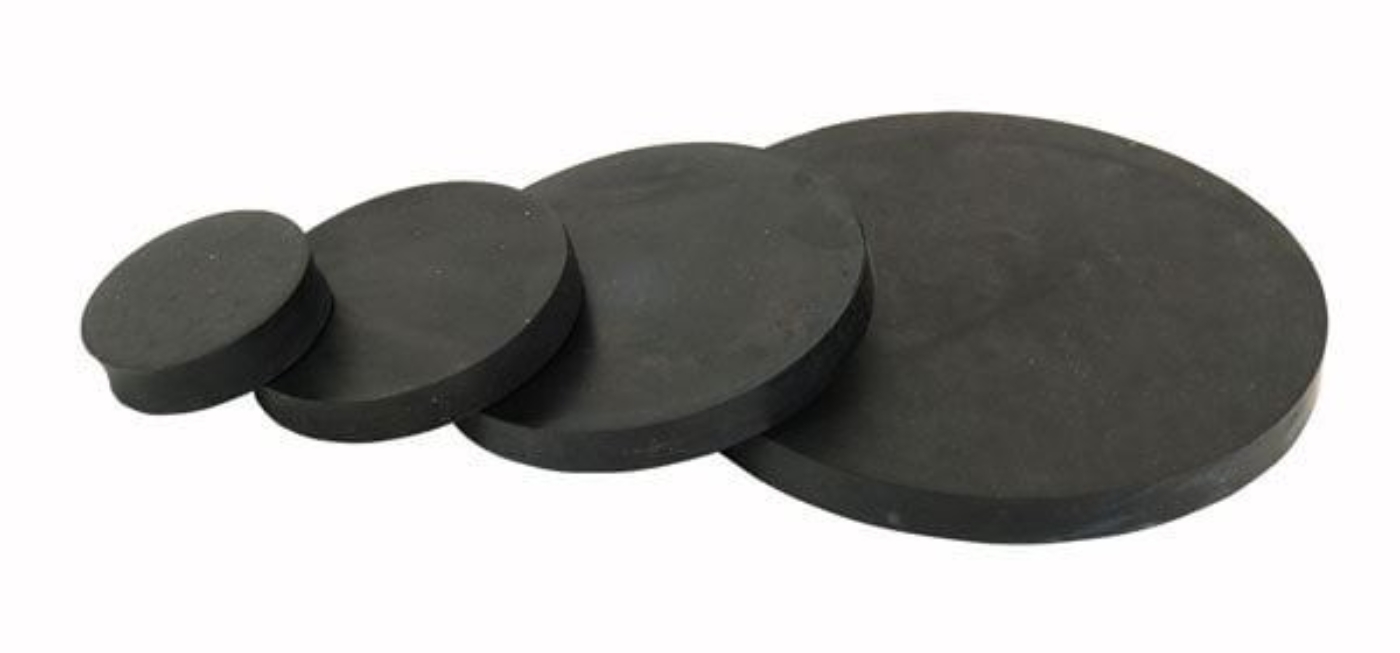

2in (50.8mm) Neoprene Pads are 0.5in (12.7mm) thick and available in 50 or 70 durometers. They are used for compressive strength testing of 2in concrete cylinders. The pads flow during compression to fill irregularities of the cylinder ends and ensure load uniformity. HM-183 2in Steel Retainer Set is purchased separately and has two rings to hold one pad at each end of the concrete cylinder. Each pad can be used for up to 100 tests, and two pads are required for a single test. Each of these models can also be used with 2.125in (54mm) dia. rock cores.

HM-369 2in, 50 Durometer Pads work well in testing concrete strengths from 1,500-6,000psi (10-40mPa).

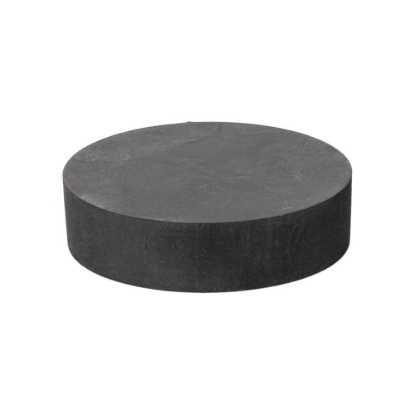

HM-370 2in, 70 Durometer Pads work well in testing concrete strengths from 4,000-7,000psi (28-50mPa).

Features:

Available in 50 or 70 durometers
Pad can be used in up to 100 tests

Included Items:

2in Neoprene Pad, 50 or 70 Durometer

Accessories:

HM-183 2in Steel Retaining Set to contain pads at each cylinder end for testing
Quick Release Polysaccharide Powder is used to easily release pads from Steel Retainers

Related blogs:

Specifications

Attribute name	Attribute value
Specimen Diameter	2in (50.8mm)
Durometer	HM-369: 50 HM-370: 70
Strength	HM-369: 1,500-6,000psi (10-40mPa) HM-370: 4,000-7,000psi(28-50mPa)
Product Dimensions	2 x 0.5in (50.8 x 12.7mm) Dia. x H
Estimated Shipping Weight	1.0lb (0.45kg)
