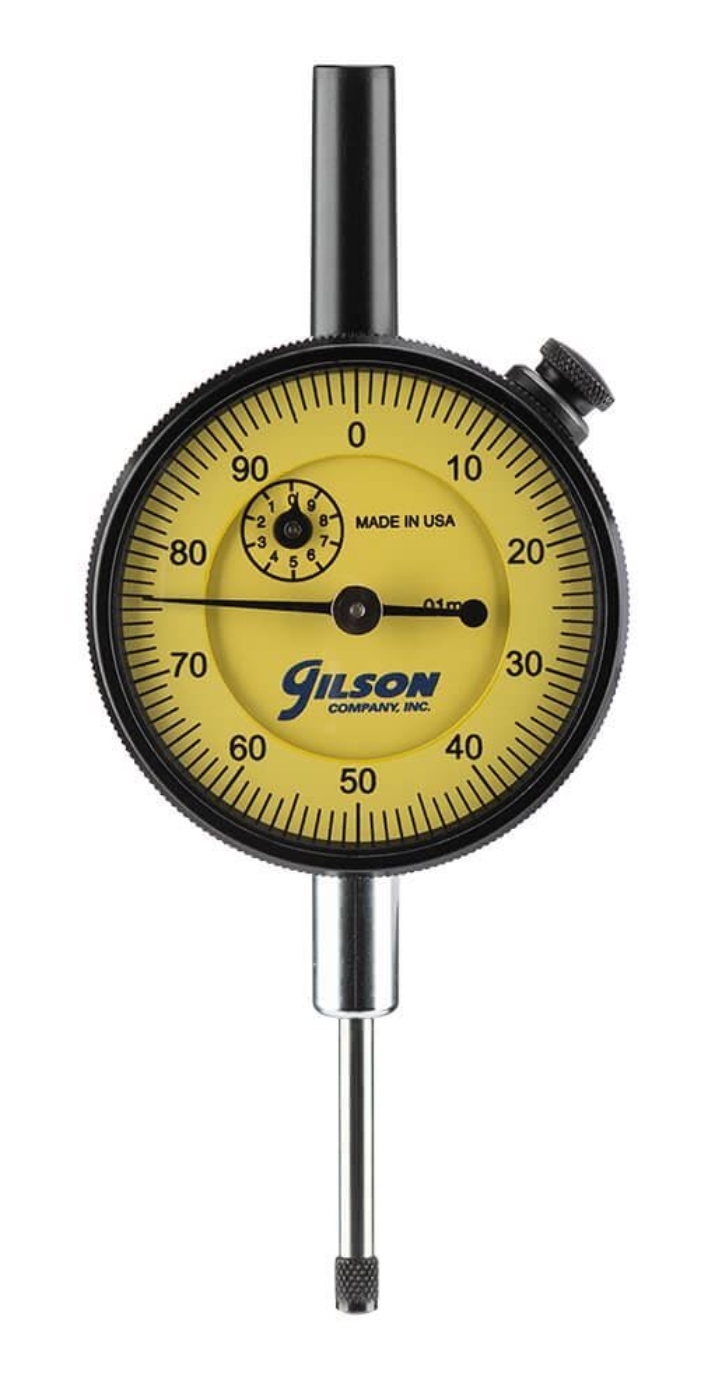

Mechanical Dial Indicators feature low friction mechanisms that react instantly to contact pressure, for accurate displacement readings. Indicators have 2.25in (57mm) diameter dial faces, continuous clockwise dials with one hundred divisions per revolution and a revolution counter. Backs rotate 90° to adapt to horizontal or vertical mounting positions.

Models with “B” suffix have brakes to hold maximum indicator needle positions.

Features:

Optimal for delivering fast, accurate displacement readings
Adaptable, 90° back adjusts to fit vertical and horizontal mounting positions

Included Items:

Mechanical Dial Indicator

Accessories:

Extended Contact Points in sizes from 1/2–2in adapt unit to different configurations
HMA-338 Magnetic Gauge Holder secures indicator unit to surfaces

Specifications

Attribute name	Attribute value
NIST Traceable Certificate of Calibration	No
Range x Division	25 x 0.01mm
Configuration	without Brake
Estimated Shipping Weight	0.5lb (0.23kg)

Quick Compare

Features	Mechanical Dial Indicator, 0.2 x 0.0001in (Range x Division)	Mechanical Dial Indicator with Brake, 0.2 x 0.0001in (Range x Division)	Mechanical Dial Indicator, 1 x 0.001in (Range x Division)	Mechanical Dial Indicator NIST Certified, 1 x 0.001in (Range x Division)	Mechanical Dial Indicator with Brake, 1 x 0.001in (Range x Division)	Mechanical Dial Indicator, 25 x 0.01mm (Range x Division)	Mechanical Dial Indicator with Brake, 25 x 0.01mm (Range x Division)
Pricing	$210.00	$270.80	$141.40	$177.10	$208.30	$150.00	$194.40
NIST Traceable Certificate of Calibration	No	No	No	Yes	No	No	No
Range x Division	0.2 x 0.0001in	0.2 x 0.0001in	1 x 0.001in	1 x 0.001in	1 x 0.001in	25 x 0.01mm	25 x 0.01mm
Configuration	without Brake	with Brake	without Brake	without Brake	with Brake	without Brake	with Brake
Estimated Shipping Weight	2.0lb (0.91kg)	0.5lb (0.23kg)	0.5lb (0.23kg)	0.5lb (0.23kg)	0.5lb (0.23kg)	0.5lb (0.23kg)	0.5lb (0.23kg)
			Learn More			Learn More
