Triaxial Test Cells are used to determine the compressive strength of 1.4 to 3in (35.6 to 76.2mm) maximum diameter soil samples and perform best with the HM-350M Master Control Panel and HM-350A Auxiliary Control Panel. They are also compatible with similar systems. Models are available with either rugged quality brass or durable stainless steel valves and fittings. They are equipped with solid, machined aluminum bases to handle heavy loading. The 4.75x10.75in (121x273mm) chamber interior is constructed of heavy-wall clear acrylic or aluminum. The unit’s precision-ground load piston is made of polished stainless steel and features internally lubed and sealed U-cup and nylon sleeve bearings, ensuring friction is very low. Cell design also features precision zero-volume change ball valves and a maximum operating pressure of 150psi (10.3 bar).

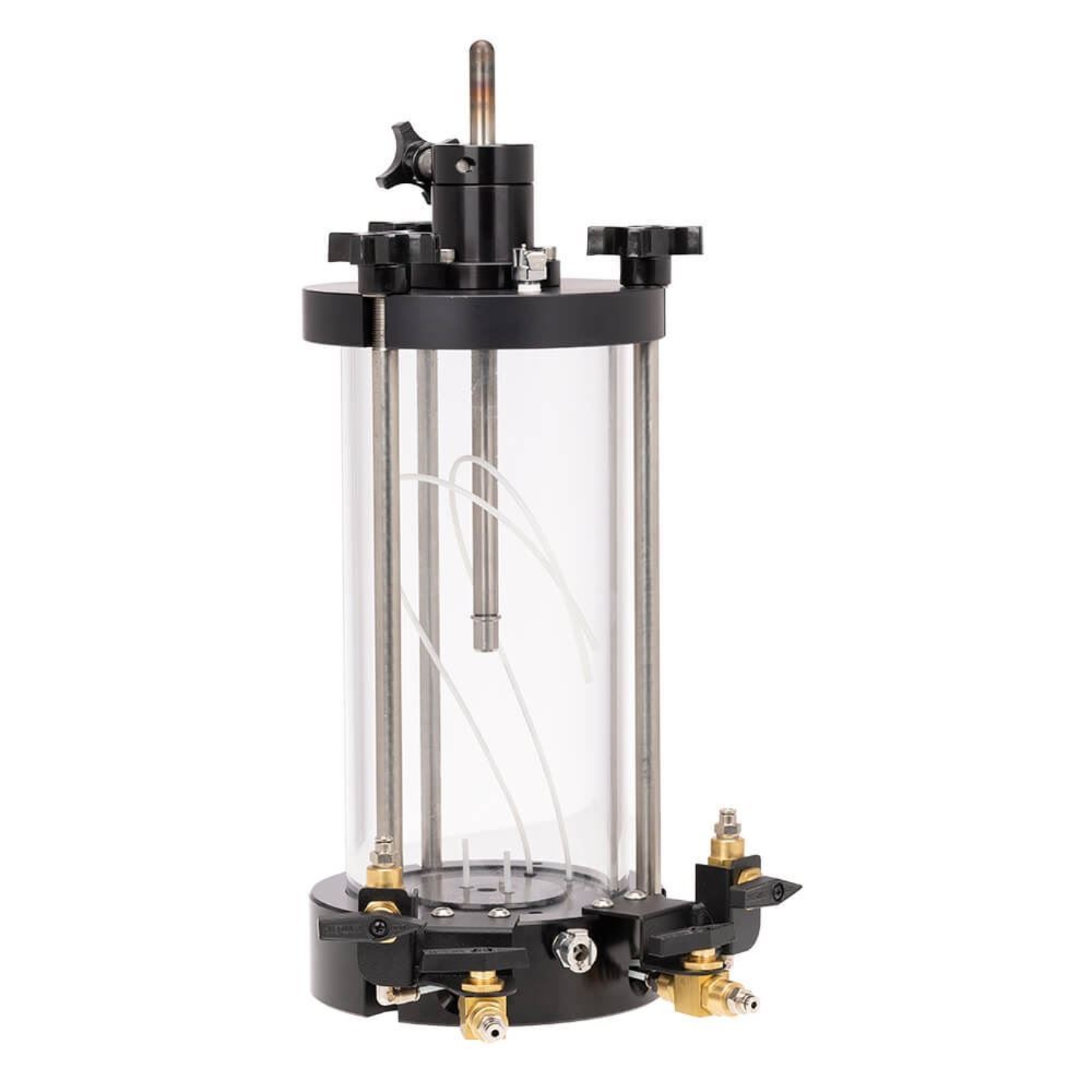

HMA-517 Triaxial Test Cell includes brass valves and fittings.

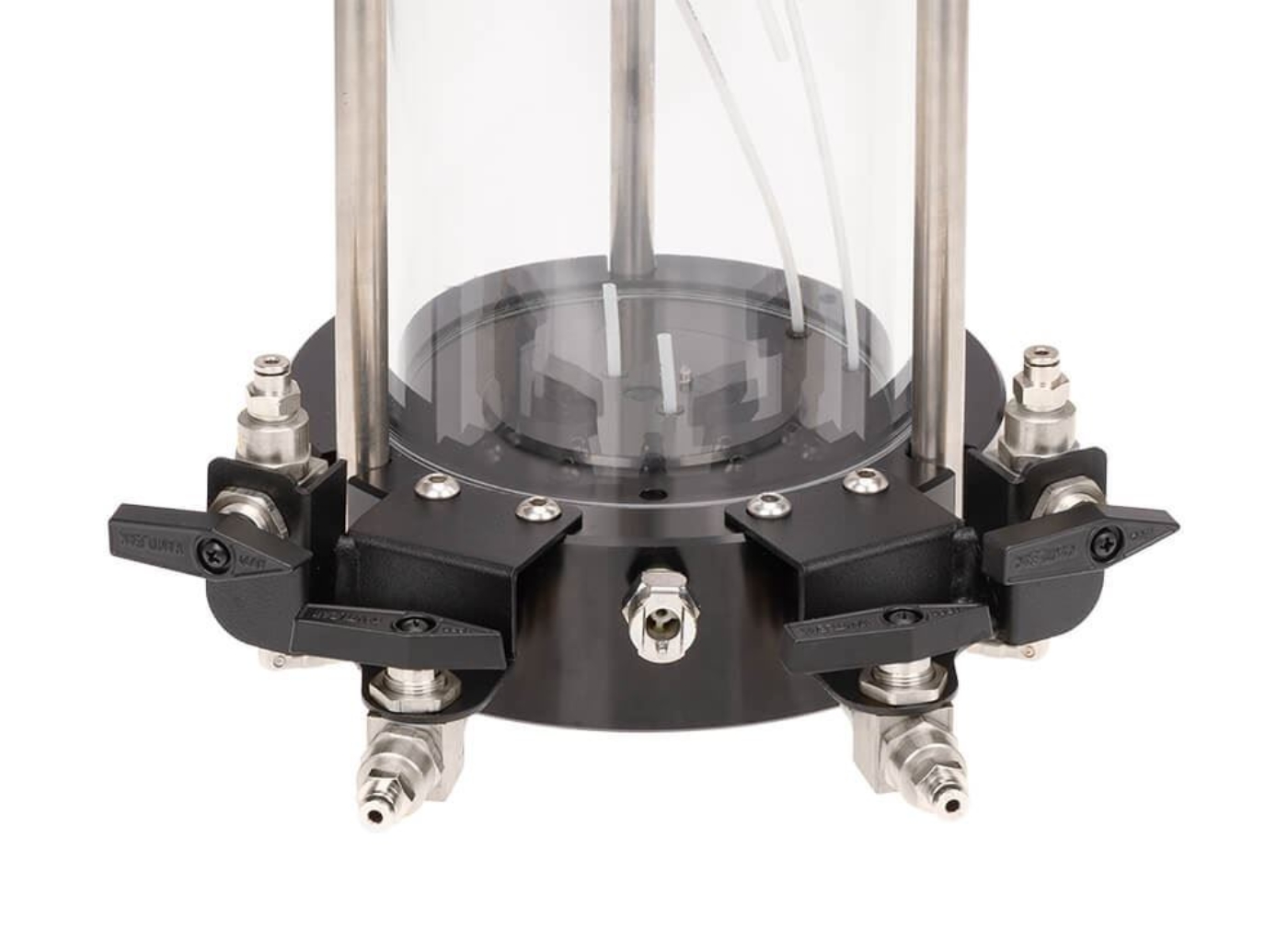

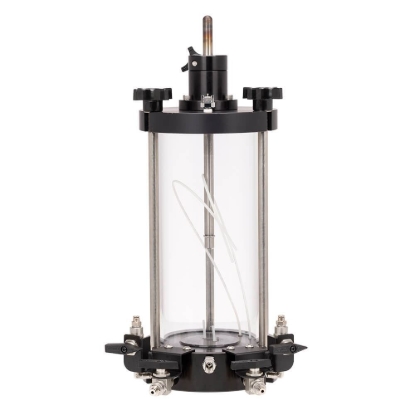

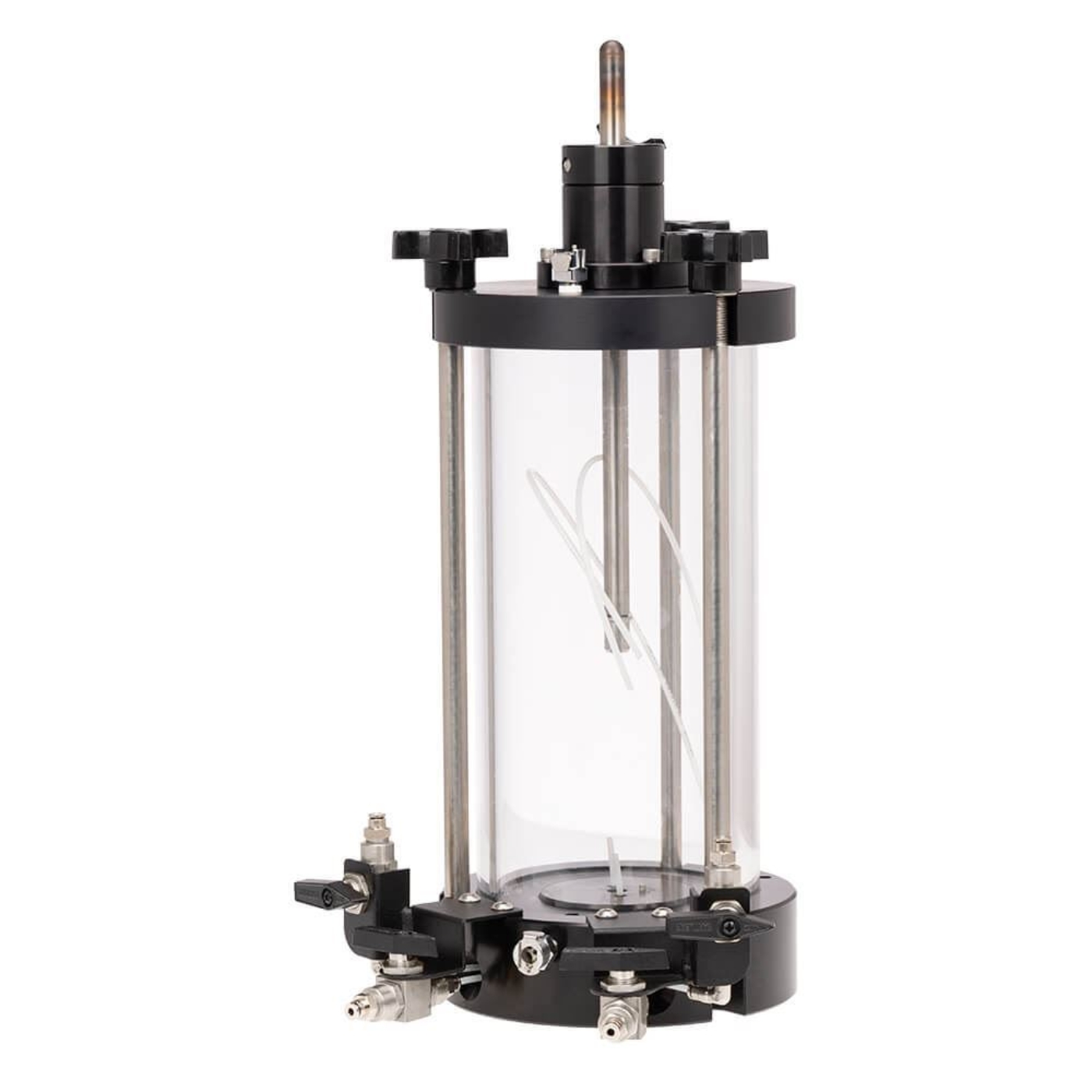

HMA-517S Triaxial Test Cell is constructed with stainless steel valves and fittings that offer corrosion resistance and can withstand harsh permeant fluids.

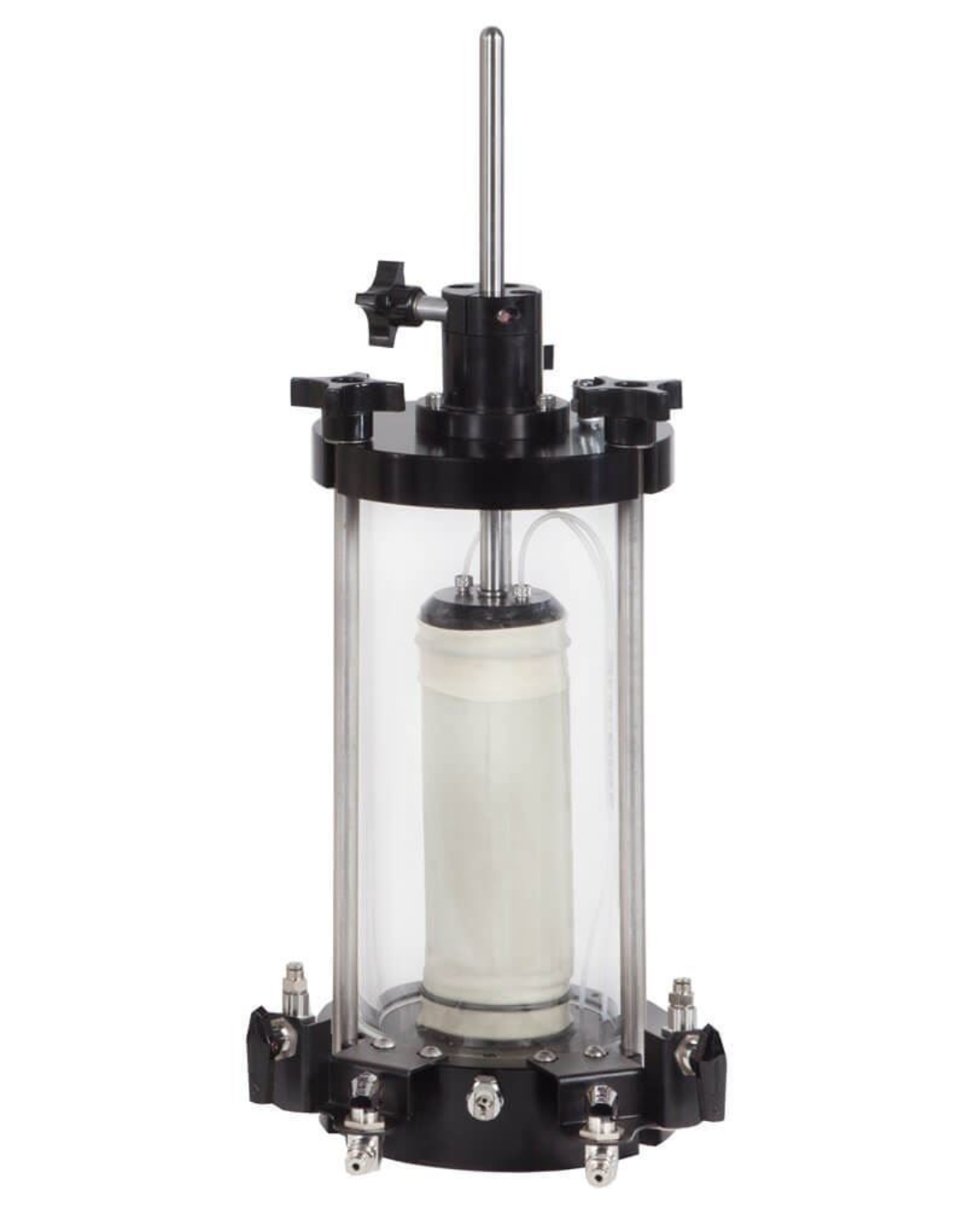

A Test Cell Kit is required with HM-517 test cells for testing soil samples from 1.4 to 3in, and is available separately on the Triaxial Cell Accessories page. Each kit contains the necessary components that are size specific to the specimen and includes an anodized aluminum cap and pedestal, two Porous Stones, two Latex Membranes, and four O-Rings. Also recommended for use in testing and available separately is the HMA-521 Digital Pore Pressure Gauge w/Transducer.
Features:
- Models available with brass or stainless steel valves and fittings
- Heavy-wall, clear acrylic or aluminum chambers for easy viewing during a test
- Can handle heavy loading
Included Items:
- Triaxial Cell, 1.4 to 3in dia. Specimens, with Brass or Stainless Steel Fittings
- Dial indicator/LVDT holder
Accessories:
- HM-350A Auxiliary Control Panel can test three samples simultaneously when connected to the Master Control Panel
- HM-350M Master Control Panel to regulate air and fluid pressure of one test cell
- Deairing Tanks are available with a 1.5 or 5.0gal tank capacity and are used to remove entrapped air from water while testing
- HMA-521 Pore Pressure Transducer with Digital Readout to precisely measure pore pressure of the soil specimen
- HMA-613 Triaxial Compression Data Acquisition Software works with the Load and Displacement Kit to record specimens and real-time test data, calculate results and then prepare reports following ASTM and AASHTO requirements.
- Triaxial Test Cell Accessories include the products required to perform triaxial tests on the soil in compliance with ASTM and AASHTO standards and are available in sizes that correspond to the soil specimen
