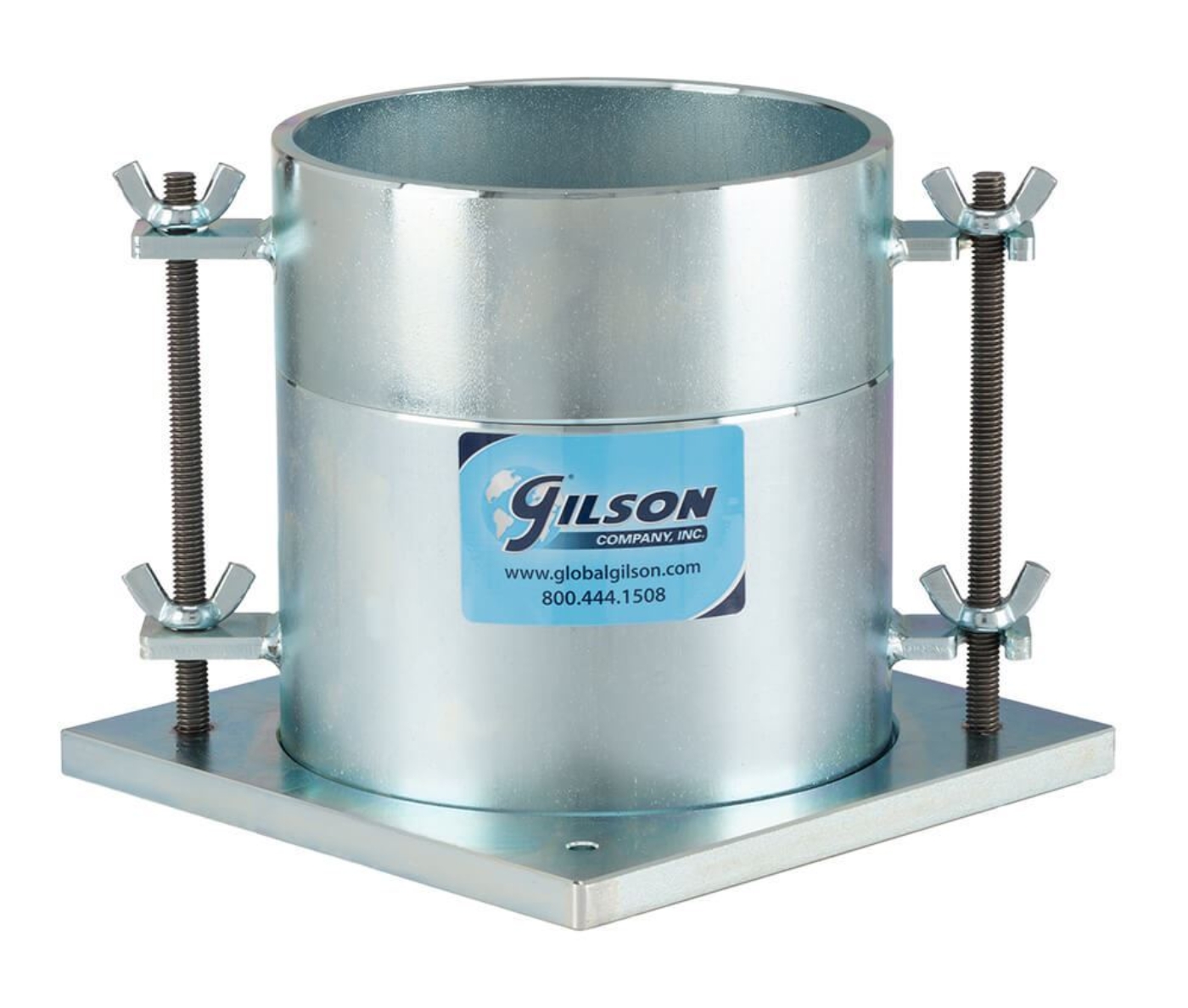

6in Soil Density Mold Sets are used for Proctor Compaction tests for determining soil moisture-density relationship and can be used with soil compaction hammers and Mechanical Soil Compactors. Complete Mold Sets include a body, detachable extension collar, and base plate. Molds are 6in (152mm) nominal diameter, 4.584in (116.4mm) in height, and are made of rugged heavy steel, clear-zinc plated for resistance to rust. Volume is 0.075ft³ (2,124cm³). The mold Body, Base Plate, and Collar are each also available separately.

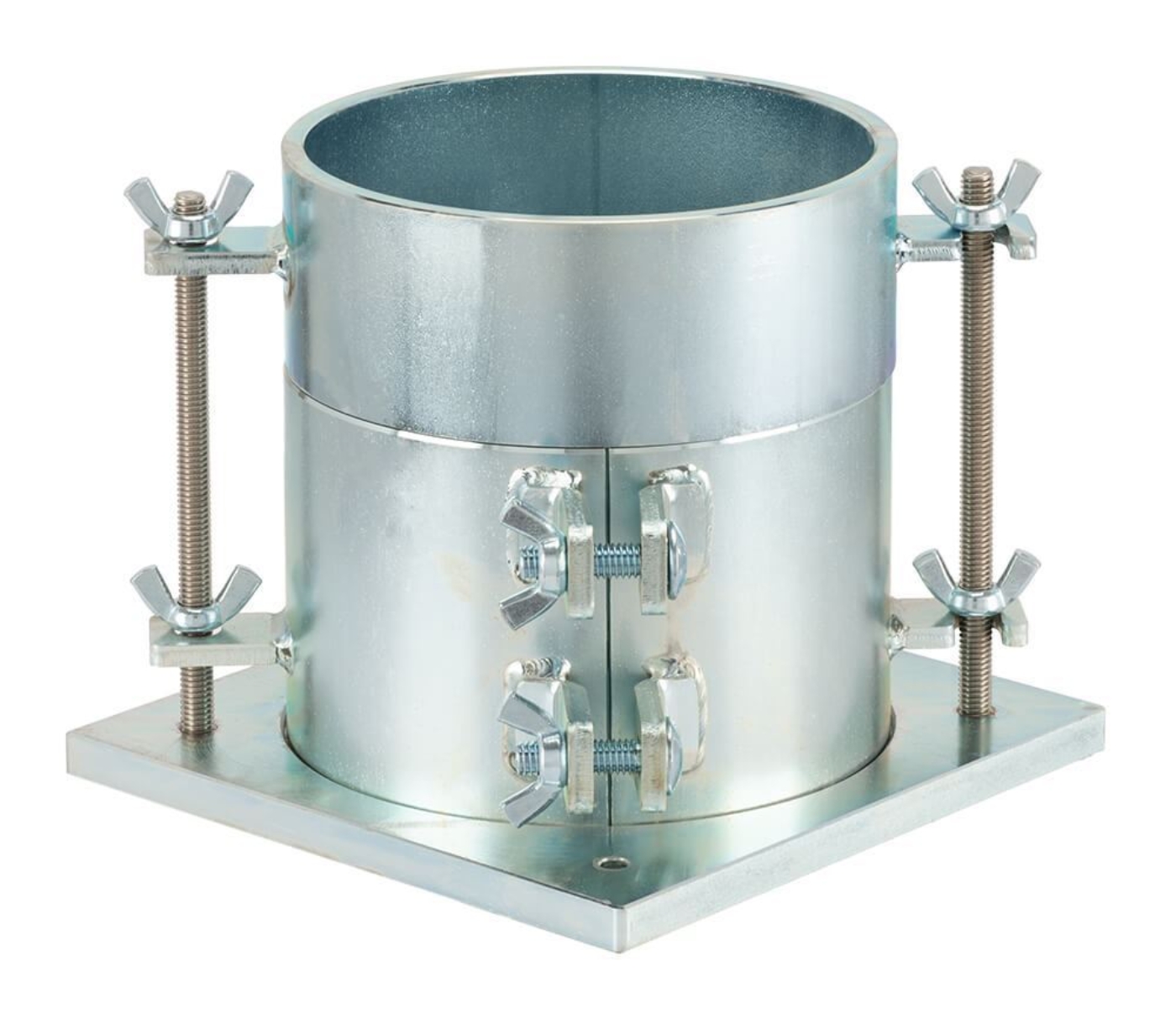

Mold bodies have either split or solid construction. Split molds spring open slightly when clamps are released to allow easy removal of compacted soil specimens. Solid molds are designed for use with sample ejectors.
Features:
- Ideal for Proctor Compaction tests
- Choice of split or solid mold bodies
- The collar is interchangeable among all Gilson 6in soil compaction molds
Included Items:
- 6in Soil Density Mold Set
- Body
- Detachable Extension Collar
- Base Plate
Accessories:
- HMA-135 Stainless Steel Straight Edge is used to level and trim molded specimen
- Soil Compaction Hammers are used for compacting specimens in mold
- HM-516 Sample Ejector for 4 or 6in Molds provide easy extrusion of compacted soil specimen from mold
