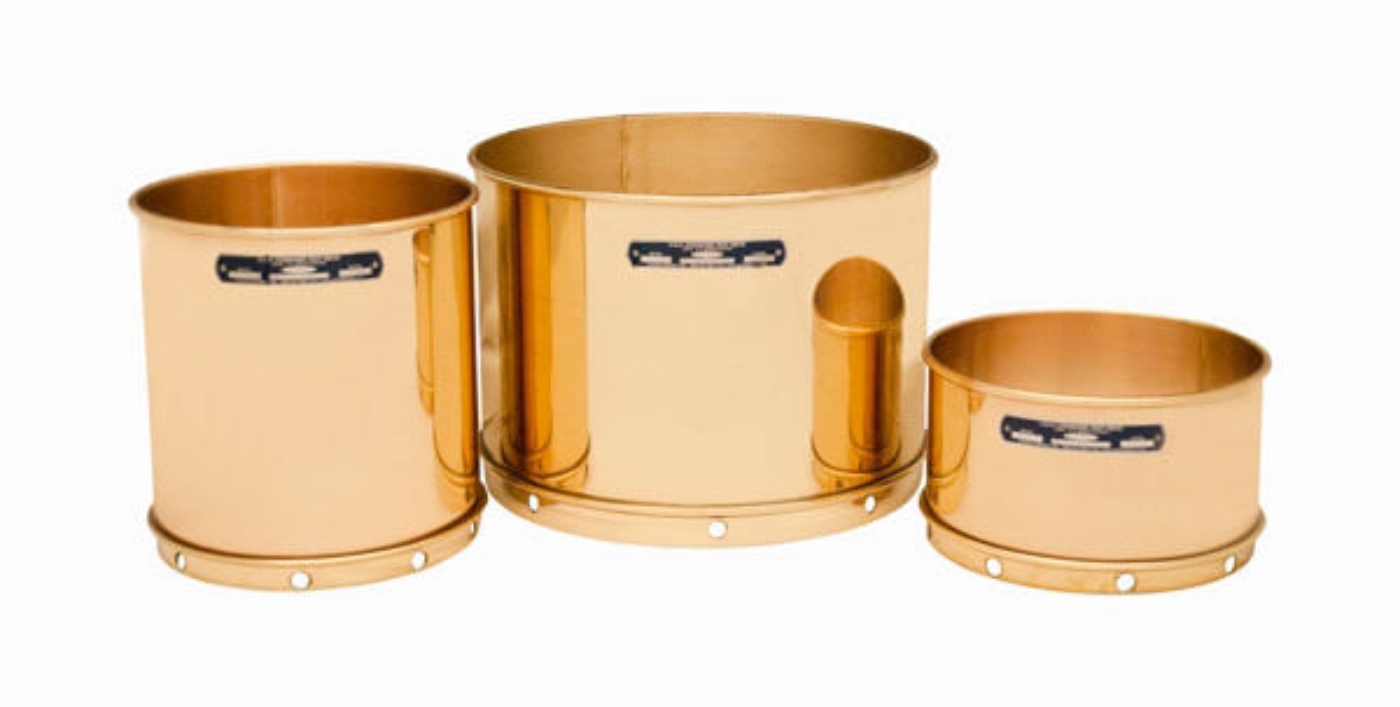

8in (203mm) diameter ASTM E11 Deep Frame Wet-Wash Test Sieve is constructed of the brass frame and stainless steel cloth with No.270 (53µm) openings. The overall frame depth is 8in (203mm) and is supplied with the back-up cloth.

Features:

Individually serial numbered
Optimal for fines content determinations or sample preparation for particle size testing
Compliant with ASTM E11
Deep frames contain wash water
Nesting capability with standard sieves

Included Items:

8in (203mm) Deep Frame Wet-Wash Sieve, Brass Frame / Stainless Steel Cloth, 8in (203mm) depth
Certificate of Conformance to ASTM E11 requirements
Back-up cloth

Accessories:

Wet Sieving Accessories with pans, tubing, brushes, gaskets and other products used to prepare specimens for wet wash sieving

Specifications

Attribute name	Attribute value
ASTM E11 Opening Size	No.270 (53µm)
Sieve Frame Diameter	8in (203mm)
Frame Height Above Cloth	8in (203mm)
Material	Brass Frame/Stainless Steel Cloth
Backing Cloth Included	Yes
Estimated Shipping Weight	4.0lb (1.81kg)
