Triaxial Test Cells for 6.0in (152.4mm) specimens operate at peak performance with the HM-350M Master Control Panel and HM-350A Auxiliary Control Panel, as well as equipment from other manufacturers. In addition to solid performance in triaxial testing of soil, these units function well in asphalt permeability testing.
The HM-519 cells have valves and fittings made of either rugged quality brass or durable stainless steel and are equipped with machined aluminum bases for heavy loading. The heavy-wall chamber, constructed of clear acrylic or aluminum, has a 9.625x18in (244.5x457mm) interior. Its polished stainless steel, precision-ground load piston features internally lubed and sealed U-cup and nylon sleeve bearings for very low friction. The test cell also features precision zero-volume change ball valves and has a maximum operating pressure of 100psi (6.9 bar) for standard models or 250psi (17.2 bar) for high-pressure models.

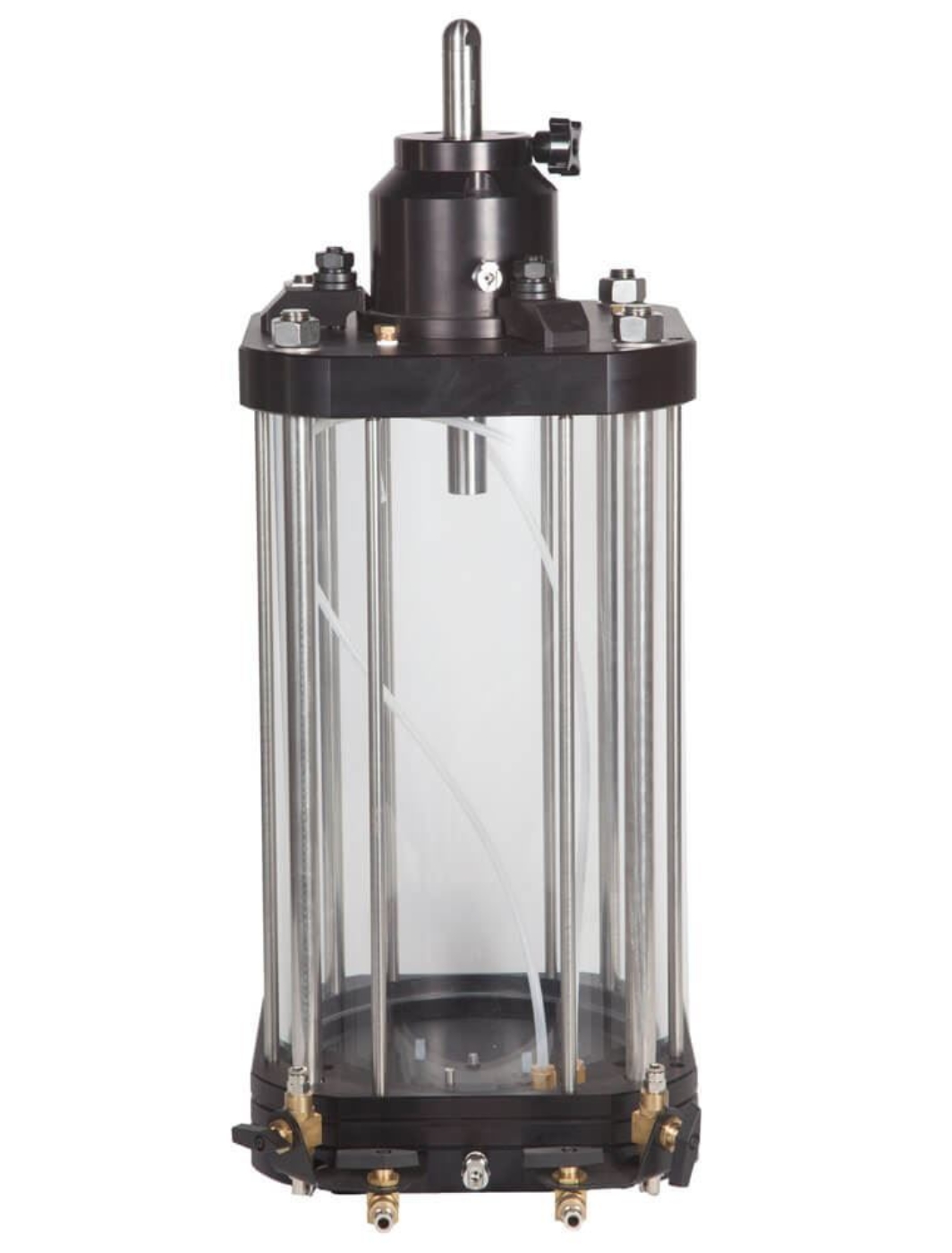

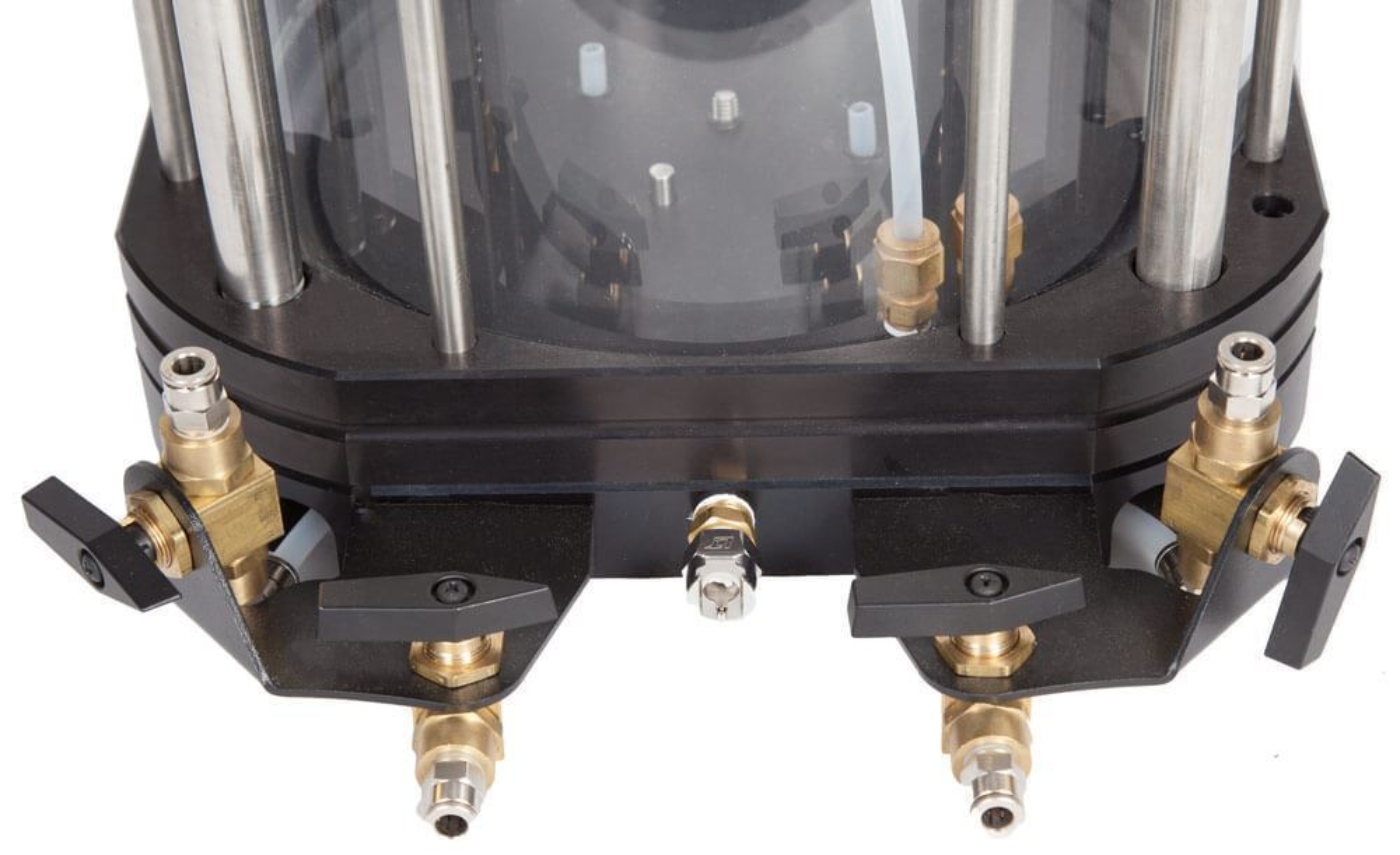

HMA-519 Triaxial Cell includes brass valves and fittings.

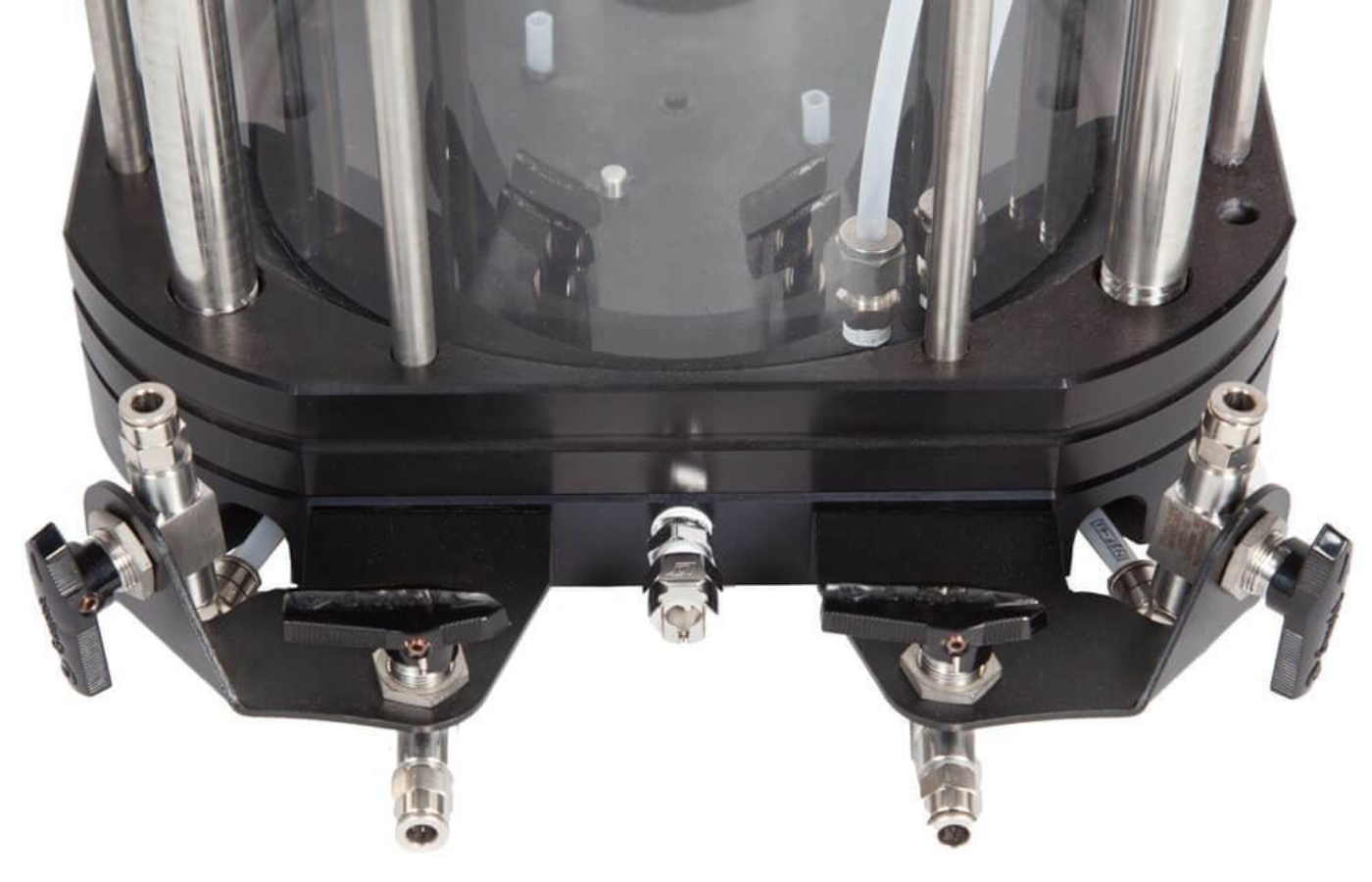

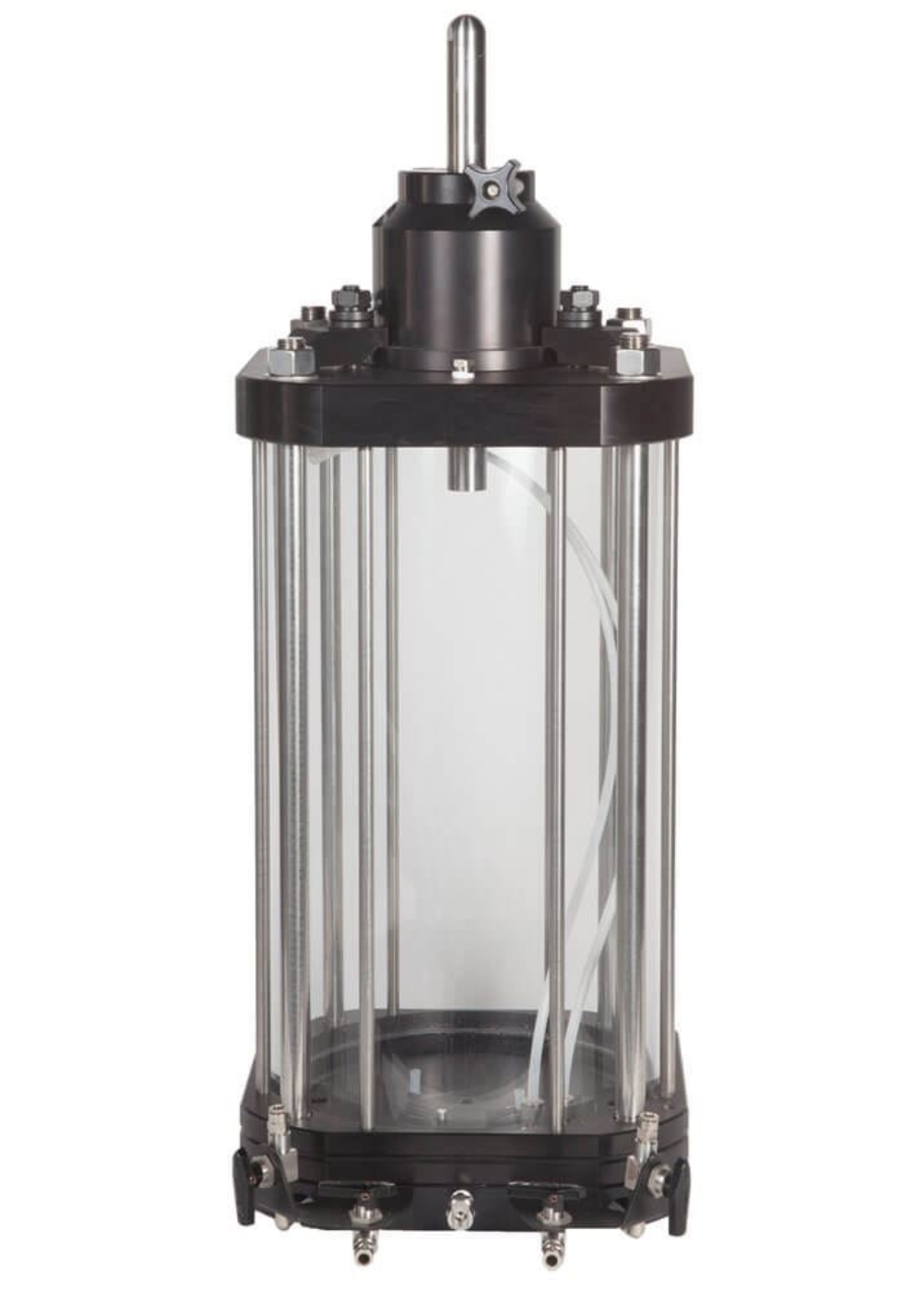

HMA-519S Triaxial Cell comes with stainless steel valves and fittings for corrosion resistance and to withstand harsh permeant fluids.

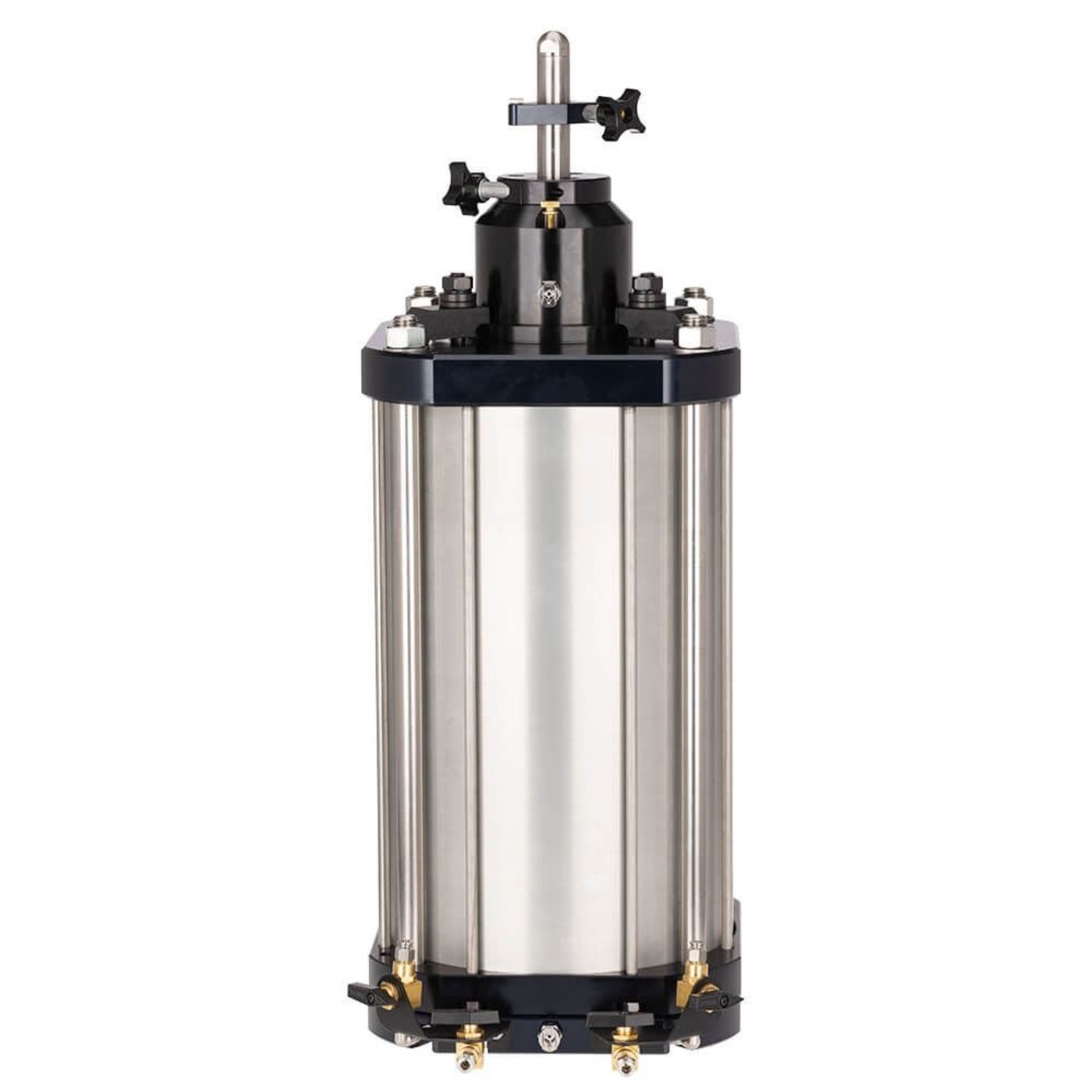

HMA-519H High-Pressure Triaxial Cell includes brass valves and fittings. The cell is reinforced for a maximum operating pressure of 250psi (17.2 bar).

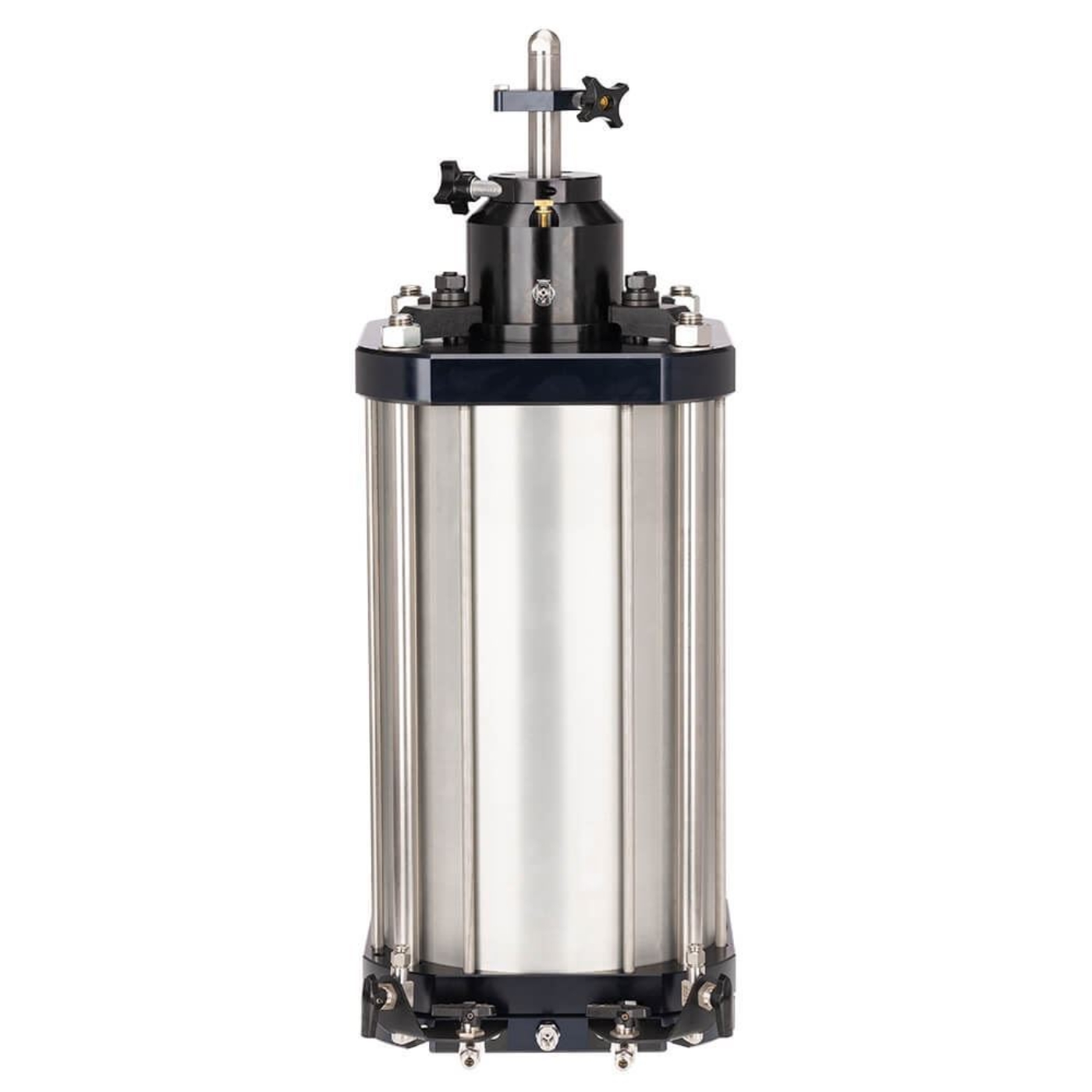

HMA-519HS High-Pressure Triaxial Cell is reinforced for a maximum operating pressure of 250psi (17.2 bar) and comes with durable and corrosion-resistant stainless steel valves and fittings.

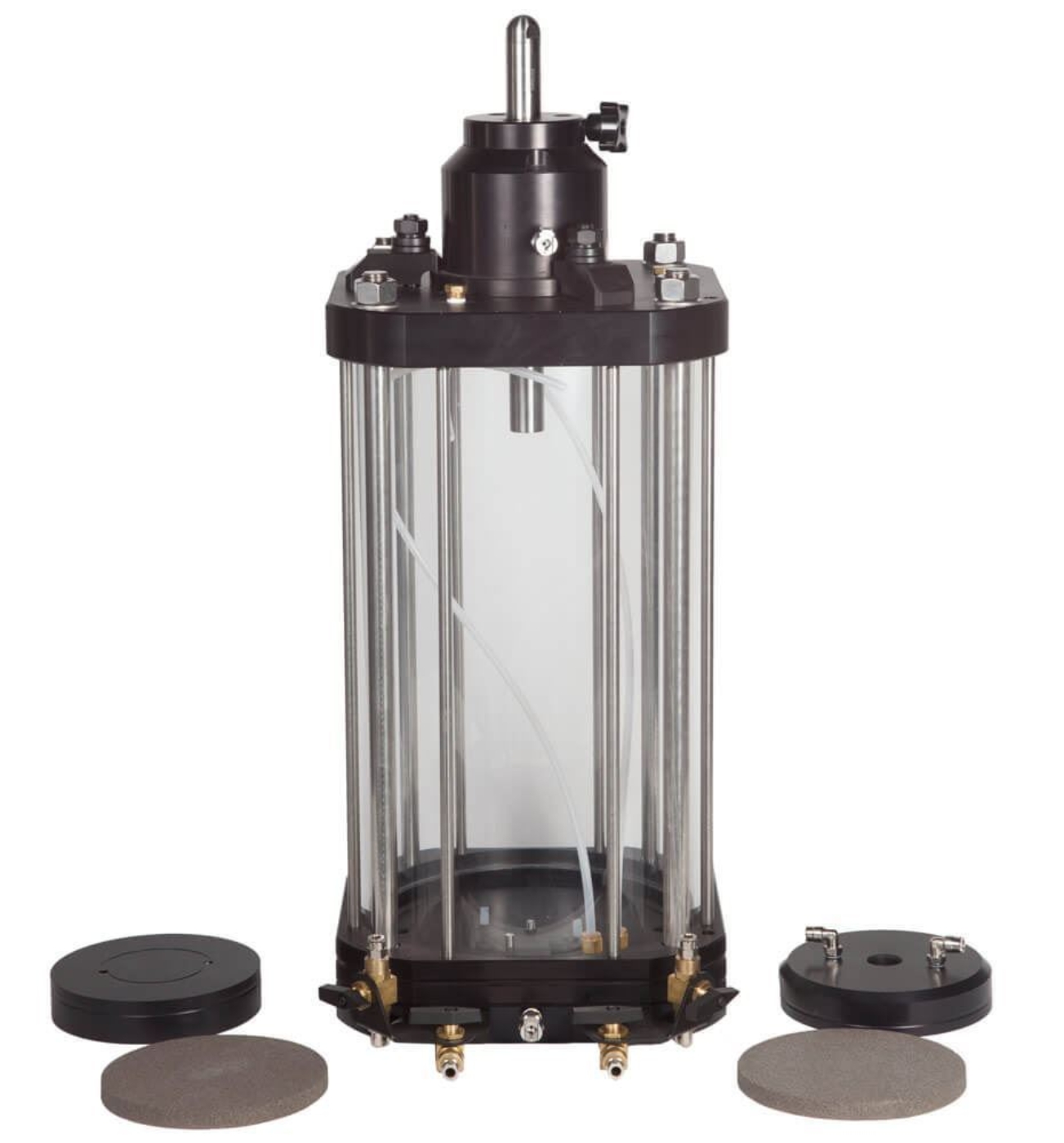

All the necessary components needed for use with HMA-519 models and testing 6in (152.4mm) specimens are contained within the HMA-586 Triaxial Test Cell Kit, which is required and available separately. Kit components correlate to sample size and include an anodized aluminum cap and pedestal, two Porous Stones, two Latex Membranes, and four O-Rings. Also recommended for use with Triaxial Test Cells and available separately is a 1.5gal Deairing Tank.
Features:
- Available with rugged brass or corrosion-resistant stainless steel valves and fittings
- Can accommodate heavy loading
- Chambers are heavy walls made of clear acrylic or aluminum
- High-pressure models are reinforced to allow increased operating pressures
Included Items:
- Standard or High-Pressure Triaxial Cell, for 6in dia. Specimens (brass or stainless steel valves)
- Dial indicator/LVDT holder
Accessories:
- HM-350A Auxiliary Control Panel allows for two additional samples to test at the same time when connected to the Master Control Panel
- HM-350M Master Control Panel regulates air and fluid pressure for a single test cell
- Deairing Tanks are available with a 1.5 or 5.0gal tank capacity and are used to remove entrapped air from water while testing
- Pore Pressure Transducer with Digital Readout is used to obtain a precise measurement of specimen pore pressure
- HMA-586A 6in Test Cell Kit with products needed for testing 6in specimens
- HMA-613 Triaxial Compression Data Acquisition Software works with the Load and Displacement Kit to record specimens and real-time test data, calculate results and then prepare reports following ASTM and AASHTO requirements.
- Triaxial Test Cell Accessories come in correlating sizes and are required for use in triaxial testing as indicated in ASTM and AASHTO standards
