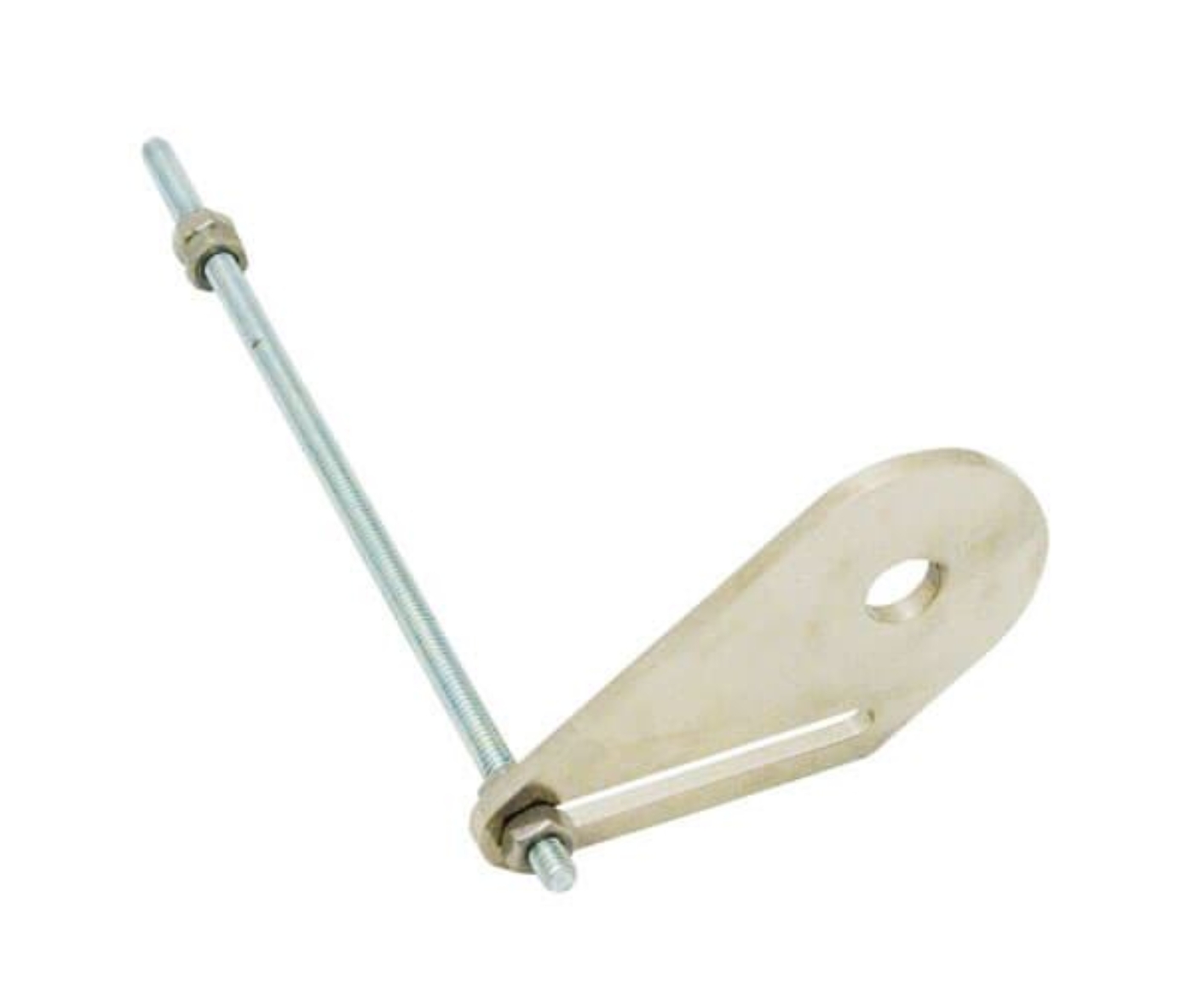

Dial Indicator/Displacement Transducer Brackets position Transducers and Digital or Mechanical Dial Indicators on Load Frames used in a range of soil and asphalt testing applications. Brackets are secured between Load Cell or Ring and load frame cross-member. Slot for threaded rod allows the adjustable positioning of instruments.
HMA-339 1/2in Dial Indicator / Displacement Transducer Bracket mounts to Load Rings and Load Cells with 1/2in (12.7mm) diameter load buttons or studs and supports Linear Variable Displacement Transducers (LVDT’s) and Dial Indicators. This bracket works with 500lbf, 1,000lbf, 1,500lbf, and 2,000lbf Load Cells, and Load Rings up to 10,000lbf.
HMA-401 3/4in Dial Indicator / Displacement Transducer Bracket mounts on Load Frames to Load Cells with 3/4in (19mm) diameter load buttons or studs and supports Linear Variable Displacement Transducers (LVDT’s) and Dial Indicators used on 5,000lbf and 10,000lbf Load Cells.
HMA-403 1-1/4in Dial Indicator / Displacement Transducer Bracket mounts on Load Frames to Load Cells with 1-1/4in (31.75mm) diameter load buttons or studs and supports Linear Variable Displacement Transducers (LVDT’s) and Dial Indicators used on 15,000lbf and 20,000lbf Load Cells.
Features:
- For use in the installation and positioning of LVDT’s and Dial Indicators
- Available as a part of different sets for Load Frames and also sold individually
Included Items:
- Dial Indicator / Displacement Transducer Bracket
