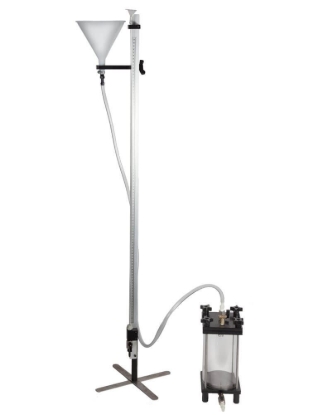

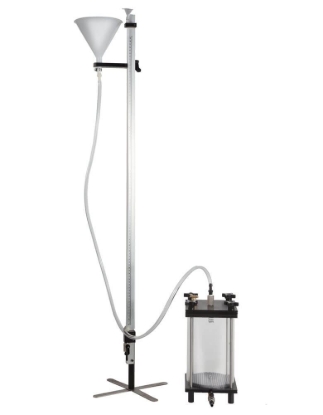

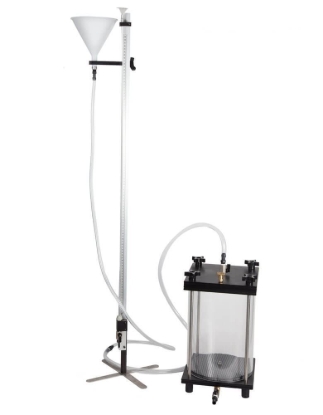

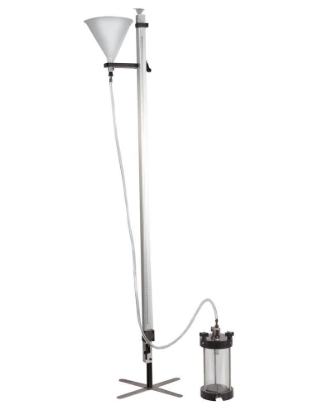

Constant/Falling Head Permeability Test Set determines the permeability of granular soil samples by either constant-head or falling-head methods. These Test Sets come in sizes ranging from 2.5–9.0in (6.3–22.8mm) in diameter to accommodate granular soil permeability testing of a wide range of particle top sizes. The unit's clear acrylic sample chamber allows for easy viewing during testing. The chambers do not have sidewall ports. The sets are more economical but do not strictly meet ASTM/AASHTO requirements.
The test sets come with a clear acrylic chamber, compression spring, and anodized aluminum end caps with valves and ports. Necessary tubing is also included. The 6.0 and 9.0in models also include perforated plates for use on top and bottom of the specimens, while smaller size sets come with two porous stones. HMA-840 Single-Tube Manometer with Constant Head Reservoir is required for use and included with the permeameter test sets.
Features:
- Clear acrylic chamber for easy viewing
- Several models accommodate a wide range of particle top sizes
Included Items:
- Constant/Falling Head Permeability Test Set
- Single-Tube Manometer w/ Constant Head Reservoir
- (2) Porous Stones (2.5–4.5in Chamber Size Only)
- (2) Perforated Plates (6–9in Chamber Size Only)
- Tubing and Fittings
Accessories:
- HMA-840 Single-Tube Manometer with Constant-Head Reservoir connects to the permeameter port and is required for use in constant head testing to measure soil permeability. It is included and can also be purchased as an additional unit
- HMA-836 Permeability Compaction Hammer has sliding weight with adjustable drop height and 2in (51mm) diameter tamping foot
- HMA-837 Constant Head Tank for flow control of water during constant head permeability testing of soils
- HMA-774 3in Filter Paper Grade 55 for use with HM-892 3in Constant/Falling Head Test Set to prevent blockage of pores
- HMA-776 6in Filter Paper Grade 55 is used with HM-894 6in Constant/Falling Head Test Set to prevent blockage of pores
