Mechanical Soil Compactor automatically counts the number of hammer blows and shuts off when a preset number is reached. The Mechanical Soil Compactor brings big improvements in functional accuracy, ease of use, reliability, and safe operation to your laboratory. The HM-530 Compactor eliminates the strenuous and repetitive manual operation of compaction hammers. Hammer blows are accurately counted and evenly distributed for each soil lift placed in the compaction mold. Automatic indexing of the turntable positions the mold for each new hammer drop. The simple and efficient chain-drive lift system employs a compensating mechanism to adjust the hammer drop for soil thickness in the mold during compaction. Hammer mass is concentrated near the bottom for better transfer of energy to the soil specimen. This unit is a safe and efficient method for processing soil density soil samples, assuring uniform compaction and accurate, repeatable test results.
The Compactor accepts HMA-110 & HMA-111 4in (102mm) ID Molds with the 5.5lb (2.5kg) hammer at a 12in (305mm) drop. The HM-530 also accommodates HMA-116 & HMA-117 6in (152mm) ID Molds using either the standard 5.5lb (2.5kg) weight with 12in (305mm) drop or the modified 10lb (4.5kg) weight with 18in (457mm) drop. The standard 2in (51mm) hammer can be replaced by one of the same 3.14in² areas but with a pie-shaped face to cover the entire sample surface within 6in molds. The hammer lift compensates the hammer drop for soil thickness in the mold during compaction. The free-fall hammer adjusts easily from 5.5–10lb by the addition of a surcharge weight.

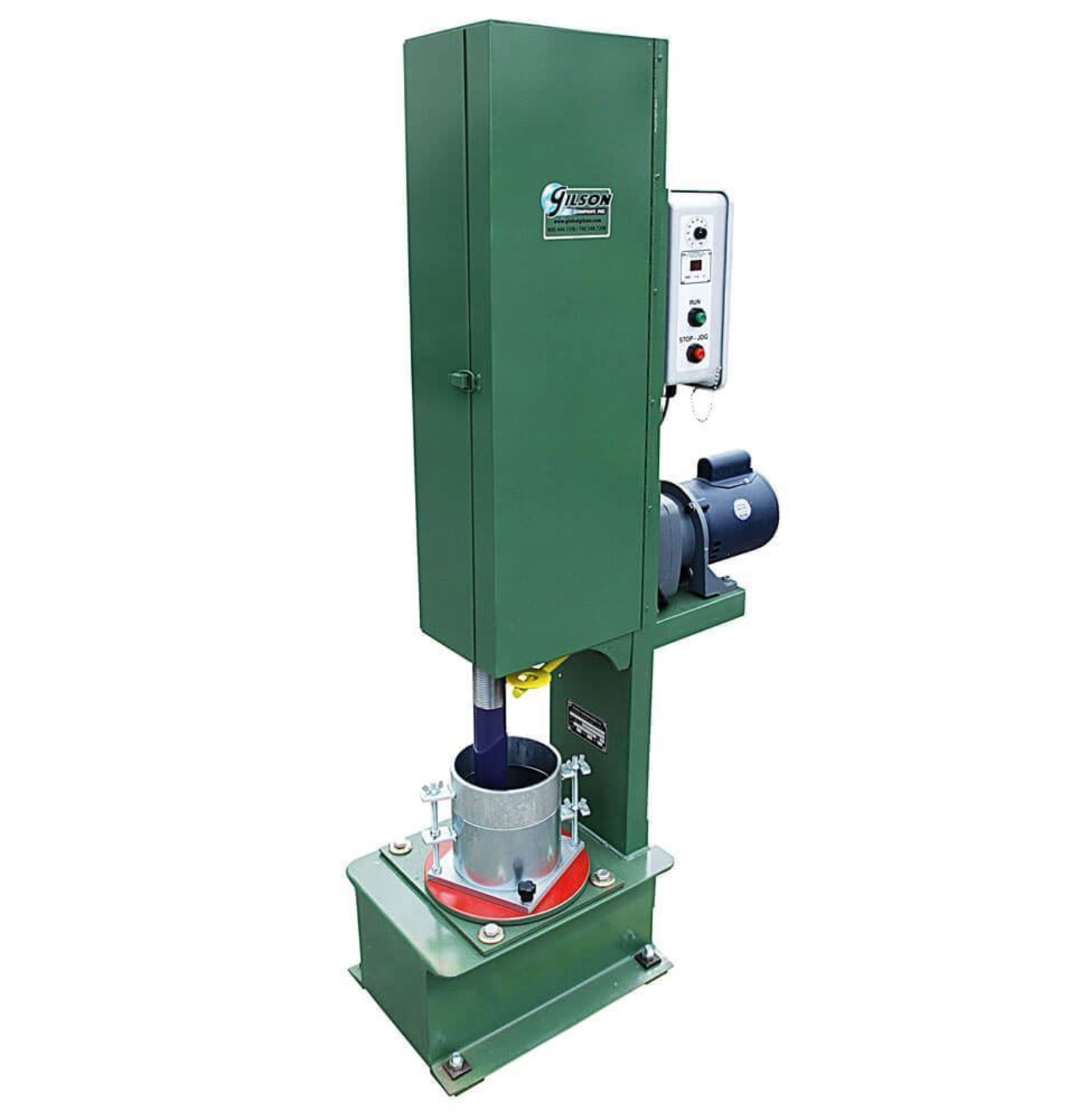

HM-530 Mechanical Soil Compactor includes a 2in (51mm) round, 5.5lb (2.5kg) hammer, a 10lb pie-faced hammer for use with 6in molds, and a surcharge weight to increase total hammer weight to 10lbs (4.5kg). 4in (102mm) and 6in (152mm) standard compaction molds and a digital automatic counter with start/stop switching are also included. The electronic safety interlock automatically shuts down operation if the door is opened.

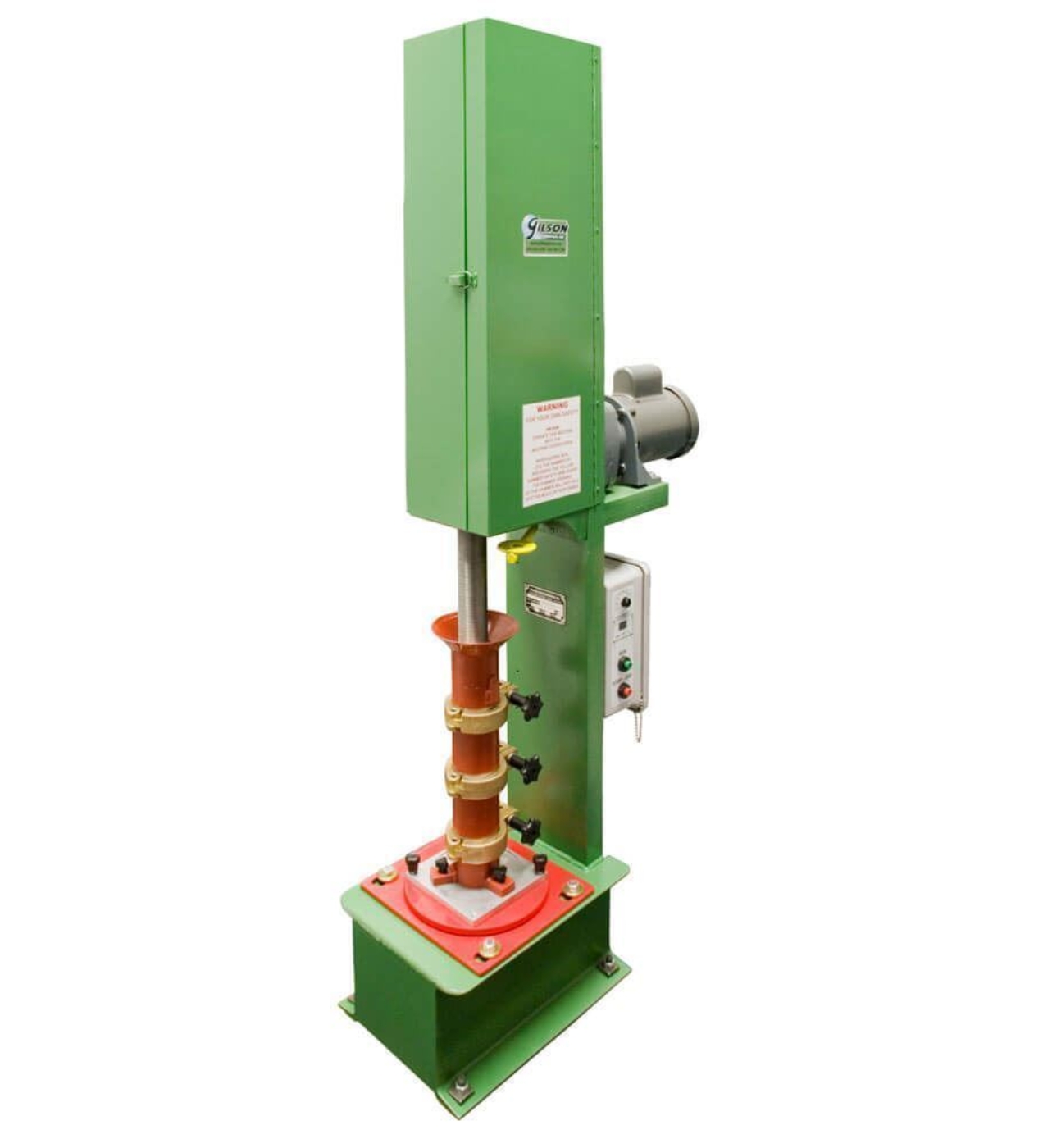

HM-531 Mechanical Soil Compactor for California Method 216 is similar to HM-530 but is supplied with a 2in (51mm) round 10lb hammer, required piston, and rod. HMA-119 Relative Soil Compaction Mold for California Method 216 is 2.875x16in (73x406mm), IDxH, and is available to order separately.
Features:
- Improves accuracy, ease of use, reliability, and safe operation
- Eliminates strenuous and repetitive manual operation of compaction hammers
- Uses 4in (102mm) or 6in (152mm) molds
Included Items:
- Mechanical Soil Compactor (115V, 60Hz or 230V, 50Hz)
- 5.5lb Hammer
- 10lb Hammer
- Surcharge Weight
- 4 and 6in Molds
- Digital Automatic Counter
- Mechanical Soil Compactor for California Method 216 (115V, 60Hz or 230V, 50Hz)
- 10lb Hammer
Accessories:
- 4in Soil Density Mold Sets for compacting soil samples
- 6in Soil Density Mold Sets for compacting soil samples

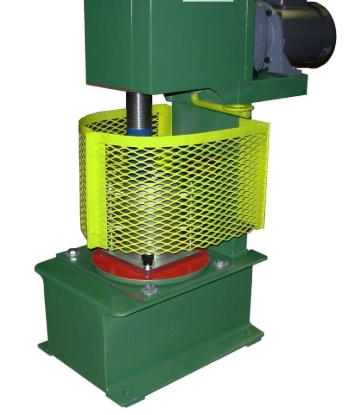

- Mold Safety Cage adds protection from rotating mold assembly for HM-530 models only; HMA-411 must be factory installed at the time of order
- HMA-135 Stainless Steel Straight Edges for trimming and leveling specimens

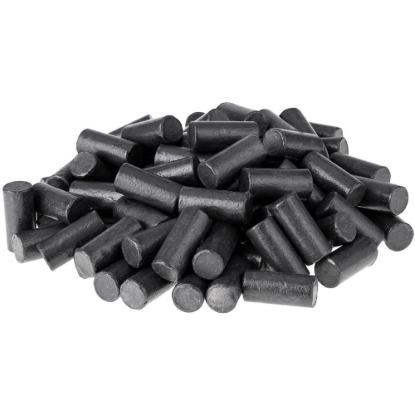

- HMA-121 Mechanical Compactor Calibration Cylinders are lead cylinders available as replacement cylinders for calibration
- HMA-120 Mechanical Soil Compactor Calibration Kit is ordered separately and required to fully comply with ASTM D2168 Method B requirements and includes lead deformation apparatus, a micrometer, and fifty lead cylinders.

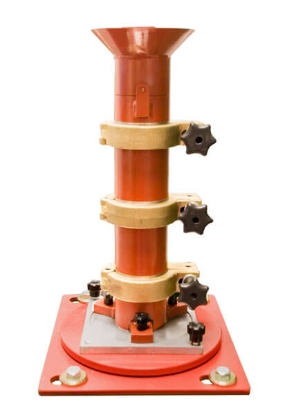

- HMA-119 Relative Soil Compaction Mold used for soil compaction test for California Method 216
