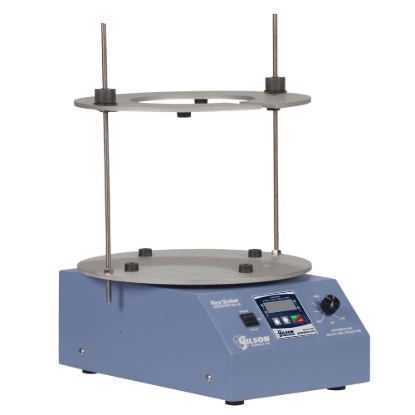

Gilson Rice Shaker performs consistent, automatic agitation of vacuum pycnometers for the asphalt Rice test, freeing up lab technicians for other duties. It is also a useful deairing agitator for specific gravity tests of fine aggregates (ASTM C128) and soils (ASTM D854), as well as sample preconditioning per ASTM D4867 and AASHTO T 283.
The Gilson Rice Shaker features a built-in timer that measures up to 99min, 59sec with ±1 second accuracy. The mounted front control panel features a vibration speed controller and a three-position switch for manual or timed operation for easy use. Variable speed settings closely control agitation to avoid stripping of asphalt. The painted steel case has nonslip rubber feet, so no mounting is required.
Gilson's exclusive EZ-Clamp System quickly secures pycnometers or flasks to the machine. The clamping system is easy to use; push the buttons, slide into place, and secure the container with a quick twist of the knobs. SGA-12 EZ-Clamp Upgrade Kit is also available to retrofit older Gilson Rice Shakers to the EZ-Clamp system. SGA-11 Alternate Clamping System is available separately.

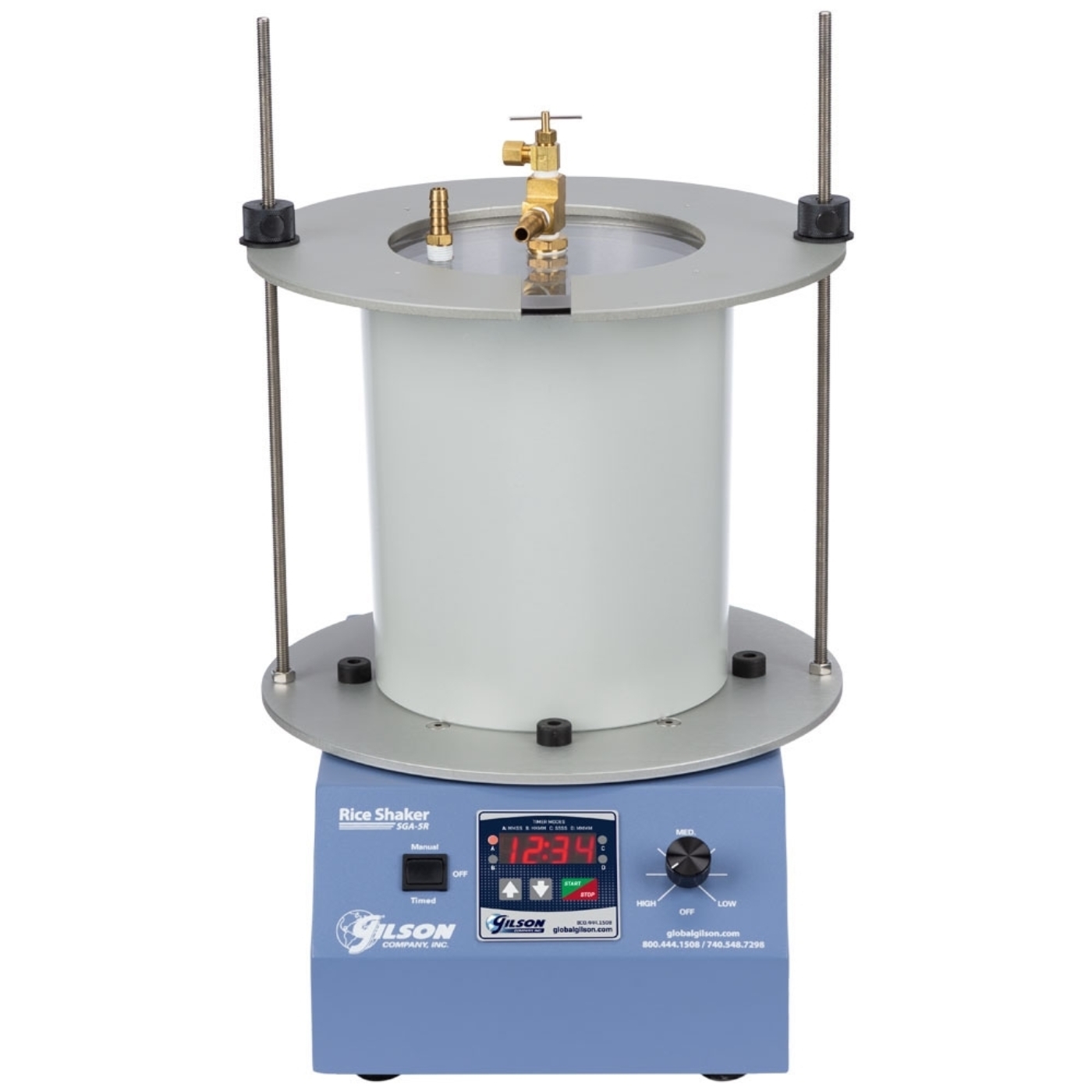

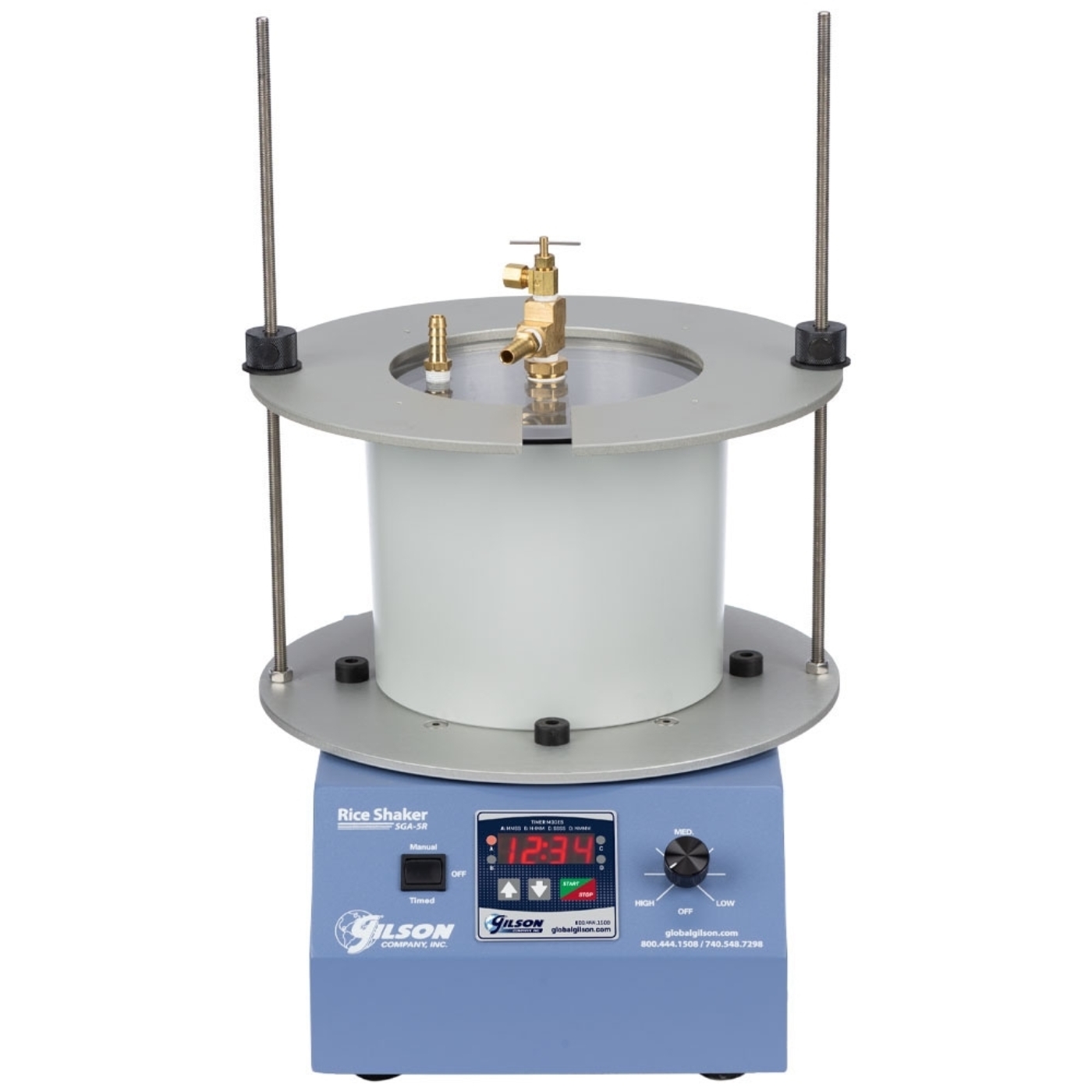

The SGA-5R includes fitted top and bottom plates for an exact fit with SG-16A or SG-18A Aluminum Pycnometers. Adapter Sets can be purchased separately for use with other pycnometers or Filter, Volumetric, or Le Chatelier Flasks.
A Digital Residual Pressure Manometer can be purchased separately for precise measurement of the applied vacuum during testing. The NIST-certified model is also available.
The SGA-5RT version has modified vibration characteristics to meet Texas DOT requirements, such as TXDOT TEX-227-F.

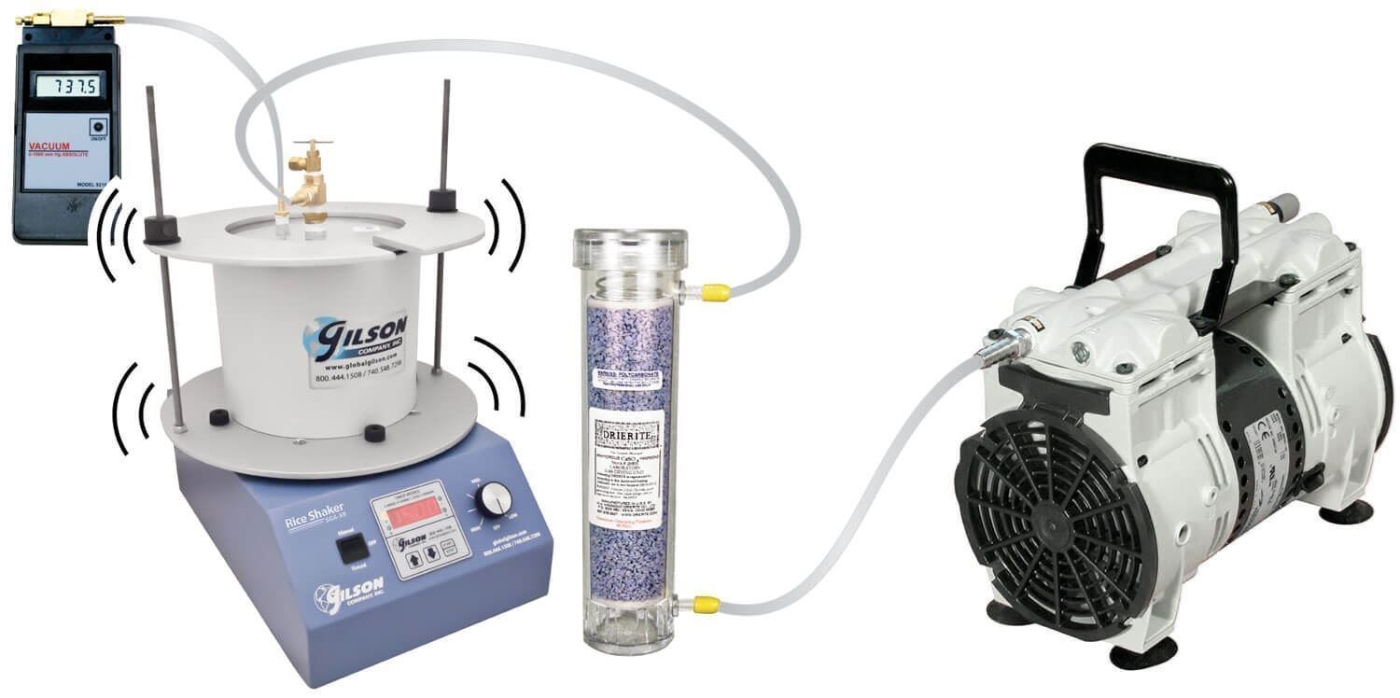

For information regarding proper set-up for the Rice Test, read our blog post, Specific Gravity of Asphalt: What Equipment Do I Need?
Features:
- Repeatable agitation for asphalt rice test and other specific gravity determinations
- Variable vibration control allows for setting optimum agitation
- Automatic operation eliminates manual agitation and operator error
Included Items:
- Gilson Rice Shaker for Specific Gravity & Asphalt Rice Test
- Fitted top and bottom Adapter Plates
Accessories:

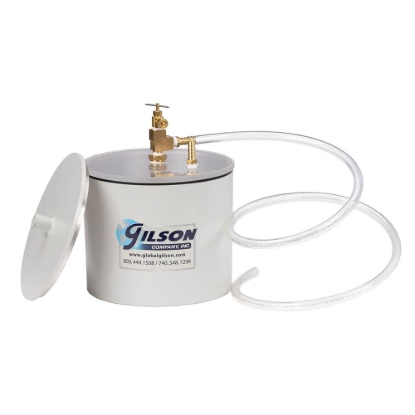

- 2,000g/4,000g Pycnometers for asphalt specific gravity measurements of bituminous mixtures and meets ASTM D2041/AASHTO T 209 standards

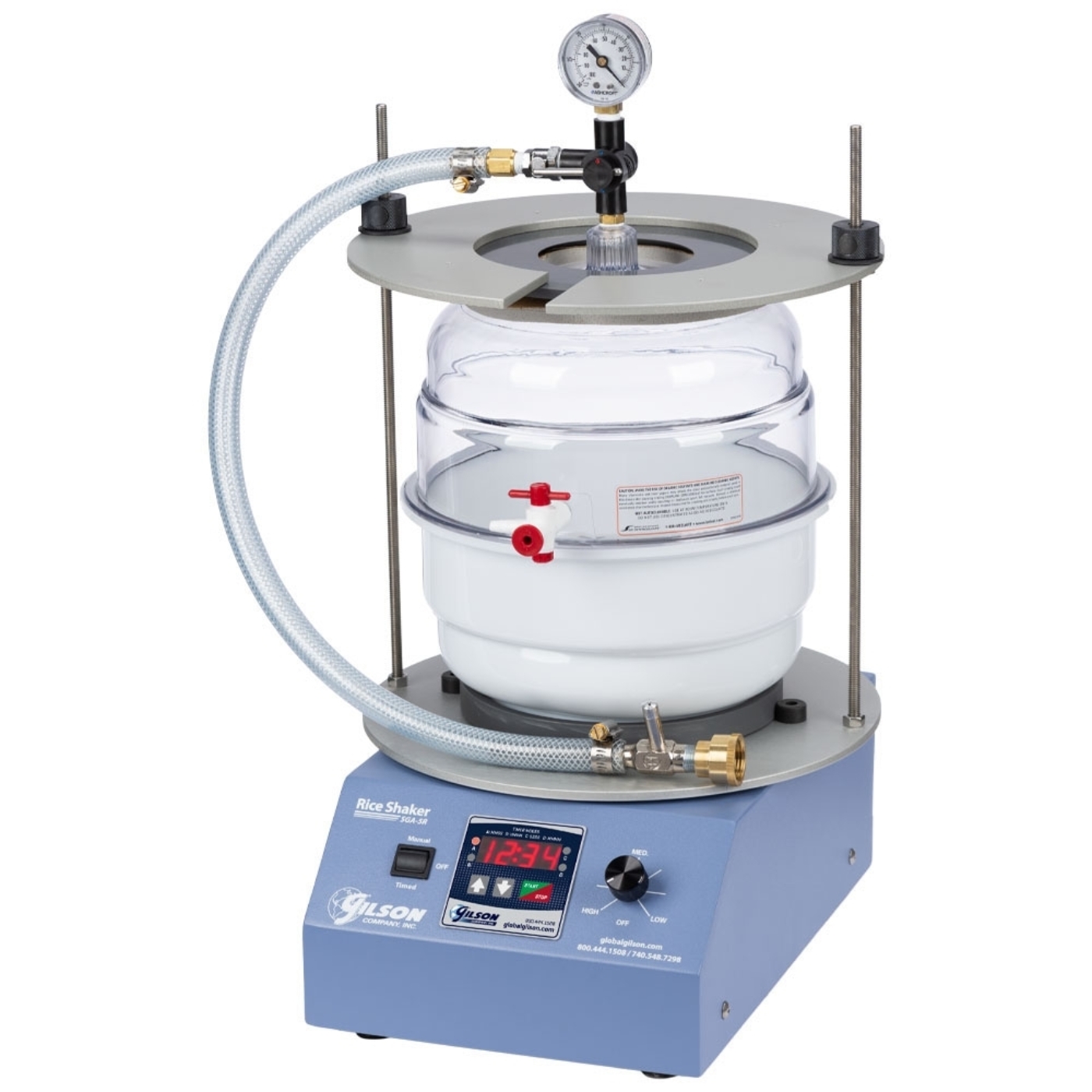

- SG-15 6,000g Pycnometer is suited for mixes with aggregates up to 2in (51mm); meets ASTM D2041/AASHTO T 209 standards

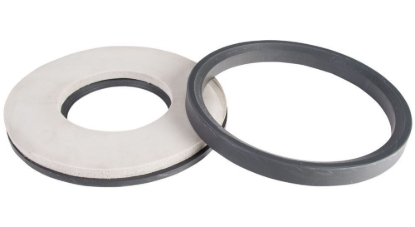

- SGA-7 Adapter Set for 6,000g Vacuum Pycnometer required for use with SG-15 Pycnometer when using the Gilson Rice Shaker
- Filter Flasks are heavy-walled and often used as Pycnometers for weighing in the air only. ASTM and AASHTO-compliant
- SG-24 Le Chatelier Flask for specific gravity determinations of hydraulic cement and other fine materials

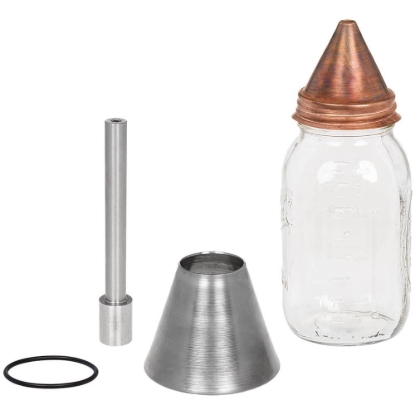

- Jar and Top for Specific Gravity & Absorption of Fine Aggregate (Mason Jar Pycnometer) used in calculating volume occupied by fine aggregates in various mixtures

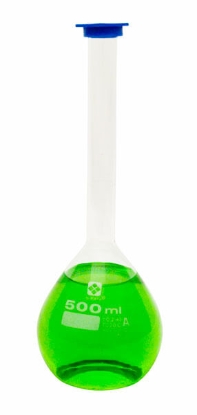

- SG-500 Volumetric Flask is optimal for specific gravity testing of soils and aggregates

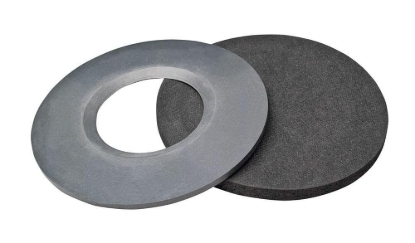

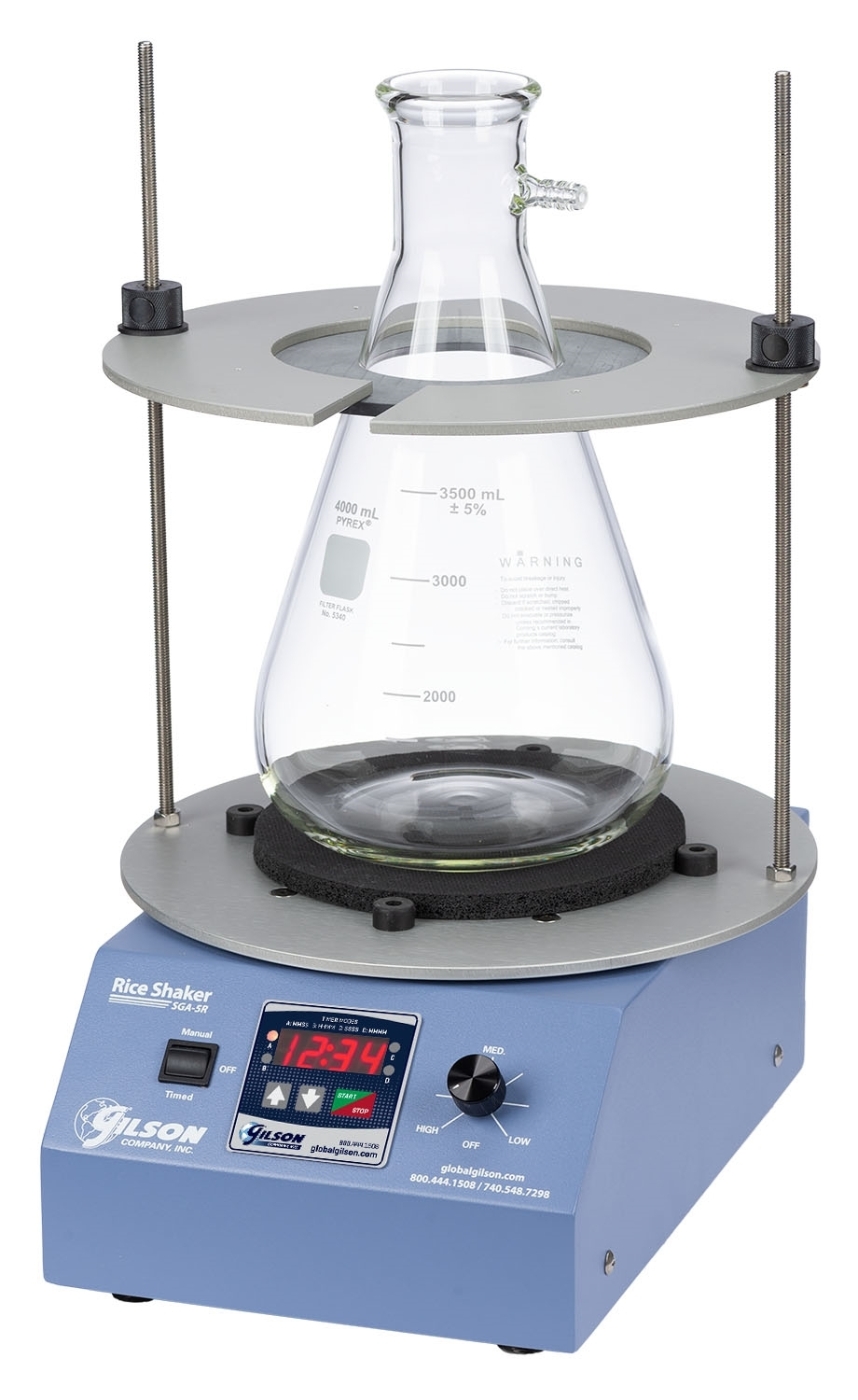

- SGA-8 Flask Adapter Set required when running tests using the Flasks and Mason Jar Pycnometer (SG-2) listed
- Digital Residual Pressure Manometer measures applied vacuum during testing, NIST Certified models available
- SG-35 AutoRice™ Digital Manometer and Controller System allows precise control of vacuum pressure

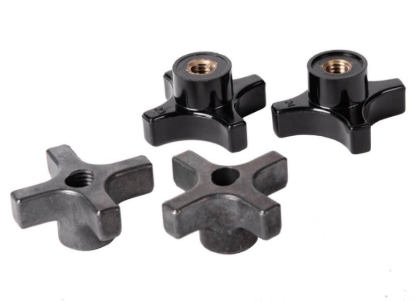

- SGA-11 Alternate Clamping System is an alternative to the EZ-Clamp System

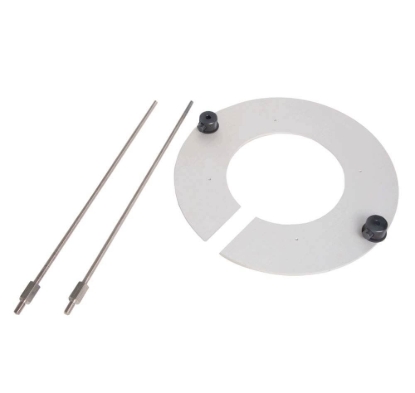

- SGA-12 EZ-Clamp Upgrade Kit retrofits older Gilson Rice Shakers to the EZ-Clamp system
- Clear Vinyl Tubing for use with pycnometers, available in 1/4 or 3/8in
- MA-198 Hose Clamp adjustable to regulate flow through vinyl tubing
- TR-502 Step-Up/Step-Down Transformer order the 500W capacity to run Gilson Rice Shaker on 230V/60Hz
