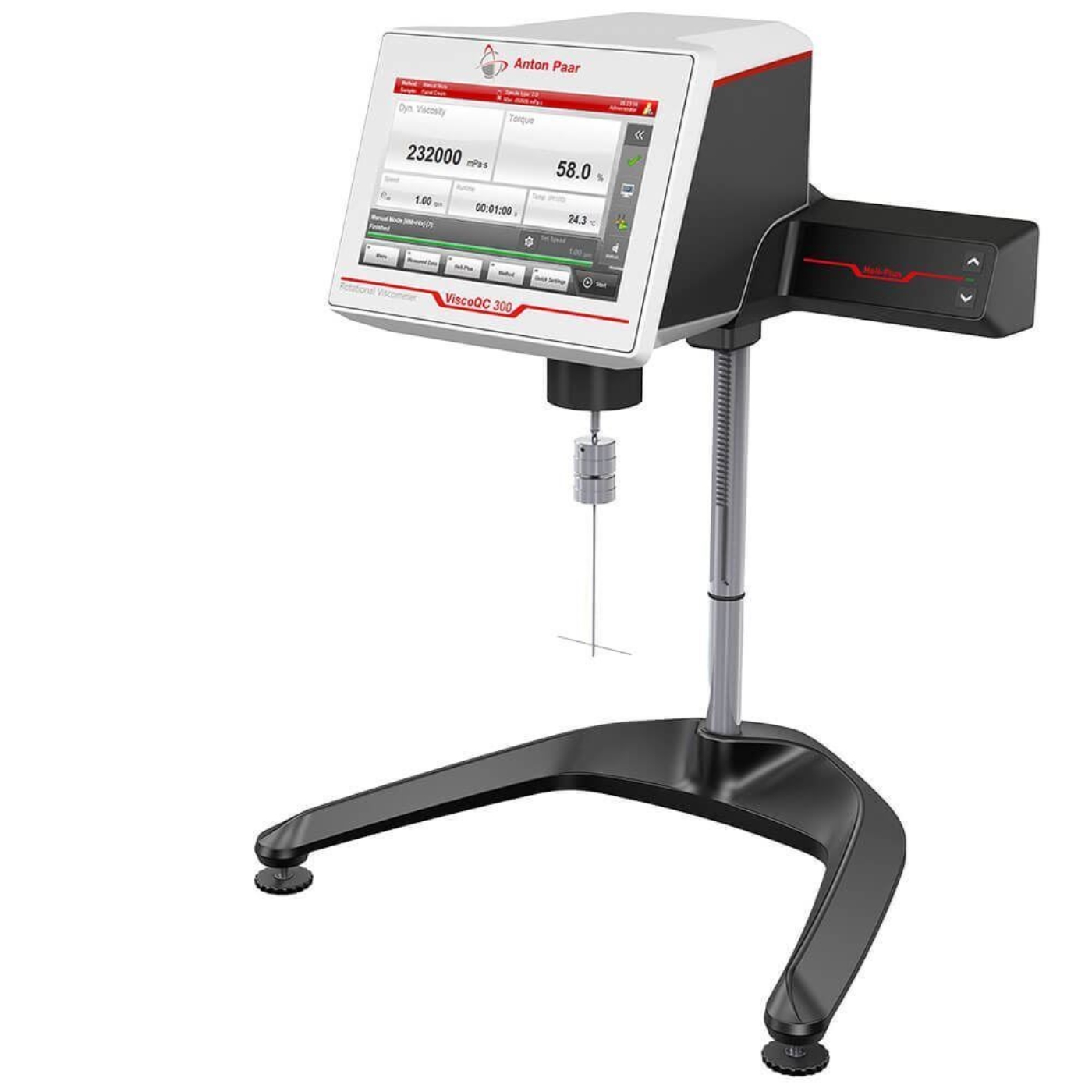

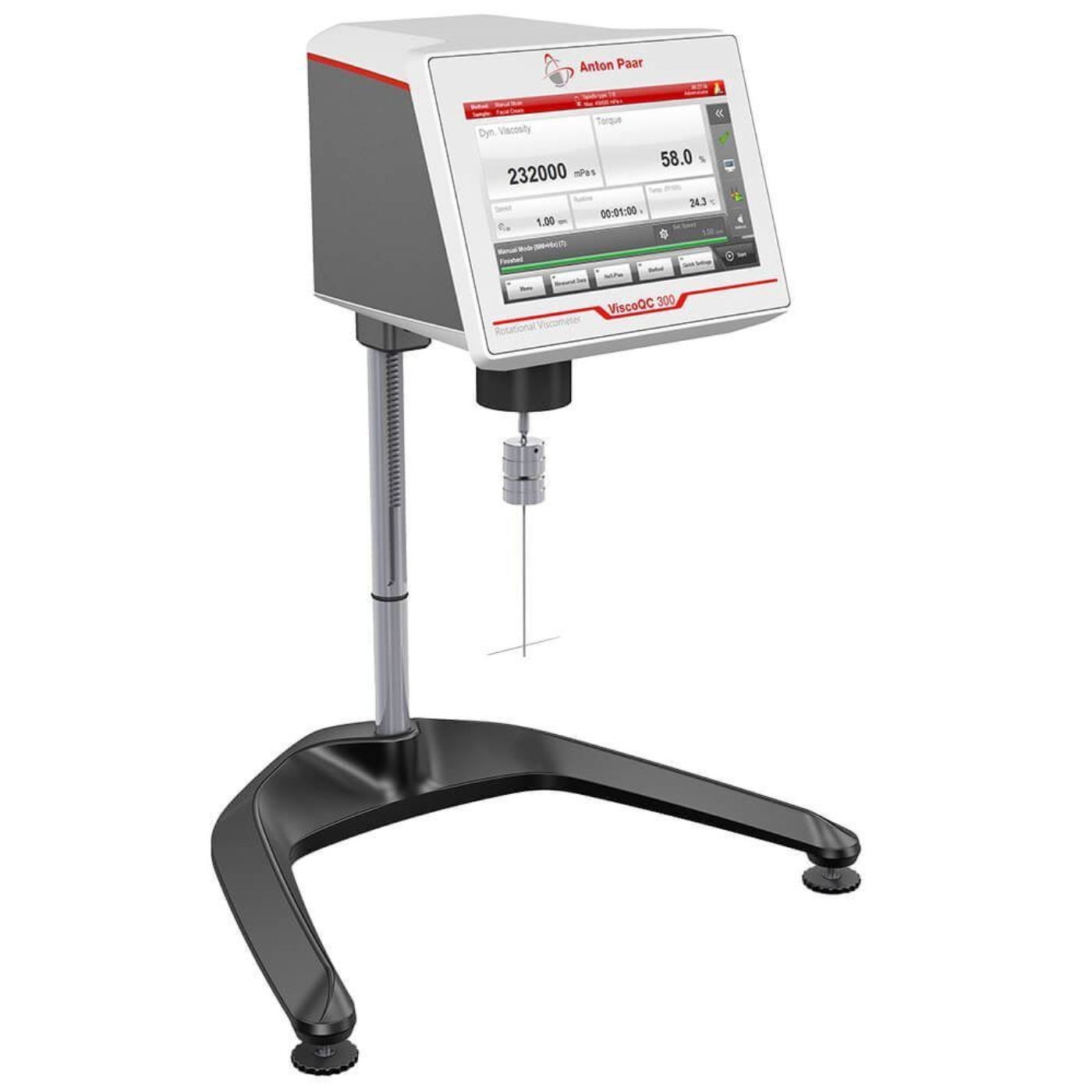

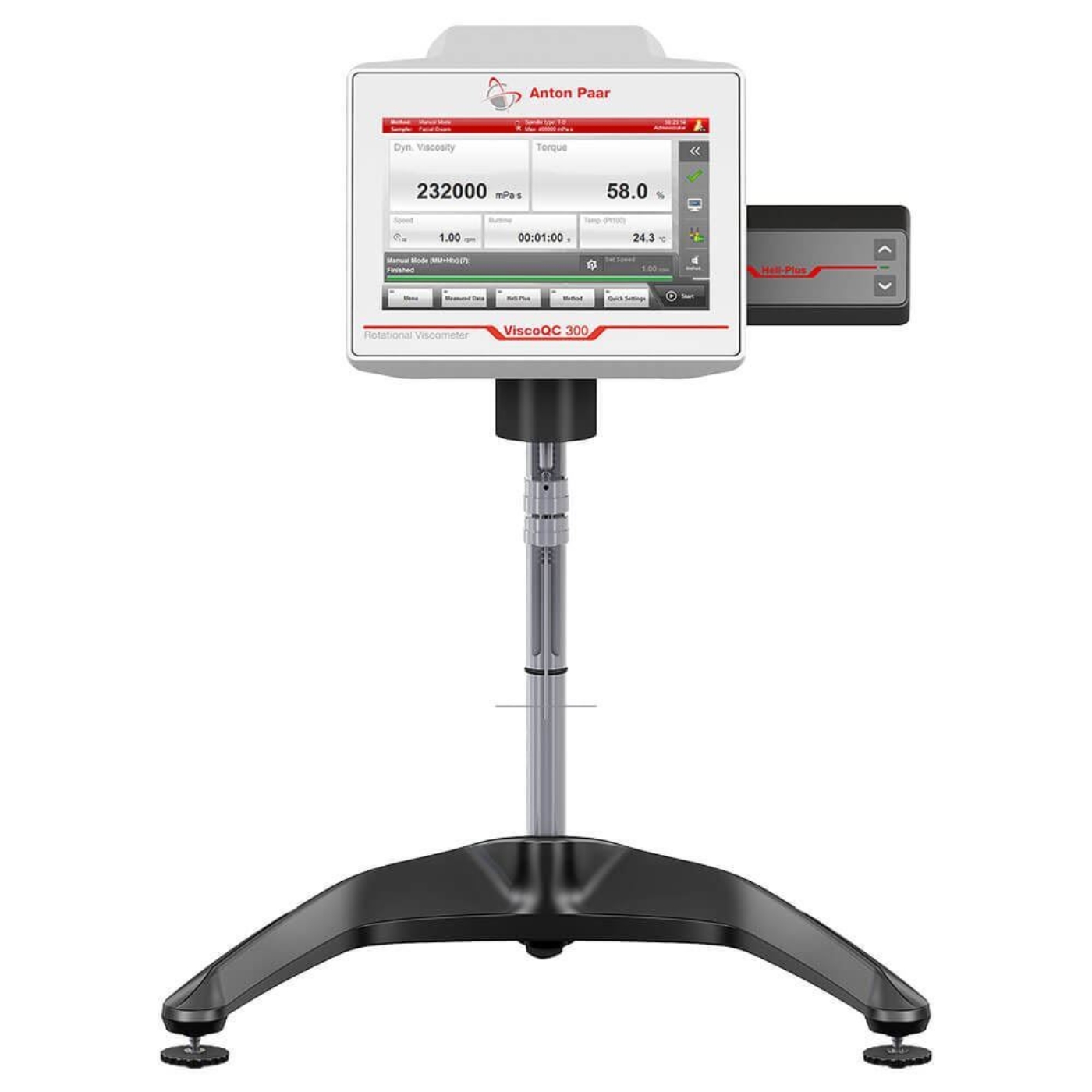

The ViscoQC 300 R Rotational Viscometer by Anton Paar provides rapid, reproducible, high-temperature viscosity measurements, ideal for characterizing asphalt binders. This helps in developing temperature/viscosity relationships that estimate optimal mixing and compaction temperatures for paving mixes.
The viscometer performs multi-point viscosity measurements from 100 to 40 million cP or mPa.s with an accuracy of ±1% and repeatability of ±0.2%. The rotational speed range is fully selectable from 0.01 to 250rpm, and the user can select speed- or shear-rate-controlled tests based on their specific requirements.
All measurement data, as well as programming functions, are displayed on the 7in full-color touchscreen in an intuitive user interface. As many as 999 tests with up to 10,000 data points are stored in memory. The instrument integrates into network Laboratory Information Management System (LIMS) or FTP Servers. V-Collect PC data collection software is included and allows printing or exporting to a computer.
LP-84 meets the requirements of ASTM D4402/AASHTO T 316 for rotational viscometer testing of asphalt when equipped with selected accessories:
- LP-82R, Electronic Temperature Device
- LP-88, V-Curve Software Module
- SC4 spindle
Other accessories enhance the versatility and convenience of the viscometer.
Features
- Wide viscosity range: 100 to 40 million cP or mPa/s
- Easy operation with minimal training
- All data and programming functions are displayed on the 7in color touchscreen
- Memory for 999 tests with 10,000 data points
- V-Collect PC software for data export and direct printing of test results
Included Items
- Anton Paar Rotational Viscometer, ViscoQC 300 R
Accessories

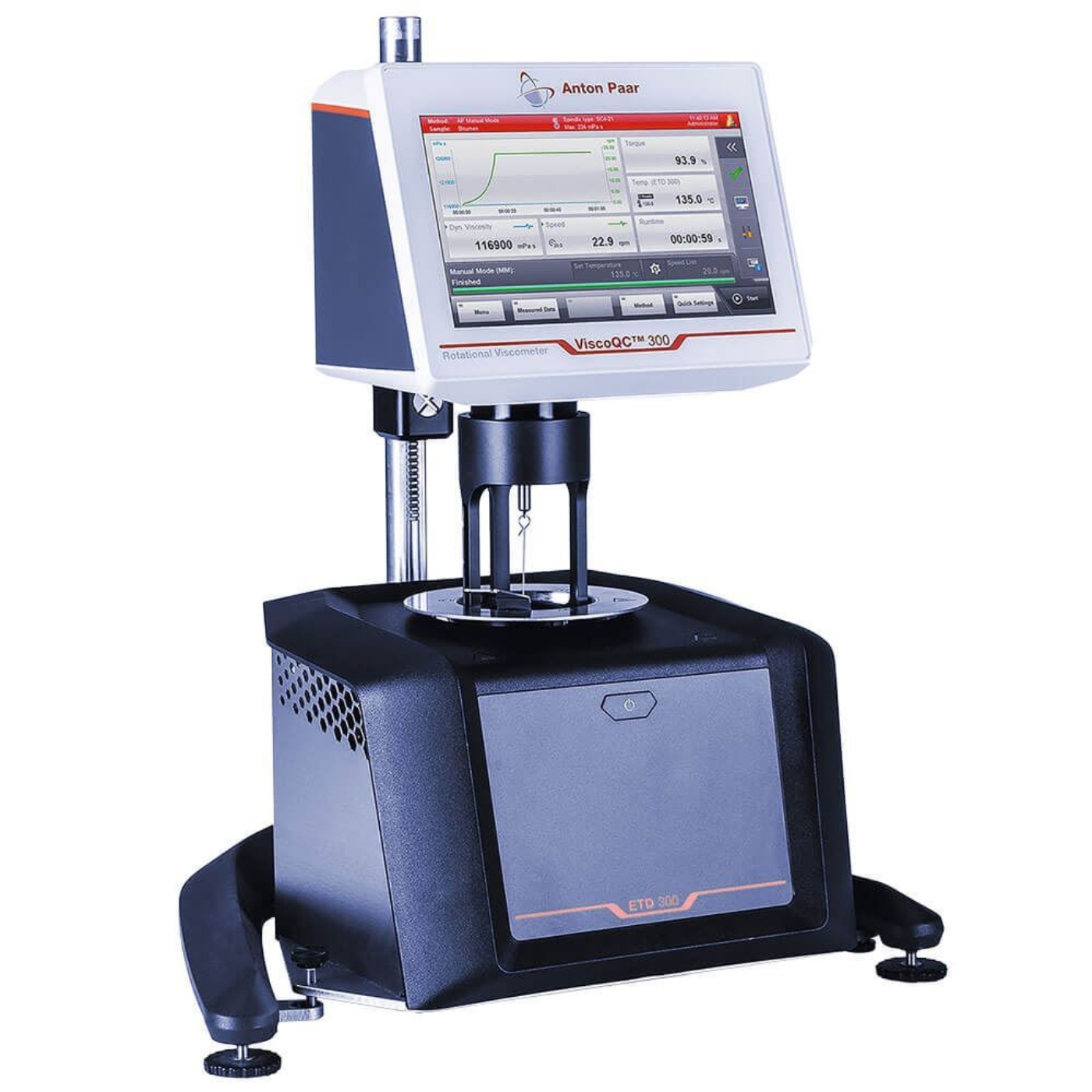

- Electronic Temperature Device (ETD) regulates specimen temperature for asphalt bitumen specimens.

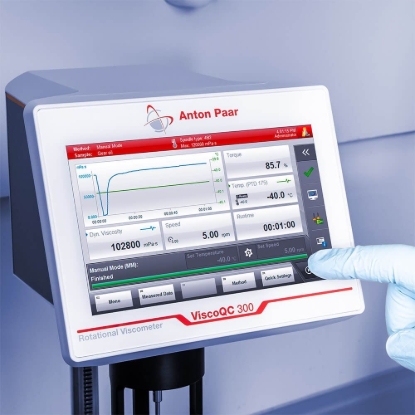

- V-Curve Software Module adds live real-time graphing, mathematical modeling for data analysis and functionality with the Electronic Temperature Device.

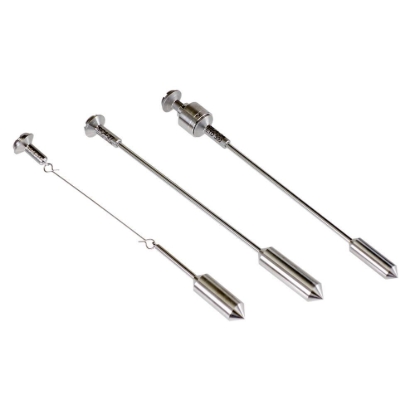

- Reusable Spindles and Measuring Chamber SC4-21, SC4-27, SC4-28, and SC-29 are used for viscosity measurements. Spindles and Chambers purchased separately.

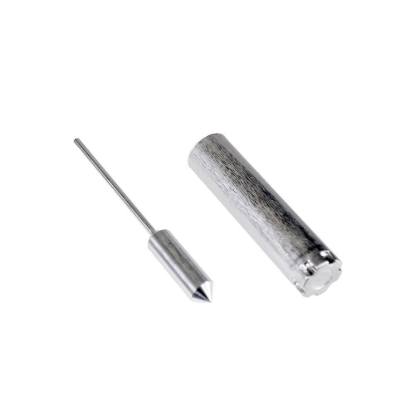

- Disposable Spindle and Measuring Chamber SC4-27 are used for viscosity measurements and eliminates cleaning. Spindles and Chambers purchased separately.

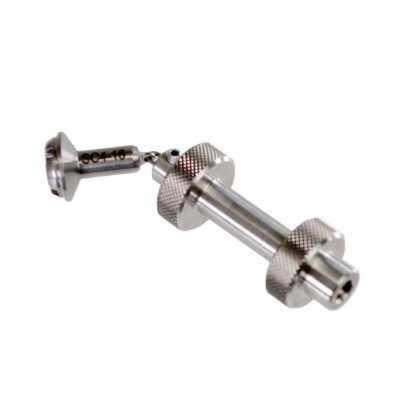

- Spindle Mount is required for use with the Disposable Spindle and Disposable Measuring Chamber.
